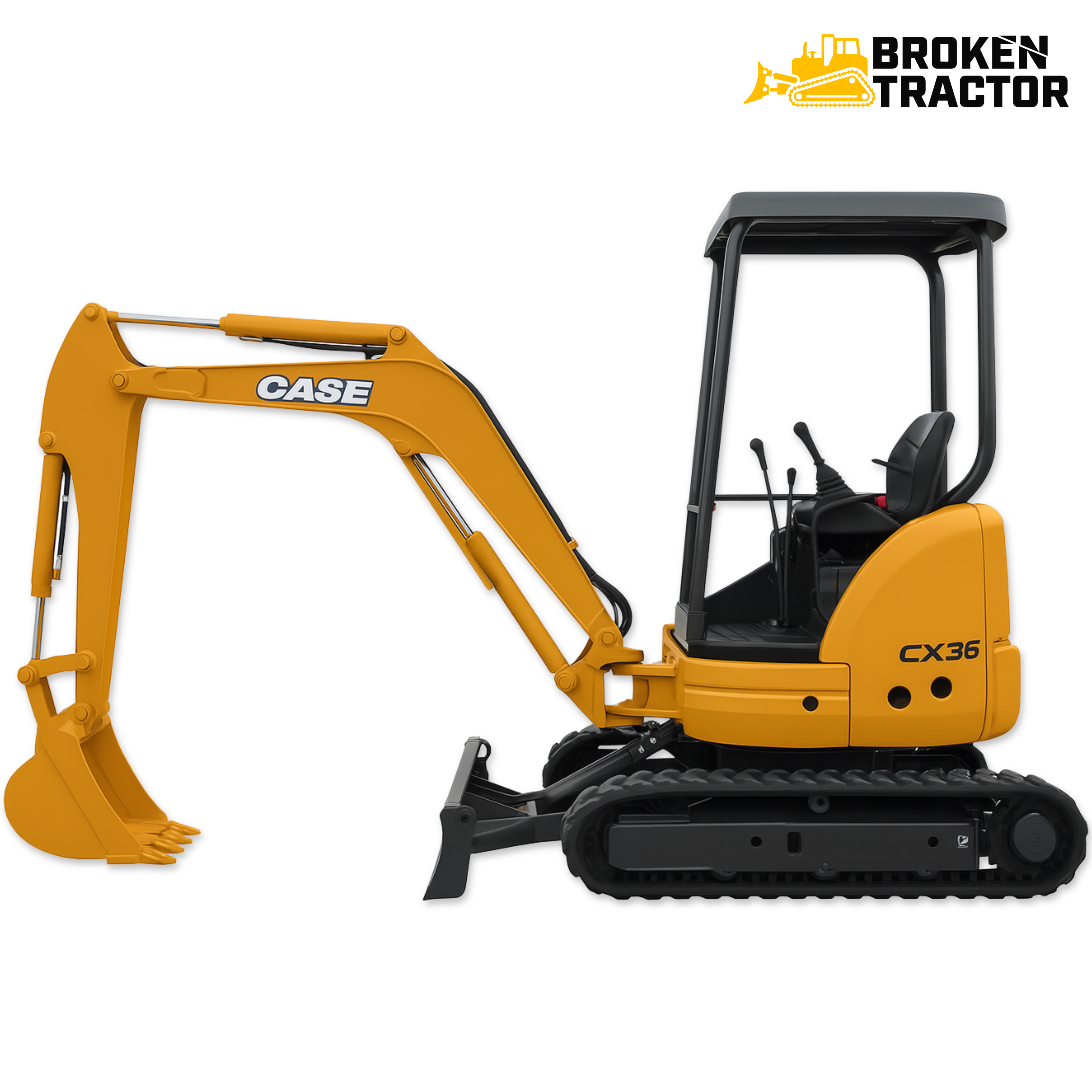

Case CX36 Mini Excavator: Original 3.6-Ton Compact Mini
The Case CX36 is a 3.6-ton class compact mini excavator built for utility, landscape, and contractor work in tight quarters. As the foundation of the CX36/CX36B line, it pairs a Tier 4 Final compact diesel with a hydrostatic dual-path drive and rubber-track undercarriage for residential and light commercial duty.
Where the CX36 fits in the Case excavator line
The CX36 is a 3.6-ton class compact mini excavator and the foundation of the CX36/CX36B family. It is sized for utility, landscape, and contractor jobs where a larger machine simply won’t fit - residential digging, irrigation, plumbing, and tight-quarters trenching. The rubber-track undercarriage gives the machine flotation on finished turf while the compact tail swing lets the operator work close to walls and fences.
Case CX36 Mini Excavator - Quick Specs
- Class
- 3.6-Ton Mini Excavator
- Generation
- Original
- Engine
- Tier 4 Final Compact Diesel
- Aftertreatment
- DPF + SCR (DEF)
- Drivetrain
- Hydrostatic Dual-Path
- Undercarriage
- Rubber Track
- Serial Plate
- RH lower cab frame, below windshield
- Successor
- Case CX36B Mini Excavator
Engine, hydraulics, and drivetrain
The CX36 runs a compact Tier 4 Final diesel with common-rail fuel injection into a hydrostatic dual-path drivetrain riding on a rubber-track undercarriage. Boom, dipper, bucket, swing, and propel functions run from the main hydraulic pump with electrohydraulic or mechanical pilot control depending on configuration.
Tier 4 Final compliance adds a diesel particulate filter (DPF) with periodic regeneration and selective catalytic reduction (SCR) with diesel exhaust fluid (DEF) dosing. An EGR cooler handles in-cylinder NOx control. The aftertreatment system requires clean fuel, quality DEF, and attention to regen requests to stay out of derate.
Common service items on the CX36
- Engine internals: Compact Tier 4 Final diesel pistons, rings, sleeves, head gaskets, common-rail injection components.
- Tier 4 Final aftertreatment: DPF service and regeneration, DEF tank and dosing module, SCR catalyst, EGR cooler.
- Fuel system: Common-rail injectors, lift pump, primary and secondary filters with tight water-separator standards.
- Cooling system: Radiator, water pump, thermostat, fan, charge-air cooler (on turbo builds), hoses, belts.
- Hydraulic system: Boom / dipper / bucket / swing cylinder seal kits, main pump rebuild, electrohydraulic control valves, hoses.
- Boom and dipper: Pins and bushings at every joint, bucket pins, thumb attachment hardware, quick-coupler service.
- Undercarriage: Rubber tracks, rollers, idlers, drive sprockets, recoil springs.
- Swing system: Swing motor and reduction gear, swing bearing, swing brake.
- Electrical / ECU: Engine ECU, instrument cluster, sensors, harness, telematics module on equipped units.
- Cab glass and wiper: Cab glass and wiper service parts - KHN16820 24-inch wiper blade, KHN3046 front lower glass, and KHN2632 front upper glass cross-fit across Case and Link-Belt excavators.
- Operator station: Seat, joystick controls, pedal linkage, instrument panel, cab HVAC.
Parts we carry for the Case CX36
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Tier 4 Final diesel internals, gaskets, seals | Browse Engine |
| Aftertreatment | DPF, DEF dosing, SCR catalyst, EGR components | Browse Aftertreatment |
| Fuel System | Common-rail injectors, lift pump, filters | Browse Fuel System |
| Cooling | Radiator, water pump, charge-air cooler, hoses | Browse Cooling |
| Hydraulics | Main pump, swing motor, cylinders, seal kits, valves | Browse Hydraulics |
| Boom / Dipper | Pins, bushings, bucket and quick-coupler hardware | Browse Boom / Dipper |
| Undercarriage | Rubber tracks, rollers, idlers, sprockets, recoil springs | Browse Undercarriage |
| Swing | Swing motor, reduction gear, swing bearing | Browse Swing |
| Cab Glass / Wiper | KHN16820 wiper, KHN3046 lower glass, KHN2632 upper glass | Browse Cab Glass |
| Electrical / ECU | ECU, sensors, harness, instrument cluster | Browse Electrical |
| Operator Station | Seat, joysticks, pedal linkage, gauges | Browse Operator Station |
Need a part for your Case CX36 Mini Excavator?
Aftertreatment components, common-rail fuel system parts, and hydraulic pump/motor assemblies are the highest-value items on a CX36. Call our parts team with your serial number.
Request a PartWhat to verify before ordering
- Machine serial number. Confirm the CX36 serial before ordering year-specific parts. Aftertreatment and ECU revisions vary across the production run.
- Engine serial. Engine internal parts must match the engine serial number.
- Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension - measure before ordering.
- Tier 4 emissions revision. DPF, DEF, and SCR components saw revisions during production - confirm by serial.
- Engine ECU calibration. Common-rail injectors and ECU sensors are calibrated to specific build years.
- Bucket and quick coupler. Quick-coupler interface varies - confirm before ordering attachment-side hardware.
Why the CX36 still earns a paycheck
The Case CX36 is sized for compact-excavator duty cycles where a 3.6-ton machine is the right tool - residential landscape, utility, irrigation, plumbing, and any tight-quarters digging where larger excavators won’t fit. Tier 4 Final emissions compliance, a compact footprint, and rubber-track flotation suit residential and contractor work where a wheeled or larger tracked machine would mark up turf or fail to fit.
Maintenance priorities on a CX36: clean fuel and tight water separation for common-rail injection, DPF regen behavior tracking, hydraulic oil at temperature with clean filtration, rubber-track tension and wear monitoring, and pin / bushing service at every working joint. Broken Tractor maintains parts coverage across the Case mini excavator family.
