King Kutter Rotary Tiller Parts

Each number on the image is a "Ref #" that can be matched on the table below.

King Kutter Rotary Tiller Parts parts list
REF #	Image	Fits Model	Description	Price	Product Details
1	See Details	King Kutter Implements	Lift Pins - Cat. 1	500001	$30.00	View Info
1	See Details	Bale Spear, HD Subsoiler, Tiller, Arena Renovator, Bale Mover, HD Boom Pole	Lift Pins - CAT 1 & 2	500003	$34.00	View Info
	See Details	7-Foot Rotary Tiller	Top Link Pin	194111	$39.00	View Info
1	See Details	Rotary Tillers	Lift Arm Brace	381001-380108	From $34.00	View Info
2	See Details	XB, 4-Foot, 5-Foot, 6-Rotary Tillers	Lift Arm, Left-Hand	403068-404404	From $85.00	View Info
3	See Details	4-Foot, 5-Foot, 6-Rotary Tillers	Lift Arm, Right-Hand	403069-404405	From $85.00	View Info
4	See Details	4-Foot, 5-Foot, 6-Foot Rotary Tillers	Tailgate Rod	505116-505015	From $44.00	View Info
5	See Details	Rotary Tillers	Center Lift Arm	505020-505025	From $57.00	View Info
6	See Details	Rotary Tillers	Lift Arm Spacer Kit	505021-505030	From $21.00	View Info
7	See Details	Rotary Tillers	Tiller Tine Sets	505002-505066	From $41.00	View Info
8	See Details	Rotary Tillers	Bolt Kits, Tiller Tine	505012-505132	From $52.00	View Info
9, 10	See Details	XB & XBX Rotary Tillers	Skid Shoe	505060	$90.00	View Info
9, 10	See Details	Rotary Tillers	Skid Shoe Kit, Left or Right	505050-505057	From $95.00	View Info
11	See Details	Rotary Tillers	Chain Kit	505140-505143	From $21.00	View Info
12	See Details	TG-48, TG-60, TG-72, TG-84, TG-48-XB, TG-54-XBX, RTG-60, RTG-72	Gearbox Assembly	184064-184073	From $628.00	View Info
13	See Details	Rotary Tiillers	Side Gearbox	184069	$856.00	View Info
15	See Details	Rotary Tillers	Rotor	402038-402042	From $545.00	View Info

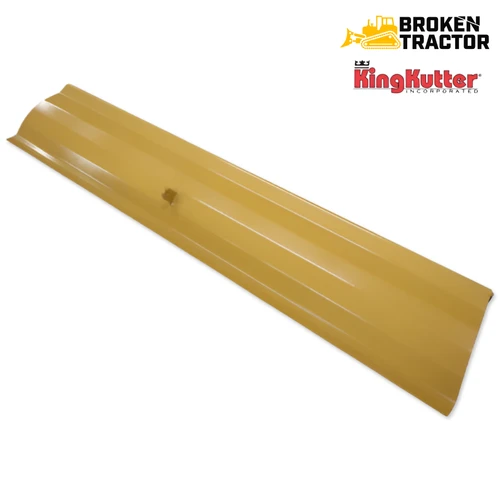

16	See Details	4-Foot XB & XBX Tillers	Back Plate	404406-404415	From $264.00	View Info
16	See Details	Professional Grade Rotary Tillers	Back Plate	402060-402063	From $199.00	View Info
16	See Details	Standard Rotary Tillers	Back Plate	402041-402052	From $288.00	View Info
17	See Details	TG-48, TG-60, TG-72, TG-84, RTG-72	Top Frame Plate	402039-402043-402054-402068	From $712.00	View Info
18	See Details	Rotary Tillers	Hub & Cover Plate	184070	$227.00	View Info
19	See Details	4-Foot, 5-Foot, 6-Foot, 7-Foot Rotary Tillers	PTO Drive Shaft (Slip Clutch)	147122-147222	From $416.00	View Info
	See Details	7-Foot Rotary Tillers	Top Gearbox Support Kit	505026	$25.00	View Info
	See Details	7-Foot Rotary Tiller	Top Gearbox Support Plate	380233	$21.00	View Info
	See Details	Rotary Tillers	Chain Lug Bracket	380050	$52.00	View Info
	See Details	5-Foot Reverse Tine Rotary Tillers	Rubber Flap Kit	505120-505121	From $59.00	View Info
	See Details	Rotary Tillers	Support Stand	505022	$68.00	View Info
	See Details	PTO Drive Shaft	Grease Fitting Set, Drive Shaft	132017	$26.00	View Info

Replacement rotary tiller parts for King Kutter TG, RTG, TG-G, XB, and XBX series tillers, covering gearboxes, rotor assemblies, tine sets, lift arms, back plates, and PTO drive shafts for 4-foot through 7-foot models.

Fits Models At A Glance

TG Series: TG-48, TG-60, TG-72, TG-84
RTG Series: RTG-60, RTG-72
TG-G Series: TG-G-84
XB & XBX Series: TG-48-XB, TG-54-XBX

Key Notes

Application: Drive, cutting, lift, and structural components for 3-point rotary tillers
Drivetrain: Gearbox assemblies, outboard hubs, and PTO drive shafts with slip clutch
Cutting System: Rotor assemblies, tine sets, and tine bolt sets in multiple quantities
Structural: Lift arms, back plates, skid shoes, support stands, and frame assemblies
