Timberjack Cylinder Seal Kits

ⓘ Click headers to sort ↕
Timberjack Cylinder Seal Kits parts list
Image Fits Model Description Part # Price Product Details

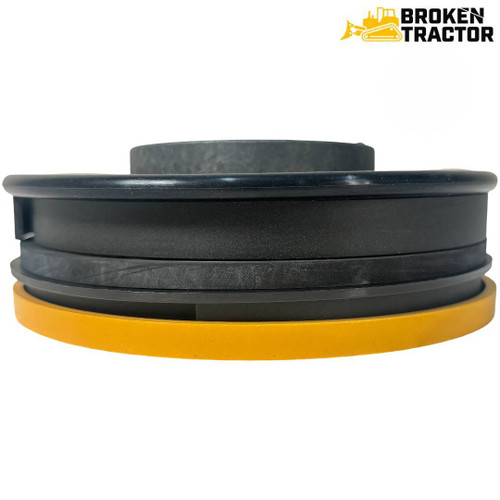

Jib Boom, Main Boom, Stabilizer Cylinder Seal Kit for Timberjack 430 - 842938200 See Details 430 Jib Boom, Main Boom, and Stabilizer Cylinder Seal Kit 842938200
$78.00
View Info
Main Boom & Stabilizer Cylinder Seal Kit for Timberjack 330 - 842936800 See Details 330 Main Boom and Stabilizer Cylinder Seal Kit 842936800
$74.39
View Info
Cab Tilt Cylinder Seal Kit for Timberjack 360 - 8431265 See Details 360 Timberjack Cab Tilt Cylinder Seal Kit 8431265
$29.77
View Info

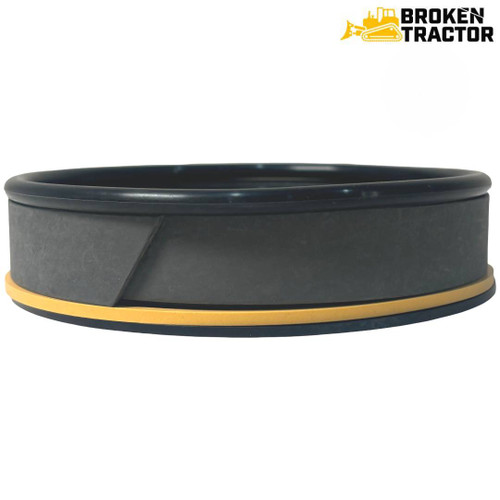

Grapple Cylinder Seal Kit for Timberjack 380, 380A, 380B - 841923200 See Details 380, 380A, 380B Timberjack Grapple Cylinder Seal Kit 841923200
$54.00
View Info

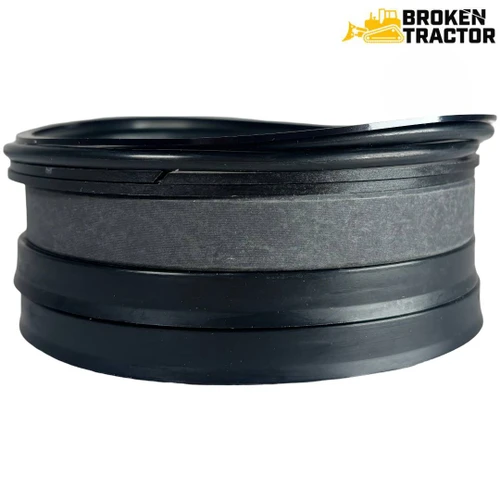

Grapple Cylinder Seal Kit for Timberjack 380, 380A, 380B - 842249600 See Details 380, 380A, 380B Timberjack Grapple Cylinder Seal Kit 842249600
$64.00
View Info
Grapple Cylinder Seal Kit for Timberjack 380, 380A, 380B - 8417516 See Details 380, 380A, 380B Timberjack Grapple Cylinder Seal Kit 8417516
$68.59
View Info
Grapple Cylinder Seal Kit for Timberjack 380, 380A, 380B See Details 380, 380A, 380B Grapple Cylinder Seal Kit 841468700
$44.00
View Info

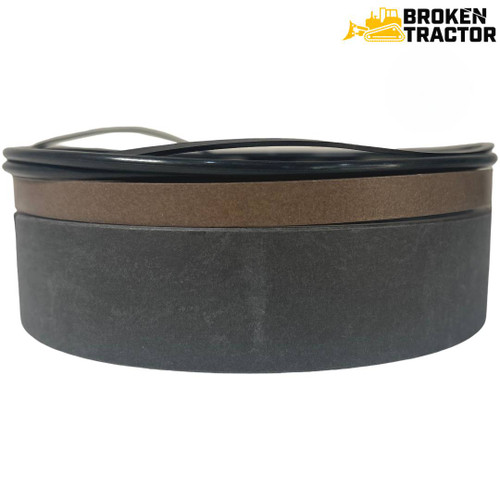

Grapple Cylinder Seal Kit for Timberjack 380, 380A, 380B - 845089900 See Details 380, 380A, 380B Timberjack Grapple Cylinder Seal Kit 845089900
$141.08
View Info
231385100 Blade Cylinder Seal Kit for Timberjack 380, 380A, 380B See Details 380, 380A, 380B Blade Cylinder Seal Kit 231385100
$68.00
View Info
Single Arch Cylinder Seal Kit for Timberjack 380, 380A, 380B - 845109500 See Details 380, 380A, 380B Timberjack Single Arch Cylinder Seal Kit 845109500
$59.04
View Info
Arch Cylinder Seal Kit for TimberJack 380, 380A, 380B Log Skidders - 8450282 See Details 380, 380A, 380B Arch Cylinder Seal Kit 8450282
$94.00
View Info
Bore Seal Kit for TimberJack 360 Log Skidder, Dozer Blade, Steering Cylinder See Details 360 Bore Seal Kit, Blade, Steering Cylinder F434056
$48.00
View Info
Steering Cylinder Rod Seal Kit for TimberJack 360 Log Skidder See Details 360 Rod Seal Kit, Steering Cylinder F433400
$54.00
View Info
Log Skidder Arch Cylinder Seal Kit for TimberJack See Details 380, 380A, 380B Log Arch Cylinder Seal Kit 845089800
$68.00
View Info
Cylinder Seal Kit for Timberjack 240B, 360 Log Skidder Grapple - F434787 See Details 240B, 360 Timberjack Log Skidder Grapple Cylinder Seal Kit F434787
$80.22
View Info
Grapple Cylinder Seal Kit for Timberjack Log Skidder 240B, 360 See Details 240B, 360 Grapple Cylinder Seal Kit F434195
$98.00
View Info
Grapple Cylinder Seal Kit for Timberjack 240A, 240B Log Skidder See Details 240A, 240B Grapple Cylinder Seal Kit 843010000
$75.42
View Info
Grapple Cylinder Seal Kit for TimberJack 240A, 240B Log Skidders See Details 240A, 240B Timberjack Log Skidder Grapple Cylinder Seal Kit 8429306
$65.29
View Info
Log Skidder Cylinder Seal Kit for TimberJack See Details 240A, 240B Timberjack Log Skidder Single Arch, Dozer Blade Cylinder Seal Kit 845167600
$58.00
View Info
231383200 Steering Cylinder Seal Kit for TimberJack 240, 240A Log Skidders See Details 240, 240A Steering Cylinder Seal Kit 231383200
$68.37
View Info
231384700 Seal Kit for Timberjack 240, 240A Log Skidder Dozer Blade, Steering, Single Arch Cylinder See Details 240, 240A Blade, Steering, Single Arch Cylinder Seal Kit 231384700
$64.00
View Info
Timberjack Jib Boom Cylinder Seal Kit for 330 See Details 330 Cylinder Seal Kit 842937500
$58.00
View Info

Cylinder seal kits for Timberjack log skidders and forestry equipment, covering grapple, arch, steering, dozer blade, cab tilt, boom, and stabilizer cylinders across the 240, 360, 380, and 430 series machines. Designed as direct replacements to restore cylinder function and prevent hydraulic leaks in demanding forestry conditions.

Fits Models At A Glance

  • 240 Series: 240, 240A, 240B
  • 330 Series: 330
  • 360 Series: 360
  • 380 Series: 380, 380A, 380B
  • 430 Series: 430

Key Notes

  • Cylinder Types: Grapple, arch, single arch, steering, dozer blade, cab tilt, main boom, jib boom, and stabilizer cylinders
  • Application: Engineered for Timberjack log skidders operating in high-pressure forestry hydraulic systems
  • Fitment Verification: Match by model and cylinder type before ordering; multiple seal kit variations exist per model
  • Part Number Cross-Reference: OEM-style part numbers available including F434195, F434787, F433400, 8429306, and others

Why Choose Broken Tractor

  • ✅ Broad Timberjack seal kit selection across all series
  • ✅ Fast shipping from Baton Rouge, LA and Kimbolton, OH
  • ✅ Forestry equipment specialists with deep parts knowledge

Frequently Asked Questions

Which grapple cylinder seal kit fits a Timberjack 380 log skidder?

Broken Tractor carries several grapple cylinder seal kits that fit the Timberjack 380, 380A and 380B, including part numbers 845089900, 841468700, 8417516, 842249600 and 841923200. Because more than one grapple kit exists for the same models, the right one depends on the grapple cylinder on your machine. Match the part number from your existing kit or parts records before ordering, or call (800) 909-7060 and our parts team can help confirm fitment.

What seal kit do I need for a Timberjack 240 steering cylinder?

For the Timberjack 240 and 240A, we carry the steering cylinder seal kit 231383200 and the 231384700 kit, which covers the dozer blade, steering and single arch cylinders. For the Timberjack 360, we offer the F433400 steering cylinder seal kit and the F434056 bore seal kit for the dozer blade and steering cylinders. Confirm your model and cylinder type before ordering, since kits differ between models.

Do you have arch cylinder seal kits for the Timberjack 380, 380A and 380B?

Yes, Broken Tractor offers arch cylinder seal kits 845089800 and 8450282, along with the 845109500 single arch cylinder seal kit, all listed for the Timberjack 380, 380A and 380B. Arch and single arch cylinders use different kits, so check which cylinder you are resealing. Matching your existing part number is the surest way to get the correct kit.

Are there boom and stabilizer cylinder seal kits for the Timberjack 330 and 430?

Yes, we carry the 842937500 jib boom cylinder seal kit and the 842936800 main boom and stabilizer cylinder seal kit for the Timberjack 330. For the Timberjack 430, the 842938200 kit covers the jib boom, main boom and stabilizer cylinders. Verify the cylinder type on your machine before ordering.

Is there a cab tilt cylinder seal kit for the Timberjack 360?

Yes, Broken Tractor carries the 8431265 cab tilt cylinder seal kit for the Timberjack 360. We also offer grapple kits F434195 and F434787 for the 240B and 360, plus steering and dozer blade seal kits for the 360. Match by model and cylinder type, since multiple seal kit variations exist for each machine.
