Washers by Size

ⓘ Click headers to sort ↕
Washers by Size parts list
Image Thickness (mm) Thickness (In) Inner Dia (mm) Inner Dia (in) Outer Dia (mm) Outer Dia (in) Part # Price Product Details

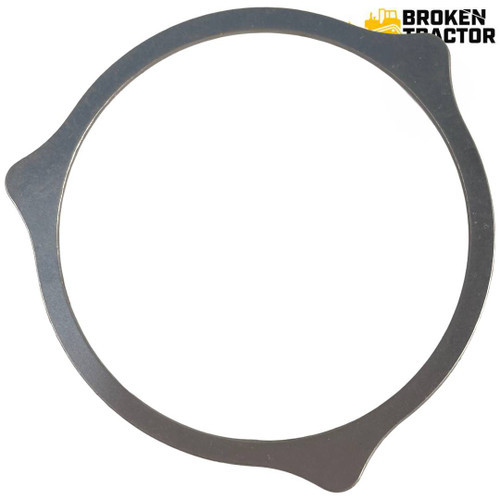

Washer 46.2 ID x 51.3 OD x 1.5 Thk - WSH46511 See Details 1.5 0.059 46.2 1.818 51.3 2.019 WSH46511
$8.00
View Info
Washer 51.2 ID x 66.67 OD x 6.35 Thk, part number WSH51666 See Details 6.35 1/4 51.2 2 66.67 2.624 WSH51666
$14.00
View Info

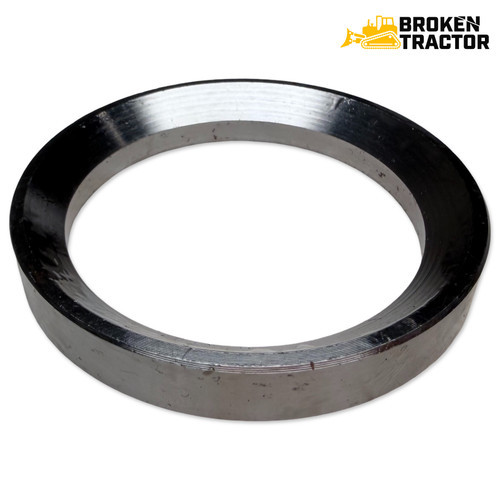

Washer 50.93 ID x 66.55 OD x 9.53 Thk, part number WSH50669 See Details 9.53 3/8 50.93 2 66.55 2 5/8 WSH50669
$15.00
View Info
Washer 50.6 ID x 71.15 OD x 1.45 Thk, part number WSH50711 See Details 1.45 0.057 50.6 1.992 71.15 2.801 WSH50711
$9.00
View Info

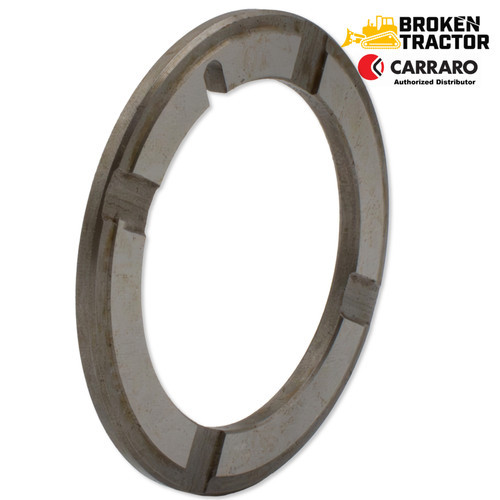

Washer 50.2 ID x 69.7 OD x 3.95 Thk, part number WSH50693 See Details 3.95 0.155 50.2 1.976 69.7 2.74 WSH50693
$19.00
View Info

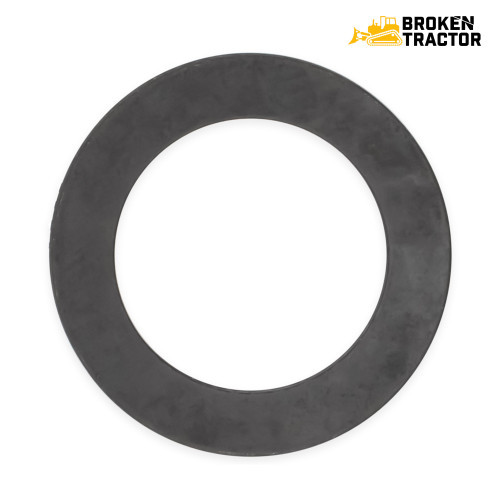

Washer 47.63 ID x 69.85 OD x 0.97 Thk, part number WSH47690 See Details 0.97 0.038 47.63 1.87 69.85 2.75 WSH47690
$6.00
View Info
Washer 47.5 ID x 70 OD x 2 Thk, part number WSH47702 See Details 2 0.078 47.5 1.87 70 2.7559 WSH47702
$6.00
View Info
Washer 46.2 ID x 51.3 OD x 1.5 Thk - WSH46511T See Details 1.5 0.059 46.2 1.818 51.3 2.019 WSH46511T
$5.00
View Info
Washer 46.02 ID x 63.5 OD x 3.35 Thk, part number WSH46633 See Details 3.35 0.131 46.02 1.811 63.5 2.5 WSH46633
$7.00
View Info
Washer 45 ID x 64 OD x 2.5 Thk, part number WSH45642 See Details 2.5 0.098 45 1.77 64 2.52 WSH45642
$5.00
View Info
Washer 39.624 ID x 82.55 OD x 4.572 Thk, part number WSH39824 See Details 4.572 0.18 39.624 1.56 82.55 3.25 WSH39824
$3.25
View Info
Washer 45 ID x 52 OD x 2.5 Thk, part number WSH45522 See Details 2.5 0.0984 45 1.77 52 2.047 WSH45522
$5.00
View Info
Washer 38.4 ID x 57.2 OD x 3.6 Thk, part number WSH38573 See Details 3.6 0.141 38.4 1.511 57.2 2.251 WSH38573
$4.00
View Info
Washer 38.1 ID x 82.55 OD x 4.572 Thk, part number WSH38824 See Details 4.572 0.18 38.1 1.5 82.55 3.25 WSH38824
$3.25
View Info
Washer 36.1 ID x 70.8 OD x 2.5 Thk See Details 2.5 0.098 36.1 1.421 70.8 2.787 WSH36702
$6.00
View Info
Washer 35.9 ID x 58 OD x 1.5 Thk, part number WSH35581 See Details 1.5 0.059 35.9 1.41 58 2.28 WSH35581
$4.00
View Info
Washer 34.6 ID x 55 OD x 1.5 Thk, part number WSH34551 See Details 1.5 0.059 34.6 1.362 55 2.165 WSH34551
$3.00
View Info
Washer 44.8 ID x 63.6 OD x 1.93 Thk, part number WSH44631 See Details 1.93 0.0759 44.8 1.763 63.6 2.503 WSH44631
$3.25
View Info
Washer 44.5 ID x 63.5 OD x 3.35 Thk, part number WSH44633 See Details 3.35 0.131 44.5 1.75 63.5 2.5 WSH44633
$7.00
View Info
Washer 43 ID x 61 OD x 1.669 Thk, part number WSH43611 See Details 1.669 0.065 43 1.692 61 2.401 WSH43611
$6.00
View Info
Washer 33.08 ID x 51.25 OD x 2.5 Thk, part number WSH33512 See Details 2.5 0.098 33.08 1.30 51.25 2.02 WSH33512
$5.00
View Info
Washer 25.75 ID x 49 OD x 1.85 Thk, part number WSH25491 See Details 1.85 0.072 25.75 1.013 49 1.929 WSH25491
$17.00
View Info

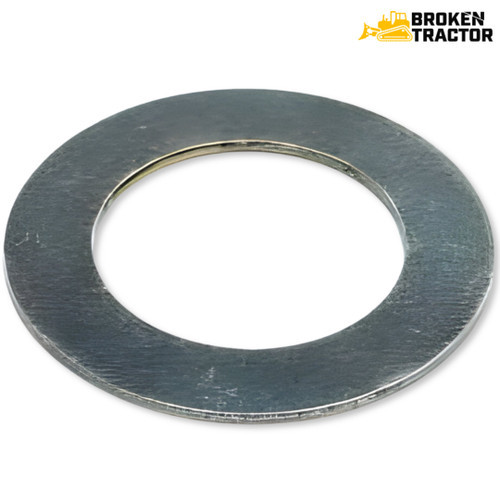

Washer 23.876 ID x 44.45 OD x 3.302 Thk, part number WSH23443 See Details 3.302 0.13 23.876 0.94 44.45 1.75 WSH23443
$2.00
View Info
Washer 22.53 ID x 47 OD x 1.65 Thk, part number WSH22471 See Details 1.65 0.064 22.53 0.887 47 1.85 WSH22471
$12.00
View Info
Washer 21.75 ID x 40.9 OD x 1.5 Thk, part number WSH21401 See Details 1.5 0.059 21.75 0.856 40.9 1.61 WSH21401
$6.00
View Info

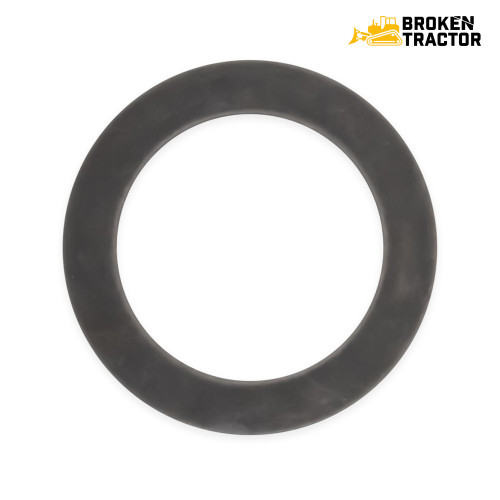

Washer 42.6 ID x 60.85 OD x 1 Thk, part number WSH42601 See Details 1 0.039 42.6 1.68 60.85 2.4 WSH42601
$5.00
View Info
Washer 19.85 ID x 39.64 OD x 4.87 Thk, part number WSH19394 See Details 4.87 0.191 19.85 0.781 39.64 1.5606 WSH19394
$4.50
View Info
Washer 19.37 ID x 25.5 OD x 1.2 Thk, part number WSH19251 See Details 1.2 0.0472 19.37 0.762 25.5 1.003 WSH19251
$5.00
View Info
Washer 13 ID x 40 OD x 7 Thk, part number WSH13407 See Details 7 0.275 13 0.5118 40 1.574 WSH13407
$14.00
View Info
Washer 12.5 ID x 52 OD x 5 Thk, part number WSH12525 See Details 5 0.20 12.5 0.49 52 2.05 WSH12525
$11.84
View Info
Washer 115.64 ID x 154.1 OD x 4.94 Thk See Details 4.94 0.194 115.64 4.552 154.1 6.066 WSH1151544
$39.00
View Info
Washer 73.025 ID x 134.95 OD x 1.854 Thk, part number WSH731341 See Details 1.854 0.072 73.025 2.875 134.95 5.312 WSH731341
$14.00
View Info

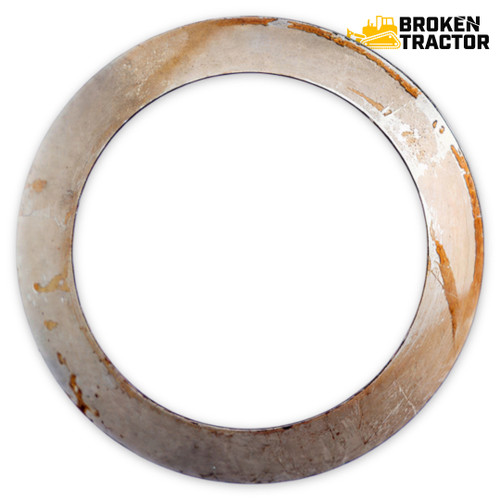

Washer 62.5 ID x 81.3 OD x 1.6 Thk See Details 1.6 0.062 62.5 2.46 81.3 3.2 WSH62811
$12.00
View Info
Washer 62 ID x 86 OD x 1.7 Thk, part number WSH62861 See Details 1.7 1/16 62 2 7/16 86 3 3/8 WSH62861
$5.00
View Info
Washer 59 ID x 90 OD x 3.3 Thk, part number WSH59903 See Details 3.3 0.13 59 2.3 90 3.5 WSH59903
$4.00
View Info

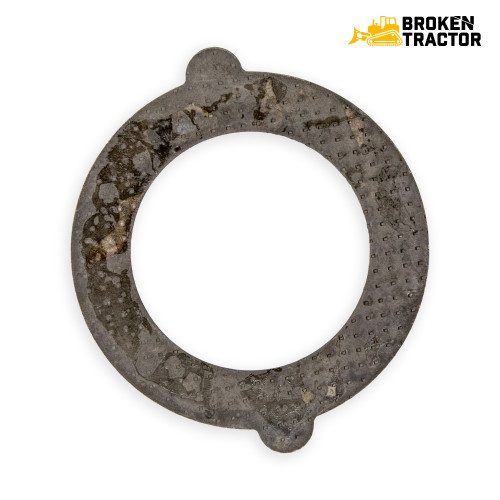

Washer 54.1 ID x 81.3 OD x 1.6 Thk, part number WSH54811 See Details 1.6 0.062 54.1 2.129 81.3 3.2 WSH54811
$12.00
View Info

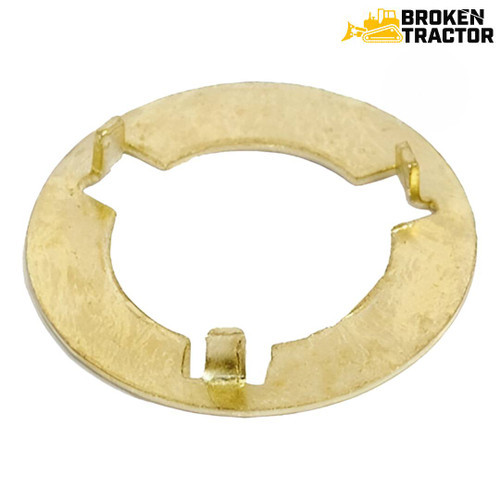

Washer 52.5 ID x 114 OD x 4.67 Thk, part number WSH521144 See Details 4.67 0.183 52.5 2.0669 114 4.488 WSH521144
$6.00
View Info
Washer 52.324 ID x 76.2 OD x 3.556 Thk, part number WSH52763 See Details 3.556 0.14 52.324 2.06 76.2 3 WSH52763
$9.00
View Info
Washer 41 ID x 62 OD x 2 Thk, part number WSH41622 See Details 2 0.078 41 1.614 62 2.44 WSH41622
$4.50
View Info
Washer 40 ID x 64 OD x 5.9 Thk, part number WSH40645 See Details 5.9 0.232 40 1 9/16 64 2 1/2 WSH40645
$18.00
View Info
Washer 52.32 ID x 75 OD x 1.524 Thk, part number WSH52751 See Details 1.524 0.06 52.32 2.06 75 2.94 WSH52751
$9.00
View Info
Washer 51.562 ID x 69.85 OD x 1.778 Thk, part number WSH51691 See Details 1.778 0.07 51.562 2.03 69.85 2.75 WSH51691
$9.00
View Info
Washer 6.26 ID x 16.58 OD x 2 Thk, part number WSH6162 See Details 2 .078 6.26 0.246" 16.58 0.652 WSH6162
$5.00
View Info

Thrust washers, shim washers, and hardened flat washers sized by inner diameter, outer diameter, and thickness for heavy equipment pin joints, boom pivots, and bushing assemblies. Match the exact dimensions your machine needs rather than searching by model number.

Dimensions At A Glance

  • Small Bore (6-25mm ID): 6.26, 12.5, 13, 19.37, 19.85, 21.75, 22.53, 23.876, 25.75 ID
  • Mid Bore (33-46mm ID): 33.08, 34.6, 35.9, 36.1, 38.1, 38.4, 39.624, 40, 41, 42.6, 43, 44.5, 44.8, 45, 46.02, 46.2 ID
  • Large Bore (47-73mm ID): 47.5, 47.63, 50.2, 50.6, 50.93, 51.2, 51.562, 52.32, 52.5, 54.1, 59, 62, 62.5, 73.025 ID
  • Heavy Bore (115mm+ ID): 115.64 ID

Key Notes

  • Application: Pin joints, boom and bucket pivots, and bushing thrust surfaces
  • Sizing: Listed by ID x OD x thickness for direct measurement matching
  • Fitment: Cross-references many OEM washer specs across brands

Why Choose Broken Tractor

  • ✅ Wide range of washer sizes available now
  • ✅ Fast shipping from two US locations
  • ✅ Match by measurement, not just model

Frequently Asked Questions

Is there a washers size chart for heavy equipment thrust and shim washers?

Broken Tractor lists every washer by inner diameter x outer diameter x thickness, so the product list works as a size chart you can match against your own measurements. Sizes are grouped into small bore (6 to 25 millimeter ID), mid bore (33 to 46 millimeter ID), large bore (47 to 73 millimeter ID) and heavy bore (115 millimeter plus ID). Each washer also has its own SKU, such as WSH40645 for the 40 millimeter ID x 64 millimeter OD x 5.9 millimeter thick washer.

What is a big washer size?

The largest washer we carry has a 115.64 millimeter ID, a 154.1 millimeter OD and a 4.94 millimeter thickness (SKU WSH1151544). Other large sizes include a 73.025 millimeter ID x 134.95 millimeter OD x 1.854 millimeter thick washer (SKU WSH731341) and a 52.5 millimeter ID x 114 millimeter OD x 4.67 millimeter thick washer (SKU WSH521144). These larger washers are used at pin joints, boom and bucket pivots, and bushing thrust surfaces.

What are the different sizes of washers?

Our heavy equipment washers range from a 6.26 millimeter ID x 16.58 millimeter OD x 2 millimeter thick washer up to a 115.64 millimeter ID x 154.1 millimeter OD x 4.94 millimeter thick washer. Thickness varies from 0.97 millimeter on the thinnest shim style washer (SKU WSH47690) to 7 millimeter on the thickest (SKU WSH13407). We carry thrust washers, shim washers and hardened flat washers across small, mid, large and heavy bore sizes.

Are washers standard size?

Heavy equipment thrust and shim washers are not one standard size, and washers with nearly the same ID can have very different OD and thickness. For example, we carry a 52.32 millimeter ID x 75 millimeter OD x 1.524 millimeter thick washer (SKU WSH52751) and a 52.324 millimeter ID x 76.2 millimeter OD x 3.556 millimeter thick washer (SKU WSH52763). Match all three dimensions or your OEM washer spec, and if you are unsure, confirm with our parts team at (800) 909-7060.

How do I find the right washer size for a pin joint or boom pivot?

Measure the inner diameter, outer diameter and thickness of your old washer, then match those three numbers to our listings, which are written as ID x OD x thickness. Shopping by measurement means you do not need to search by model number. Our washer sizes also cross reference many OEM washer specs across brands, so comparing your original part number is another way to confirm the match.
