Snap Rings by Size

ⓘ Click headers to sort ↕
Snap Rings by Size parts list
Image Pin/Hole Diameter (mm) Pin/Hole Diameter (in) Thickness (mm) Thickness (in) Part # Price Product Details
Snap Ring 2.83" Pin/Hole Size x 0.093" Thickness (71.882mm x 2.36mm), part number SR718236 See Details 71.882 2.83" 2.36 0.093" SR718236
$12.00
View Info
Snap Ring 1.57" Pin/Hole Size x 0.108" Thickness (40mm x 2.75mm) See Details 40 1.57" 2.75 0.108" SR40275
$3.50
View Info
Snap Ring 2.803" Pin/Hole Size x 0.096" Thickness (71.2mm x 2.45mm), part number SR712245 See Details 71.2 2.803" 2.45 0.096" SR712245
$5.00
View Info
Snap Ring 1.535" Pin/Hole Size x 0.076" Thickness (39mm x 1.94mm), part number SR39194 See Details 39 1.535" 1.94 0.076" SR39194
$3.00
View Info
Snap Ring 2.755" Pin/Hole Size x 0.098" Thickness (70mm x 2.5mm), part number SR7025 See Details 70 2.755" 2.5 0.098" SR7025
$5.00
View Info
Snap Ring 1.531" Pin/Hole Size x 0.066" Thickness (38.9mm x 1.7mm), part number SR38917 See Details 38.9 1.531" 1.7 0.066" SR38917
$3.84
View Info
Snap Ring 2.68" Pin/Hole Size x 0.092" Thickness (68mm x 2.34mm), part number SR68234 See Details 68 2.68" 2.34 0.092" SR68234
$12.00
View Info
Snap Ring 1.5" Pin/Hole Size x 0.106" Thickness (38.1mm x 2.7mm), part number SR38127 See Details 38.1 1.5" 2.7 0.106" SR38127
$4.50
View Info

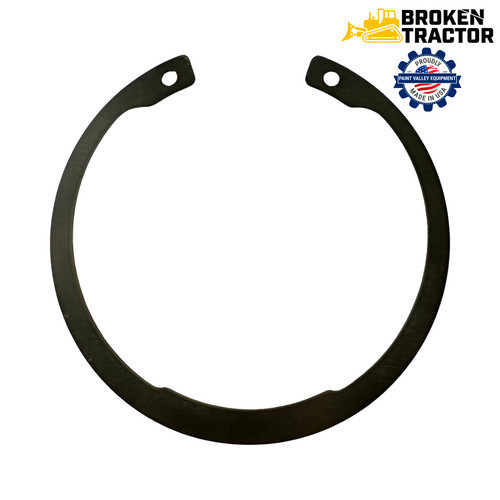

Snap Ring 2.634" Pin/Hole Size x 0.093" Thickness (66.92mm x 2.36mm), part number SR669236 See Details 66.92 2.634" 2.36 0.093" SR669236
$12.00
View Info
Snap Ring 1.5" Pin/Hole Size x .1" Thickness (38.1mm x 2.54mm), part number SR381254 See Details 38.1 1.5" 2.54 .1" SR381254
$4.50
View Info
Snap Ring 2.559" Pin/Hole Size x 0.098" Thickness (65mm x 2.5mm), part number SR6525 See Details 65 2.559" 2.5 0.098" SR6525
$4.50
View Info

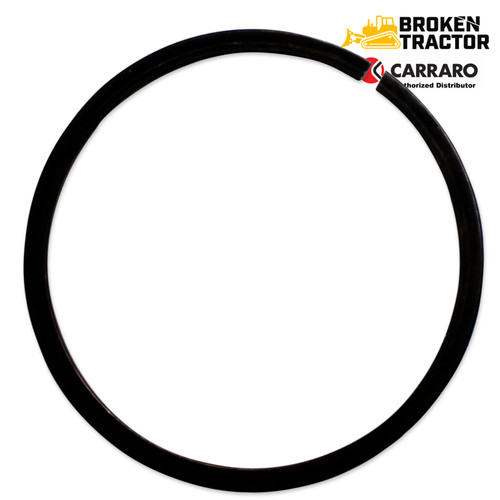

Snap Ring 1.478" Pin/Hole Size x 0.055" Thickness (37.55mm x 1.41mm), part number SR375141 See Details 37.55 1.478" 1.41 0.055" SR375141
$5.44
View Info
Snap Ring 2.44" Pin/Hole Size x 0.081" Thickness (61.976mm x 2.0574mm), part number SR619205 See Details 61.976 2.44" 2.0574 0.081" SR619205
$9.00
View Info
Snap Ring 9 1/6" Pin/Hole Size x 0.137" Thickness (232.833mm x 3.5mm), part number SR23235 See Details 232.833 9 1/6" 3.5 0.137" SR23235
$9.00
View Info
Snap Ring 1.452" Pin/Hole Size x 0.093" Thickness (36.8808mm x 2.3622mm) See Details 36.8808 1.452" 2.3622 0.093" SR36236
$10.00
View Info
Snap Ring 2.362" Pin/Hole Size x 0.078" Thickness (60mm x 2mm), part number SR602 See Details 60 2.362" 2 0.078" SR602
$4.50
View Info

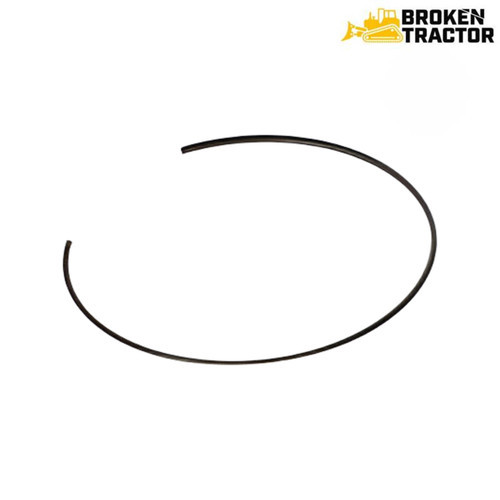

Snap Ring 8" Pin/Hole Size x 0.141" Thickness (203.2mm x 3.6mm), part number SR20336 See Details 203.2 8" 3.6 0.141" SR20336
$5.00
View Info
Snap Ring 2.066" Pin/Hole Size x 0.056" Thickness (52.5mm x 1.44mm), part number SR525144 See Details 52.5 2.066" 1.44 0.056" SR525144
$2.00
View Info
Snap Ring 1.417" Pin/Hole Size x 1/16" Thickness (36mm x 1.75mm), part number SR36175 See Details 36 1.417" 1.75 1/16" SR36175
$3.00
View Info
Snap Ring 7.28" Pin/Hole Size x 0.118" Thickness (185mm x 3mm), part number SR1853 See Details 185 7.28" 3 0.118" SR1853
$8.00
View Info
Snap Ring 1.377" Pin/Hole Size x 0.059" Thickness (35mm x 1.5mm), part number SR3515 See Details 35 1.377" 1.5 0.059" SR3515
$5.00
View Info
Snap Ring 2" Pin/Hole Size x 0.116" Thickness (50.8mm x 2.95mm), part number SR508295 See Details 50.8 2" 2.95 0.116" SR508295
$4.00
View Info
Snap Ring 4.75" Pin/Hole Size x 0.106" Thickness (120.65mm x 2.7mm), part number SR12027 See Details 120.65 4.75" 2.7 0.106" SR12027
$22.00
View Info
Snap Ring 2" Pin/Hole Size x 0.114" Thickness (50.8mm x 2.9mm), part number SR50829 See Details 50.8 2" 2.9 0.114" SR50829
$6.00
View Info
Snap Ring 1.24" Pin/Hole Size x 0.055" Thickness (31.5mm x 1.4mm), part number SR31514 See Details 31.5 1.24" 1.4 0.055" SR31514
$4.00
View Info
Snap Ring 4.331" Pin/Hole Size x 0.107" Thickness (110mm x 2.72mm), part number SR110272 See Details 110 4.331" 2.72 0.107" SR110272
$22.00
View Info
Snap Ring 1.067" Pin/Hole Size x 0.059" Thickness (27.11mm x 1.5mm), part number SR27115 See Details 27.11 1.067" 1.5 0.059" SR27115
$3.00
View Info
Snap Ring 1.811" Pin/Hole Size x 0.118" Thickness (46mm x 3mm), part number SR463 See Details 46 1.811" 3 0.118" SR463
$5.00
View Info
Internal Snap Ring 3.54" Pin/Hole x 0.118" Thickness (90mm x 3mm) - SR9031 See Details 90 3.54" 3 0.118" SR9031
$12.00
View Info
Snap Ring 1.771" Pin/Hole Size x 1/16" Thickness (45mm x 1.75mm), part number SR45175 See Details 45 1.771" 1.75 1/16" SR45175
$2.50
View Info
Snap Ring 0.994" Pin/Hole Size x 0.046" Thickness (25.25mm x 1.19mm), part number SR252119 See Details 25.25 0.994" 1.19 0.046" SR252119
$2.00
View Info
Internal Snap Ring 3.54" Pin/Hole x 0.118" Thickness (90mm x 3mm) - SR903 See Details 90 3.54" 3 0.118" SR903
$12.00
View Info
Snap Ring 1.771" Pin/Hole Size x 0.110" Thickness (45mm x 2.8mm), part number SR4528 See Details 45 1.771" 2.75 0.108" SR4528
$4.00
View Info
Snap Ring 0.801" Pin/Hole Size x 0.076" Thickness (20.35mm x 1.94mm), part number SR203194 See Details 22.2 0.874" 1.94 0.076" SR203194
$2.00
View Info
Snap Ring 0.783" Pin/Hole Size x 0.037" Thickness (19.9mm x 0.95mm), part number SR19995 See Details 19.9 0.783" 0.95 0.037" SR19995
$9.00
View Info
Snap Ring 2.952" Pin/Hole Size x 0.114" Thickness (75mm x 2.92mm), part number SR75292 See Details 75 2.952" 2.92 0.114" SR75292
$48.00
View Info
Snap Ring 1.75" Pin/Hole Size x 0.108" Thickness (44.5mm x 2.75mm), part number SR445275 See Details 44.5 1.75" 2.75 0.108" SR445275
$3.75
View Info
Snap Ring 0.771" Pin/Hole Size x 0.059" Thickness (19.6mm x 1.5mm), part number SR19615 See Details 19.6 0.771" 1.5 0.059" SR19615
$7.00
View Info
Snap Ring 1.75" Pin/Hole Size x 0.109" Thickness (44.5mm x 2.78mm), part number SR445278 See Details 44.5 1.75" 2.78 0.109" SR445278
$3.75
View Info
Snap Ring 0.393" Pin/Hole Size x 0.039" Thickness (10mm x 1mm), part number SR101 See Details 10 0.393" 1 0.039" SR101
$2.50
View Info

Internal and external snap rings for heavy equipment pins, bores, and bushing retention, sized from 0.393" (10mm) up to 9" (232mm) pin/hole diameters in a wide range of thicknesses. These retaining rings hold pins, bearings, and shafts in position across backhoes, loaders, excavators, and dozers.

Sizes At A Glance

  • Small Bore: 0.393", 0.771", 0.783", 0.801", 0.994"
  • Medium Bore: 1.067" through 2.066" including 1.5", 1.75", 2"
  • Large Bore: 2.362" through 4.75" including 2.559", 3.149", 3.54"
  • Extra Large Bore: 7.28", 8", 9 1/16"

Key Notes

  • Type: Internal and external snap rings available
  • Sizing: Listed by pin/hole diameter and ring thickness in inches and mm
  • Application: Pin retention, bearing and bushing hold, shaft location
  • Fitment: Match by measured bore and groove dimensions

Why Choose Broken Tractor

  • ✅ Broad size range from small to extra large
  • ✅ Fast shipping from two US locations
  • ✅ Dimensions listed in inches and mm

Frequently Asked Questions

Is there a snap ring sizes chart I can use to find the right ring?

Broken Tractor lists every snap ring by pin/hole diameter and ring thickness, so the product list works as a size chart. Sizes run from a 0.393 inch (10 mm) pin/hole size up to just over 9 inch (about 232 mm), with small, medium, large and extra large bore options. Each listing shows both the diameter and the thickness, such as 1.75 inch x 0.109 inch or 3.149 inch x 0.095 inch.

Snap ring size guide: how do I know which size I need?

Match the ring to the measured bore or pin diameter and the groove dimensions on your machine. Measure the diameter first, then check the ring thickness, because several diameters come in more than one thickness. For example, we carry 1.5 inch rings in 0.1 inch and 0.106 inch thicknesses, and 2 inch rings in 0.114 inch and 0.116 inch thicknesses. If you are unsure, compare against the old ring or call our parts team at (800) 909-7060.

Do you have a snap ring size chart in metric?

Yes, every snap ring we carry is listed in millimeters as well as inches. Metric examples include 10 mm x 1 mm, 45 mm x 2.8 mm, 90 mm x 3 mm and 185 mm x 3 mm. This makes it easy to match a ring whether your measurements or old part numbers are in inch or metric.

What is the difference between an internal and external snap ring?

An internal snap ring fits into a groove inside a bore or hole, while an external snap ring fits into a groove on a pin or shaft. Broken Tractor offers both types for pin retention, bearing and bushing hold, and shaft location on backhoes, loaders, excavators and dozers. Our 3.54 inch (90 mm) x 0.118 inch (3 mm) rings, SKU SR903 and SR9031, are internal snap rings.
