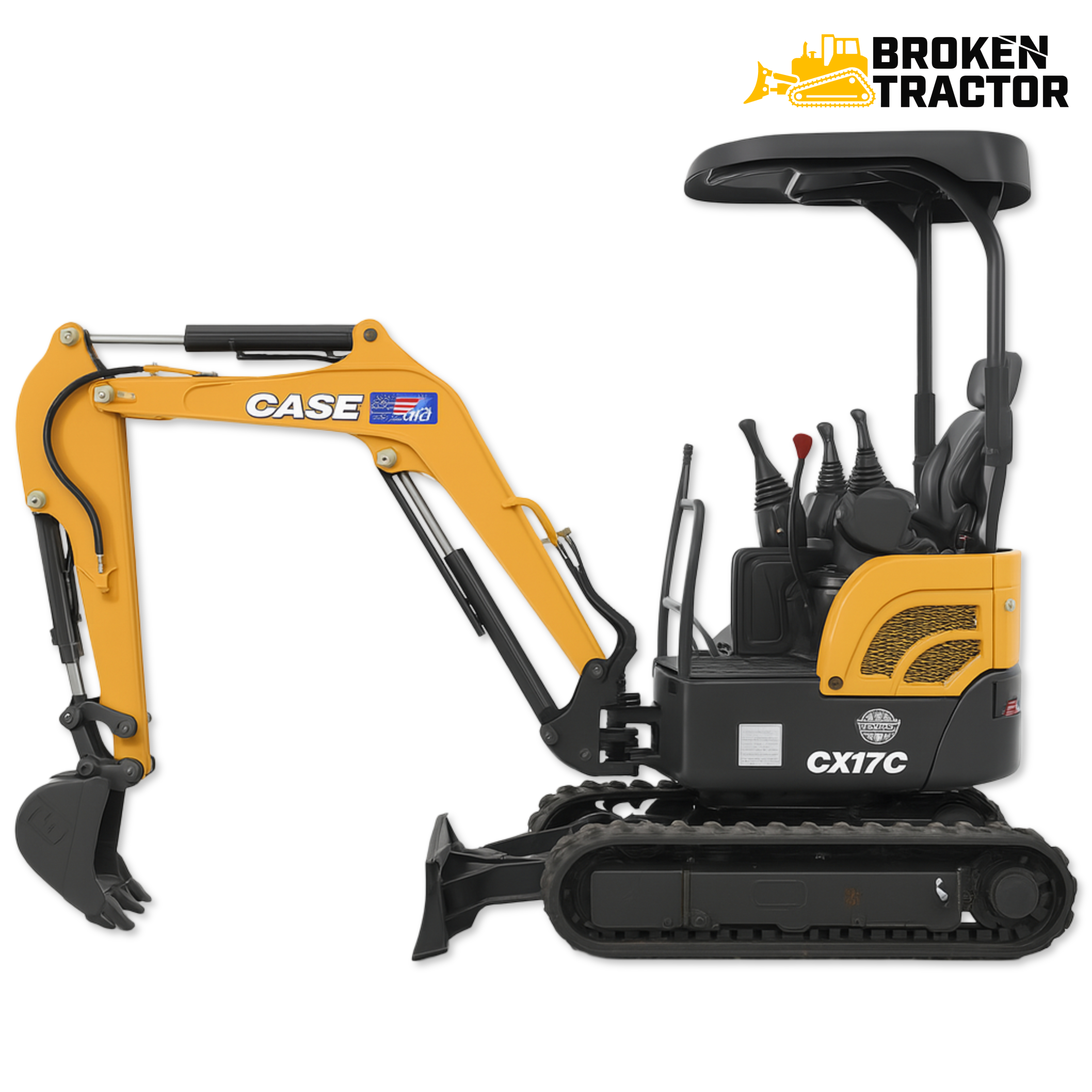

Case CX17C Mini Excavator: 2017+ 1.7-Ton C-Series Compact
The Case CX17C is the 1.7-ton class C-series mini excavator from Case Construction Equipment - a long-production-run compact built for residential landscape, light utility, plumbing, irrigation, and any tight-quarters digging job. In production from 2017 to present, the CX17C is one of the highest-volume rental-fleet minis in the Case lineup.
Where the CX17C fits in the Case excavator line
The CX17C sits in the heart of Case’s 1.5-to-2-ton mini excavator range - between the smaller CX12D and CX19D and the larger CX26C and CX30C. Long production run from 2017 to present, retractable undercarriage option, folding TOPS canopy or fixed cab, and the C-series cab layout that defines Case’s modern compact mini design. The CX17C is a high-volume rental-fleet machine - straightforward service, broad parts availability, and a duty cycle that’s well understood across the contractor community.
Case CX17C Mini Excavator - Quick Specs
- Class
- 1.7-Ton Compact Mini Excavator
- Generation
- C-Series
- Production
- 2017 - Present
- Engine
- Tier 4 Final Compact Diesel
- Drivetrain
- Hydrostatic Dual-Path, Rubber-Track Undercarriage (Retractable Option)
- Tail Swing
- Zero / Minimum-Swing
- Serial Plate
- Right Side of Lower Frame, Beneath Operator Platform
- Smaller Sibling
- Case CX12D
- Larger Sibling
- Case CX19D
Engine, hydraulics, and drivetrain
The CX17C runs a small Tier 4 Final compact diesel through a hydrostatic dual-path drivetrain into a rubber-track undercarriage (retractable on equipped units). The main hydraulic pump drives boom, dipper, bucket, swing, and propel through electrohydraulic-pilot or mechanical control valves. The zero / minimum-swing configuration tucks the counterweight close to the chassis envelope, which is what makes the CX17C usable inside a fenced backyard or alongside a finished wall.
Common-rail fuel injection runs across the production window, and a compact DPF aftertreatment package handles particulate control. Hydraulic auxiliary plumbing is standard for thumb and breaker attachments, with quick-coupler interfaces varying across build years.
Common service items on the CX17C
- Engine internals: Tier 4 Final compact diesel - pistons, rings, sleeves, head gaskets. Common-rail injection across the production window.
- Tier 4 Final aftertreatment: DPF service intervals and regen behavior; DEF dosing where SCR is fitted. EGR cooler service when soot loading appears in coolant or oil.
- Fuel system: Common-rail injectors, lift pump, primary and secondary filters with tight water-separator standards.
- Cooling system: Compact radiator, water pump, thermostat, fan, hoses, belts.
- Hydraulic system: Main pump rebuild, swing motor, propel motors, boom / dipper / bucket cylinder seal kits, control valves, auxiliary hydraulic hoses for attachments.
- Undercarriage: Rubber track replacement (retractable variants have additional retraction-cylinder service), rollers, idlers, drive sprockets.
- Boom and dipper: Pin and bushing service at every joint, side-shift boom pivot service on offset-boom configurations, bucket pins, thumb attachment hardware.
- Brakes / propel: Park-brake service, propel-motor seals, planetary final-drive components.
- Electrical / ECU: Engine ECU, instrument cluster, sensors, wiring harness, telematics module on equipped units.
- Cab and canopy: Folding TOPS canopy hardware (canopy units), operator seat, joystick controls, pedal linkage, glass on cab-equipped builds.
- Cab glass / wiper: Cab glass and wiper service - KHN16820 24-inch wiper blade cross-fits across the Case and Link-Belt excavator range.
Parts we carry for the Case CX17C
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Tier 4 Final compact diesel internals | Browse Engine Parts |
| Aftertreatment | DPF, DEF dosing, EGR components | Browse Aftertreatment |
| Fuel System | Common-rail injectors, lift pump, filters | Browse Fuel System |
| Cooling | Radiator, water pump, hoses, belts | Browse Cooling |
| Hydraulics | Main pump, swing motor, cylinders, seal kits, valves | Browse Hydraulics |
| Undercarriage | Rubber tracks, rollers, idlers, sprockets, retract cylinders | Browse Undercarriage |
| Boom / Dipper | Pins, bushings, bucket and thumb hardware | Browse Boom / Dipper |
| Electrical / ECU | ECU, sensors, harness, instrument cluster | Browse Electrical |
| Cab / Canopy | TOPS canopy, seat, joysticks, pedal linkage | Browse Cab Parts |
| Cab Glass / Wiper | KHN16820 24" wiper (Case / Link-Belt cross-fit) | KHN16820 Wiper Blade |
Need a part for your Case CX17C Mini Excavator?
Call our parts team with your serial number - we’ll match the right component to your machine.
Request a PartWhat to verify before ordering
- Serial number. Confirm the serial on the right side of the lower frame before ordering - production-window-specific parts vary.
- Engine ECU calibration. Common-rail injectors and ECU sensors are calibrated to specific build years.
- Cab vs. canopy. Folding-TOPS canopy and fixed-cab builds differ in operator-station hardware.
- Retractable vs. fixed undercarriage. Retract-equipped CX17Cs have additional retraction-cylinder hardware not present on fixed-track builds.
- Quick coupler. Hydraulic quick-coupler interface varies - confirm before ordering attachment-side hardware.
Why the CX17C still earns a paycheck
The CX17C is the everyday Case mini excavator - the size and configuration that fits the most common compact-excavator duty cycles. Residential landscape, light utility, irrigation, swimming pool installation, plumbing service laterals, and any job where a 1.5-to-2 ton class machine is the right tool. Long production run means parts availability is broad and the service community knows the machine well.
Maintenance priorities on a CX17C: clean fuel and tight water separation for common-rail injection, DPF regen behavior tracking, hydraulic oil at temperature with clean filtration, rubber-track tension and wear monitoring, and pin / bushing service at every working joint. Broken Tractor maintains parts coverage across the Case mini excavator family.
