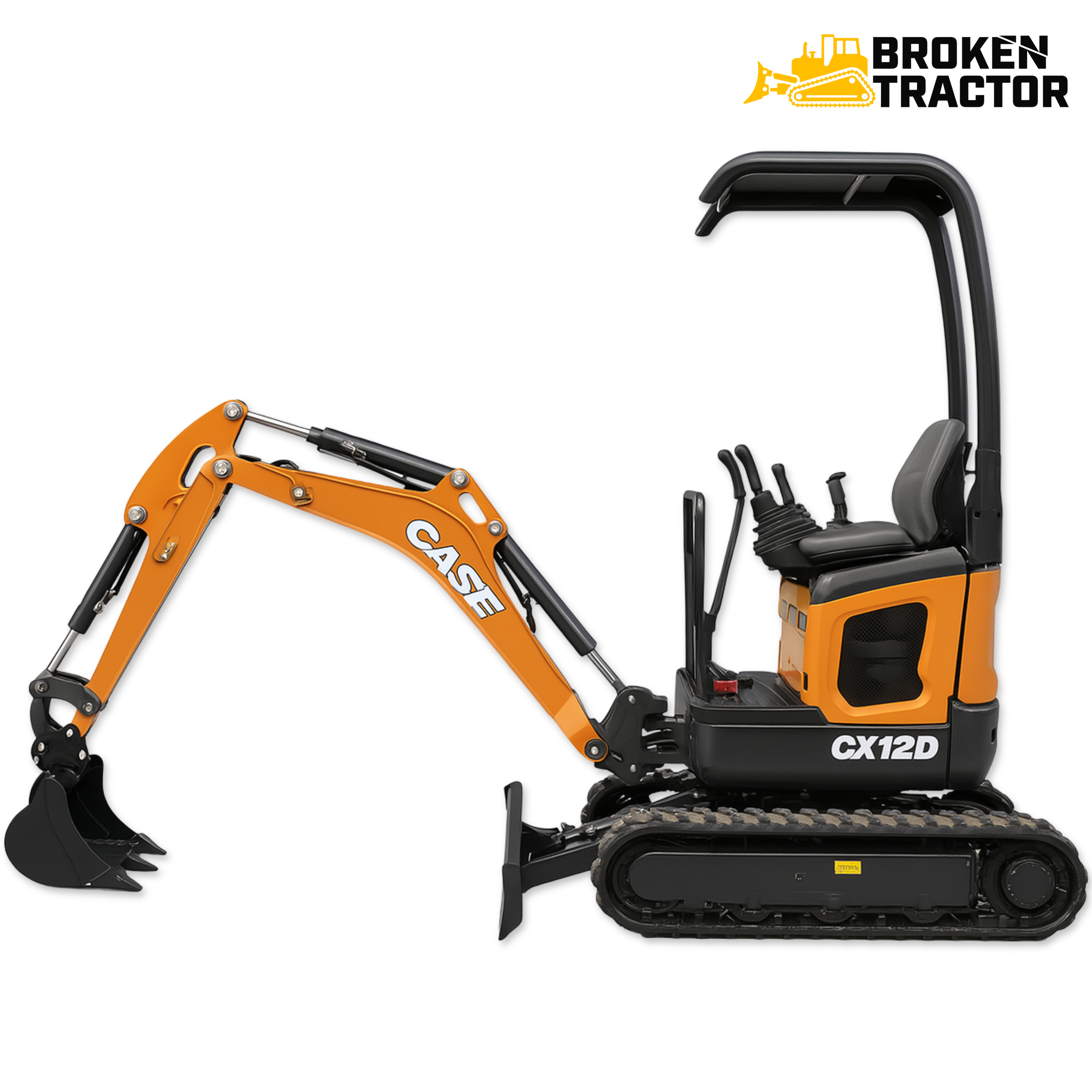

Case CX12D Mini Excavator: 2022+ 1.2-Ton Compact Mini with Retractable Undercarriage

The Case CX12D is one of the smallest excavators Case Construction Equipment builds — a 1.2-ton class compact mini introduced in 2022. Its retractable rubber-track undercarriage shrinks to under 30 inches for through-the-gate access, yet the machine still digs past five feet for landscape, plumbing, and tight-quarters utility work.

BT

Broken Tractor Editorial Team• Updated May 2026• 8 min read

Where the CX12D fits in the Case excavator line

The CX12D sits at the entry point of Case’s D-series mini excavator range — smaller than the CX17C, CX19D, and CX26C mini siblings. Its retractable undercarriage shrinks the track footprint to under 30 inches for through-the-gate access, a defining feature for residential landscape, plumbing, and tight-quarters utility work. Tier 4 Final emissions, hydrostatic auxiliary hydraulics, and a folding TOPS canopy or fixed cab make this a one-trailer, one-operator class machine.

Engine, hydraulics, and drivetrain

The CX12D runs a small Tier 4 Final compact diesel through a hydrostatic dual-path drivetrain into a retractable rubber-track undercarriage. The retraction mechanism is hydraulically powered — the operator extends the track width for stability on the dig site, then retracts it to roll through a garden gate. Boom, dipper, bucket, swing, and propel functions all run from a single-section main hydraulic pump with electrohydraulic control. Auxiliary hydraulics support attachments (augers, breakers, thumbs) on a hydraulic quick-coupler.

Zero-tail-swing slewing keeps the upper structure inside the track envelope when retracted, so the operator can spin and dig flush against walls or fence lines without worrying about counterweight clearance behind the machine.

Common service items on the CX12D

• Engine internals: Tier 4 Final compact diesel - pistons, rings, sleeves, head gaskets. Common-rail injection on the latest builds.
• Tier 4 Final aftertreatment: DPF service intervals and regeneration behavior; DEF dosing where SCR is fitted. EGR cooler service when soot loading shows.
• Fuel system: Common-rail injectors and lift pump, primary and secondary fuel filters with very tight water-separator standards - water in fuel is the fastest way to damage Tier 4 injectors.
• Cooling system: Compact radiator, water pump, thermostat, fan, hoses, belts. Compact installation means tight clearances; mind hose routing on rebuild.
• Hydraulic system: Main pump rebuild, swing motor, propel motors, boom / dipper / bucket cylinder seal kits, control valves, auxiliary hydraulic hoses and quick-coupler service.
• Retractable undercarriage: Track expansion / retraction cylinders, rubber track replacement, idlers, rollers, drive sprockets - the retract function adds wear points absent on fixed-track minis.
• Boom and dipper: Pin and bushing service at every joint, side-shift / offset boom pivot service, bucket pins, thumb attachment hardware.
• Electrical / ECU: Engine ECU, instrument cluster, sensors, wiring harness, telematics module on equipped units.
• Cab and canopy: Folding TOPS canopy hardware on canopy units, operator seat, joystick controls, pedal linkage, glass on cab-equipped builds.

Parts and cross-fit components for the Case CX12D

What to verify before ordering

• Serial number. Confirm the serial on the right-side lower cab frame before ordering year-specific parts.
• Engine serial. Common-rail injectors and aftertreatment components are calibrated to specific engine serials.
• Cab vs. canopy. Folding-TOPS canopy and fixed-cab builds differ in operator-station hardware.
• Retractable undercarriage spec. Rubber-track width, roller count, and sprocket geometry are sized to the retract mechanism - confirm by serial.
• Tier 4 Final emissions revision. DPF and DEF/SCR configuration varies by build year - confirm by serial.

Why the CX12D still earns a paycheck

The CX12D is purpose-built for the kind of work where wheelbarrows and shovels usually win - landscape contractors who need to dig 5+ feet inside a backyard, plumbers replacing service laterals from the curb to a foundation, irrigation crews trenching around mature beds. Through-the-gate access at retracted width and zero-tail-swing slewing means the CX12D works where larger machines simply can’t fit. Tier 4 Final keeps it compliant on residential job sites with noise and emissions constraints.

Maintenance priorities on a CX12D: clean fuel and tight water separation for common-rail injection, DPF regen behavior tracking, hydraulic oil at temperature with clean filtration, rubber-track tension and wear monitoring, and pin / bushing service at every working joint. Broken Tractor maintains parts coverage across the modern Case mini excavator family - call with your serial and engine number and we’ll match the right component.
