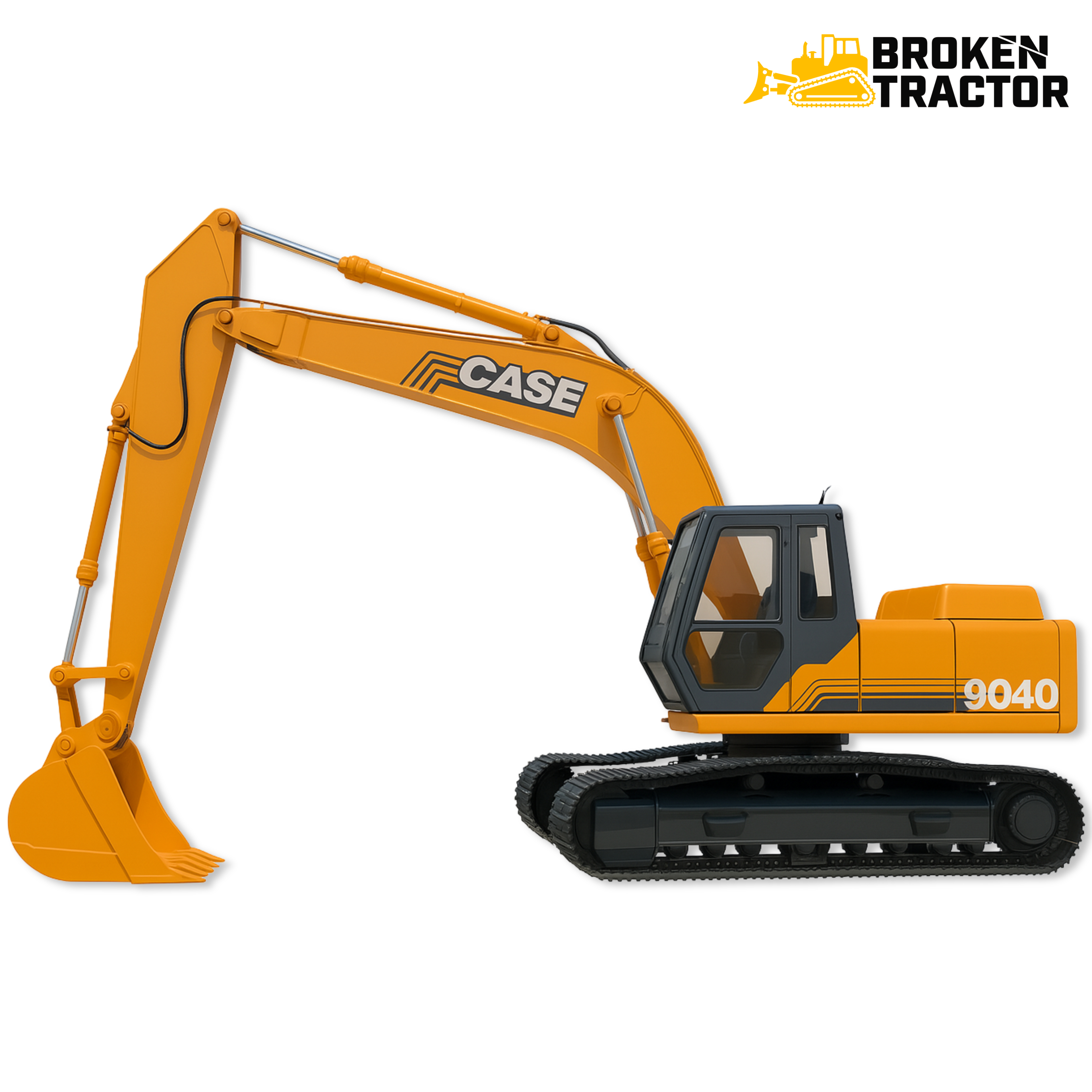

Case 9040 Excavator: Early 1990s Heavy Legacy 9000-Series Excavator
The Case 9040 is an early-1990s heavy vintage excavator from the legacy 9000-series that preceded the modern CX-series line. Built around a Case/Cummins diesel and a hydrostatic dual-path drivetrain, the 9040 sits between the 9030B and 9040B in the legacy sequence.
Where the 9040 fits in the Case excavator line
The 9040 is part of Case’s legacy excavator lineage - the heavy 9000-series that preceded the modern CX-series excavator line. It sits between the 9030B and the 9040B in the legacy sequence, occupying the heavier end of the early-1990s Case excavator family. Pre-Tier 4 emissions, mechanical or early-electronic injection, and a steel-track undercarriage define the class.
Case 9040 Excavator - Quick Specs
- Class
- Heavy Vintage Legacy Excavator
- Era
- Early 1990s
- Engine
- Case / Cummins Diesel
- Drivetrain
- Hydrostatic Dual-Path
- Undercarriage
- Steel Track
- Smaller Sibling
- Case 9030B Excavator
- Larger Sibling
- Case 9040B Excavator
- Modern Equivalent
- Case CX-Series
Engine, hydraulics, and drivetrain
The 9040 runs a Case or Cummins diesel through a hydrostatic dual-path drivetrain. Pre-Tier 4 emissions - mechanical injection on the earliest builds, electronic engine control on later production. The main hydraulic pump drives boom, dipper, bucket, swing, and propel through mechanical or electrohydraulic control valves. Steel-track undercarriage with planetary final drives carries the upper structure.
The hydraulic system is the heart of the machine - main pump output feeds the control valve bank, which distributes flow to boom, dipper, bucket, swing motor, and travel motors. Cylinder bore and rod sizes vary across the boom/dipper/bucket circuit; quick-coupler hardware varies by configuration.
Common service items on the 9040
- Engine internals: Pistons, rings, sleeves, bearings, head gaskets. Mechanical-injection or early-electronic depending on production year.
- Fuel system: Injection pump, injectors, lift pump, primary and secondary fuel filters.
- Cooling system: Radiator, water pump, thermostat, fan, hoses, belts.
- Hydraulic system: Boom / dipper / bucket / swing cylinder seal kits, main pump rebuild, control valves, hoses.
- Boom and dipper: Pin and bushing service at every joint, bucket pins, thumb attachment hardware, quick coupler service.
- Undercarriage: Steel track inspection and replacement, rollers, idlers, drive sprockets, recoil springs.
- Swing system: Swing motor and reduction gear service, swing bearing inspection, swing brake.
- Electrical: Starter, alternator, wiring harness, gauges, switches.
- Cab glass & wiper: KHN16820 24-inch wiper blade, KHN3046 front lower glass, and KHN2632 front upper glass all cross-fit across Case and Link-Belt excavators.
- Operator station: Seat, joystick controls, pedal linkage, instrument panel, cab HVAC.
Parts and cross-fit components for the Case 9040
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Pistons, rings, sleeves, bearings, gaskets | Browse Engine |
| Fuel System | Injection pump, injectors, lift pump, filters | Browse Fuel System |
| Cooling | Radiator, water pump, hoses, belts | Browse Cooling |
| Hydraulics | Main pump, swing motor, cylinders, seal kits, valves | Browse Hydraulics |
| Boom / Dipper | Pins, bushings, bucket and quick-coupler hardware | Browse Boom / Dipper |
| Undercarriage | Steel tracks, rollers, idlers, sprockets, recoil springs | Browse Undercarriage |
| Swing | Swing motor, reduction gear, swing bearing | Browse Swing |
| Cab Glass / Wiper | KHN16820 wiper, KHN3046 lower glass, KHN2632 upper glass (Case/Link-Belt cross-fit) | Browse Cab Glass |
| Electrical | Starter, alternator, harness, gauges | Browse Electrical |
| Operator Station | Seat, joysticks, pedal linkage, gauges | Browse Operator Station |
Need a part for your Case 9040 Excavator?
Main pumps, swing motors, and cab glass are the highest-demand items on a 9040. Call our parts team with your serial number and we’ll match the right component to your machine.
Request a PartWhat to verify before ordering
- Serial number. Confirm the serial on the 9040 before ordering year-specific parts.
- Engine serial. Engine internal parts must match the engine serial number.
- Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension - measure before ordering.
- Production-window revision. Engine and hydraulic components saw multiple revisions during the production run.
- Bucket and quick coupler. Quick-coupler interface varies - confirm before ordering attachment-side hardware.
- Cab glass orientation. Front upper vs. front lower vs. door glass - confirm which pane is broken before ordering KHN-series replacements.
Why the 9040 still earns a paycheck
The Case 9040 is a legacy excavator from the era before the modern CX-series. Pre-Tier 4 emissions, mechanical or early-electronic injection, and service architecture that rewards a wrench, a manual, and a parts catalog. For owners and operators running these machines, parts availability through the legacy Case service network and aftermarket remains broad - and the cross-fit between Case and Link-Belt excavators of the period opens up additional sourcing options for common service items like cab glass and wiper components.
Maintenance priorities on a 9040: clean fuel and quality filtration, hydraulic oil at temperature with clean filters, swing-bearing lubrication, steel-track tension and undercarriage wear monitoring, and pin / bushing service at every working joint. Broken Tractor maintains parts coverage across the Case legacy excavator family.
