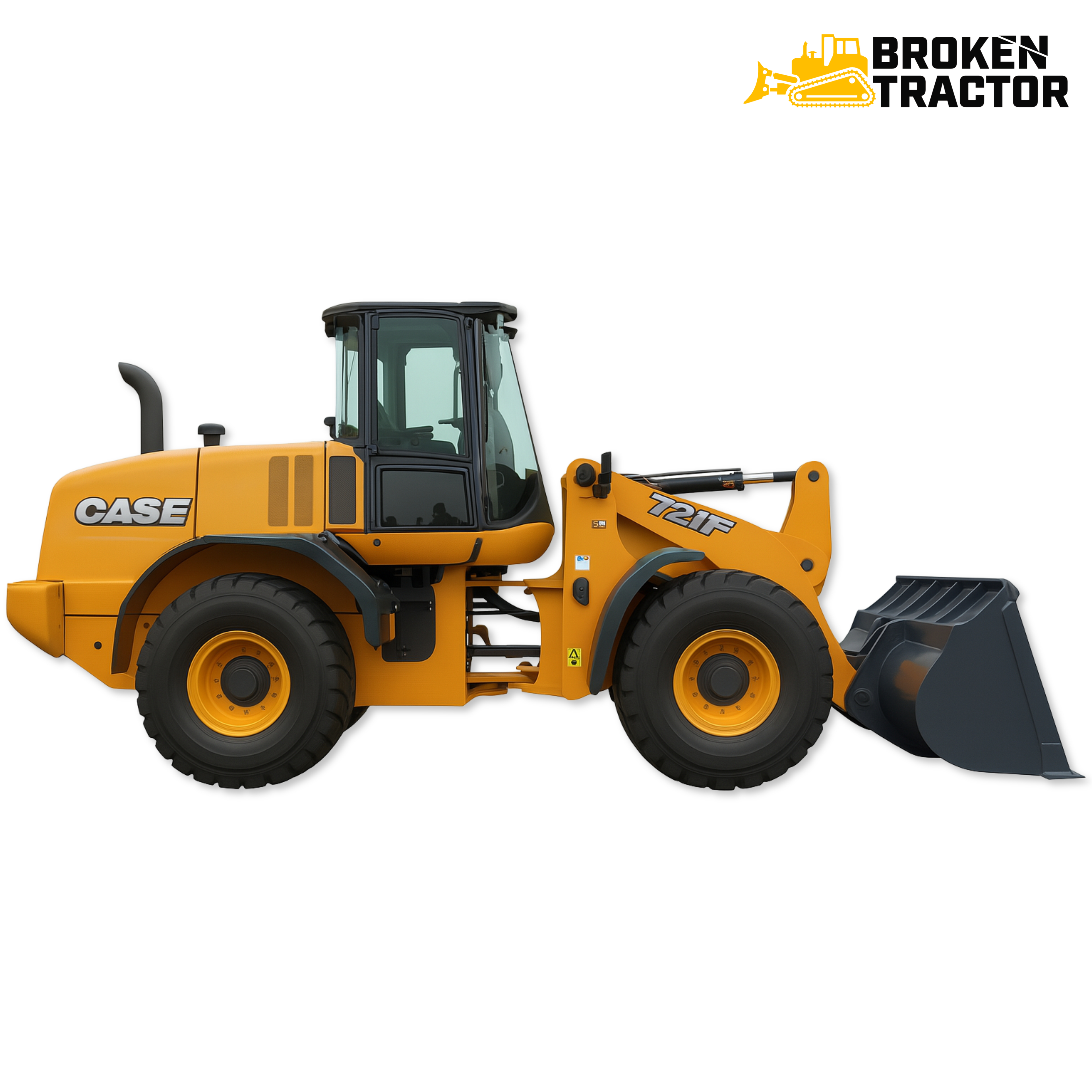

Case 721F Wheel Loader: 2012-2020 F-Generation Production Wheel Loader
The Case 721F is the 2012-2020 F-generation of Case's 721 production wheel loader - Tier 4 Interim Case diesel, DPF aftertreatment, power-shift drivetrain, and the F-series cab. It sits between the 721E and the current 721G in Case's mid-large wheel loader line.
Where the 721F fits in the Case wheel loader line
The 721F is the F-revision of Case's 721 platform - sitting between the 721E and the current 721G. The F generation brought Tier 4 Interim emissions, refined common-rail injection, DPF aftertreatment, and the F-series cab to Case's mid-large production wheel loader.
Mechanically the articulated frame and power-shift drivetrain carried forward from the 721E, but emissions, electronics, and operator-station refinements were significant. The 8603582 brake plate is a high-volume service item and cross-fits 521D, W130TC, and 721F machines.
Case 721F Wheel Loader - Quick Specs
- Production
- 2012 - 2020
- Class
- Production Wheel Loader
- Generation
- F-Series
- Frame
- Articulated
- Engine
- Tier 4 Interim Case Diesel
- Aftertreatment
- DPF + EGR
- Drivetrain
- Power Shift
- Front Tool
- Hydraulic Loader
- Serial Plate Location
- Left Frame Near Articulation Joint
- Predecessor
- Case 721E
- Successor
- Case 721G
What changed from the 721E to the 721F
- Engine. Tier 4 Interim Case diesel with refined common-rail injection and electronic engine control.
- Aftertreatment. DPF and EGR cooler service replace the simpler Tier 3 exhaust path on the 721E. Periodic DPF regen and EGR cooler condition become routine items.
- Cab. F-series operator station with updated climate control, refined joystick controls, and color monitor display.
- Loader hydraulics. Piston pump with electrohydraulic control valves for smoother modulation.
- Electrical. Updated engine ECU, instrument cluster, and telematics-ready harness.
Engine, hydraulics, and drivetrain
The 721F runs a Tier 4 Interim Case diesel through a power-shift transmission. Loader hydraulics use a piston pump with electrohydraulic control valves. The articulated frame carries proven steering cylinders and pivot pin assemblies. The G109152 steering cylinder bushing fits 521F, 621, 721, and 821 series machines, making it a high-cross-fit service item.
The drivetrain uses power-shift clutch packs and planetary final drives. Wet-disc service brakes carry forward from the E-generation, and the 8603582 brake plate remains a recurring high-volume part.
Common service items on the 721F
- Engine internals: Case diesel pistons, rings, sleeves, bearings, gaskets. R49482 engine motor mount is a recurring service item.
- Aftertreatment: DPF service, EGR cooler service, NOx and pressure sensors.
- Fuel system: Common-rail injectors, high-pressure pump, lift pump, water separator, filters.
- Cooling system: Radiator, water pump, thermostat, fan, charge-air cooler, hoses, belts.
- Loader hydraulics: Cylinder seal kits, piston-pump rebuilds, electrohydraulic control valves, hoses.
- Articulation steering: Steering cylinder seal kits, articulation pivot pins and bushings. G109152 steering cylinder bushing fits 521F, 621, 721, 821 series.
- Loader components: Bucket teeth, cutting edges, bushings, pivot pins, quick coupler.
- Drivetrain: Power-shift clutch packs, transmission, axle seals, planetary final drives. Transmission shift lever assembly for service.
- Brakes: Wet-disc service brakes. S300718 brake shoe, A12985 slave cylinder, and N8695 master cylinder are recurring items.
- Electrical / ECU: Engine ECU, instrument cluster, sensors, wiring harness, telematics module. 87528688 AC blower speed resistor fits 521E through 1121F.
- Operator station: Seat, gauges, control levers, cab parts. 47880728 cab fresh-air filter on cab-equipped units.
Parts we carry for the Case 721F
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Tier 4 Interim diesel internals, mounts | Browse Engine Parts |
| Aftertreatment | DPF, EGR cooler, sensors | Browse Aftertreatment |
| Fuel System | Common-rail injectors, HP pump, filters | Browse Fuel System |
| Cooling | Radiator, water pump, charge-air cooler, hoses | Browse Cooling |
| Loader Hydraulics | Piston pump, cylinders, seal kits, valves | Browse Hydraulics |
| Articulation Steering | G109152 bushing, pivot pins, seal kits | G109152 Bushing |
| Loader | Bucket teeth, cutting edges, pins, bushings | Browse Loader Components |
| Drivetrain | Power-shift clutch packs, shift lever, axles | Shift Lever Assembly |
| Brakes | N8695 master, A12985 slave, S300718 shoe, 8603582 brake plate | S300718 Brake Shoe |
| Electrical | ECU, harnesses, sensors, blower resistors | 87528688 Blower Resistor |
| Cab / Climate | 47880728 fresh-air filter, seat, glass | 47880728 Cab Filter |
Need a part for your Case 721F Wheel Loader?
Aftertreatment components, common-rail fuel parts, and the 8603582 brake plate are the highest-volume service items on a 721F. Call our parts team with your serial number and we will match the right component to your machine.
Request a PartWhat to verify before ordering
- Generation matters. The 721-series spans multiple generations - confirm by serial before ordering.
- Serial number. Confirm the serial on the left frame near the articulation joint before ordering year-specific parts.
- Engine serial. Case diesel internal parts must match the engine serial number.
- Aftertreatment configuration. DPF and EGR cooler part numbers can vary across the F-generation run.
- Cab vs. ROPS canopy. Operator station equipment varied across configurations.
- Axle variant. ZF and other axle configurations affect brake and final-drive part numbers.
Why the 721F still earns a paycheck
The 721F is the Tier 4 Interim production wheel loader of the F-generation - common-rail injection, DPF aftertreatment, and the F-series cab brought the platform into modern emissions territory while keeping the proven power-shift drivetrain and articulated chassis. Parts availability is strong because so much of the wear-item content cross-fits across 521F, 621, 721, and 821 platforms.
Maintenance priorities on a 721F: clean fuel and tight water separation, attentive DPF regen behavior, EGR cooler condition, hydraulic system cleanliness, and brake service (the 8603582 brake plate cross-fits 521D and W130TC machines as well). Broken Tractor maintains parts coverage for the F-generation alongside the broader Case wheel loader family.
