JD 700H, 700J, 700K Blade Cylinder & Seal Kits

ⓘ Click headers to sort ↕
JD 700H, 700J, 700K Blade Cylinder & Seal Kits parts list
Image Fits Model Description Part # Price Product Details
Unitized Piston, 90mm Bore for John Deere 700 Series Dozer – AH169827 See Details 700H, 700J, 700K, 700L Unitized Piston, 90mm Bore AH169827
$122.00
View Info

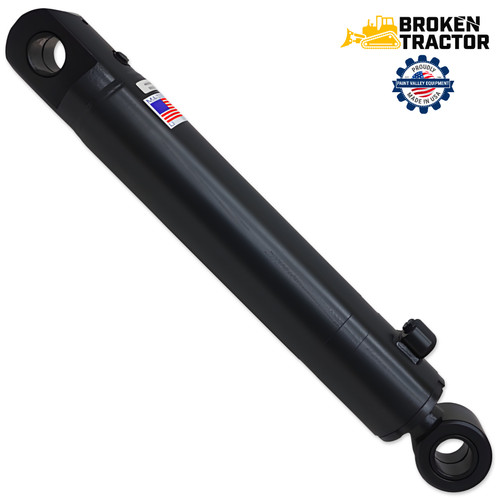

John Deere 700H dozer blade lift cylinder — AHC15749 See Details 700H, 700J, 700K (After S/N 291537) Blade Lift Cylinder AHC15749
$1,890.00
View Info
John Deere 700H dozer blade lift cylinder — AH215878 See Details 700H, 700J, (700K Before S/N 291537) Blade Lift Cylinder AH215878
$1,891.00
View Info
Hydraulic drive control ball joint for John Deere 450G 550H 650J dozers See Details 410B, 410C, 415B, 610B, 710B, 455G, 555G, 450G, 450H, 550G, 550H, 650G, 650J, 700H, 700J, 700K, 750J, 850J, 540G, 548H, 648D, 648GII, 748GII, 4475, 5575, 6675, 7775, 8875, 440C, 540E, 640G, 648H, 748G, 848H Hydraulic Drive Control Ball Joint AT48548
$19.00
View Info
John Deere 700 series dozer left blade angle cylinder AHC19714 OEM take-off See Details 700J*, 700J-II, 700K, 700L, 700 P-Tier Right Blade Angle Cylinder AHC19715-OEM
$1,750.00
View Info
John Deere 700 series dozer left blade angle cylinder AHC19714 OEM take-off See Details 700J*, 700J-II, 700K, 700L, 700 P-Tier Left Blade Angle Cylinder AHC19714-OEM
$1,750.00
View Info
AH169780 John Deere Tilt Cylinder with Bushings for 700H, 700J, 700K Dozer See Details 700H, 700J, 700J-II, 700K, 700L, 700 P-Tier, 764 Tilt Cylinder AH169780-PV
$1,526.00
View Info
John Deere Lift Cylinder for 700H, 700J, 700K Dozers (AHC10693) See Details 700H, 700J, 700K Lift Cylinder AHC10693
$1,848.00
View Info

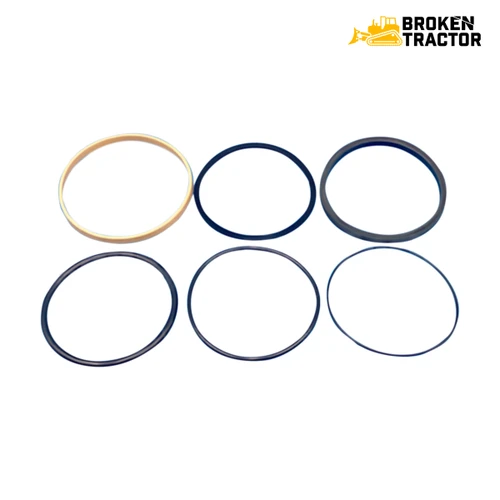

100 mm bore seal kit AHC22109 for John Deere 310SL backhoe cylinder See Details 310G-310SL, 410E-410L, 710L/P, 333G/P, 335P, 450H-650P, 700J-750K, 670B-872D, 1512E-2112E, 1612DE, 2014DE, 360D, 460D, 540G-III-848HTJ, 640L-948L, 7200R-7310R, 8100-8520, 8225R-8400R, 8R/8RX 340-540, 8560-8970, 9100-9620, 9360R-9620RX, 9RT 470-590 100 mm Hydraulic Cylinder Bore Seal Kit AHC22109
$44.00
View Info
21 Blade Angle Cylinder for JD 700J Dozer with Bushings See Details 700H, 700J, 700K Angle Cylinder AH211335
$2,120.00
View Info
22 John Deere Internal Snap Ring for 450G, 550H, 650J Dozers - Broken Tractor | 40M5099 See Details 450G, 450H, 450J, 550G, 550H, 550J, 650G, 650H, 650J, 210C*, 210K, 210LE*, 310D*, 315D*, 310E, 310G, 310J, 310K, 310L, 310SE, 310SG, 310SJ, 310SK, 310SL, 315SE, 315SG, 315SJ, 315SK, 315SL, 325J, 325K, 325SK, 325SL, 410D*, 410E, 410G, 410J, 410K, 410L Internal Snap Ring 40M5099
$5.00
View Info
22 Bushing, Self Aligning for John Deere Dozer See Details 700H, 700J, 700K, 700L Swivel Bushing, Blade Angle / Tilt Cylinder AH150341
$58.00
View Info
JD 700H, 700J Hydraulic Hose Guard (Left-Hand) -- AT223656 See Details 700H, 700J Hydraulic Hose Guard (Left-Hand) AT223656
$485.00
View Info
JD 700H, 700J Hydraulic Hose Guard (Right-Hand) -- AT223552 See Details 700H, 700J Hydraulic Hose Guard (Right-Hand) AT223552
$485.00
View Info
Versatile Hydraulic Cylinder Spanner Wrench for John Deere, Fits 2" to 4.75" Diameters See Details 2.00" - 4.75" Diameter Cylinders Spanner Wrench JD-51120
$34.00
View Info
John Deere Hydraulic Cylinder Spanner Wrench See Details 115mm to 170mm or 4.5" to 6.7" Diameter Cylinders Spanner Wrench JD-115170
$44.00
View Info

Shop blade hydraulic cylinders, bushings, and service parts for John Deere 700H, 700J, and 700K dozers. Broken Tractor stocks lift cylinders, angle cylinders, tilt cylinders, swivel bushings, hydraulic hose guards, and service tools to restore blade function on your 700 series dozer. Whether you need a complete cylinder replacement or hardware to support a rebuild, we have the parts to keep your 700H, 700J, or 700K pushing.

Fits Models At A Glance:

  • Primary Models: 700H, 700J, 700K
  • Additional Fitment (Select Components): 700L, 450G–650J (snap ring)

Key Notes:

  • Blade Lift Cylinder (AHC10693): Fits 700H, 700J, and 700K — raises and lowers the dozer blade for grading and material handling
  • Blade Angle Cylinder (AH211335): Fits 700H, 700J, and 700K — controls blade angle for precision grading and side-casting material
  • Blade Tilt Cylinder (AH169780): Fits 700H, 700J, and 700K — controls blade tilt for side-slope grading and finish work
  • Swivel Bushing (AH150341): Fits 700H, 700J, 700K, and 700L — self-aligning bushing for blade angle and tilt cylinder rod ends
  • Hydraulic Hose Guards: Left-hand (AT223656) and right-hand (AT223552) guards for 700H and 700J — protects hydraulic lines from debris and abrasion
  • Internal Snap Ring (40M5099): Fits 700 series and many 450G–650J dozers plus 210–410 series backhoes
  • Service Tools: Spanner wrenches for 2.00"–4.75" and 4.5"–6.7" (115mm–170mm) diameter cylinders — essential for cylinder disassembly and service

Why Choose Broken Tractor:

✅ Full 700 Series Coverage – Lift, angle, and tilt cylinders for 700H, 700J, and 700K models

✅ Supporting Hardware In Stock – Swivel bushings, hose guards, and snap rings ready to ship

✅ Same-Day Shipping – In-stock cylinders and parts ship same day from U.S. warehouses

Frequently Asked Questions

Which blade lift cylinder fits a John Deere 700K dozer?

It depends on the serial number of your 700K. The AH215878 blade lift cylinder fits the 700H, 700J and 700K before serial number 291537, and the AHC15749 fits the 700H, 700J and 700K after serial number 291537. Broken Tractor also carries the AHC10693 lift cylinder for the 700H, 700J and 700K. Match the part number on your old cylinder or call (800) 909-7060 with your serial number to confirm the right one.

Does a John Deere 700J blade angle cylinder come with bushings?

Yes, the blade angle cylinders we carry include bushings. The AH211335 blade angle cylinder fits the 700H, 700J and 700K. We also offer a left (AHC19714-OEM) and right (AHC19715-OEM) blade angle cylinder, both new OEM take-offs, for the 700J-II, 700K, 700L and 700 P-Tier with select 700J fitment, so match your part number before ordering.

What tilt cylinder fits a John Deere 700H dozer?

The AH169780 tilt cylinder with bushings fits the John Deere 700H, along with the 700J, 700J-II, 700K, 700L and 700 P-Tier. It controls blade tilt for side-slope grading and finish work. For worn rod ends, we also carry the AH150341 self-aligning swivel bushing for the blade angle and tilt cylinders on the 700H through 700L.

Can I rebuild a John Deere 700 series blade cylinder instead of replacing it?

Yes, Broken Tractor carries parts to support a cylinder rebuild. Options include the AHC22109 100 mm bore seal kit, which fits 700J through 750K dozers, the AH169827 90 mm bore unitized piston for the 700H, 700J, 700K and 700L, and the 40M5099 internal snap ring. Seal kits and pistons are sized by bore, so confirm your cylinder bore and part number before ordering.

What size spanner wrench do I need for a John Deere dozer cylinder gland nut?

Choose the wrench that matches your cylinder diameter. The JD-51120 spanner wrench fits 2 to 4.75 inch diameter cylinders, and the JD-115170 fits 115 mm to 170 mm (4.5 to 6.7 inch) gland nuts. Measure your cylinder before ordering to pick the right one for disassembly and service.
