100 mm Bore Seal Kit for John Deere 310SL, 450J, 700K, 770D, 648H Cylinders – AHC22109

SKU:
AHC22109
FitsModel:
310G-310SL, 410E-410L, 710L/P, 333G/P, 335P, 450H-650P, 700J-750K, 670B-872D, 1512E-2112E, 1612DE, 2014DE, 360D, 460D, 540G-III-848HTJ, 640L-948L, 7200R-7310R, 8100-8520, 8225R-8400R, 8R/8RX 340-540, 8560-8970, 9100-9620, 9360R-9620RX, 9RT 470-590
ListDescription:
100 mm Hydraulic Cylinder Bore Seal Kit

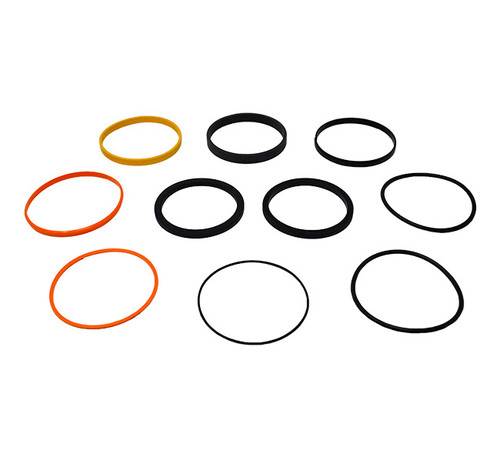

100 mm bore seal kit AHC22109 for John Deere 310SL backhoe cylinder
Part # AHC22109

Fits Models At A Glance

  • John Deere Backhoe Loaders: 310G, 310L, 310L EP, 310SG, 310SJ, 310SJ TMC, 310SK, 310SK TC, 310SL, 310SL HL, 310TJ, 310TK TMC, 315SG, 410E, 410G, 410J, 410J TMC, 410K, 410K TC, 410L, 710G, 710J, 710K, 710L
  • John Deere Crawler Dozers: 450G, 450H, 450J, 450K, 455G, 550G, 550H, 550J, 550K, 555G, 650G, 650H, 650J, 650K, 700H, 700J, 700J II, 700K, 750J
  • John Deere Tractors: 8R 340, 8R 410, 8R 440, 8R 490, 8R 540, 8RX 410, 8RX 440, 8RX 490, 8RX 540, 9RT 470, 9RT 490, 9RT 520, 9RT 540, 9RT 570, 9RT 590
  • John Deere 9RT Scraper Tractors: 9RT 470 Scraper, 9RT 490 Scraper, 9RT 520 Scraper, 9RT 540 Scraper, 9RT 570 Scraper, 9RT 590 Scraper
  • John Deere Forestry Skidders: 648L, 748H

Key Notes

  • Part Number(s): AHC22109
  • Interchange Numbers: Replaces AH212102 (A-AH212102); cross-references AH212100
  • Weight: 0.06 lbs
  • Bore Size: 100 mm
  • Application: Bore seal kit for 100 mm bore hydraulic cylinders on John Deere backhoe loaders, crawler dozers, 8R/8RX and 9RT tractors, and forestry skidders. It seals the piston and the outside of the gland to stop leaks and restore cylinder pressure.
  • Style/Type: Bore (piston side) seal kit. To reseal the whole cylinder, order a matching rod seal kit too.
  • Condition: Aftermarket replacement part

Why Choose Broken Tractor

  • Checked Against the Deere Part Number Before Listing - We match fitment to AHC22109 and its replaced number AH212102, so you can check your cylinder before you order.
  • Help From People Who Know Hydraulic Cylinders - Our U.S.-based team can help you find the right bore and rod kits for your 310, 410, 710, or dozer cylinders.
  • Fast Shipping from a U.S.-Based Team - Small seal kits are packed and shipped quickly, so you can reseal your cylinder and get the machine back to work.
$44.00

Shipping calculated at checkout. If any item in your order is temporarily unavailable, we'll contact you to arrange a back-order or refund — whichever you prefer.
