Cat Backhoe Stabilizer Cylinder

ⓘ Click headers to sort ↕
Cat Backhoe Stabilizer Cylinder parts list
Image Fits Model Description Part # Price Product Details
Right stabilizer cylinder for Caterpillar 416F backhoe — 604-9008 See Details 415, 415F2, 416, 416F, 416F2, 420, 420F, 420F2, 420XE, 430, 430F, 430F2 Right-Hand Stabilizer Cylinder 604-9008
$1,748.00
View Info
Caterpillar Stabilizer Cylinder, Left Hand, for 416, 416B, 416C, 426, 426C Backhoe (116-4366) See Details 416, 416B, 416C, 426, 426C Stabilizer Cylinder, Left Hand 116-4366
$1,417.00
View Info
1302365 Cat Stabilizer Cylinder for 416B, 426B, 436B – 1302364 See Details 416B, 426B, 436B Stabilizer Cylinder 1302364
$2,264.00
View Info

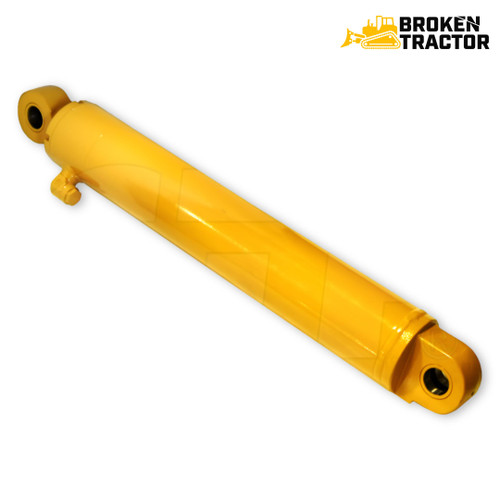

Cat Stabilizer Cylinder for 416B, 426B, 436B – 1165354 See Details 416B, 426B, 436B Stabilizer Cylinder 1165354
$1,975.00
View Info
Cat Stabilizer Cylinder for 416C, 426C, 436C – 1731927 See Details 416C, 426C, 436C Stabilizer Cylinder 1731927
$1,860.00
View Info
Caterpillar Backhoe Stabilizer Outrigger Cylinder for 416, 426 Series - Broken Tractor See Details 416, 416B, 416C, 426, 426B Stabilizer Cylinder 116-4365
$1,451.00
View Info
Cat Stabilizer Cylinder for 416C, 426C, 436C – 1731926 See Details 416C, 426C, 436C Stabilizer Cylinder 1731926
$2,145.00
View Info
Caterpillar Stabilizer Cylinder, LH for 416D, 420D, 430D Loader Backhoe See Details 416D, 420D, 430D Stabilizer Cylinder, LH 228-3499
$1,710.00
View Info
Cat Backhoe Stabilizer Cylinder (Right Hand) -- 180-7485 | Broken Tractor See Details 416D, 420D, 430D Stabilizer Cylinder (Right) 180-7485
$1,645.00
View Info
Left Stabilizer Cylinder for Cat 416D, 430D & More See Details 416D, 420D, 430D Stabilizer Cylinder (Left) 180-7484
$1,645.00
View Info
Caterpillar Backhoe Stabilizer Cylinder (Left Hand) -- 262-7049 | Broken Tractor See Details 416E, 420E, 430E, 416F, 420F, 430F Stabilizer Cylinder (Left) 262-7049
$1,750.00
View Info
Right Stabilizer Cylinder for Cat 416E, 430F & More See Details 416E, 416F, 420E, 420F, 430E, 430F Stabilizer Cylinder (Right) 262-7050
$1,750.00
View Info
Caterpillar Stabilizer Cylinder, LH for 415 (H8A), 415F2, 416 (H8P, L8P, L9P, H9P), 416F, 416F2, 420 (H8T, L8T, L9T, N2X, H9T), 420F, 420F2, 420XE, 430 (H8W, L8W), 430F, 430F2 See Details 415 (H8A), 415F2, 416 (H8P, L8P, L9P, H9P), 416F, 416F2, 420 (H8T, L8T, L9T, N2X, H9T), 420F, 420F2, 420XE, 430 (H8W, L8W), 430F, 430F2 Stabilizer Cylinder, LH 291-2681
$1,750.00
View Info
Cat Stabilizer Cylinder for 422E, 424D, 428C, 428D & More – 1734565 See Details 422E, 424D, 428C, 428D, 428E, 432D, 432E, 434E, 438C, 438D, 442D, 442E, 444E Stabilizer Cylinder 1734565
$1,856.00
View Info
Cat 416D right hand stabilizer cylinder — 228-3500 See Details 416D, 420D, 430D Right-Hand Stabilizer Cylinder 228-3500
$1,750.00
View Info
Cat Stabilizer Cylinder for 416E, 416F, 420E, 420F & More – 2912682 See Details 416E, 416F, 420E, 420F, 430E, 430F, 416F2, 416IT, 420, 420F2, 430, 430F2, 415F2 Stabilizer Cylinder 2912682
$2,079.00
View Info
Stabilizer Cylinder Rod for Cat 416, 426B & More See Details 416, 416B, 416C, 426, 426B Stabilizer Cylinder Rod 116-4369
$622.00
View Info
Cat Stabilizer Cylinder Rod Assembly for 416C, 426C, 436C, 416D & More – 1722354 See Details 416C, 426C, 436C, 416D, 420D, 430D Stabilizer Cylinder Rod Assembly 1722354
$787.00
View Info
Cat Stabilizer Cylinder Rod Assembly for 416, 416E, 416F, 416F2 & More – 2912691 See Details 416E, 416F, 416F2, 420E, 420F, 420F2, 430, 430E, 430F, 430F2, 416IT, 420 Stabilizer Cylinder Rod 2912691
$783.00
View Info
Cat Stabilizer Cylinder Rod Assembly for 422E, 428D, 432D, 438D & More – 1266953 See Details 422E, 428D, 432D, 438D, 442D, 424D, 428B, 428C, 428E, 432E, 434E, 438C, 442E, 444E Stabilizer Cylinder Rod Assembly 1266953
$479.00
View Info
Cat Backhoe Stabilizer Cylinder Rod -- 2332576 | Broken Tractor See Details 416E, 416F, 420E, 420F, 430E, 430F Stabilizer Cylinder Rod 2332576
$686.00
View Info
Cat Stabilizer Cylinder Rod for 416B, 426B, 436B – 1302367 See Details 416B, 426B, 436B Stabilizer Cylinder Rod 1302367
$504.00
View Info
Cat Hydraulic Cylinder Tube/ Stabilizer Cylinder Tube for 416B & More – 1052365 See Details 416B, 426B, 436B Stabilizer Cylinder Tube 1052365
$1,161.00
View Info
Cat Hydraulic Cylinder Tube / Stabilizer Cylinder Tube for 416B & More – 1052325 See Details 416B, 426B, 436B Stabilizer Cylinder Tube 1052325
$965.00
View Info
Cat Hydraulic Cylinder Stabilizer Cylinder Tube for 416D & More – 2627052 See Details 416D, 416E, 420E, 430E, 416F2, 420F2 Stabilizer Cylinder Tube 2627052
$1,096.00
View Info
Cat Hydraulic Stabilizer Cylinder Tube for 416C & More – 1722349 See Details 416C, 426C, 436C Stabilizer Cylinder Tube 1722349
$899.00
View Info
Cat Hydraulic Cylinder Stabilizer Cylinder Tube for 416D & More – 2060519 See Details 416D, 420D, 430D Stabilizer Cylinder Tube 2060519
$1,039.00
View Info
Cat Stabilizer Cylinder Tube for 416, 416E, 416F, 416F2 & More – 2912684 See Details 416, 416E, 416F, 416F2, 420E, 420F, 420F2, 430, 430E, 430F, 430F2, 415F2 Stabilizer Cylinder Tube 2912684
$1,169.00
View Info
Cat Hydraulic Stabilizer Cylinder Assembly for 416D & More – 2060521 See Details 416D, 420D, 430D Stabilizer Cylinder Tube 2060521
$1,058.00
View Info
Cat Stabilizer Cylinder Tube for 416F2, 416IT, 416F, 416E & More – 2912683 See Details 416F2, 416IT, 416F, 416E, 420, 420E, 420F, 420F2, 430, 430E, 430F, 430F2, 415F2 Stabilizer Cylinder Tube 2912683
$1,059.00
View Info
Stabilizer Seal Kit for Cat 416E, 430F & More See Details 416E, 416F, 420E, 420F, 430E, 430F Stabilizer Cylinder Packing Kit 233-2623
$85.00
View Info
Seal Kit for Caterpillar 416, 416B, 416C, 426, 426B Backhoes -130-5923) See Details 416, 416B, 416C, 426, 426B, 428, 436, 436C, 438 Seal Kit 130-5923
$92.00
View Info
Cat Stabilizer Cylinder Seal Kit for 416, 416E, 416F, 416F2 & More – 3975181 See Details 416E, 416F, 416F2, 420E, 420F, 420F2, 430, 430E, 430F, 430F2, 416D, 420D, 430D, 416IT, 420 Stabilizer Cylinder Seal Kit 3975181
$31.00
View Info
Cat Stabilizer Cylinder Seal Kit for 416C, 426C, 436C – 2465928 See Details 416C, 426C, 436C Stabilizer Cylinder Seal Kit 2465928
$43.00
View Info
Cat Stabilizer Cylinder Seal Kit for 422E, 428D, 432D, 438D & More – 2342595 See Details 422E, 428D, 432D, 438D, 442D Stabilizer Cylinder Seal Kit 2342595
$28.00
View Info
Stabilizer Cylinder Seal Kit for CAT 416, 430D Backhoes See Details 416, 416B, 416C, 426, 426B, 416D, 420D, 430D Seal Kit 2465929
$65.00
View Info
Cat Stabilizer Cylinder Seal Kit for 416D, 420D, 430D – 2857486 See Details 416D, 420D, 430D Stabilizer Cylinder Seal Kit 2857486
$28.00
View Info
Cat Backhoe Stabilizer Outrigger Cylinder Gland 416, 416B, 416C, 426, 426B -- 9T6388 See Details 416B, 416C, 426B, 426C 436C, 446B Stabilizer Cylinder Gland 9T6388
$302.00
View Info

Stabilizer cylinders, cylinder rods, glands, seal kits, and packing kits for Caterpillar backhoe loaders, covering left and right hand configurations across multiple 400 series generations.

Fits Models At A Glance

  • 415 / 416 Series: 415, 415F2, 416, 416B, 416C, 416D, 416E, 416F, 416F2
  • 420 Series: 420, 420D, 420E, 420F, 420F2, 420XE
  • 426 Series: 426, 426B, 426C
  • 430 Series: 430, 430D, 430E, 430F, 430F2

Key Notes

  • Application: Stabilizer cylinders and components for Cat backhoe loader stabilizer circuits
  • Coverage: Includes left and right hand stabilizer cylinders, stabilizer cylinder rods, cylinder glands, seal kits, and packing kits
  • Function: Extends and retracts stabilizer legs to level and support the machine during backhoe operations on Cat backhoe loader platforms

Why Choose Broken Tractor

  • ✅ Left and right stabilizer cylinders stocked for Cat backhoes
  • ✅ Covers 415 through 430 series Cat backhoe platforms
  • ✅ Rods, glands, and seal kits all available together

Frequently Asked Questions

Which stabilizer cylinder fits a Cat 416?

The correct Cat 416 stabilizer cylinder depends on the generation and serial number of your backhoe. For the 416, 416B and 416C, Broken Tractor offers 116-4365 (right or left hand) and 116-4366 (left hand); for the 416D, 180-7484 and 228-3499 (left) or 180-7485 and 228-3500 (right); for the 416E and 416F, 262-7049 (left) or 262-7050 (right). Later 416 machines with serial prefixes H8P, L8P, L9P or H9P, plus the 416F2, use 291-2681 (left hand) or 604-9008 (right hand). Match the part number on your old cylinder, or call (800) 909-7060 with your serial number to confirm fitment.

Do I need a left or right hand stabilizer cylinder for a Cat 420?

Cat 420 stabilizer cylinders are side specific, so order the left or right hand version that matches the leg you are replacing. For the 420D, the left hand options are 180-7484 and 228-3499, and the right hand options are 180-7485 and 228-3500. The 420E and 420F use 262-7049 on the left and 262-7050 on the right. The 420, 420F2 and 420XE use 291-2681 on the left and 604-9008 on the right.

Can I rebuild a Cat backhoe stabilizer cylinder instead of replacing the whole cylinder?

Yes, Broken Tractor carries seal kits, cylinder rods, rod assemblies, glands and cylinder tubes, so you can replace only the worn component. Seal kit options include 130-5923 for the 416, 416B, 416C, 426 and 426B, 2465928 for the 416C, 426C and 436C, 2857486 for the 416D, 420D and 430D, and 233-2623 for the 416E, 416F, 420E, 420F, 430E and 430F. The 9T6388 gland fits the 416B, 416C, 426B, 426C, 436C and 446B. Compare the part number on your existing cylinder before choosing a kit, because fitment varies by model and series.

What stabilizer cylinder fits a Cat 428D or 432D backhoe?

The 1734565 stabilizer cylinder fits the Cat 428D and 432D, along with the 422E, 424D, 428C, 428E, 432E, 434E, 438C, 438D, 442D, 442E and 444E. For a rebuild, the 1266953 rod assembly covers those machines plus the 428B. The 2342595 seal kit fits the 422E, 428D, 432D, 438D and 442D.

Which stabilizer cylinder parts fit a Cat 430D?

For the Cat 430D, Broken Tractor offers complete left hand cylinders 180-7484 and 228-3499, and right hand cylinders 180-7485 and 228-3500. Rebuild parts for the 430D include the 1722354 rod assembly, the 2060519 and 2060521 cylinder tubes, and the 2465929, 2857486 and 3975181 seal kits. Since more than one cylinder version fits the 430D, match the part number stamped on your current cylinder to get the right one.
