Case 4WD Front Axle Differential Parts

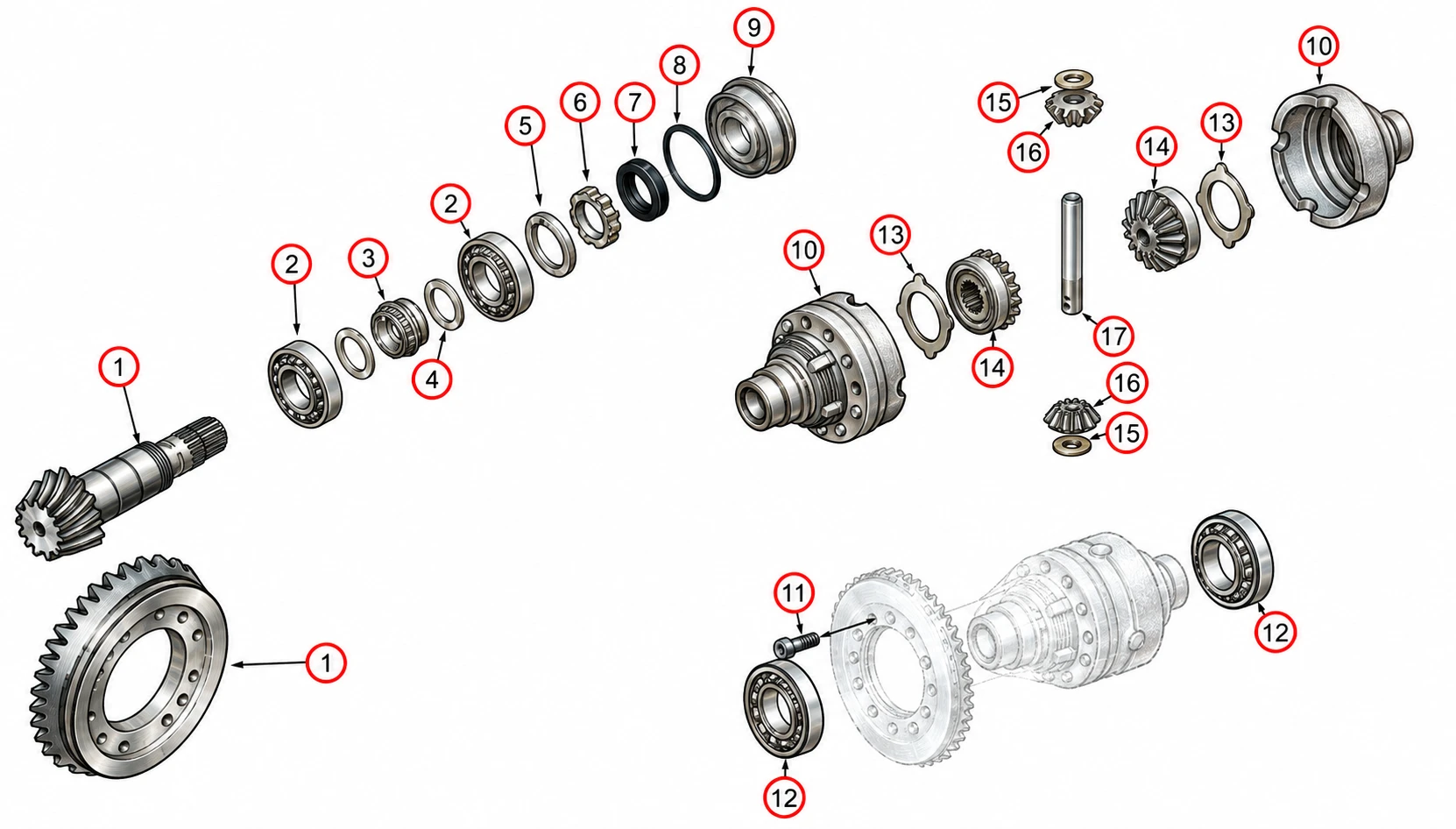

Each number on the image is a "Ref #" that can be matched on the table below.

Case 4WD Front Axle Differential Parts parts list
REF #	Image	Fits Model	Description	Price	Product Details
	See Details	580L, 580 Super L, 580M, 580 Super M, 570LXT, 570MXT, 585G, 586G, 588G	4WD Front Differential Kit with Housings	0	CS-2616-FDK	Call for Pricing	View Info
1	See Details	570LXT, 570MXT, 580L, 580L II, 580 SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, 580SM III, (586G Rear)	Ring Gear and Pinion Set (Front Axle)	144460A1	$2,314.00	View Info
2	See Details	480E, 480F, 480F LL, 570LXT, 570MXT, 570NXT, 570N EP, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L/M/N, 584E, 585E/G, 586E/G/H, 588G/H, 460, 760, 860, 21D/E/F, 121E/F, 221D/E/F, 321D/E/F	Bearing and Race (Rear Axle Pinion)	28042230	$74.00	View Info
3	See Details	570L, 570M, 580L, 580L II, 580 SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, 580SM III, 586G (Rear)	Collapsible Spacer	1349058C1	$13.00	View Info
4	See Details	570L, 570M, 580L, 580L II, 580 SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, 580SM III, 586G	Spacer	9968033	$5.00	View Info
5	See Details	570L, 570M, 580L, 580L II, 580 SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, 580SM III, 586G	Lock Washer	9968031	$4.50	View Info
6	See Details	480F, 580K, 580SK, 580L, 580SL, 580M, 580SM, 580N, 580N EP, 590T, 590SL, 590SM, 555B, 555C, 555D, 575D, 655C, 655D, LB75.B, NH85TLB, LB90.B, B95CTC, B100BLR, LV80, B100BTC, U80, U80B, B90B, U80C, B95B, B95BLR, B95BTC, B95C, B95CLR, ...	Pinion Nut, Front Center Diff.	9968032	$16.00	View Info
7	See Details	570LXT, 570M, 580L, 580L II, 580SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, 580SM III, 586G (Rear)	Seal	295151A1	$21.00	View Info
8	See Details	570L, 570M, 580L, 580L II, 580 SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, 580SM III, 586G	O-Ring	14461080	$6.00	View Info
9	See Details	570LXT, 570MXT, 570N EP, 570NXT, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 585G, 586G, 586H, 588H, 960, NH - 555E, 575E, 655E, 675E, LB75, LB75B, B90, B90B, LB90, LB90B, B95B, LB95, LB95B, LB110, B1	Retainer Flange, Rear Axle Pinion	9968051	$68.00	View Info
10	See Details	570LXT, 570MXT, 580L, 580 Super L, 580M, 580 Super M, 586G, 588G	Front Differential Housing (Pair)	294933A1	$324.00	View Info
11	See Details	570L, 570M, 580L, 580L II, 580SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, 580SM III, 586G, 588G	Bolt	86624979	$2.75	View Info
12	See Details	570L, 570M, 580L, 580L II, 580SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, 580SM III, 586G, 588G	Bearing (Front Differential)	561201	$35.00	View Info
13	See Details	570L, 570M, 580L, 580L II, 580 SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, 580SM III, 586G, 588G	Thrust Washer	5194183	$9.00	View Info
14, 15, 16, 17	See Details	570L, 570M, 580L, 580L II, 580 SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, 580SM III, 586G, 588G	Gear Kit (Includes Ref # 14, 15, 16, 17)	193969	$635.00	View Info
	See Details	580L, 580SL, 590SL, 570MXT, 570NXT, 570N EP, 580M, 580SM, 580N, 580SN, 590SM, 590SN, 585G, 586G, 588G, 586H, 588H	Drive Shaft U-Joint	393231A1	$54.00	View Info
	See Details	580 Super L II, 580M, 580 Super M, 590 Super M, B75D, B115B, B115BTC	Spacer Ring, Front Axle Pinion	87580364	$4.84	View Info
15	See Details	570LXT, 570MXT, 580L, 580 Super L, 580M, 580 Super M, 585G, 586G, 586H, 588G, 588H, 660, U80, U80B, U80C	Thrust Washer, Front Differential	K395075	$6.00	View Info
	See Details	570LXT, 580L, 580 Super L, 580M, 580 Super M, 585G, 586G, 588G	Front Axle Center Differential Kit	87760651	$359.00	View Info
	See Details	480F, 480F LL, 580L, 580M, 580SL, 580SM, 580SM+, 590SL, 590SM, 570LXT, 570MXT, 570NXT, 584E, 585E, 585G, 586E, 586G, 586H, 588G, 588H, 660, 760, 860	Diff Locking Plate	1966153C1	$4.00	View Info

Front axle differential parts for Case 4WD backhoe loaders, including ring and pinion sets, differential carriers, pinion bearings, seals, gear kits, and center differential rebuild components for 580L through 580 Super M series machines.

Fits Models At A Glance

580L Series: 580L, 580L II, 580 Super L, 580 Super L II
580M Series: 580M, 580M II, 580M III, 580 Super M, 580 Super M II, 580 Super M III
590 Series: 590 Super L, 590 Super M
570 Series: 570L, 570M, 570LXT, 570MXT

Key Notes

Application: Front differential internals and hardware for four-wheel drive front axles
Coverage: Ring and pinion kits, carrier rebuild kits, bearings, seals, and center diff kits
Hardware: Pinion nuts, lock washers, thrust washers, spacers, and housing bolts
Fitment: Verify by part number or serial number, as ratios vary by machine

Why Choose Broken Tractor

✅ Deep Case backhoe front axle parts selection
✅ New and used options to fit your budget
✅ Fast shipping from two US locations

Frequently Asked Questions

What is included in a Case 580M front differential rebuild kit?

Our Case 4WD front differential carrier rebuild kits are assembled to service the differential carrier assembly. Contents vary by kit, so match the part number to your axle before ordering. If you are unsure which kit fits your 580M, our parts team can help confirm.

Does the ring and pinion kit fit both 580L and 580M backhoes?

The front axle ring and pinion kit covers 580L, 580L II, 580 SL, 580SL II, 580M, 580M II, 580M III, 580SM, 580SM II, and 580SM III, along with 570LXT and 570MXT. Because gear ratios differ, confirm your axle and part number before ordering.

What are the signs of a worn front differential on a Case backhoe?

Common symptoms include whining or howling from the front axle, play in the driveline, and leaking around the pinion seal. Worn pinion bearings, seals, or gears are typical causes. We carry the bearings, seals, gear kits, and hardware to service these issues.

Do you sell individual differential parts or only full kits?

Broken Tractor offers both. You can buy individual pieces like pinion bearings, seals, O-rings, thrust washers, lock washers, and spacers, or complete carrier rebuild and gear kits. Call (800) 909-7060 if you need help matching the right parts.
