Case 590SL, 590SM, 590SM II Front Axle Planetary

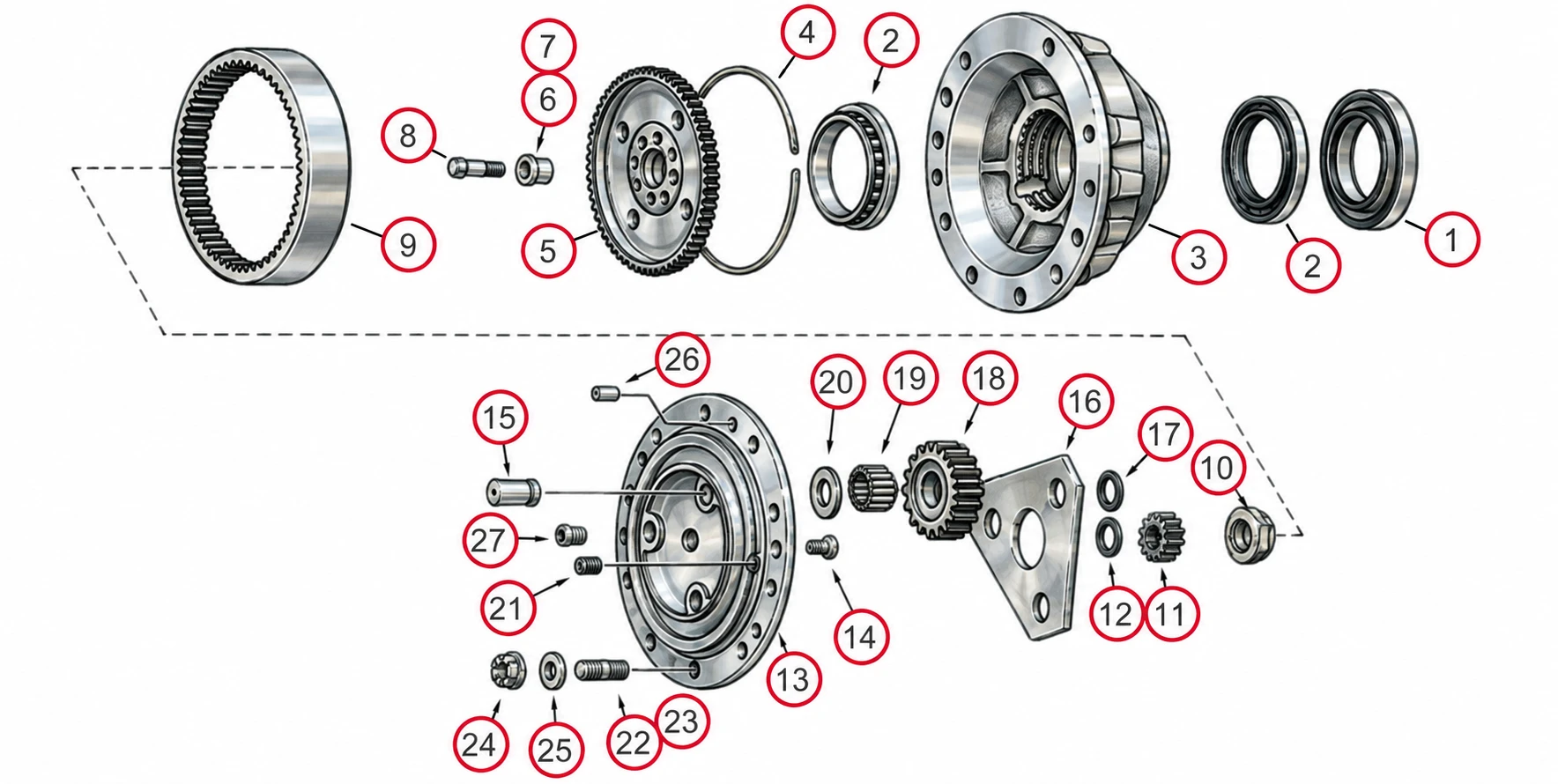

Case 590SL, 590SM, 590SM II Front Axle Planetary parts diagram 1 - Hub Seal 2 - Front Hub Bearing 3 - Wheel Hub 4 - Lock Ring 2 - Front Hub Bearing 5 - Hub Gear 6 - 24mm Bushing 7 - 20mm Drive Hub Bushing 8 - Drive Hub Bolt 9 - Ring Gear, Front Axle Hub 10 - Front Axle Shaft Spacer 11 - Front Axle Sun Gear 12 - Pinion Snap Ring 13 - Planetary Cover Assy 16 - Thrust Plate 17 - Snap Ring 18 - Planetary Gear (26mm Thick) 19 - 10 Needle Bearings (26mm long) 20 - Thrust Washer 21 - Drain Plug 22 - Stud without Collar 23 - Stud with Collar
Click on each number to jump to the product page. Each number on the image is a "Ref #" that can be matched on the table below.
ⓘ Click headers to sort ↕
Case 590SL, 590SM, 590SM II Front Axle Planetary parts list
REF # Image Fits Model Description Part # Price Product Details
3 Case Backhoe 4WD Front Axle Front Wheel Hub 480E, 480E LL, 480F, 480F LL, 580K, 580SE, 580SK, 590, 590SL, 590SL Series 2, 584E, 585E, 586E -- K395123 See Details 480E, 480E LL, 480F, 480F LL, 580 Super E, 580K, 580 Super K, 590 Turbo, 590 Super L, 590 Super M Series 1, 584E, 585E, 586E Wheel Hub (4WD Front Axle) K395123
$680.00
View Info

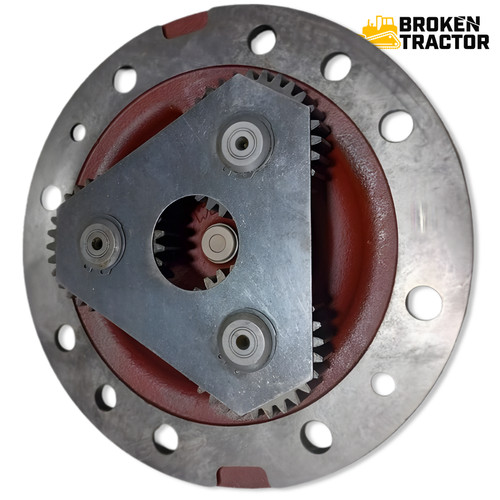

13 Case 480E 580K front hub planetary cover assembly K262251 See Details 480E, 480F, 580E, 580SE, 580K, 580 Super K, 590 Turbo, 590 Super L, 590 Super M Front Hub Planetary Cover Assembly K262251
$995.00
View Info
1 Oil Seal for Case 580K, 580 Super E Front Axle See Details 480E, 480F, 580K, 580L, 580 Super L, 580M, 580 Super E, 580 Super K, 580 Super L, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, 680L, 780D Axle Oil Seal 1349265C1
$39.00
View Info
2 Case Backhoe Front Hub Bearing, 4WD -- K395101 | Broken Tractor See Details 580K, 580 Super K, 590 Turbo, 590 Super L, 590 Super M Front Hub Bearing and Race K395101
$92.00
View Info
5 Carrier Gear for Case 580K 4WD Front Axle See Details 580K, 580 Super K, 590 Turbo, 590 Super L Hub Carrier Gear H437678
$284.00
View Info
5 Case Backhoe Front Axle Hub Carrier Gear -- 295581A1 | Broken Tractor See Details 590 Super L, 590 Super M Hub Carrier Gear 295581A1
$195.00
View Info
6 Front Axle Bushing for Case 580K, 580 Super K, 590 Turbo, 590 Super L Backhoes - Broken Tractor See Details Case: 580K, 580 Super K, 590 Turbo, 590SL Hub Bushing (24 mm) 107072A1
$18.00
View Info
18 Case Backhoe 4WD Front Axle Planetary Gear -- K395110 | Broken Tractor See Details 580K After Serial Number JJG0020000, 580 Super K, 590 Turbo, 590 Super L, 590 Super M Planetary Gear (26mm Thick) K395110
$94.00
View Info

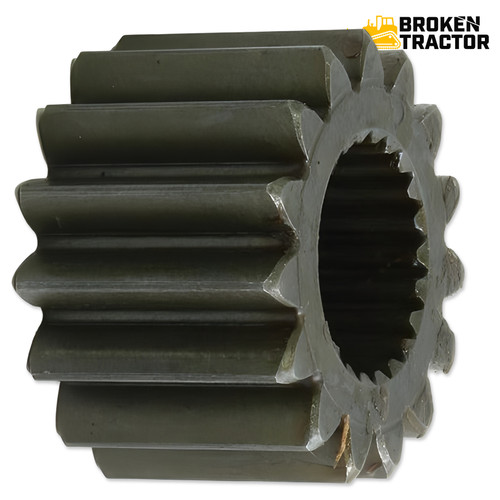

11 Case Backhoe Front Axle Sun Gear 580K, 580 Super K, 590 Turbo -- K395114 See Details 580K Phase I, 580K Phase III, 580 Super K, 590 Turbo, 590 Super L Series I, 590 Super L Series II, 590SM, 590SM Series 2, 590SM Series 3 Front Axle Sun Gear K395114
$125.00
View Info
4 Case Backhoe Ring Gear Lock Ring -- H437679 | Broken Tractor See Details 580K, 580 Super K, 590 Turbo, 590 Super L, 590SM Lock Ring H437679
$9.00
View Info
8 Case Backhoe Front Drive Hub Bolt 580K, 580 Super K, 590 Turbo -- K395131 See Details 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M, 570LXT, 570MXT, 585G, 586G, 586H, 588G Drive Hub Bolt K395131
$4.00
View Info
12 Front Axle Drive Shaft Snap Ring for Case 480E, 580K, 590 Turbo See Details 480E, 480F, 580E, 580 Super E, 580K, 580 Super K, 590 Turbo, 590 Super L, 590 Super M, 584E, 585E, 586E, 760, 860 Snap Ring (Front Axle Shaft) K261897
$3.00
View Info
6 Case Backhoe Front Axle Drain Plug -- A156873 | Broken Tractor See Details 590 Super L, 590 Super M Drain Plug A156873
$5.00
View Info
9 Backhoe Front Axle Ring Gear 590SL, 590SL SERIES II, 590SM, 590SM SERIES II -- H437677 See Details 590 Super L Series I, 590 Super L Series II, 590SM, 590SM Series 2 Ring Gear, Front Axle Hub H437677
$205.00
View Info
Case Backhoe 4WD Front Axle Hub Seal -- 247546A1 See Details 570MXT, 580M, 580 Super M, 590 Super M, 960 Axle Hub Seal 247546A1
$65.00
View Info
16 Case Backhoe Front Axle Thrust Plate -- K395122 | Broken Tractor See Details 580K, 580SK, 590T, 590SL, 590SM Thrust Plate (Front Axle) K395122
$16.00
View Info
19 Case 580K 580 Super K front axle planetary needle bearings — 119685A1 See Details 580K, 580 Super K, 590 Turbo, 590 Super L, 590SM Front Axle Hub Planetary Needle Bearings (Set of 10) 119685A1
$5.00
View Info
4 & 25 Case Front Axle Lug Nut and Bolt Kit (4WD, 8-Lug Hubs) See Details 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M, 480E LL, 480F LL, 570LXT, 570MXT, 570NXT, 584E, 585E, 585G, 586E, 586G, 586H, 588G, 588H, 560, 660, 760, 860 Axle Wheel Stud and Lug Kit (4WD) 100556A1-KIT
$64.00
View Info
22 Case backhoe front axle stud K260218 without collar See Details 480E, 480F, 580E, 580G, 580SE, 580K, 580SK, 590 Turbo, 590SL, 590SM, 584E, 585E, 586E, 760, 860 Wheel Lug Stud K260218
$4.50
View Info
23 Case Backhoe Four Wheel Drive Front Axle Stud with Collar See Details 480E, 480F, 580E, 580G, 580SE, 580K, 580SK, 590 Turbo, 590SL, 590SL SERIES II, 590SM, 590SM SERIES II, 584E, 585E, 586E, 760, 860 Wheel Lug Stud, Front Hub N13515
$8.00
View Info
25 Case / New Holland Lug Nut for Backhoes See Details 580K, 580L, 580M, 580N, 580 Super L, 580 Super M, 580SM+, 580 Super N, 580SN WT, 590L, 590 Super L, 590 Super M, 590 Super N, 680K Lug Nut (4WD) 100092
$2.00
View Info
Case-Drive-Shaft-U-Joint-Side-View See Details 580L, 580SL, 590SL, 570MXT, 570NXT, 570N EP, 580M, 580SM, 580N, 580SN, 590SM, 590SN, 585G, 586G, 588G, 586H, 588H Drive Shaft U-Joint 393231A1
$50.00
View Info
Front Axle Pinion Shaft Spacer Ring for Case 580 Super L Backhoe See Details 580 Super L II, 580M, 580 Super M, 590 Super M, B75D, B115B, B115BTC Spacer Ring, Front Axle Pinion 87580364
$4.84
View Info
10 Case Backhoe Front Axle Shaft Spacer -- 107073A1 | Broken Tractor See Details 580K Phase I, 580K Phase III, 580 Super K, 590 Turbo, 590 Super L Series I, 590 Super L Series II, 590SM, 590SM Series 2, 590SM Series 3 Front Axle Shaft Spacer 107073A1
$15.00
View Info

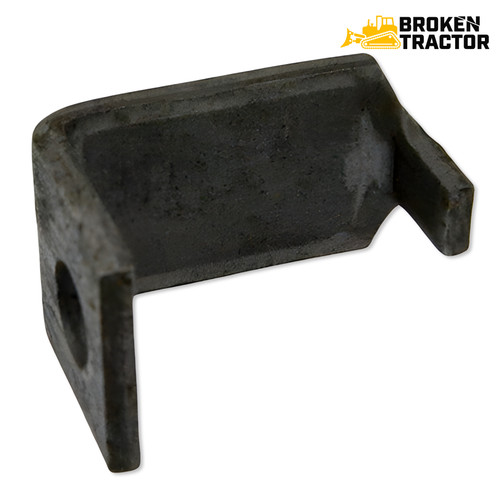

Case 480F 580L 580M backhoe front axle differential locking plate 1966153C1 See Details 480F, 480F LL, 580L, 580M, 580SL, 580SM, 580SM+, 590SL, 590SM, 570LXT, 570MXT, 570NXT, 584E, 585E, 585G, 586E, 586G, 586H, 588G, 588H, 660, 760, 860 Diff Locking Plate 1966153C1
$4.00
View Info
15 Case Backhoe/Forklift Thrust Washer for 570L, 580L, 580SL, 580M, 580SM, 585G, 586G, 588G -- K395075 See Details 570LXT, 570MXT, 580L, 580 Super L, 580M, 580 Super M, 585G, 586G, 586H, 588G, 588H, 660, U80, U80B, U80C Thrust Washer, Front Differential K395075
$6.00
View Info
3 Case Backhoe 4WD Front Axle Front Wheel Hub -- K395123 | Broken Tractor See Details 480E, 480E LL, 480F, 480F LL, 580 Super E, 580K, 580 Super K, 590 Turbo, 590 Super L, 590 Super M, 584E, 585E, 586E Wheel Hub (Used) K395123U
$375.00
View Info

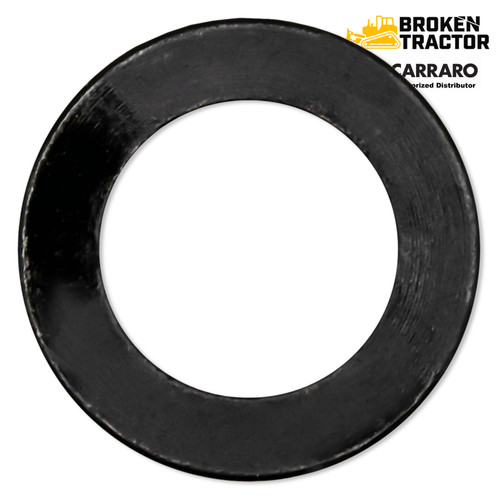

21 Case front axle planetary hub thrust washer replacement 9968084 See Details 480E, 480E LL, 480F, 480F LL, 570LXT, 570MXT, 570MXT Series 3, 570NXT, 580E, 580G, 580K, 580SE, 580SK, 580L, 580 Super L, 580M, 580 Super M, 584E, 585E, 585G, 586E, 586G, 586H, 588G, 588H, 590 Turbo, 590 Super L, 590 Super M, 660, 760, 860 Thrust Washer, Hub Planetary Gear 9968084
$4.00
View Info
27 Planetary cover screw for Case 580K front axle hub See Details 580K, 580 Super K, 590 Turbo, 590 Super L, 590 Super M Planetary Cover Screw K395029
$4.00
View Info

Case 590SL, 590SM, 590SM II Front Axle Planetary



4WD front axle planetary components for Case 590 Super L and 590 Super M backhoe loaders, covering wheel hubs, planetary gears, hub carrier gears, ring gears, hub seals, bearings, sun gears, snap rings, thrust washers, and related hardware.

Fits Models At A Glance

  • 480E / 480F Series: 480E, 480E LL, 480F, 480F LL
  • 570 Series: 570LXT, 570MXT, 570NXT, 570N EP
  • 580E / 580 Super E / 580K Series: 580E, 580 Super E, 580K, 580K Phase I, 580K Phase III, 580SK, 580 Super K
  • 580L / 580 Super L Series: 580L, 580L Series II, 580 Super L, 580 Super L Series II
  • 580M / 580 Super M Series: 580M, 580SM, 580SM+, 580 Super M
  • 580N / 580 Super N Series: 580N, 580SN, 580SN WT, 580 Super N
  • 590 Series: 590, 590L, 590SL, 590SL Series II, 590SM, 590SM Series II, 590SM Series III, 590SN, 590 Turbo, 590 Super L, 590 Super L Series I, 590 Super L Series II, 590 Super M, 590 Super M Series I, 590 Super M Series II, 590 Super N

Key Notes

  • Application: 4WD front axle planetary components for Case backhoe loader front axle systems on 590 Super L and 590 Super M platforms
  • Coverage: Includes wheel hubs, planetary gears, hub carrier gears, ring gears, hub seals, front hub bearings and races, sun gears, planetary cover assemblies, front axle shaft spacers, shaft spacer rings, planetary gear needle bearings, thrust washers, thrust plates, lock rings, snap rings, drive hub bolts, wheel lug studs, lug nuts, lug bolt kits, drive shaft U-joints, drain plugs, oil seals, and bushing components
  • Function: Maintains 4WD front axle planetary drive, hub carrier, ring gear, and wheel hub function on Case 590 Super L and 590 Super M backhoe loader platforms
  • Fitment Note: Series I, II, and III configurations have different planetary and hub seal part numbers — verify series when ordering

Why Choose Broken Tractor

  • ✅ Planetary gears, carrier gears, ring gears, and sun gears all available
  • ✅ Wheel hubs, hub seals, and bearings available for 590SL and 590SM series
  • ✅ Covers 480E through 590 Super N series platforms
