Case 580L, 580SL, 580M, 580SM-I & II Brake Parts

ⓘ Click headers to sort ↕
Case 580L, 580SL, 580M, 580SM-I & II Brake Parts parts list
Image Fits Model Description Part # Price Product Details
Case Backhoe Brake Master Cylinder See Details 570LXT, 570MXT, 580K (Phase III), 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580SK, 580SL, 580SM, 590 Turbo, 590 Super L, 590SM, 585G, 588G Brake Master Cylinder 182445A1
$135.00
View Info
Brake Master Cylinder for Case M-Series and N-Series Backhoes See Details 580M-III, 580SM-III, 590SM-III, 580N, 580SN, 590SN | NH B95B, B95BLR, B95BTC, B100BLR, B110B, B115B Brake Master Cylinder 87714038
$468.00
View Info
Case Backhoe Brake Service Kit (Early Style) by Broken Tractor See Details 570LXT, 580L, 580 Super L, 585G, 586G, 588G Forklift Brake Service Kit (Early) 243893A1
$584.00
View Info
Case Backhoe Brake Service Kit (Late) by Broken Tractor See Details 570LXT-II, 580L-II, 580 Super L-II, 580M, 580 Super M, 585G, 586G, 588G Brake Service Kit (Late) 243900N1
$574.00
View Info
Case 590-Series Backhoe Brake Service Kit by Broken Tractor See Details 590 Super L, 590 Super M* Brake Service Kit 243894A1
$690.00
View Info
Case Backhoe Brake O-Ring Service Kit by Broken Tractor See Details 570LXT, 580L, 580 Super L, 585G, 586G, 588G Forklift Brake O-Ring Kit (Early) CS-E-Brake-Oring
$68.00
View Info
Case Backhoe Brake O-Ring Service Kit by Broken Tractor See Details 570LXT-II, 580L-II, 580 Super L-II, 580M, 580 Super M, 585G, 586G, 588G Brake O-Ring Kit (Late) CS-L-Brake-Oring
$58.00
View Info
Case Backhoe Parking Brake Cable -- 280681A1 | Broken Tractor See Details 570LXT, 570MXT, 580L*, 580M*, 580 Super L*, 580 Super M*, 585G, 586G, 588G Parking Brake Cable 280681A1
$89.00
View Info
Parking brake cable for Case 580M Series II backhoe 87331077 See Details 580M Series II, 580 Super M Series II, 590 Super M Series II Parking Brake Cable 87331077
$38.00
View Info
CASE Self-Adjusting Kit for 580L, 580SL, 580M, 580SM Backhoes -- 358212A1 See Details 580L Series 2, 580SL Series 2, 580M, 580M Series 2, 580SM, 580SM Series 2 Self-Adjusting Kit 358212A1
$73.00
View Info
Case 590SL, 590SM Backhoe Brake Friction Disc See Details 590 Super L, (590 Super M Before Ser # N8C508500) Brake Disc (Friction) 237017A1
$65.00
View Info
1 237021A1 Case Backhoe Brake Disc See Details 570LXT, 580L, 580 Super L, 585G, 586G, 588G Forklift Brake Friction Disc 237021A1
$45.00
View Info
2 Case Backhoe Inner Brake Friction Piston Plate See Details 570LXT, 580L, 580 Super L, 585G, 586G, 588G Forklift Brake Piston 237022A1
$87.00
View Info
3 237023A1 - Case Backhoe Brake Disc Piston Plate See Details 570LXT, 580L, 580 Super L, 585G, 586G, 588G Brake Piston Plate 237023A1
$64.00
View Info
16 Case Early Style Outer Brake Friction Plate See Details 570LXT, 580L, 580M, 580 Super L, 590 Turbo, 590 Super L, 590 Super M Outer Brake Plate 237024A1
$94.00
View Info
Case Backhoe Brake Piston Plate (Late Style) -- 308029A1 See Details 570LXT, 570MXT, 580L*, 580 Super L*, 580M*, 580 Super M*, 585G, 586G, 588G Brake Piston Plate 308029A1
$73.00
View Info
Outer Steel Disc 85808316 for Case 570LXT See Details 580L-II, 580 Super L-II, 580M-I & II, 580 Super M-I & II, 585G, 586G, 588G, 570LXT, 570MXT Outer Steel Brake Plate 308030A1
$54.00
View Info
3 Case Backhoe Brake Friction Disc -- 87708434 See Details 570N EP, 570NXT, 580M*, 580SM*, 590SM*, 580N, 580SN, 590SN, 586H, 588H Brake Friction Disc 87708434
$104.00
View Info
4 Case Backhoe Brake Disc Plate 8 MM Thick 87708435 See Details 570N EP, 570NXT, 580M, 580SM, 580SM+, 590SM, 580N, 580SN, 580SN WT, 590SN, 586H, 588H, U80C Brake Disc (Outer) 87708435
$98.00
View Info
2 Case Backhoe Inner Brake Disc Plate by Broken Tractor See Details 570N EP, 570NXT, 580M*, 580SM*, 590SM*, 580N, 580SN, 590SN, 586H, 588H Brake Disc, Inner 87708433
$64.00
View Info
Case 580L 580M backhoe rear diff right hand oil auger 295112A1 See Details 580L (Series 2), 580 Super L (Series 2), 580M, 580 Super M Rear Diff Oil Auger - Right Hand 295112A1
$300.00
View Info
Case Backhoe Left Hand Auger -- 295113A1 See Details 580L, 580 Super L, 580M, 580 Super M Auger (Left Hand) 295113A1
$420.00
View Info
Case Backhoe Pedal Lock Pin See Details 570LXT, 570MXT, 570NXT, 580K, 580L, 580M, 580N, 580 Super K, 580 Super L, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, 585G, 586G, 586H, 588G, 588H Pin, Brake Pedal D124530
$19.00
View Info
New Holland Differential Rear Axle Brake Shaft See Details 570LXT, 570MXT, 580L, 580 Super L, 580M, 580 Super M, 585G, 586G, 588G, LV80, U80, U80B Brake Shaft (Rear Axle) 295111A1
$107.10
View Info
Premium Case Brake Axle Shaft for 580L and 580 Super L Backhoes. See Details 570LXT, 570MXT, 580L*, 580 Super L*, 580M*, 580 Super M*, 585G, 586G, 588G Brake Shaft, Rear Axle 190470A1
$63.00
View Info
Case Backhoe Brake Washer | 190450A1 See Details 570LXT, 570MXT, 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M, 585G, 586G, 588G Brake Washer 190450A1
$5.00
View Info
Case backhoe rubber rod boot 132931A1 See Details 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Super L, 590 Super M, 590 Super N, 570LXT, 570MXT, 570N EP, 570NXT Rod Boot 132931A1
$10.00
View Info
7 Case Left Hand Brake Housing 570LXT, 570LXT II, 580L, 580L II, 580 Super L, 580 Super L II -- 190458A1 See Details 570LXT, 570LXT Series II, 580L Series I, 580L Series II, 580 Super L Series I, 580 Super L Series II Brake Housing (Left Hand) 190458A1
Call for Pricing
 View Info
3 Case Backhoe Right Hand Brake Housing 570LXT, 570LXT II, 580L, 580L II, 580 Super L, 580 Super L II -- 190457A1 See Details 570LXT, 570LXT II, 580L, 580L Series II, 580 Super L, 580 Super L Series II Brake Housing (Right Hand) 190457A1
$570.00
View Info
20 Brake Spring Cover for Case Backhoe 580L, 580 Super L, 580M, 580 Super M & more See Details 570LXT, 570MXT, 580L, 580M, 580 Super L, 580 Super M, 585G, 586G, 588G, 590 Super M Cover, Brake Spring 190500A1
$2.00
View Info
Case Backhoe Pin, Brake Master Cylinder Clevis -- L26209 | Broken Tractor See Details 570LXT, 570MXT, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, 680CK, 585G, 586G, 588G, 586H, 588H Clevis Pin (Brake Master Cylinder) L26209
$9.00
View Info
Brake piston 359653A1 for Case 580M See Details 570MXT, 570SV, 570V, 575N EP, 575SV CP, 580L Series 2, 580SL Series 2, 580M, 580M Series 2, 580SM, 580SM Series 2, 580SM+, 585G, 586G, 586G Series 3, 588G, 588G Series 3 Brake Piston 359653A1
$63.00
View Info
Brake master cylinder seal kit N14784 for Case 580 Super L backhoe See Details 580K (After S/N JJG0020000), 580SK, 580L, 580SL, 580M, 580SM, 580SM+, 590 Turbo, 590SL, 590SM, 570LXT, 570MXT, 585G, 586G, 588G Brake Master Cylinder Seal Kit N14784
$32.00
View Info
Case Axle Brake O-Ring for 590 Super L, 590SM – 196078A1 See Details 590 Super L, 590 Super L Series II, 590SM, 590SM Series II Case Axle Brake O-Ring 196078A1
$12.00
View Info
parking brake handle fits Case 580 Super L Series I See Details 480D, 480E, 480F, 580K, 580 Super K, 590 Turbo, 580L, 580 Super L, 590 Super L, 480D LL, 480E LL, 480F LL, 570LXT, 584D, 584E, 585D, 585E, 586D, 586E Parking Brake Handle D139909
$84.00
View Info
Case 570LXT 580L 580M brake differential O-ring 190493A1 See Details 570LXT, 570MXT, 570V, 570SV, 575SV, 575N EP, 580L, 580M, 580SL, 580SM, 580SM+, 585G, 586G, 588G Rear Brake Differential O-Ring 190493A1
$18.00
View Info
Brake return spring for Case 570MXT loader landscaper See Details 580L, 580SL, 580M, 580SM, 580SM+, 590SL, 590SM, 570LXT, 570MXT, 585G, 586G, 588G Outer Brake Spring 237026A1
$3.00
View Info
Case Spring for 580L, 580L Ser. 2, 580SL, 580SL Ser. 2, 580M, 580M Ser. 2, 580SM, 580SM Ser. 2 Backhoe See Details 580L, 580SL, 580M, 580SM, 580SM+, 590SL, 590SM, 570LXT, 570MXT, 585G, 586G, 588G Inner Brake Spring 237025A1
$2.00
View Info
5 Case Backhoe Axle Brake Disc Guide Pin See Details 570N EP, 570NXT, 580M*, 580SM*, 590SM*, 580N, 580SN, 590SN, 586H, 588H Brake Guide Pin 139294A1
$15.00
View Info

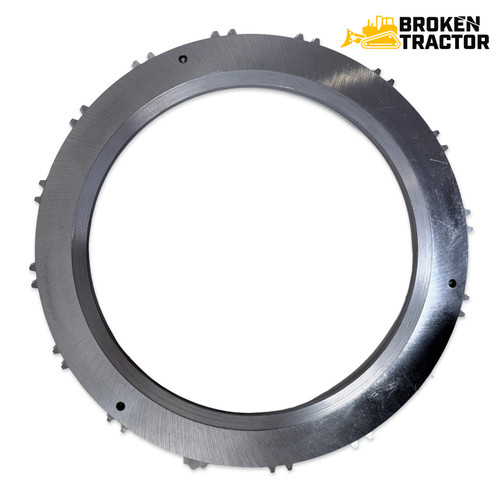

Center Brake Disc Plate for Case 590 Super L, 590 Super M Backhoes – 237019A1 See Details 590 Super L, 590 Super M* Center Brake Disc Plate 237019A1
$79.00
View Info

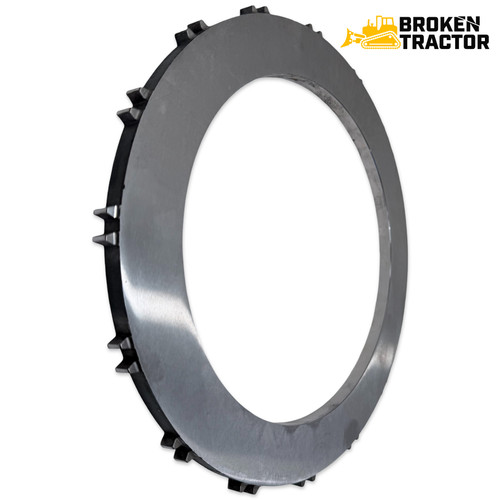

Inner Brake Disc Plate for Case 590 Super L, 590 Super M Backhoes – 237018A1 See Details 590 Super L, 590 Super M* Inner Brake Disc Plate 237018A1
$81.00
View Info
Outer brake disc plate 237020A1 for Case 590 Super L backhoe See Details 590 Super L, 590 Super M* Outer Brake Disc Plate 237020A1
$84.00
View Info

Case 580L Backhoe Brake Parts

Brake components for Case 580L, 580M, 590 Super L, 580N, and related backhoe loaders, covering brake service kits, master cylinders, brake discs, pistons, brake plates, housings, brake shafts, parking brake cables, and related hardware.

Fits Models At A Glance

  • 570 Series: 570LXT, 570LXT Series II, 570MXT, 570N EP, 570NXT, 575N EP
  • 580K / 580K-III Series: 580K, 580K-III, 580SK, 580 Super K
  • 580L Series: 580L, 580L Series I, 580L Series II, 580SL, 580 Super L, 580 Super L Series II
  • 580M Series: 580M, 580M Series II, 580SM, 580SM Series II, 580SM+, 580 Super M, 580 Super M Series II
  • 580N Series: 580N, 580SN, 580 Super N (via rod boot and brake pedal pin)
  • 590 Series: 590 Turbo, 590SL, 590SM, 590SM Series II, 590 Super L, 590 Super M, 590SN, 590 Super N (via rod boot)

Key Notes

  • Application: Brake components for Case backhoe loader service and parking brake systems
  • Coverage: Includes early and late style brake service kits, brake O-ring kits, brake master cylinders, brake friction discs, brake piston plates, outer and inner brake disc plates, brake pistons, brake housings, brake shafts, parking brake cables, self-adjusting kits, brake washers, brake spring covers, brake guide pins, brake pedal pins, augers, and rod boots
  • Function: Maintains service brake disc, piston, housing, and parking brake integrity on Case 580L, 580M, and 590 series backhoe loader platforms
  • Fitment Note: Early and late style brake components have different serial number breaks — verify series and production date when ordering

Why Choose Broken Tractor

  • ✅ Early and late style brake kits stocked for 580L and 580M series
  • ✅ Covers 570LXT through 590 Super N backhoe platforms
  • ✅ Brake discs, pistons, housings, shafts, and cables all available

Frequently Asked Questions

Which brake service kit fits a Case 580L or 580 Super L backhoe?

It depends on whether your machine has early or late style brakes. The Early Style Brake Service Kit (243893A1) fits the 580L and 580 Super L, while the Late Model Brake Service Kit (243900N1) fits the 580L Series II, 580 Super L Series II, 580M and 580 Super M. For the 590 Super L and 590 Super M, Broken Tractor offers a dedicated Brake Service Kit (243894A1). Early and late style brakes change at serial number breaks, so verify your series and serial number before ordering.

What is the difference between early and late style brake parts on a Case 580L?

Early style parts fit the original 580L and 580 Super L, and late style parts fit the 580L Series II, 580 Super L Series II and the 580M series. The two styles use different components, so the kits are not interchangeable. For example, we carry an Early Style Brake O-Ring Kit (CS-E-Brake-Oring) and a late style Brake O-Ring Service Kit (CS-L-Brake-Oring). Match the part number on your old part or check your serial number to confirm which style you have.

What brake friction disc fits a Case 590 Super M?

It depends on the serial number. The Brake Friction Disc 237017A1 fits the 590 Super L and 590 Super M machines built before serial number N8C508500. Later 590SM machines may use the Brake Friction Disc 87708434, which also fits the 580N, 580SN and 590SN, along with matching inner (87708433) and outer (87708435) brake disc plates. Check your serial number or match the part number on your old disc before ordering.

Which brake master cylinder fits a Case 580M backhoe?

The Brake Master Cylinder 182445A1 fits the 580M and 580 Super M, along with the 580K, 580L, 580 Super L, 590 Super L and 590SM. The 580M Series III, 580SM Series III and 590SM Series III use a different master cylinder, 87714038, which also fits the 580N, 580SN and 590SN. If you would rather repair a leaking master cylinder than replace it, Broken Tractor offers the Master Cylinder Seal Kit N14784 for the 580L, 580M, 580SL, 580SM, 590SL and 590SM.

What parking brake cable fits a Case 580 Super M?

The Parking Brake Cable 87331077 fits the 580M Series II, 580 Super M Series II and 590 Super M Series II. The Parking Brake Cable 280681A1 is listed for the 580L, 580M, 580 Super L and 580 Super M, but fitment on those models varies by machine. To make sure you get the right cable, match the part number on your old cable or call (800) 909-7060 with your model and serial number.
