Case 480C, 580C Brake Parts

ⓘ Click headers to sort ↕
Case 480C, 580C Brake Parts parts list
Image Fits Model Description Part # Price Product Details
Case 480C 580C backhoe comprehensive brake replacement kit — CS-BH-BK-D See Details 480C, 580C Comprehensive Brake Kit CS-BH-BK-D
$879.00
View Info
Case 480C brake parts replacement kit with cylinder and brake packs. See Details 480C, 580C Basic Brake Kit CS-BH-BK
$784.00
View Info
Case 580B, 580C, 580D Brake Replacement Kit with Bands See Details 430CK, 480CK, 480B, 480C, 480D, 530CK, 580CK, 580B, 580C, 580D, 584, 585, 586, 584C, 585C, 586C, 584D, 585D, 586D Brake Pack 249022A3
$255.00
View Info
Brake master cylinder for Case 580C backhoe See Details 480C, 580C, 584C, 585C, 586C, 584D, 585D, 586D, 680CK-B Brake Master Cylinder L25419
$84.00
View Info
Case 580C Brake Wheel Cylinder - A51976 See Details 480C, 580C, 584C, 585C, 586C, 584D, 585D, 586D Brake Slave Cylinder A51976
$38.00
View Info
Case Backhoe Replacement Brake Band Set 249018A3 See Details 430CK, 480CK, 480B, 480C, 480D, 480LL, 530CK, 580CK, 580B, 580C, 580D, 580 Super D, 584C, 584D, 585C, 585D, 586C, 586D Brake Band Set 249018A3
$58.00
View Info
Case 580B cheap brake fix when oil seal leaks. See Details 430CK, 480CK, 480C, 480D, 530CK, 580CK, 580B, 580C, 580D, 580SD, 584, 585, 586, 584C, 585C, 586C, 584D, 585D, 586D Brake Lining Kit 249019A1
$24.00
View Info
15 Left hand brake housing for Case backhoes See Details 480C, 480D, 480LL, 580C, 580D, 584C, 585C, 586C Brake Housing, Left A152923
$194.00
View Info
15 Right hand brake housing for Case backhoes See Details 480C, 480D, 480LL, 580C, 580D, 584C, 585C, 586C Brake Housing, Right A152924
$194.00
View Info
13 Brake bearing and seal carrier plate for Case backhoes See Details 480C, 480D, 480LL, 580C, 580D, 584C, 584D, 585C, 585D, 586C, 586D Brake Bearing Carrier Plate A140869
$148.00
View Info
8 Case Backhoe Brake Oil Leak Repair Kit - Seal, O-Ring, Bearing See Details 430CK, 480CK, 480C, 480C, 480D, 530CK, 580CK, 580B, 580C, 580D, 584, 585, 586, 584C, 585C, 586C, 584D, 585D, 586D Reseal Kit, Brake Backhoe Plate CS-580-BPK
$69.00
View Info
Case Backhoe Brake Seal for 580B, 580C, 580D See Details 430CK, 480CK, 480B, 480C, 480D*, 480LL, 530CK, 580CK, 580B, 580C, 580D,* 584C, 584D, 585C, 585D, 586C, 586D Oil Seal, Brake Backing Plate A39273
$24.00
View Info
Case Backhoe Brake Tube rubber See Details 480C, 480D, 480E, 580C, 580D, 580 Super E, 584C, 584D, 584E, 585C, 585D, 586C Brake Hose (Cylinder to Steel Line) D66741
$44.00
View Info
Case Backhoe Brake O-Ring (Brake Backing Plate)--G10347 | Broken Tractor See Details 430CK, 480CK, 480C, 480D, 530CK, 580CK, 580B, 580C, 580D, 580SD, 584, 585, 586, 584C, 585C, 586C, 584D, 585D, 586D O-Ring, Brake Backing Plate G10347
$6.00
View Info
Case Backhoe Parking Brake Cable Replacement D126606 See Details 480C, 480D, 480E, 480E LL, 580C, 580D, 580 Super D, 580 Super E Parking Brake Cable D126606
$54.00
View Info
A47524-Case-Backhoe-Brake-Disc-Return-Spring See Details 430CK, 480CK, 480C, 480D, 530CK, 580CK, 580B, 580C, 580D, 580SD, 584, 585, 586, 584C, 585C, 586C, 584D, 585D, 586D Spring, Brake Disc Return A47524
$8.00
View Info
Case 580B, 580C Brake Band Spring See Details 430CK, 480CK, 480C, 480C, 480D, 530CK, 580CK, 580B, 580C, 580D, 584, 585, 586, 584C, 585C, 586C, 584D, 585D, 586D Spring, Brake Band Return G48507
$9.50
View Info
Case Brake Pedal Return Spring D129921 | Broken Tractor See Details 480C, 580C, 680H, 584C, 584D, 585C, 585D, 586C, 586D Return Spring, Brake Pedal D129921
$18.00
View Info
Brake Self Adjust Spring for Case Backhoe 480C, 480D, 580C, 580D, 580E & more See Details 480C, 480D, 480LL, 580C, 580D, 580SD, 580E, 580SE, 584C, 585C, 586C, 584D, 585D, 586D Spring (Brake Self Adjust) A60489
$15.00
View Info
Case Brake Ratchet Rod Return Spring See Details 480C, 480D, 480LL, 580C, 580D, 580 Super D, 580 Super E, 584C, 585C, 586C, 584D, 585D, 586D Spring, Brake Ratchet Rod Return A60555
$16.00
View Info
Case backhoe brake lever return spring A35789 See Details 480C, 480D, 580C, 580D, 584C, 585C, 586C, 584D, 585D, 586D Return Spring, Brake Lever A35789
$19.00
View Info
11 Case Backhoe Right Differential Side Gear Seal - A49795 See Details 430CK, 480CK, 480B, 480C, 480D, 530CK, 580CK, 580B, 580C, 580D, 580SD, 584, 585, 586, 584C, 585C, 586C, 584D, 585D, 586D Oil Seal (Differential Side Gear RH) A49795
$24.00
View Info
Plug for Case backhoe brake housing plate - A29968 Replacement See Details 430CK, 480CK, 480C, 480C, 480D, 530CK, 580CK, 580B, 580C, 580D, 584, 585, 586, 584C, 585C, 586C, 584D, 585D, 586D Expansion Plug, Brake Housing Plate 41-13
$4.00
View Info
Case 580CK Brake Plate Rubber Cover A135946 See Details 430CK, 480B, 480C, 480CK, 480D, 480LL, 530CK, 580CK, 580B, 580C, 580D, 580 Super D, 584C, 584D, 585C, 585D, 586C, 586D, W10B, W10C, W10E, W5, W5A, W8B, W8C, W8E, W9B, W9C, W9E Dust Cap, Brake Housing A135946
$14.50
View Info
Case Backhoe Brake & Diff Side Gear Seal Kit - 480, 580 Series See Details 430CK, 480CK, 480B, 480C, 480D, 530CK, 580CK, 580B, 580C, 580D, 580SD, 584, 585, 586, 584C, 585C, 586C, 584D, 585D, 586D Brake & Diff Side Gear Seal Kit BT-CASE-BRK-DIFFSEAL
$64.00
View Info

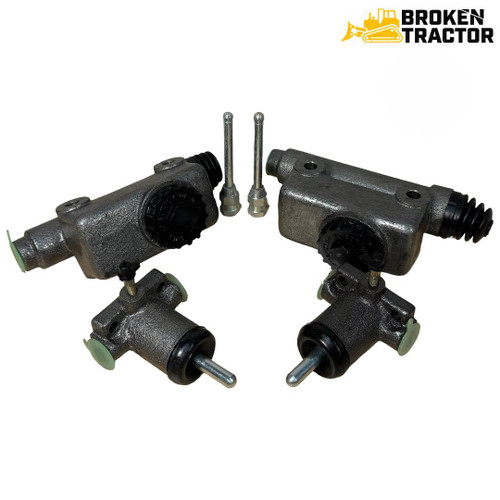

Brake Master & Slave Cylinder Kit for Case 480C, 580C Backhoes – Full Axle Set See Details 480C, 580C, 584C, 585C, 586C, 584D, 585D, 586D Brake Master & Slave Cylinder Kit BT-CASE-BRK-CYL-KIT
$224.00
View Info

Brake components for Case 480C & 580C backhoe loaders, covering brake kits, brake packs, bands, housings, cylinders, springs, seals, and related hardware.

Fits Models At A Glance

  • 430CK / 530CK Series: 430CK, 530CK
  • 480 Series: 480C, 480D, 480E, 480LL, 480E LL
  • 580CK / 580B Series: 580CK, 580B
  • 580C / 580D Series: 580C, 580D, 580SD, 580 Super D
  • 580E Series: 580E, 580SE, 580 Super E

Key Notes

  • Application: Brake components for Case backhoe loader brake systems
  • Coverage: Includes deluxe and basic brake replacement kits, brake packs, brake band sets, brake lining kits, brake master cylinders, brake slave cylinders, brake housings, brake bearing carrier plates, brake hoses, parking brake cables, brake reseal kits, oil seals, O-rings, springs, expansion plugs, and dust caps
  • Function: Maintains service brake band, disc, master cylinder, and backing plate integrity on Case 480C through 580 Super E backhoe loader platforms

Why Choose Broken Tractor

  • ✅ Complete brake kits and individual components stocked for 480C and 580C series
  • ✅ Brake master cylinders, slave cylinders, and housings available
  • ✅ Covers 430CK through 580 Super E backhoe platforms

Frequently Asked Questions

What brake kits are available for a Case 580C backhoe?

Broken Tractor offers a Basic Brake Replacement Kit (CS-BH-BK) and a Comprehensive Brake Replacement Kit (CS-BH-BK-D), both made for the Case 480C and 580C. We also carry a Brake Pack Kit (249022A3) and a Brake Master and Slave Cylinder Kit (BT-CASE-BRK-CYL-KIT) that covers the full axle set on the 480C and 580C. If you only need to reline the bands, the Brake Lining Replacement Kit (249019A1) includes rivets.

Do Case 580C brake bands fit a 580D or 580 Super D?

Yes, the Brake Band Pair (249018A3) is listed to fit the Case 580C, 580D and 580 Super D, along with the 480C, 480D, 580B and 580CK. The Brake Lining Replacement Kit (249019A1) fits the 580C, 580D and 580SD. Matching the part number on your old bands is the easiest way to confirm fitment before you order.

Will the Case 480C, 580C brake master cylinder fit a 580D?

The Brake Master Cylinder (L25419) and Brake Slave Cylinder (A51976) are listed for the Case 480C and 580C, not the 580D. Brake parts on these backhoes can change between models and serial number ranges, so check the part number on your current cylinder before ordering. For help confirming fitment, call (800) 909-7060.

What seals do I need to reseal the brakes on a Case 480C or 580C?

For a brake reseal on the Case 480C or 580C, we carry the Brake Backing Plate Oil Seal (A39273), the brake backing plate O-ring (G10347, 1/8 inch thick), and the Right Hand Differential Side Gear Seal (A49795). Broken Tractor also offers the Case Backhoe Brake and Diff Side Gear Seal Kit (BT-CASE-BRK-DIFFSEAL) and the Brake Backing Plate Bearing and Seal Kit (CS-580-BPK). The A39273 seal is marked with a note for the 480D and 580D, so owners of those models should confirm by part number.

What brake parts fit a Case 580 Super E backhoe?

For the Case 580 Super E, Broken Tractor carries the Brake Line (D66741), the Parking Brake Cable (D126606, 39.5 inch length), and the Brake Ratchet Rod Return Spring (A60555). The Brake Self Adjust Spring (A60489) is listed for the 580E and 580SE. Many of the other band, cylinder and housing parts we carry are listed only for the 480C through 580D, so check each part's fitment for your exact model.
