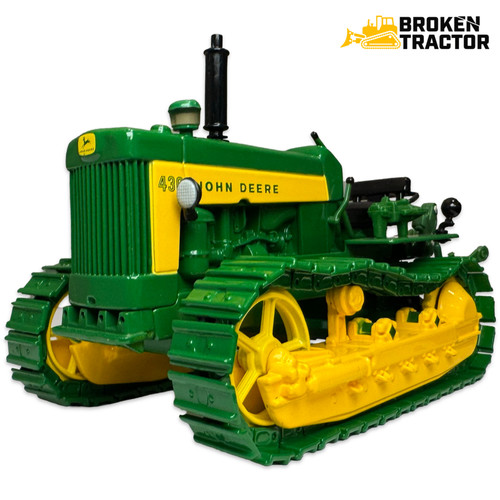

John Deere 430 Crawler Tractor Specs and Serial Numbers (1958-1960)

John Deere

SKU:: JD-430-Dozer

Fits Models:

Placeholder

Part # JD-430-Dozer

Description:

Serial Number Information

Year	Serial Number Range
1959	140000 – 158074
1960	158075 – 161095

Location: The serial number tag is typically found on the transmission case just behind the gearshift lever or near the left-hand side of the main frame.

Key Specifications

Feature	Specification
Engine Power	29 HP engine, 23.5 HP at drawbar
Displacement	113.3 cubic inches
Bore & Stroke	4.25 in × 4.00 in
Compression Ratios	Gasoline: 7:1, LP Gas: 8.5:1, All-Fuel: 5.15:1
Transmission Options	4 forward / 1 reverse; Optional 5 forward / 1 reverse
Electrical System	6-volt positive ground

Key Features

Compact Power with Versatile Fuel Options

The JD 430 was offered in gasoline, LP gas, and all-fuel configurations to match fuel availability and application needs.

Improved Operator Controls

Introduced with a redesigned dash, better ergonomics, and optional features like power steering and a Float-Ride seat for comfort.

Customizable for Work & Style

Available in green/yellow or industrial yellow, with direction reversers, foot throttles, and front-end weights as factory options.

Legacy Reliability

The 430 Crawler shared many parts with earlier 40 and 420 models, making it easier to maintain and repair with common components.

Common Replacement Parts

Maintain your John Deere 430 with essential components available at Broken Tractor:

Engine Components

Pistons, cylinder kits, gaskets, manifolds, ignition coils, carburetors

Fuel System

LP gas regulators, sediment bowls, fuel lines, carburetor kits

Transmission & Clutch

Gears, shift forks, clutch discs, bearings, transmission rebuild kits

Electrical System

6V starters, generators, voltage regulators, battery cables

Undercarriage

Track chains, idlers, sprockets, rollers, recoil springs

Maintenance Schedule

Task	Recommended Interval
Engine Oil & Filter	Every 100 hours or seasonally
Fuel Filter & Sediment Bowl	Every 200 hours or as needed
Clutch & Transmission Check	Every 250 hours
Undercarriage Grease & Inspection	Weekly or after field work
Coolant System Flush	Every 12 months or 1,000 hours
Battery & Electrical Terminals	Monthly or as needed
