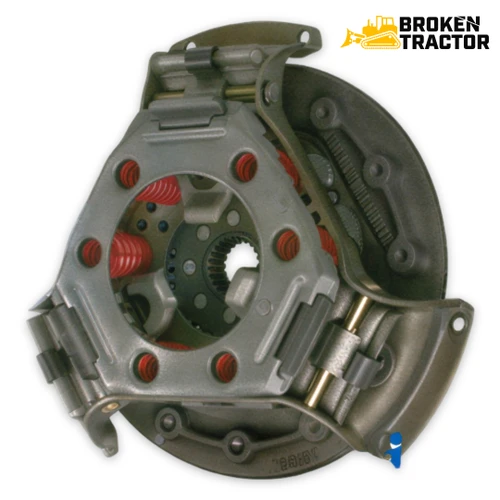

John Deere 11" Cast Iron Double Clutch Pressure Plate with PTO Disc, 23 Spline

SKU:
AL120022
FitsModel:
300/B, 301/A, 302/A, 400, 401/B/C/D, 820, 830, 840, 920, 940/V, 1020-1140V, 1350, 1520, 1530, 1550, 1630, 1640/F, 1750/V, 1840F, 1850/V, 1950/N, 2020-2040F, 2120, 2130, 2150, 2155, 2240, 2250/F, 2255, 2350, 2355, 2440, 2450/F, 2630, 2640
ListDescription:
Double Clutch Pressure Plate with PTO Disc
AL120022 double clutch assembly for John Deere 2240 tractor
Part # AL120022

Fits Models At A Glance:

John Deere Tractors – Utility Series:

  • 820 3 Cylinder, 830 3 Cylinder, 840, 920, 940, 940V, 1020, 1030, 1040, 1040V, 1120, 1130, 1140, 1140F, 1140V, 1350, 1520, 1530, 1550, 1630, 1640, 1640F, 1750, 1750V, 1840F, 1850, 1850V, 1950, 1950N

John Deere Tractors – 2000 Series:

  • 2020, 2030, 2030OU, 2035, 2035EF, 2040, 2040F, 2120, 2130, 2150, 2155, 2240, 2250, 2250F, 2255, 2350, 2355, 2440, 2450, 2450F, 2630, 2640

John Deere Backhoe Loaders:

  • 300B, 401B, 401C

John Deere Industrial & Construction:

  • 300, 301, 301A, 302, 302A, 400, 401, 401D

Key Notes:

  • Part Numbers: AL120022, AL18714, AL39624, AL55140, AL30151, AL40882, AT25482, R18714, R25109, R27706
  • Weight: 48.9 lbs
  • Application: Double clutch — transmission plate with combined PTO disc
  • Spline Count: 23
  • Spline Diameter: 1-1/2"
  • Dimensions: 11" plate diameter
  • Material: Cast iron
  • Kit Includes: 9" organic spring-loaded PTO disc
  • Interchange Numbers: LuK 228002310, LuK 228002323
  • Manufacturer: A & I Products
  • Replacement Part for John Deere Equipment

Why Choose Broken Tractor:

  • ✅ Complete Double Clutch Assembly: The 9" organic PTO disc ships attached, so the transmission and PTO halves are already matched — no second order to finish the job.
  • ✅ Cast Iron Body: A cast body carries clamp load and heat better than a stamped cover on tractors that spend their day on the PTO.
  • ✅ Fourteen Superseded Numbers Covered: Ten Deere numbers and two LuK numbers land on this one plate, so an old parts book still gets you to the right part.
$671.00
