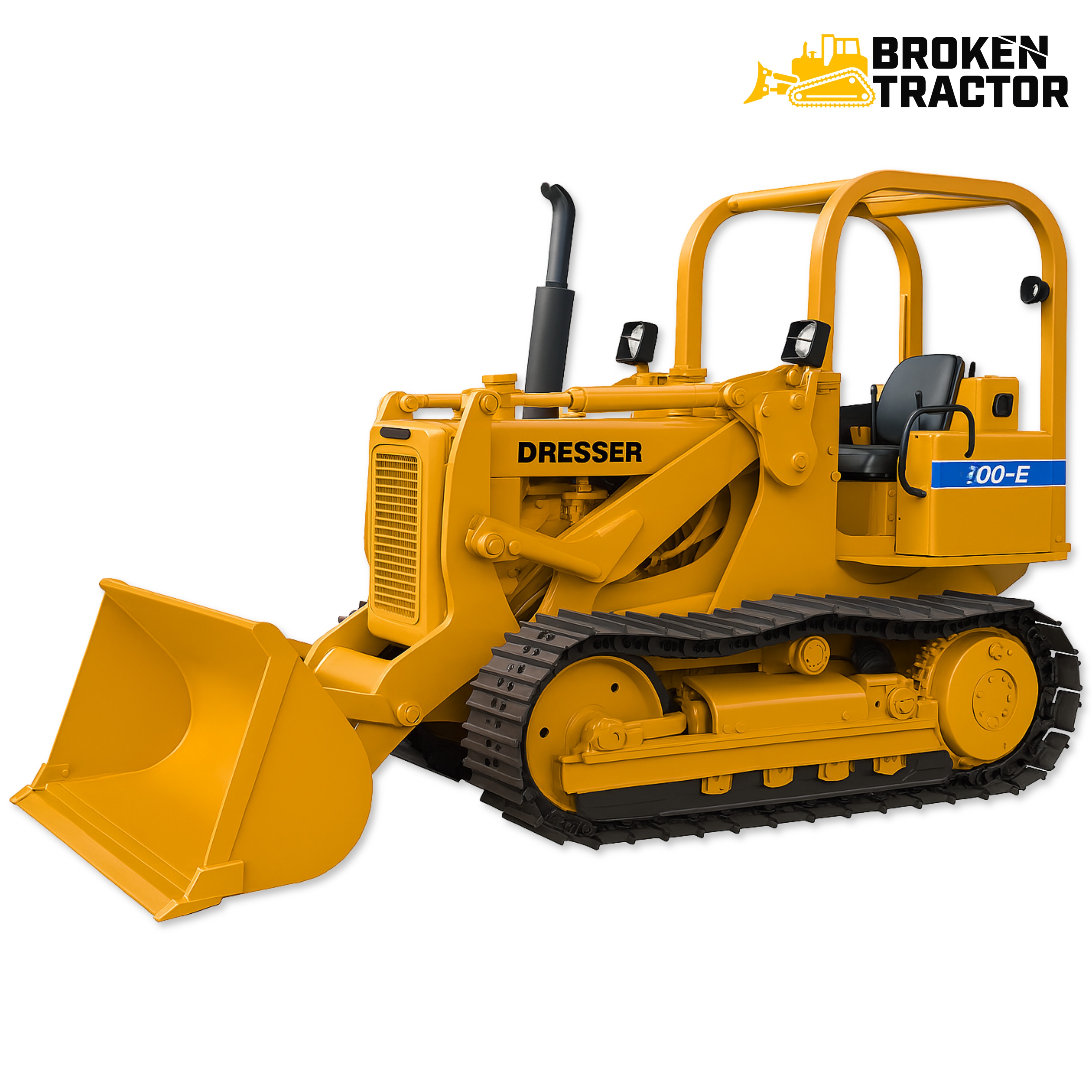

IH 100E Crawler Loader: E-Series Heavy-Duty Track Loader

The International Harvester 100E Crawler Loader is the E-series successor to the 100C - a heavy-duty track-type loader with upgraded engine output and refined loader hydraulics. Built on the IH / Dresser TD7/TD8/100/125 cross-fit platform, the 100E remains a working machine across construction and site-development fleets.

BT

Broken Tractor Editorial Team• Updated May 2026• 7 min read

Where the 100E fits in the IH / Dresser line

The IH 100E is the E-series successor to the 100C in the International Harvester / Dresser mid-size crawler loader family. The platform shares heavy mechanical commonality with the IH / Dresser TD7 and TD8 dozers and the larger 125 crawler loader - steering brake components, seat cushions, and many engine and hydraulic service parts cross-fit across the TD7/TD8/100/125 line.

The E generation brought increased engine output and improved hydraulic flow capacity compared to the earlier C-series machine. The mechanical drivetrain layout carried forward in concept, with refinements for the higher-output engine and the higher-flow loader circuit.

What changed from the 100C to the 100E

• Engine output. The E-series IH diesel produces more usable horsepower and torque than the C-series predecessor, supporting higher-cycle loadout work.
• Hydraulic capacity. Loader bucket lift and tilt circuits run at higher flow than the 100C, reducing cycle times in production digging and loading.
• Drivetrain refinements. Steering-brake clutch service parts continued in the TD7/TD8/100/125 cross-fit family, with refined wear surfaces and updated brake kit packaging.
• Operator station. Updated seat and cushion package (PV862 family) shared across IH / Dresser dozers and loaders of the era.

Engine, hydraulics, and drivetrain

The 100E runs an upgraded IH / Dresser diesel through a mechanical drivetrain. Power flows through a steering-clutch and steering-brake arrangement to final drives and the sealed-and-lubricated track chain. The brake service parts on the 100E share part numbers with the TD7/TD8 dozer line and the 125 loader - the DBSKIT and DBSKIT-2 steering-brake kits are the common service items.

Loader hydraulics on the 100E run higher flow than the C-series, driving the bucket lift and tilt cylinders. The main hydraulic pump (623084C92 cross-fit Dresser part) is the highest-value hydraulic service item on the machine. Blade angle cylinders and loader cylinders use IH / Dresser cross-fit seal kits.

Common service items on the 100E

• Engine internals: IH / Dresser diesel pistons, rings, sleeves, head gaskets. S.57678 head gasket set cross-fits.
• Cooling system: 3132738R93 water pump fits IH / Dresser dozers and crawler loaders across the family.
• Hydraulic system: 623084C92 main hydraulic pump (Dresser cross-fit). Loader bucket lift and tilt cylinder seal service.
• Steering brakes: DBSKIT basic steering brake kit and DBSKIT-2 brake shoe kit are TD7/TD8 / 100/125 cross-fit service items. 621037C1 brake shoe is the common wear part.
• Operator station: PV862 seat package for IH / Dresser dozers and loaders. 621619C1 bottom seat cushion fits 100/125 loaders and TD7/TD8 dozers.
• Bucket / loader: Bucket cutting edges, teeth, pins and bushings, loader arm pivot service. 5J4773 cutting edge bolt is the Dresser / Case / CAT cross-fit fastener.
• Undercarriage: Track chains, rollers, idlers, sprockets, recoil springs.
• Electrical: Starter, alternator, gauges, switches, harnesses.

Parts and cross-fit components for the IH 100E

What to verify before ordering

• Serial number. Confirm the serial on the 100E before ordering year-specific parts - IH-era and Dresser-era production saw running revisions.
• Engine serial. Internal engine parts (pistons, rings, sleeves, bearings) must match the engine serial number.
• Generation. Confirm IH-era vs. Dresser-era build by the operator-platform ID plate before ordering generation-specific hydraulic and electrical parts.
• Undercarriage spec. Track shoe count, roller count, and idler configuration vary by build - measure existing components before ordering replacements.
• Brake configuration. Confirm the steering-brake variant on the machine before ordering DBSKIT vs. DBSKIT-2 - the two kits target different service scopes.

Why the 100E still earns a paycheck

The 100E is the refined E-series IH / Dresser mid-size crawler loader - improved engine output and hydraulic capacity over the C-series, with the heavy mechanical commonality across the TD7/TD8/100/125 family that keeps parts availability strong. For customers running a 100E in a working fleet, the maintenance priorities are: clean fuel, steering-brake service on a planned interval, loader cylinder seal service, and undercarriage monitoring.

Broken Tractor stocks and ships the IH / Dresser cross-fit service items - engine gaskets, water pumps, hydraulic pumps, steering-brake kits, seat cushions, and bucket hardware - for the 100E and the broader TD7/TD8/100/125 family.
