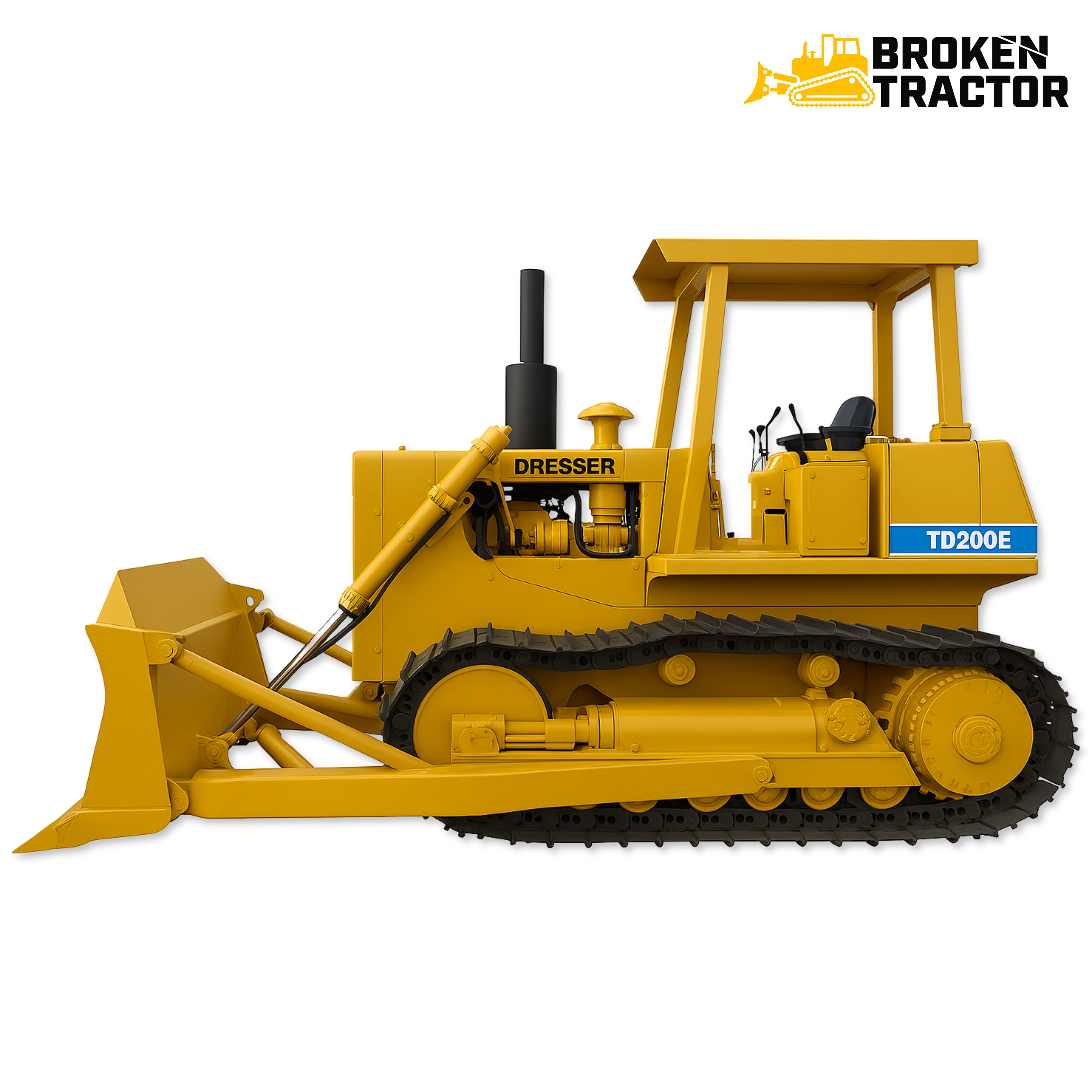

Dresser TD-200E Crawler Dozer: Ultra-Heavy-Duty Mining & Earthmoving Flagship
The Dresser TD-200E is one of the largest track-type tractors ever produced under the Dresser name — an ultra-heavy-duty crawler built for high-production mining, large-scale earthmoving, and industrial land development. It represents the E-series evolution of the IH / Dresser heavy dozer family.
Where the TD-200E fits in the IH / Dresser line
The TD-200E is the ultra-heavy flagship of the Dresser-era crawler dozer family. Developed after International Harvester’s construction equipment line transitioned to Dresser, the TD-200E carried IH heavy-iron DNA into a machine sized for the largest production work: open-pit mining stripping, mass earthmoving on major civil projects, and heavy industrial land development. Above the more common TD-25G mid-large crawler, the TD-200E represents the top of the Dresser dozer hierarchy.
Like the rest of the E-series, the TD-200E uses heavy IH / Dresser diesel power paired with a hydrostatic drive arrangement that gave operators the precise track control needed for production blade work at scale. Cab, controls, and operator-station hardware carried forward from earlier IH heavy crawlers, with running improvements to seating, gauges, and serviceability through the E-series production run.
Dresser TD-200E Crawler Dozer - Quick Specs
- Class
- Ultra-Heavy-Duty Crawler Dozer
- Generation
- E-Series
- Brand
- Dresser (IH heritage)
- Engine
- IH / Dresser Heavy Diesel
- Drivetrain
- Hydrostatic
- Smaller Sibling
- Dresser TD-25G
- Applications
- Mining, mass earthmoving, industrial
Engine, hydraulics, and drivetrain
The TD-200E runs a heavy IH / Dresser diesel engine driving a hydrostatic transmission. The hydrostatic dual-path arrangement gave the operator independent track speed control for precise dozing and finish work, while the heavy diesel produced the torque needed to push a full ultra-heavy blade through tough material at production rate.
The implement hydraulic circuit is sized to match: a main hydraulic pump (623084C92 cross-fit on Dresser machines) feeds the blade lift, tilt, and angle cylinders. Steering uses heavy-duty wet-disc brakes inside the final drive housings. Undercarriage hardware is the heavy-class IH / Dresser pattern with full chains, sprockets, idlers, and recoil springs sized for the machine’s working weight.
Common service items on the TD-200E
- Engine internals: IH / Dresser heavy diesel pistons, rings, sleeves, head gaskets. The S.57678 head gasket set cross-fits IH / Dresser dozer engines.
- Cooling system: The 3132738R93 water pump cross-fits IH / Dresser dozers. Radiator, hoses, thermostat, and fan service round out cooling work.
- Hydraulic system: Main hydraulic pump, 620630C92 blade angle cylinder (Dresser cross-fit), blade lift and tilt cylinder seal kits and rod service.
- Steering brakes: Heavy-duty wet-disc brake plate and seal service inside the final drive.
- Operator station: PV862 seat package for IH / Dresser dozers and loaders covers seat cushion replacement.
- Blade: Cutting edges, mounting hardware (5J4773 cutting edge bolt cross-fits Dresser / Case / CAT), pivot pins, and end-bit hardware.
- Undercarriage: Heavy-class track chains, rollers, idlers, sprockets, and recoil springs.
- Electrical: Starter, alternator, gauges, and switch service.
Parts and cross-fit components for the Dresser TD-200E
| Category | Common Parts | Browse |
|---|---|---|
| Engine | IH / Dresser diesel internals; S.57678 head gasket set cross-fit | S.57678 Head Gasket Set |
| Cooling | 3132738R93 water pump (IH / Dresser dozers cross-fit) | 3132738R93 Water Pump |
| Hydraulic Pump | 623084C92 main hydraulic pump (Dresser cross-fit) | 623084C92 Main Hydraulic Pump |
| Blade Hydraulics | 620630C92 hydraulic blade angle cylinder | 620630C92 Blade Angle Cylinder |
| Operator Station | PV862 seat package; 621619C1 bottom seat cushion | PV862 Seat Package |
| Blade Hardware | 5J4773 cutting edge bolt (Dresser / Case / CAT cross-fit) | 5J4773 Cutting Edge Bolt |
| Undercarriage | Heavy-class track chains, rollers, idlers, sprockets, recoil springs | Browse Undercarriage |
| Electrical | Starters, alternators, gauges, switches | Browse Electrical |
Need a part for your Dresser TD-200E Crawler Dozer?
Hydrostatic drive components, heavy diesel engine parts, and ultra-heavy undercarriage are the highest-value items on a TD-200E. Call our parts team with your serial number and we’ll match the right component to your machine.
Request a PartWhat to verify before ordering
- Serial number. Confirm the serial on the TD-200E’s operator-platform ID plate before ordering year-specific parts.
- Engine serial. Internal engine parts must match the engine serial separately from the machine serial.
- Generation. IH-era and Dresser-era machines saw multiple revisions through production — confirm by serial range.
- Hydraulic pump and motor variant. Drive pump and motor part numbers can vary across the production run.
- Undercarriage spec. Track shoe count, shoe width, and roller / idler configuration vary by build. Measure existing components before ordering.
- Blade configuration. Straight blade, angle blade, and U-blade configurations affect cylinder specs and mounting hardware.
Why the TD-200E still earns a paycheck
The TD-200E is an ultra-heavy-duty Dresser dozer aimed at the work where machine size and pushing power matter most: high-production mining stripping, large-scale earthmoving on major civil and industrial projects, and heavy land development. Operators who run TD-200E machines run them hard, and parts demand reflects that — engine, hydraulic, and undercarriage components are the consistent service categories.
Maintenance priorities on a TD-200E: clean fuel for the heavy diesel, religious hydraulic-oil cleanliness for the hydrostatic drive, ultra-heavy-class undercarriage monitoring with timely chain and sprocket replacement, and blade pivot and end-bit service to keep cutting performance at production rate. Broken Tractor stocks and sources IH / Dresser crossover parts that fit the TD-200E and the broader Dresser dozer family.
