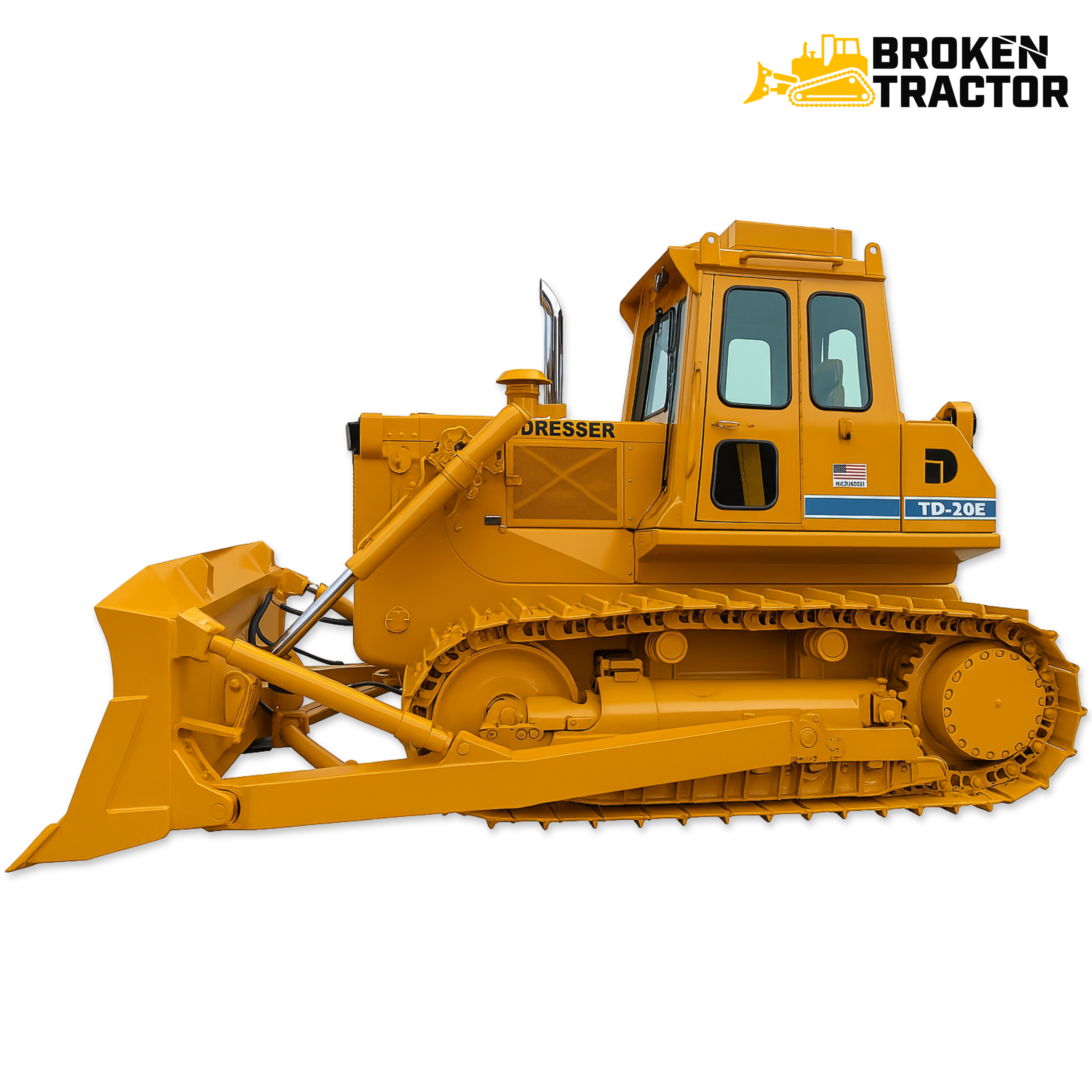

Dresser TD-20E Crawler Dozer: E-Generation High-Capacity TD-20
The Dresser TD-20E is the E-series evolution of the IH/Dresser TD-20 high-capacity crawler dozer family - a heavy-duty earthmoving machine built for large-scale construction, mining, and land-clearing work. The E-generation refined the hydraulics and drivetrain of the original TD-20 platform and remains widely supported through cross-fit IH/Dresser parts.
Where the TD-20E fits in the IH / Dresser line
The TD-20E is the E-series Dresser TD-20 - a high-capacity crawler dozer engineered for heavy earthmoving, mining haul-road work, large-scale land clearing, and industrial site prep. The TD-20 platform traces back to the International Harvester construction line and carried forward into Dresser-era production, with the E-generation introducing refinements to the hydraulics and undercarriage that carried into later TD-20G builds. Many service components are direct cross-fits across the TD20, TD20E, and TD20G - most notably the PV318 track adjuster.
Dresser TD-20E Crawler Dozer - Quick Specs
- Class
- High-Capacity Crawler Dozer
- Generation
- E-Series
- Brand Lineage
- IH / Dresser
- Engine
- IH / Dresser Heavy Diesel
- Drivetrain
- Hydrostatic Transmission
- Direct-Fit Track Adjuster
- PV318 (TD20 / TD20E / TD20G)
- Predecessor
- Dresser TD-20
- Successor
- Dresser TD-20G
Engine, hydraulics, and drivetrain
The TD-20E runs a heavy IH/Dresser diesel paired with a hydrostatic transmission - the configuration that defined the TD-20 line as a production-class crawler. The implement hydraulic circuit drives the blade lift, tilt, and angle cylinders, with the 623084C92 main hydraulic pump and the 620630C92 blade angle cylinder among the most-serviced components in the system.
The chassis and undercarriage are heavy-class - sized for sustained production work in abrasive material. Track chains, rollers, idlers, sprockets, and the PV318 recoil/track adjuster carry the load, with the PV318 acting as the direct-fit track adjuster across all three TD-20 generations (TD20, TD20E, TD20G).
Common service items on the TD-20E
- Engine internals: IH/Dresser heavy diesel - pistons, rings, sleeves, bearings, head gaskets. The S.57678 head gasket set is a known IH/Dresser cross-fit.
- Cooling system: The 3132738R93 water pump cross-fits IH/Dresser dozers. Radiators, hoses, thermostats round out the system.
- Hydraulic system: Main hydraulic pump (623084C92), blade angle cylinder (620630C92), blade lift and tilt cylinder service, hoses, and seal kits.
- Track adjuster: PV318 is the direct-fit track adjuster across TD20 / TD20E / TD20G.
- Steering brakes: Heavy-duty wet-disc brake service - friction discs, separator plates, seals.
- Operator station: PV862 seat package fits IH/Dresser dozers and loaders; 621619C1 bottom seat cushion.
- Blade: Cutting edges, mounting hardware (5J4773 cutting edge bolt is a Dresser/Case/CAT cross-fit), pivot pins, push-arm bushings.
- Undercarriage: Heavy-class track chains, rollers, idlers, sprockets, recoil springs.
- Electrical: Starter, alternator, gauges, switches, harnesses.
Parts and cross-fit components for the Dresser TD-20E
| Category | Common Parts | Browse |
|---|---|---|
| Engine | IH/Dresser diesel internals; S.57678 head gasket set cross-fit | S.57678 Head Gasket Set |
| Cooling | 3132738R93 water pump (IH/Dresser dozers cross-fit) | 3132738R93 Water Pump |
| Hydraulic Pump | 623084C92 main hydraulic pump (Dresser cross-fit) | 623084C92 Main Hydraulic Pump |
| Blade Hydraulics | 620630C92 hydraulic blade angle cylinder | 620630C92 Blade Angle Cylinder |
| Track Adjuster | PV318 direct-fit (TD20 / TD20E / TD20G) | PV318 Track Adjuster |
| Operator Station | PV862 seat package; 621619C1 bottom seat cushion | PV862 Seat Package |
| Blade Hardware | 5J4773 cutting edge bolt (Dresser/Case/CAT cross-fit) | 5J4773 Cutting Edge Bolt |
| Undercarriage | Track chains, rollers, idlers, sprockets, recoil springs | Browse Undercarriage |
| Electrical | Starters, alternators, gauges, switches, harnesses | Browse Electrical |
Need a part for your Dresser TD-20E Crawler Dozer?
Track adjusters, hydraulic pumps, and engine internals are the highest-value items on a TD-20E. Call our parts team with your serial number and we’ll match the right component to your machine.
Request a PartWhat to verify before ordering
- Serial number. Confirm the full serial on the TD-20E operator-platform ID plate before ordering year-specific parts.
- Engine serial. Internal engine parts must match the engine serial number, not just the chassis serial.
- Generation. IH-era and Dresser-era TD-20 machines saw multiple revisions - confirm by serial before ordering hydraulic and drivetrain parts.
- Undercarriage spec. Track shoe count, shoe width, and roller/idler configuration vary by build - measure before ordering.
- Blade configuration. Straight, angle, and semi-U blade options exist - confirm cylinder and mounting hardware against your machine.
Why the TD-20E still earns a paycheck
The TD-20E is the heavy-duty workhorse of the Dresser TD-20 family - sized for large-scale construction, mining haul-road maintenance, land clearing, and industrial earthmoving. Parts availability remains strong because so many service components cross-fit across the TD20, TD20E, and TD20G generations, and because the IH/Dresser heavy-diesel engine family has decades of aftermarket support.
Maintenance priorities on a TD-20E: clean fuel, regular hydrostatic transmission service, attentive track-adjuster maintenance (the PV318 is the direct fit), heavy-class undercarriage monitoring on schedule, and engine rebuilds when wear demands. Broken Tractor maintains parts coverage for the TD-20E alongside the broader IH/Dresser dozer family.
