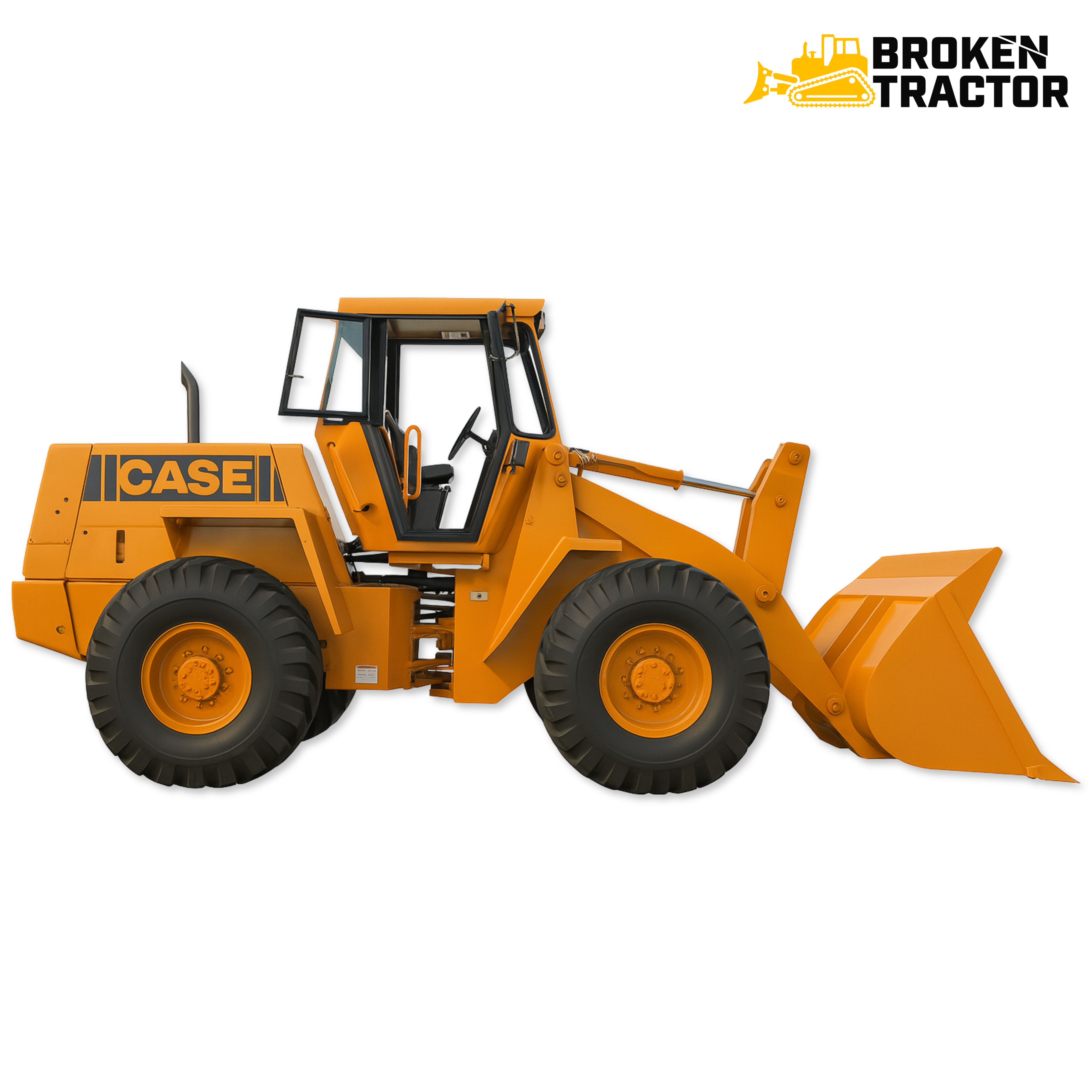

Case W24 Wheel Loader: Heavy Production-Class Articulated
The Case W24 is a heavy production-class wheel loader in the original Case lineup - articulated frame, big Case diesel, mechanical injection, and the kind of loader cylinders and bucket capacity that made these machines a fixture on contractor yards and quarry pads.
Where the W24 fits in the Case wheel loader line
The W24 follows the W20 / W20C production-class line and runs alongside the W26B as Case continued refining its heavy wheel loader segment. Larger frame, larger loader cylinders, heavier breakout, larger bucket - paired with the same mechanical-injection architecture that defined the rest of the family. No DPF, no SCR, no emissions tiering - just a Case diesel running an articulated production loader.
Quick specs and serial plate location
Case W24 Wheel Loader - Quick Specs
- Class
- Heavy Production Wheel Loader
- Frame
- Articulated
- Drivetrain
- Power Shift
- Engine
- Case Diesel
- Front Tool
- Hydraulic Loader
- Serial Plate Location
- Right Frame, Near Rear Articulation, Below Engine Cover
- Smaller Sibling
- Case W20 / W20C
- Larger Sibling
- Case W26B
Engine, hydraulics, and drivetrain
The W24 runs a larger Case inline diesel through a power-shift transmission and heavy articulated front and rear drive axles. Loader hydraulics use a high-flow gear pump with mechanical control valves and direct-acting cylinders sized for heavy bucket work. Wet-disc service brakes, planetary final drives, and a heavier ROPS-equipped operator station match the W24’s intended duty cycle - quarry pads, scrap operations, snow handling, and any operation where bucket capacity outranks cycle speed.
Common service items on the W24
- Engine internals: Case diesel pistons, rings, sleeves, bearings, gaskets, full overhaul kits. The R49482 engine motor mount moves consistently across the Case diesel family.
- Fuel system: Injection pump, injectors, lift pump, primary and secondary filters.
- Cooling system: Radiator, water pump, thermostat, fan, hoses, belts.
- Loader hydraulics: Cylinder seal kits, hydraulic pump rebuilds, control valves, hoses.
- Articulation steering: Steering cylinder seal kits, articulation pivot pins and bushings.
- Loader components: Bucket teeth, cutting edges, bushings, pivot pins.
- Drivetrain: Power-shift clutch packs, transmission components, axle seals, planetary final drives.
- Brakes: Wet-disc brake service. Recurring service parts on Case wheel loader brakes include the L113007 master cylinder with air chamber, the A12985 slave cylinder, and the L15782 brake pedal valve.
- Electrical: Starter, alternator, wiring harness, gauges, switches.
- Operator station: Seat, gauges, control levers, ROPS canopy parts, cab fresh-air filter (47880728) on cab-equipped units.
Parts and cross-fit components for the Case W24
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Pistons, rings, sleeves, bearings, gaskets, mounts | R49482 Engine Mount |
| Fuel System | Injection pumps, injectors, lift pumps, filters | Browse Fuel System |
| Cooling | Radiators, water pumps, thermostats, hoses | Browse Cooling Parts |
| Loader Hydraulics | Cylinders, seal kits, pumps, valves, hoses | Browse Hydraulics |
| Articulation Steering | Steering cylinders, pivot pins, bushings | Browse Articulation Parts |
| Loader | Bucket teeth, cutting edges, pins, bushings | Browse Loader Components |
| Drivetrain | Power-shift clutch packs, transmission, axles, final drives | Shift Lever Assembly |
| Brakes | Master/slave cylinders, brake shoes, valves | L113007 Master Cylinder |
| Cab | Cabin air filtration, ROPS parts, gauges | 47880728 Cab Filter |
| Operator Station | Seats, gauges, controls, ROPS parts | Browse Operator Station |
Need a part for your Case W24 Wheel Loader?
Call our parts team with your serial number - we’ll match the right component to your machine.
Request a PartWhat to verify before ordering
- Serial number. Confirm the serial on the right frame near the rear articulation before ordering year-specific parts.
- Engine serial. Case diesel internal parts must match the engine serial number.
- Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension - measure before ordering.
- Brake system revision. Wet-disc service brakes saw multiple revisions - confirm master/slave cylinder fit by serial.
- Power-shift revision. Power-shift transmissions saw clutch-pack revisions during production.
- Cab vs. ROPS canopy. Operator station equipment varied between configurations.
Why the W24 still earns a paycheck
The W24 is a Case heavy production-class wheel loader from the era when mechanical injection and mechanical hydraulics defined the segment. No electronics to fail, no aftertreatment to maintain - when the W24 hits a problem, it responds to a wrench, a parts catalog, and a service manual. For operations that want production capacity without the maintenance footprint of a Tier 4 machine, the W24 is a fleet-keeper.
Maintenance priorities on a W24: clean fuel and quality filtration, hydraulic seal replacement before cylinders weep, articulation pivot service when slop develops, brake service when actuation softens, and engine overhaul when wear demands. Broken Tractor maintains parts coverage across the W-series and the broader Case wheel loader family.
