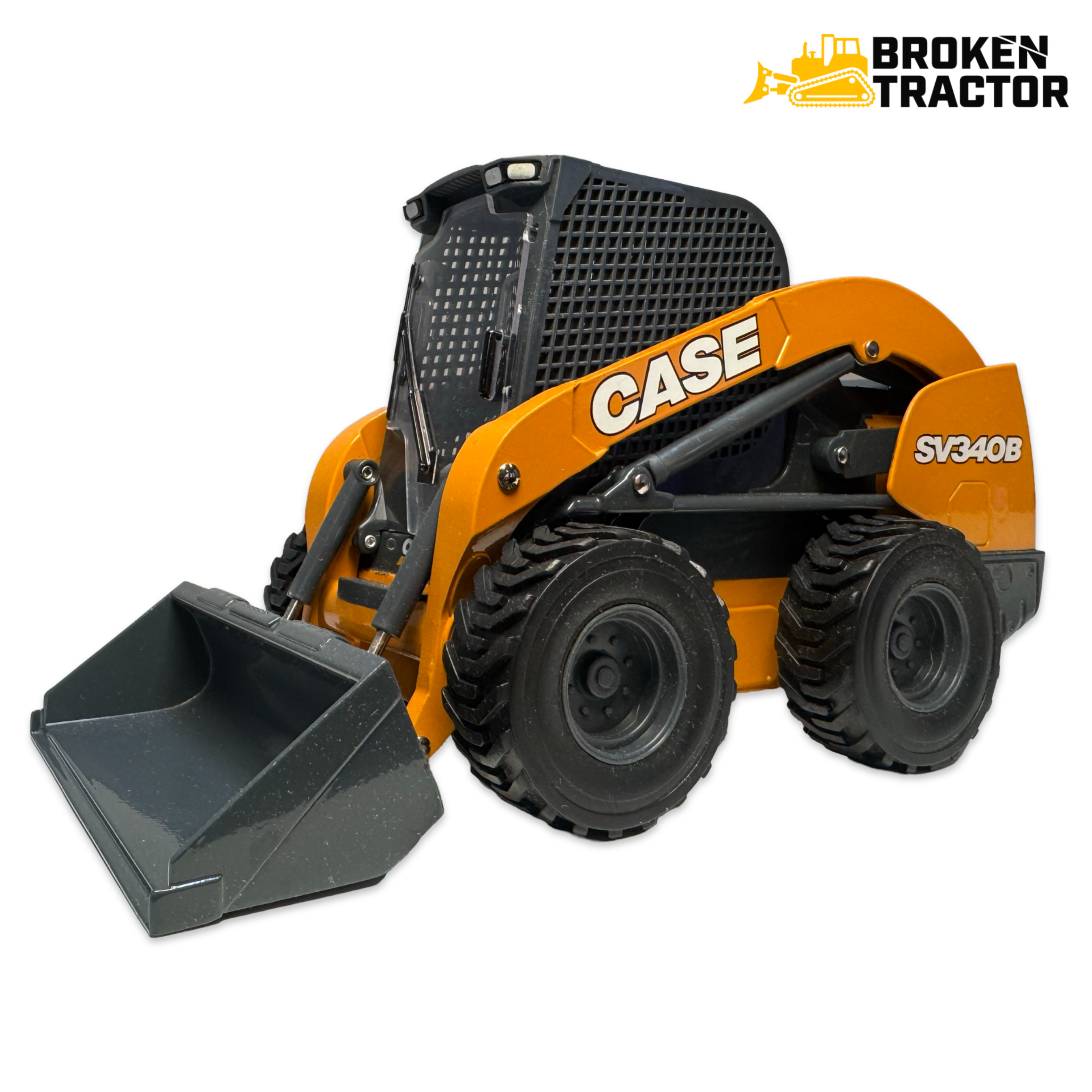

Case SV340B Skid Steer Loader: Alpha-Series Vertical-Lift Skid Steer
The Case SV340B is part of Case’s alpha-series vertical-lift skid steer loader range — Tier 4 Final compact diesel, hydrostatic dual-path drivetrain, and the SV vertical-lift geometry that gives operators more reach at full height for truck-loading and stacking work.
Where the SV340B fits in the Case skid steer / CTL line
The SV340B sits in Case’s alpha-series SV (vertical-lift) skid steer range. Vertical-lift loader geometry, Tier 4 Final aftertreatment, alpha-series cab, and electrohydraulic joystick controls combine to make the SV340B a stacking and truck-loading specialist. The B-suffix designation marks the second generation of the SV340 platform with refinements to the cab, controls, and aftertreatment system.
Case SV340B Skid Steer Loader — Quick Specs
- Class
- Skid Steer Loader
- Generation
- SV (Alpha) Vertical-Lift
- Engine
- Tier 4 Final Compact Diesel
- Aftertreatment
- DPF + SCR (DEF)
- Drivetrain
- Hydrostatic Dual-Path
- Lift Geometry
- Vertical
- Controls
- Electrohydraulic Joystick
- Serial Plate
- Right-hand side of loader arm or main frame beneath cab
Engine, hydraulics, and drivetrain
The SV340B runs a Tier 4 Final compact diesel through a hydrostatic dual-path drivetrain. Loader hydraulics use a load-sensing piston pump with electrohydraulic control valves. The vertical-lift loader geometry keeps the bucket parallel to the chassis through the lift arc — best matched to truck-loading, stacking, and material handling where forward reach at full height matters.
The Tier 4 Final aftertreatment system combines diesel particulate filter (DPF), exhaust gas recirculation (EGR), and selective catalytic reduction (SCR) with diesel exhaust fluid (DEF) dosing. These systems are reliable when fed clean fuel and quality DEF, but they require attention — DEF tank must stay topped up, the DPF will request periodic high-temperature regens, and NOx sensors can fail and trigger derate conditions.
Common service items on the SV340B
- Engine internals: Tier 4 Final compact diesel pistons, rings, sleeves, bearings, gaskets. Common-rail high-pressure injection on Tier 4 builds.
- Tier 4 aftertreatment: DPF service intervals, DEF tank and dosing module, SCR catalyst, EGR cooler service.
- Fuel system: Common-rail injectors, lift pump, very tight water-separator filtration.
- Cooling system: Radiator, water pump, thermostat, fan, charge-air cooler, hoses, belts.
- Hydraulics: Loader lift and bucket tilt cylinder seal kits (86570919 / 86570931 / 86570922 cross-fit on NH/Case alpha-series), piston-pump rebuilds, electrohydraulic control valves.
- Drivetrain: Hydrostatic dual-path pumps and drive motors, charge pump, filters.
- Bucket coupler hardware: 47396814K bucket pin kit cross-fits L216–L230, C232–C238, SR160–SR250, SV185–SV300, TV380, TR270–TR340 — high-volume coupler service kit.
- Hardware: 191048A2 axle stud & nut cross-fits broadly across the Case skid steer line.
- Brakes / control: Park brake, control linkage, 48139268 control shock absorber on Case/NH alpha-series control valves.
- Electrical / ECU: Engine ECU, machine controller, instrument cluster, sensors, wiring harness, telematics module.
- Cab / operator station: Cab HVAC, seat, gauges, joystick controls, cab glass, 47405956 windshield wiper blade on cab-equipped units.
Parts we carry for the Case SV340B
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Tier 4 compact diesel internals | Browse Engine |
| Aftertreatment | DPF, DEF, SCR, EGR components | Browse Aftertreatment |
| Fuel System | Common-rail injectors, lift pump, filters | Browse Fuel |
| Cooling | Radiator, water pump, charge-air cooler, hoses | Browse Cooling |
| Hydraulics | Lift/tilt cylinder seal kits, piston pump, valves | 86570919 Tilt Seal Kit |
| Drivetrain | Hydrostatic pumps/motors | Browse Drivetrain |
| Bucket Coupler | 47396814K bucket pin kit (cross-fits L216-L230, C232-C238, SR160-SR250, SV185-SV300, TV380, TR270-TR340) | 47396814K Pin Kit |
| Brakes / Control | 48139268 control shock absorber | 48139268 Shock Absorber |
| Cab | 47405956 wiper blade, HVAC, controls | 47405956 Wiper Blade |
| Electrical / ECU | ECU, harness, instrument cluster, sensors | Browse Electrical |
| Operator Station | Seats, joysticks, cab glass | Browse Operator Station |
Need a part for your Case SV340B Skid Steer Loader?
Cylinder seal kits, bucket coupler hardware, and Tier 4 aftertreatment components are the highest-volume items on the SV340B. Call our parts team with your serial number.
Request a PartWhat to verify before ordering
- Aftertreatment generation. Tier 4 Final configuration varies by build year — confirm DPF/DEF/SCR layout before ordering.
- Serial number. Confirm the serial on the Case SV340B before ordering year-specific parts.
- Engine serial. Internal engine parts must match the engine serial number.
- Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension — measure before ordering.
- Cab vs. ROPS canopy. Operator station equipment varied between configurations.
Why the SV340B still earns a paycheck
The Case SV340B is an alpha-series vertical-lift skid steer for truck-loading, stacking, and material-handling duty cycles where forward reach at full height matters more than radial-lift’s ground-level reach pattern. The vertical-lift geometry combined with the alpha-series cab and electrohydraulic controls makes it a comfortable and productive machine for full-shift operation.
Maintenance priorities on a SV340B: clean fuel and tight water separation, DPF regen behavior, hydrostatic charge pressure, drive-chain tension, and cylinder seal replacement when leaks develop. Broken Tractor maintains parts coverage for the alpha-series skid steer family across Case and New Holland badging.
