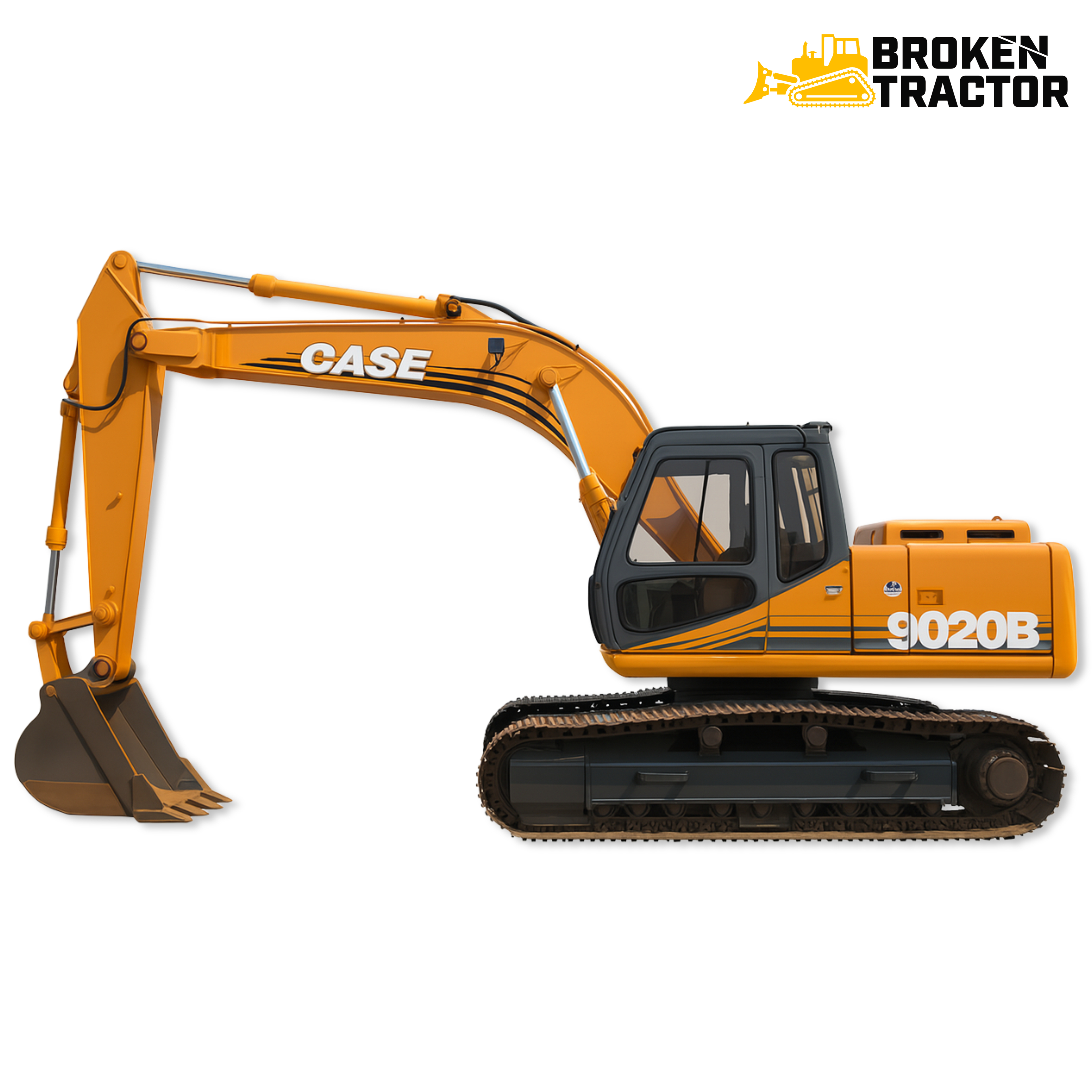

Case 9020B Excavator: 1997–2002 Legacy Mid-Large Excavator

The Case 9020B is a mid-large legacy excavator built from 1997 through 2002 - the B-series refinement of the 9020 platform with updated hydraulics and cab. It sits between the 9020 and 9030 in the legacy sequence and was the direct predecessor to Case's modern CX-series excavator line.

BT

Broken Tractor Editorial Team• Updated May 2026• 8 min read

Where the 9020B fits in the Case excavator line

The 9020B is part of Case's legacy excavator lineage - the predecessor generation to the modern CX-series excavator line. It sits between the 9020 Excavator and the 9030 Excavator in the legacy sequence, occupying the mid-large class. Built from 1997 through 2002, the 9020B reflects the late-1990s peak of pre-Tier emissions hydraulic excavator design: a Case/Cummins diesel, hydrostatic dual-path drive, and steel-track undercarriage in a configuration that prioritizes serviceability and parts continuity across the broader Case legacy family.

What changed for the B-series

• Refined hydraulics. The B-series brought hydraulic system refinements over the original 9020, with improved control valve response and pump tuning.
• Updated cab. Operator station revisions improved visibility, comfort, and control layout over the earlier 9020.
• Engine evolution. Mechanical injection on the earliest 9020B builds gave way to early electronic engine control on later production examples.
• Direct-fit exhaust. The 162122A1 muffler is the documented direct fit for low-serial 9010B and 9020B machines.

Engine, hydraulics, and drivetrain

The 9020B runs a Case or Cummins diesel through a hydrostatic dual-path drivetrain. The platform is pre-Tier 4 - mechanical injection on the earliest builds, with electronic engine control appearing on later production examples. The main hydraulic pump drives boom, dipper, bucket, swing, and propel circuits through mechanical or electrohydraulic control valves depending on production year and configuration.

The undercarriage is steel-track, with the standard pattern of rollers, idlers, recoil springs, and drive sprockets that defines legacy Case excavators of this era. The swing system uses a swing motor and planetary reduction driving a large-diameter swing bearing that carries the upper structure on the carbody.

Common service items on the 9020B

• Engine internals: Pistons, rings, sleeves, bearings, head gaskets. Mechanical-injection or early-electronic engine variants depending on production year.
• Fuel system: Injection pump, injectors, lift pump, primary and secondary fuel filters.
• Cooling system: Radiator, water pump, thermostat, fan, hoses, belts.
• Hydraulic system: Boom, dipper, bucket, and swing cylinder seal kits, main pump rebuild, control valves, hoses.
• Boom and dipper: Pin and bushing service at every joint, bucket pins, thumb attachment hardware, quick coupler service.
• Undercarriage: Steel track inspection and replacement, rollers, idlers, drive sprockets, recoil springs.
• Swing system: Swing motor and reduction gear service, swing bearing inspection, swing brake.
• Exhaust: 162122A1 muffler is the documented direct fit for low-serial 9010B and 9020B machines.
• Electrical: Starter, alternator, wiring harness, gauges, switches.
• Cab glass and wiper: KHN16820 24-inch wiper blade, KHN3046 front lower glass, and KHN2632 front upper glass cross-fit across Case and Link-Belt excavators.
• Operator station: Seat, joystick controls, pedal linkage, instrument panel, cab HVAC.

Parts and cross-fit components for the Case 9020B

What to verify before ordering

• Serial number. Confirm the machine serial on the 9020B before ordering year-specific parts - low-serial vs. high-serial production saw revision changes.
• Engine serial. Engine internal parts must match the engine serial number, especially across the mechanical-to-electronic injection transition.
• Hydraulic cylinder bore. Cylinder seal kit fit depends on bore dimension - measure the cylinder before ordering.
• Production-window revision. Engine and hydraulic components saw multiple revisions during the 1997-2002 production run.
• Bucket and quick coupler. Quick-coupler interface varies - confirm the configuration before ordering attachment-side hardware.
• Exhaust serial split. The 162122A1 muffler is the low-serial 9020B fit - high-serial machines may take a different muffler.

Why the 9020B still earns a paycheck

The Case 9020B is a legacy excavator from the era before the modern CX-series. Pre-Tier 4 emissions, mechanical or early-electronic injection, and a service architecture that rewards a wrench, a manual, and a parts catalog. For owners and operators running these machines, parts availability through the legacy Case service network remains broad, and the cross-fit between Case and Link-Belt on cab glass and a number of structural components keeps service costs manageable.

Maintenance priorities on a 9020B: clean fuel and quality filtration, hydraulic oil at temperature with clean filters, swing-bearing lubrication on schedule, steel-track tension and undercarriage wear monitoring, and pin and bushing service at every working joint. Broken Tractor maintains parts coverage across the Case legacy excavator family - 9020, 9020B, 9030, and the related platforms.
