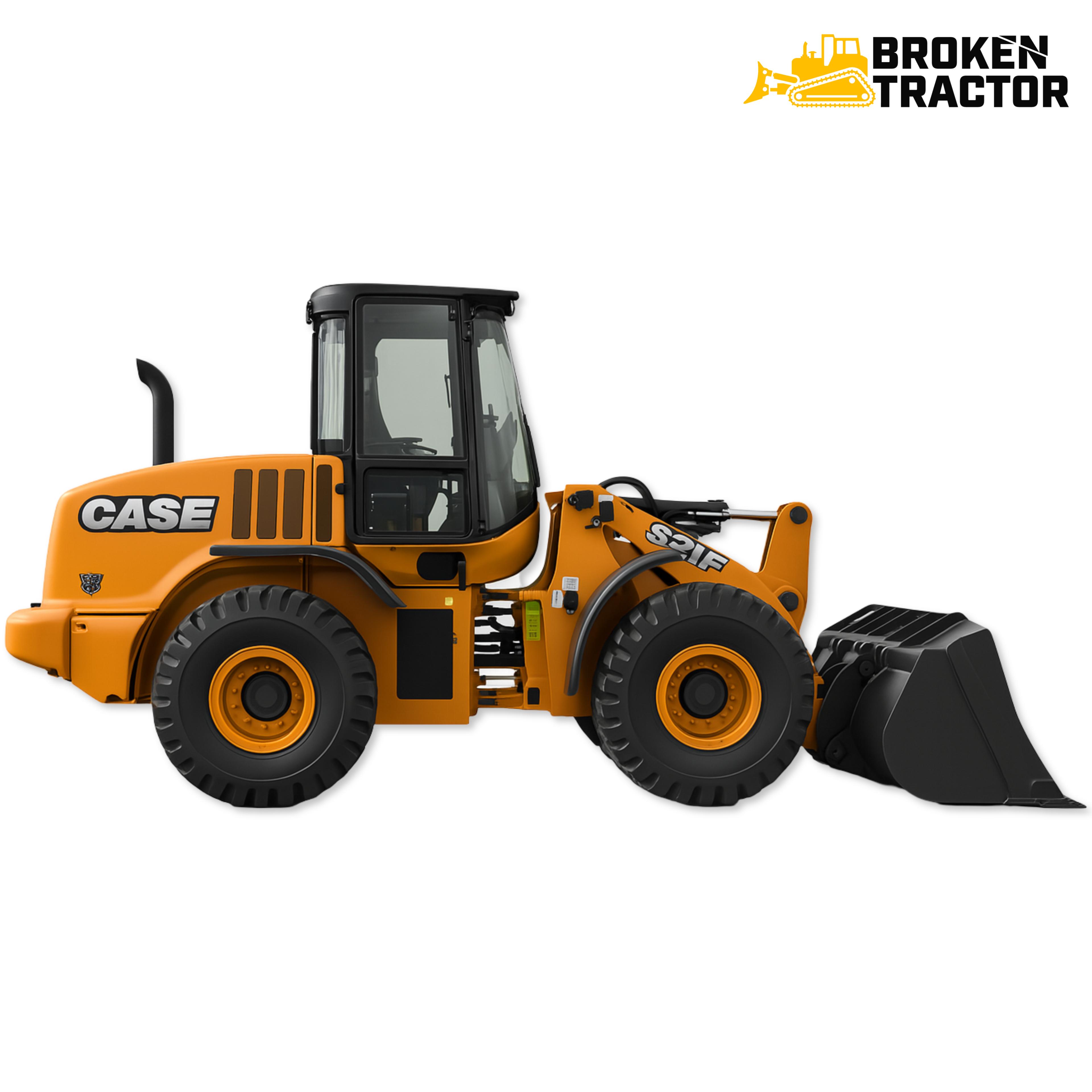

Case 521F Wheel Loader: 2012-2017 F-Generation Mid-Size Loader
The Case 521F is the 2012-2017 F-generation of Case's 521 mid-size wheel loader - Tier 4 Interim Case diesel, power-shift drivetrain, articulated frame, and the F-series cab with refined visibility and electronic instrumentation.
Where the 521F fits in the Case wheel loader line
The 521F is the F-revision of Case's 521 platform - sitting between the 521E and the current 521G. The F-generation introduced Tier 4 Interim emissions (DPF on most builds), an updated power-shift transmission, and the F-series cab.
One key fitment note: the G109152 steering cylinder bushing used across the 521F, 621, 721, and 821 series begins at the 521F. The F-generation also shares the 347611A3 wheel-loader radiator with the 521D, 521E, 521G, and 621D - useful cross-fit when sourcing cooling parts.
Case 521F Wheel Loader - Quick Specs
- Production
- 2012 - 2017
- Class
- Mid-Size Wheel Loader
- Generation
- F-Series
- Frame
- Articulated
- Drivetrain
- Power Shift
- Engine
- Tier 4 Interim Case Diesel
- Front Tool
- Hydraulic Loader
- Serial Plate
- Left Frame Near Articulation Joint / Inside Cab
- Predecessor
- Case 521E
- Successor
- Case 521G
What changed from the 521E to the 521F
- Emissions. Tier 4 Interim Case diesel with DPF on most builds. SCR + DEF appears on some F-generation configurations.
- Cab. F-series cab with refined visibility, electronic instrumentation, and updated HVAC.
- Transmission. Updated power-shift control with smoother modulation.
- Steering. F-gen introduced the G109152 steering cylinder bushing fitment shared with the 621, 721, and 821 series.
- Electrical. The 87528688 AC blower speed resistor fits 521E through 1121F - a common service item across the F-gen wheel loader family.
Engine, hydraulics, and drivetrain
The 521F runs a Tier 4 Interim Case diesel through a power-shift transmission and heavy articulated drive axles. Loader hydraulics use a piston pump with electrohydraulic control valves and direct-acting cylinders. Wet-disc service brakes, planetary final drives, and the F-series cab with electronic instrumentation round out the package.
The F-generation marked the steering-cylinder bushing transition that affects parts identification across the 521F, 621, 721, and 821 series - confirm by serial when sourcing articulation-pivot components.
Common service items on the 521F
- Engine internals: Case diesel pistons, rings, sleeves, bearings, gaskets, and engine mounts (the R49482 motor mount is a high-volume Case diesel service item).
- Tier 4 Interim aftertreatment: DPF service, EGR cooler, NOx and pressure sensors on SCR-equipped builds.
- Fuel system: Common-rail injectors, high-pressure pump, lift pump, primary and secondary filters, water separator.
- Cooling system: 347611A3 wheel-loader radiator (cross-fits 521D/E/F/G and 621D), water pump, thermostat, fan, hoses, belts.
- Loader hydraulics: Cylinder seal kits, pump rebuilds, control valves, hoses.
- Articulation steering: Steering cylinder seal kits, pivot pins, and the G109152 steering cylinder bushing (521F, 621, 721, 821 series).
- Loader components: Bucket teeth, cutting edges, bushings, pivot pins.
- Drivetrain: Power-shift clutch packs, transmission components, axle seals, planetary final drives, shift lever assemblies.
- Brakes: Wet-disc brake plates (8603582 fits 521D/W130TC/721F, 87441328 outer plate fits 521D-921C), brake shoes (S300718) and slave cylinders (A12985).
- Electrical: Starter, alternator, harness, gauges, switches, 87528688 AC blower speed resistor (521E through 1121F).
- Cab: Seat, gauges, control levers, 47880728 cab fresh-air filter on cab-equipped units.
Parts we carry for the Case 521F
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Case diesel internals, R49482 motor mount | Browse Engine Parts |
| Fuel System | Common-rail injectors, lift pump, filters | Browse Fuel System |
| Cooling | 347611A3 radiator, water pump, hoses | Browse Cooling Parts |
| Loader Hydraulics | Cylinders, seal kits, pumps, valves | Browse Hydraulics |
| Articulation Steering | G109152 bushing, pivot pins, seal kits | Browse Steering Parts |
| Loader | Bucket teeth, cutting edges, pins, bushings | Browse Loader Components |
| Drivetrain | Power-shift clutch packs, shift lever, axles | Browse Drivetrain |
| Brakes | Brake plates 8603582 / 87441328, S300718 shoe, A12985 slave cylinder | Browse Brake Parts |
| Electrical | Starters, alternators, 87528688 blower resistor | Browse Electrical |
| Cab | HVAC, 47880728 cab filter, seat, controls | Browse Cab Components |
Need a part for your Case 521F Wheel Loader?
Call our parts team with your serial number - we'll match the right component to your machine, including F-generation-specific aftertreatment, brake revisions, and steering bushings.
Request a PartWhat to verify before ordering
- Generation matters. The 521E and 521G share the family architecture but driveline, hydraulic, and emissions components differ. Confirm the 521F serial before ordering.
- Serial number. Confirm the serial on the left frame near the articulation joint.
- Engine serial. Case diesel internal parts must match the engine serial number.
- Aftertreatment configuration. DPF-only and DPF+SCR builds exist within the F-gen run.
- Brake system revision. Wet-disc brakes saw multiple revisions - confirm by serial.
- Cab vs. ROPS canopy. Operator station equipment varied.
Why the 521F still earns a paycheck
The 521F is the Tier 4 Interim mid-size Case wheel loader from 2012-2017. DPF arrives in the F-gen, common-rail injection is standard, and the cab is the F-series visibility package. For contractors that want modern emissions compliance but find the G-gen used market thin, the F is the volume machine.
Maintenance priorities on a 521F: clean fuel and tight water separation for common-rail injection, DPF regen behavior, hydraulic system condition, brake service (the 8603582 brake plate cross-fits W130TC and 721F), and steering cylinder bushing service (G109152 fits 521F through 821). Parts coverage for the 521F is available at Broken Tractor across the engine, drivetrain, brake, and cab systems.
