Model Spotlight

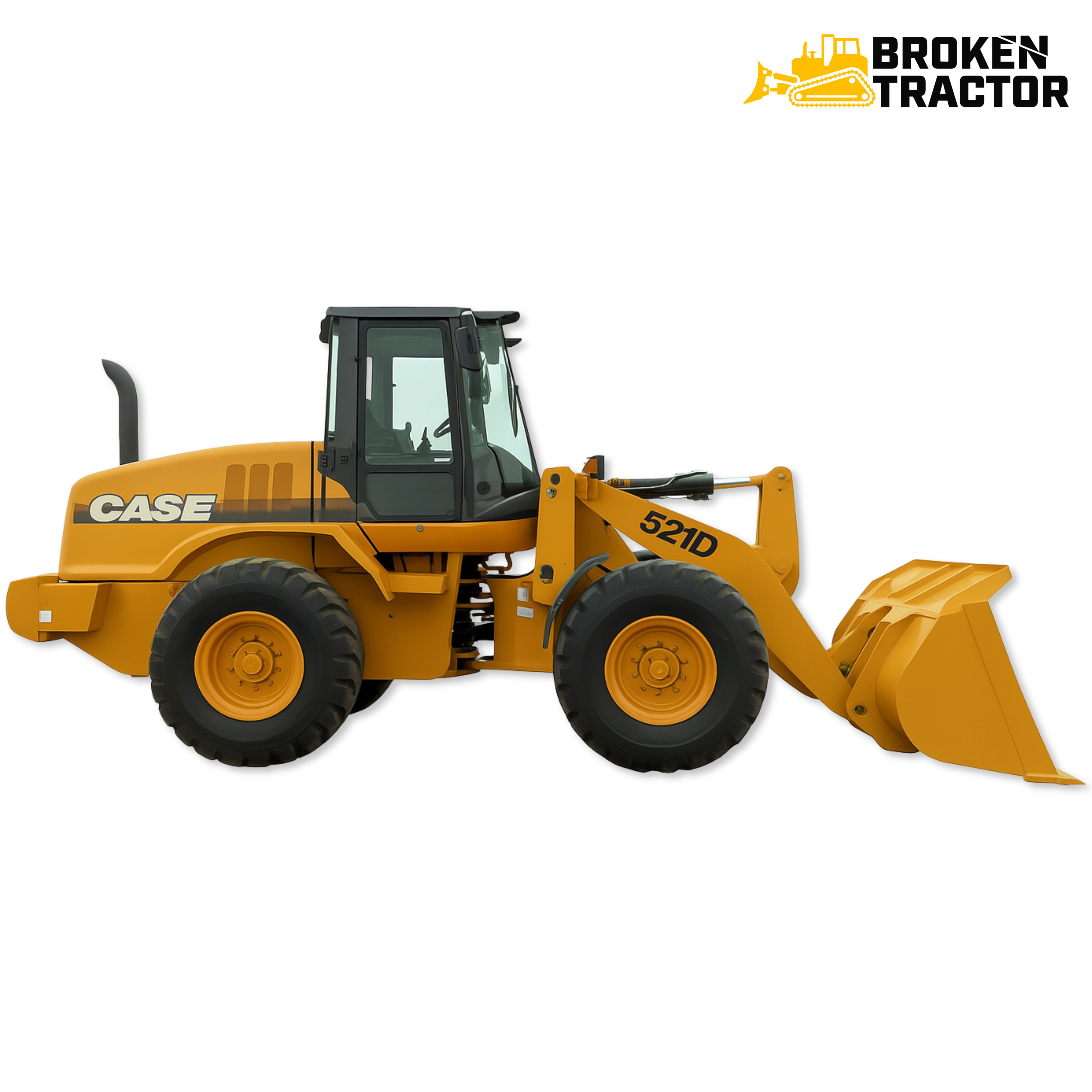

Case 521D Wheel Loader: 2005-2008 D-Generation Mid-Size Articulated Loader

The Case 521D is the 2005-2008 D-generation of Case's 521 mid-size wheel loader - Case diesel, power-shift drivetrain, articulated frame, and a production duty cycle that earned it a long second life in contractor and rental fleets.

BT

Broken Tractor Editorial Team• Updated May 2026• 8 min read

Where the 521D fits in the Case wheel loader line

The 521D is the D-revision of Case's 521 platform - predecessor to the 521E and successor to earlier 521 production. Same mid-size articulated wheel loader concept, with D-gen driveline, hydraulics, and operator station details. Pre-Tier 4 emissions, mechanical-leaning service architecture, and brake-plate cross-fit with the W130TC and 721F.

The D-generation occupies the sweet spot for owners who want a modern articulated wheel loader without the Tier 4 Final aftertreatment footprint. Rental, municipal, and contractor fleets keep these machines working because parts support remains broad and service is straightforward.

What defines the D-generation 521

• Engine. Mechanical-injection Case diesel - no DPF, no DEF, no SCR. Service is conventional.
• Drivetrain. Power-shift transmission with heavy articulated drive axles and planetary final drives.
• Hydraulics. Piston pump with mechanical or electrohydraulic control valves driving direct-acting loader cylinders sized for production loadout.
• Brakes. Wet-disc service brakes. Brake plate 8603582 cross-fits the 521D, W130TC, and 721F.
• Serial plate. Left side near the articulation joint, with a duplicate ID plate inside the cab on the left control console.

Engine, hydraulics, and drivetrain

The 521D runs a mechanical-injection Case diesel through a power-shift transmission and heavy articulated drive axles. Loader hydraulics use a piston pump with mechanical or electrohydraulic control valves and direct-acting cylinders sized for production loadout. Wet-disc service brakes, planetary final drives, and the era-appropriate cab round out the platform.

Because the 521D predates Tier 4 Final, the engine and aftertreatment maintenance footprint is much smaller than later 521F/G machines. Clean fuel, quality filtration, and on-time hydraulic oil service are the levers that keep one running.

Common service items on the 521D

• Engine internals: Case diesel pistons, rings, sleeves, bearings, gaskets, and engine mounts.
• Fuel system: Injection pump, injectors, lift pump, primary and secondary filters.
• Cooling system: Radiator (the 347611A3 wheel-loader radiator cross-fits 521D/E/F/G and 621D), water pump, thermostat, fan, hoses, belts.
• Loader hydraulics: Cylinder seal kits, pump rebuilds, control valves, hoses.
• Articulation steering: Steering cylinder seal kits, articulation pivot pins and bushings (G109152 bushing cross-fits 521F, 621, 721, and 821 series).
• Loader components: Bucket teeth, cutting edges, bushings, pivot pins.
• Drivetrain: Power-shift clutch packs, transmission components, axle seals, planetary final drives, shift lever assemblies.
• Brakes: Wet-disc service brake plates (8603582 cross-fits 521D / W130TC / 721F; 87441328 outer brake plate cross-fits 521D through 921C), brake shoe S300718, slave cylinder A12985.
• Electrical: Starter, alternator, wiring harness, gauges, switches, AC blower speed resistor 87528688 (cross-fits 521E through 1121F).
• Cab and operator station: Seat, gauges, control levers, cab fresh-air filter 47880728.

Parts and cross-fit components for the Case 521D

What to verify before ordering

• Generation matters. Case 521D and Case 521E share family architecture but driveline, hydraulic, and electrical components differ. Confirm the 521D serial before ordering.
• Serial number. Confirm the serial on the left frame near the articulation joint before ordering year-specific parts.
• Engine serial. Case diesel internal parts must match the engine serial number.
• Brake system revision. Wet-disc service brakes saw multiple revisions across the D production - confirm by serial.
• Cab vs. ROPS canopy. Operator station equipment varied and affects HVAC and electrical part numbers.
• Control valve type. Mechanical and electrohydraulic control configurations have different valve and harness part numbers.

Why the 521D still earns a paycheck

The 521D is the pre-Tier 4 mid-size Case wheel loader from the 2005-2008 D-generation. Mechanical service architecture with no DPF, no DEF, and no SCR keeps it popular in rental, municipal, and contractor fleets that want serviceability without the Tier 4 maintenance footprint.

Maintenance priorities on a 521D: clean fuel and quality filtration, hydraulic seal replacement before cylinders weep, articulation pivot service when slop develops, brake service when actuation softens (the 8603582 brake plate is a frequent service item), and engine overhaul when wear demands. Broken Tractor maintains parts coverage for the 521D alongside the broader 521 family.
