JD Tractor Steering Cylinder Parts parts list
|
|
See Details
|
5065M, 5070M, 5075M, 5080M, 5085M, 5090M, 5095M, 5100M, 5103, 5105M, 5203, 5225, 5303, 5310, 5325, 5403, 5415, 5425, 5503, 5525, 5603, 5605, 5610, 5615, 5625, 5705, 5715, 5725 |
Power Steering Cylinder |
|
RE271434 |
$442.00
|
View Info |
|
|
|

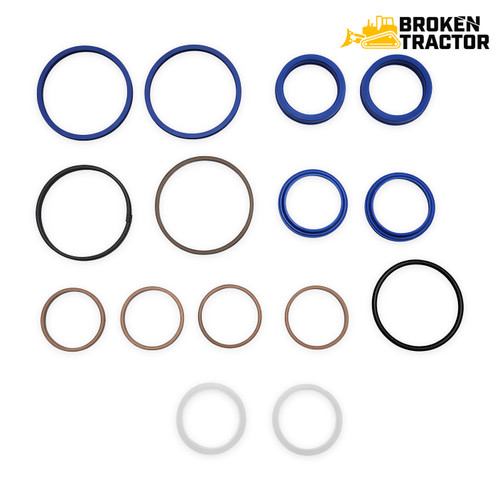

See Details
|
5103, 5105, 5200, 5203, 5205, 5210, 5220, 5225, 5300, 5303, 5310, 5320, 5325, 5400, 5403, 5410, 5420, 5425, 5500, 5510, 5520, 5525, 5615, 5715 |
Steering Cylinder Seal Kit |
|
RE45894 |
$101.00
|
View Info |
|
|
|
See Details
|
5045D, 5045E, 5055D, 5055E, 5065E, 5065M, 5075E, 5075M, 5083E, 5085M, 5093E, 5095M, 5101E, 5103, 5105M, 5203, 5225, 5303, 5325, 5403, 5415, 5425, 5525, 5603, 5605, 5615, 5625, 5705, 5715, 5725 |
Power Steering Cylinder Seal Kit |
|
RE271456 |
$93.00
|
View Info |
|
|
|

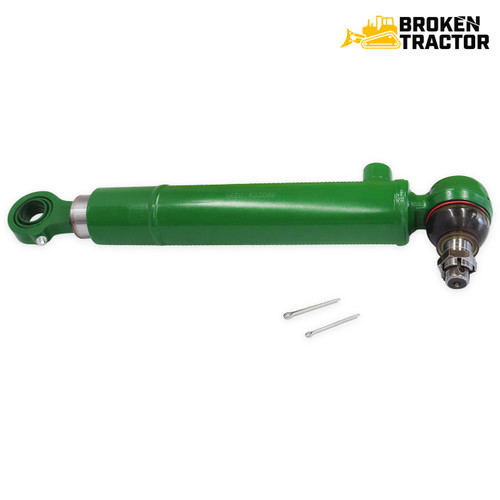

See Details
|
2140, 2950, 2350, 2355, 2550, 2555, 2750, 2755, 3140, 6200L, 6300L, 6400L, 6500, 6500L |
Power Steering Cylinder |
|
AL61553 |
$291.00
|
View Info |
|
|
|
See Details
|
1050 (S/N <0110000), 850, 950, 1032, 1042, 1052, 1055, 1133, 1144, 1155, 1157, 1158, 3300, 4400, 4420, 6600, 6602, 6620, 7700, 7720, 925, 932, 935, 942, 945, 950, 955, 960, 965, 965H, 968H, 970, 975, 975HY4, 985, 985HY4, 484, 7440 ETC |
Cylinder End |
|
AH75396 |
$40.42
|
View Info |
|
|
|
See Details
|
444, 444C, 444CH, 444D, 544, 544A, 544B, 544C, 544D, 340D, 440C, 440D, 448D, 540, 540A, 540B, 540D, 548D, 640, 640D, 648D, 7520, 8430, 8440, 8640, 8450, 8650, 8630, 8850 |
Steering Cylinder Rod Cap Screw Pin |
|
T59402 |
$122.00
|
View Info |
|
|
|
See Details
|
8100, 8200, 8300, 8400, 8110, 8210, 8310, 8410, 8120, 8220, 8320, 8420, 8225R, 8245R ,8270R, 8295R, 8235R, 8260R, 8285R, 8310R, 8335R, 8295R, 7200R, 7215R, 7230R, 7260R, 7280R, 8130, 8230, 8330, 8430, 8530 |
Steering Cylinder Bushing |
|
R152274 |
$17.00
|
View Info |
|
Your model does not appear on this page. You can search the entire site by using the search at the top of the window.
Steering cylinder bushings and cylinder ends for John Deere tractors and combines, covering replacement components for the 8000, 8R, and 7R series row-crop tractors as well as a wide range of combine and harvester models.
Fits Models At A Glance
- 8000 Series: 8100, 8200, 8300, 8400, 8110, 8210, 8310, 8410, 8120, 8220, 8320, 8420
- 8R Series: 8225R, 8245R, 8270R, 8295R, 8235R, 8260R, 8285R, 8310R, 8335R
- 7R Series: 7200R, 7215R, 7230R, 7260R, 7280R
- 8030 Series: 8130, 8230, 8330, 8430, 8530
- Combines & Harvesters: 3300, 4400, 4420, 6600, 6620, 7700, 7720, 925, 935, 945, 955, 965, 975, 985
Key Notes
- Application: Steering cylinder repair and rebuild components
- Part Types: Cylinder bushings and cylinder ends
- Condition: New replacement parts available
- Reference Numbers: R152274, AH75396
Why Choose Broken Tractor
- ✅ Fitment verified across many John Deere models
- ✅ Fast shipping from two US locations
- ✅ Knowledgeable staff to confirm your part
Frequently Asked Questions
What steering cylinder seal kit fits a John Deere 5000 series tractor?
Broken Tractor carries two steering cylinder seal kits for John Deere 5000 series tractors. The RE271456 power steering cylinder seal kit fits models such as the 5045D, 5045E, 5055E, 5065M, 5075E, 5085M, 5093E, 5101E, 5105M, 5225, 5425, 5625 and 5725. The RE45894 kit is for 2WD tractors and fits models including the 5103, 5105, 5200, 5210, 5300, 5320, 5400, 5420, 5500, 5520, 5615 and 5715. Because the right kit depends on your model and whether it is 2WD or MFWD, match the part number on your old kit or call (800) 909-7060 to confirm.
Do you sell complete power steering cylinders for John Deere tractors?
Yes, we carry complete power steering cylinders for several John Deere tractor models. The AL61553 cylinder fits the 2140, 2350, 2355, 2550, 2555, 2750, 2755, 2950, 3140, 6200L, 6300L, 6400L and 6500L. The RE271434 MFWD power steering cylinder fits models including the 5065M, 5075M, 5085M, 5095M, 5100M, 5105M, 5225, 5325, 5425, 5525, 5625 and 5725.
What steering cylinder bushing fits a John Deere 8320 or 8R tractor?
The R152274 steering cylinder bushing fits the John Deere 8320 along with the rest of the 8000 series, including the 8100, 8200, 8300, 8400, 8110, 8210, 8310, 8410, 8120, 8220 and 8420. It also fits 8030 series tractors (8130, 8230, 8330, 8430, 8530), 8R models from the 8225R to the 8335R, and 7R models such as the 7200R, 7230R and 7280R. Check the part number on your old bushing to confirm the match.
What steering cylinder rod pin fits a John Deere 8440 tractor?
The T59402 steering cylinder rod cap screw pin fits the John Deere 8440. It is also listed for the 7520, 8430, 8450, 8630, 8640, 8650 and 8850 tractors. Compare the part number on your existing pin before ordering, since fitment can vary by model.
Should I rebuild or replace a leaking John Deere steering cylinder?
It depends on your tractor and the condition of the cylinder, and Broken Tractor offers parts for both options. For many 5000 series tractors we carry seal kits (RE271456 and RE45894) for rebuilding the existing cylinder, as well as the complete RE271434 MFWD cylinder. For the 2140 through 3140 and 6200L through 6500L tractors, we offer the complete AL61553 power steering cylinder, and we also stock bushings, pins and cylinder ends for repair work.
