Cat Telehandler Radiator and Oil Cooler

Cat Telehandler Radiator and Oil Cooler parts list
Image	Fits Model	Description	Details	Part #	Price	Product Details
	See Details	TH62, TH63, TH82, TH83	Radiator		174-4429	From $2,820.00	View Info
	See Details	TH63	Radiator		119-3416	From $2,872.00	View Info
	See Details	TH255, TH255C	Radiator		507-1907	From $2,138.00	View Info
	See Details	TH220B, TH330B, TH460B, TH560B	Radiator		180-4649	From $1,815.00	View Info
	See Details	TH103	Radiator		143-7698	From $1,906.00	View Info
	See Details	924G, 928G, IT28G, D6XR	Radiator & Oil Cooler Combo		113-3636	From $5,024.00	View Info
	See Details	924G, 928G, 928H, IT28G	Radiator		238-6658	From $3,491.00	View Info
	See Details	924G, 924GZ, 928G, IT928G	Oil Cooler		215-6737	From $2,786.00	View Info
	See Details	928F, 938F, IT28F, IT38F, IT938F	Oil Cooler		9Y-1962	From $3,479.00	View Info
	See Details	914G, IT14G	Oil Cooler		120-4817	From $2,390.00	View Info
	See Details	950G II, 962G II, IT62G II	Oil Cooler		190-5004	From $3,020.00	View Info
	See Details	561M, 928F, 938F, 938G, D5H, D5H XL, D5HTSK II, D5M, IT28F, IT38F, IT38G	Engine Radiator Core		4P0891	$562.00	View Info
	See Details	916, 926, 926E, 936, 936E, 936F, D4H, D4H XL, D4H III, D4HTSK II, D4HTSK III, IT18B, IT28B	Radiator Core Assembly		4P0890	$483.00	View Info
	See Details	527, 561M, 938G, 950G, 962G, D5M, D6M, IT38G, IT62G	Modular Radiator Core		1082387	$548.00	View Info
	See Details	950H, 962H, IT62H	Engine Radiator Core		2565310	$1,866.00	View Info

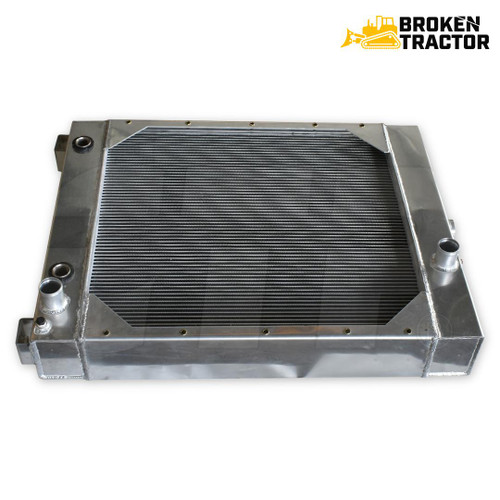

	See Details	924F, IT18F, IT24F	Radiator & Hydraulic Oil Cooler		1104347	$1,724.00	View Info
	See Details	G9-43A, TL1055	Radiator		890637	From $3,856.00	View Info
	See Details	G9-43A, TL1255C, TL642C, TL943C, TL1055C	Radiator		851142	From $3,856.00	View Info
	See Details	TL1255C, TL642C, TL943C, TL1055C	Oil Cooler		5091081	$2,019.00	View Info

Radiators, oil coolers, and charge air coolers for Caterpillar and JLG telehandlers, covering both OEM-spec replacements and compatible assemblies for the TL series and G-series machines. Parts span complete cooling system components including standalone oil coolers and combined radiator/oil cooler/charge air cooler assemblies.

Fits Models At A Glance

Caterpillar TL Series: TL642C, TL943C, TL1055C, TL1255C
JLG G Series: G9-43A, TL1055

Key Notes

Component Types: Includes standalone oil coolers and combined radiator, oil cooler, and charge air cooler assemblies
Cross-Brand Fitment: Several parts cover both Caterpillar TL-series and JLG G-series telehandlers due to shared platform engineering
Application: Cooling system maintenance or replacement on mid- to large-frame telehandlers
Verify Fitment: Confirm model suffix (e.g. TL1055 vs TL1055C) before ordering — specifications may differ

Why Choose Broken Tractor

✅ Telehandler cooling parts available for fast shipping
✅ Cross-referenced fitment across Cat and JLG platforms
✅ Expert staff ready to confirm compatibility before you order

Frequently Asked Questions

What radiator fits a Caterpillar TH series telehandler?

Broken Tractor carries radiators for several Cat TH series telehandlers, each matched to specific models. Part 143-7698 fits the TH103, 180-4649 fits the TH220B, TH330B, TH460B and TH560B, and 507-1907 fits the TH255 and TH255C. For the TH62, TH63, TH82 and TH83 we offer 174-4429, and 119-3416 is also listed for the TH63.

What oil cooler fits a Cat TL642C, TL943C, TL1055C or TL1255C?

The Caterpillar oil cooler with SKU 5091081 is listed to fit the TL642C, TL943C, TL1055C and TL1255C telehandlers. It is a standalone oil cooler, so it replaces only the oil cooler rather than the full cooling stack. Match it against your current part number before ordering.

Is there a combined radiator, oil cooler and charge air cooler for the Cat TL1255C?

Yes, Broken Tractor offers a combined radiator, oil cooler and charge air cooler assembly, SKU 851142, that fits the Cat TL1255C. The same assembly is also listed for the TL642C, TL943C and TL1055C. It covers all three cooling components in one unit.

Should I replace just the oil cooler or the full radiator and oil cooler assembly on my Cat TL telehandler?

It depends on which part of the cooling system you need to replace. For the TL642C, TL943C, TL1055C and TL1255C, we carry both a standalone oil cooler (SKU 5091081) and a complete radiator, oil cooler and charge air cooler assembly (SKU 851142). Choose the standalone oil cooler if you only need that component, or the combined assembly if you are replacing all three.

How do I make sure a radiator fits my Cat telehandler?

Confirm your exact model, including any suffix letter, because fitment can differ between versions like the TH255 and TH255C. The best way is to match the part number on your old radiator or oil cooler to the part listed. If you are unsure, our parts team can confirm compatibility before you order, call (800) 909-7060.
