Cat Telehandler Hydraulic Cylinders parts list
|
|
See Details
|
950G, 950G II, 962G, 962G II, IT62G, IT62G II |
Hydraulic Cylinder Tube |
|
1250028 |
From
$2,753.00
|
View Info |
|
|
|
See Details
|
908H2, TH210, TH215 322B L, 322C, 325B L, 325C, 325C FM, 325D FM, 325D FM LL, 330B L, 330C, 330C FM, 330C L, 330D FM, 385B, 385C, 322C L, 325D, 325C L |

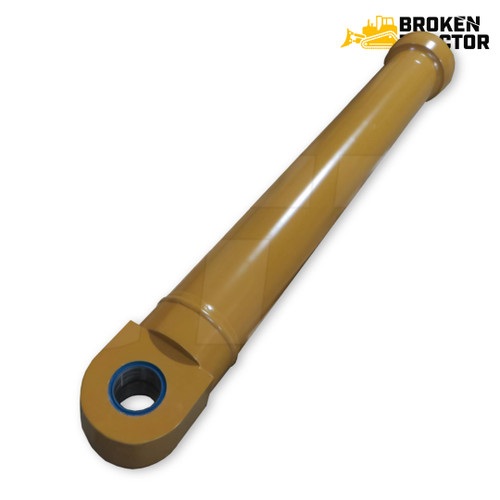

Bucket Cylinder Tube |
|
1884211 |
From
$2,974.00
|
View Info |
|
|
|
See Details
|
950H, 962H, IT62H |
Lift Cylinder |
|
2424271 |
From
$3,791.00
|
View Info |
|
|
|
See Details
|
902, 906, 908, AD30, AD45B |
Hydraulic Cylinder |
|
1349838 |
$1,583.00
|
View Info |
|
|
|
See Details
|
TH255C (Late) |
Hydraulic Tilt Cylinder |
|
5077127 |
From
$1,384.00
|
View Info |
|
Your model does not appear on this page. You can search the entire site by using the search at the top of the window.
Hydraulic tilt cylinders and related hydraulic cylinder assemblies for Caterpillar telehandlers, covering late-model TH255C machines and additional TH series configurations. These cylinders are essential to boom tilt and load-handling functions, and correct fitment by serial range ensures proper operation and seal compatibility.
Fits Models At A Glance
- TH255 Series: TH255C (Late)
Key Notes
- Application: Boom tilt cylinder assemblies used in load-handling and positioning functions
- Serial Sensitivity: TH255C fitment is specific to late-production units — confirm serial number before ordering
- Replacement Type: Direct-replacement cylinders designed to match OEM dimensions and port locations
- Seal Compatibility: Verify hydraulic fluid type and operating pressure specs when replacing cylinders
Why Choose Broken Tractor
- ✅ Telehandler-specific parts with verified fitment data
- ✅ Fast shipping from Baton Rouge, LA and Kimbolton, OH
- ✅ Real parts support from heavy equipment specialists
Frequently Asked Questions
What Cat telehandler hydraulic cylinders does Broken Tractor carry?
We carry a hydraulic tilt cylinder for the Caterpillar TH255C (Late), SKU 5077127, along with a hydraulic bucket cylinder tube, part number 1884211, that lists fitment for the Cat TH210 and TH215. The TH255C part is a complete tilt cylinder, while 1884211 is a cylinder tube. Match the part number or fitment listing to your machine before ordering.
Will the Cat TH255C tilt cylinder fit any TH255C telehandler?
No, the tilt cylinder (SKU 5077127) is listed for late-production TH255C units only. Fitment is serial sensitive, so confirm your machine's serial number before ordering. If you are unsure which production range your TH255C falls into, call (800) 909-7060 and our parts team can help confirm fitment.
Is a Cat forklift hydraulic cylinder from Broken Tractor a direct replacement for the original?
Yes, the Cat telehandler cylinders we carry are direct-replacement cylinders designed to match OEM dimensions and port locations. That means they are intended to install in place of the original without modification when the part number and serial range match your machine.
What should I check for seal compatibility when replacing a Caterpillar telehandler hydraulic cylinder?
Verify the hydraulic fluid type and operating pressure specs for your machine when replacing a cylinder. Matching these helps ensure the cylinder's seals are compatible with your telehandler's hydraulic system. Also confirm the serial number, since correct fitment by serial range affects proper operation and seal compatibility.
What does the tilt cylinder do on a Cat TH255C telehandler?
The tilt cylinder on a Cat TH255C controls boom tilt and is used in load-handling and positioning functions. Because it is essential to how the machine positions and handles loads, replacing it with a cylinder that matches the correct serial range is important for proper operation.
