Cat Dozer Undercarriage

ⓘ Click headers to sort ↕
Cat Dozer Undercarriage parts list
Image Fits Model Description Part # Price Product Details
Cat D8R, D8R II, D8T Dozer Ripper Cylinder Seal Kit 2442067 See Details D8R, D8R II, D8T D8 Ripper Cylinder Seal Kit 2442067
$43.00
View Info

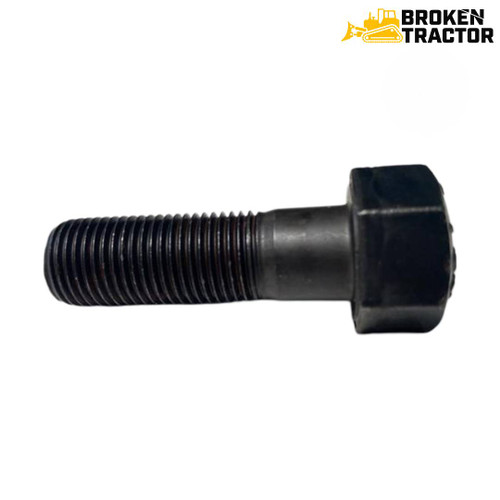

Caterpillar Track Bolt for D3, D4 Series Dozers – 4K7038 See Details D1, D2, D3, D3B, D3C, D3G, D3K, D3K2, D4B, D4C, D4D, D4E, D4G, D4K, D4K2 Track Bolt (9/16 in-18 x 1-5/8 in) 4K7038
$2.00
View Info
Caterpillar 5/8 Inch Track Bolt – 9G3110 See Details Track groups using 5/8"-18 track hardware Track Bolt (5/8 in-18 x 2-3/16 in) 9G3110
$2.00
View Info

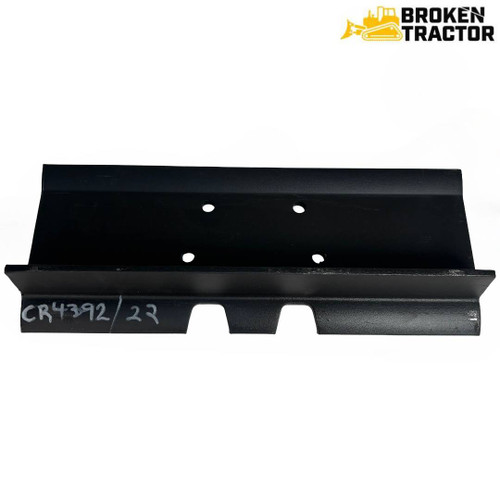

22 Inch Single Grouser Track Pad for John Deere 700, 750C & Cat D5H – CR4392/22 See Details 700J LT, 700J LGP, 700L LGP, 750C, D5H, D5H XL Track Pad 22 in Single Grouser CR4392/22
$71.00
View Info
See Details D3, D3B, D3C, D3G, D3K, D4B, D4C, D4G, D4K, 931, 931B, 931C, 933, 933C, 935B, 215, C175, C250, C300 Single Flange Bottom Roller 281-8338
$220.00
View Info
Single flange track roller for Caterpillar D3B dozer, 238-7483 See Details D3, D3B, D3C, D3G, D3K, D4B, D4C, D4G, D4K, 931, 931B, 931C, 933, 933C, 935B, 215, C175, C250, C300 Single Flange Bottom Roller 281-8339
$203.00
View Info
20" Single Grouser Track Shoe for Caterpillar D6 Dozers See Details D6C, D6D, D6E, D6G 20" Track Shoe CR2084/20-CAT
$66.00
View Info
Caterpillar Wear Plate for D5K XL, D3, D5K LGP, D5K2 LGP, D5K2 XL -- 310-7376 See Details D5K XL, D5K LGP, D5K2 XL, D5K2 LGP, D3 Next Gen Wear Plate 310-7376
$82.00
View Info
Idler Plate for Caterpillar D3B, D3C, D4C, D3G, D4G, D5G Dozers - (6S7220) See Details D3B, D3C, D3G, D4B, D4C, D4G, D5C, D5G, 931, 931B, 931C, 933, 939, 939C Idler Plate 6S7220
$103.00
View Info
Caterpillar Duo Cone Seal for D3, D4, D5, D6, D7, D8 Dozers & Track Loaders -- 6Y-0859 See Details D3, D3G, D3K, D4, D4G, D4H, D4K, D5, D5G, D5H, D5K, D5M, D5N, D6H, D6K, D6K2, D6M, D6N, D6T, D7C, D7H, D7R, D8N, 933C, 939C, 953D, 963D, 561M, 561N, 572R, 578, 583R, 583T, 587T, PL61 Duo Cone Seal 6Y-0859
$79.00
View Info
Caterpillar Duo Cone Seal for D3, D4, D5, D6, D7, D8 Dozers & Track Loaders -- 9G5343 See Details D3G, D4G, D4H, D5H, D6H, D7G, D7H, D7R, D8N Duo Cone Seal 9G5343
$79.00
View Info
Caterpillar D5K Dozer Wear Plate See Details D5K, D5K2, D3 Next Gen (w/ SystemOne UC) Wear Plate 310-7375
$92.00
View Info
Cat D4H D5M D6K dozer track link pin seal 8G3732 — Made in USA See Details D3B, D3C, D4, D4H, D4H III, D4HTSK II, D4HTSK III, D5M, D5N, D6K, D6K2, 517 Track Link Pin Seal (Sealed Tracks) 8G3732
$34.00
View Info
Cat D4 D4H D5M D6K track link pin seal 7K9203 — Made in USA See Details D3B, D3C, D4, D4H, D4H III, D5M, D5N, D6K, D6K2, 517, 963, 973, 973C Track Link Pin Seal (Sealed Tracks) 7K9203
$15.00
View Info

Dozer wear plates, track shoes, and undercarriage components for Caterpillar dozers, covering SystemOne undercarriage-equipped machines and conventional track systems across D3, D5, and D6 series models.

Fits Models At A Glance

  • D3 Series: D3 Next Gen (w/ SystemOne UC)
  • D5K Series: D5K, D5K2
  • D6 Series: D6C, D6D, D6E, D6G

Key Notes

  • Track Shoe Width: 20-inch single grouser shoes available for D6 series dozers
  • Undercarriage Type: SystemOne undercarriage wear plates for D5K and D3 Next Gen machines
  • Wear Components: Replacement wear plates designed to restore undercarriage service life
  • Grouser Style: Single grouser track shoes for standard ground conditions

Why Choose Broken Tractor

  • ✅ Accurate fitment data for Cat dozer undercarriage
  • ✅ Parts available for both legacy and current-generation dozers
  • ✅ Fast shipping from Baton Rouge, LA and Kimbolton, OH

Frequently Asked Questions

What Cat D3 undercarriage parts does Broken Tractor carry?

We carry single flange (281-8339) and double flange (281-8338) bottom rollers for the Cat D3, D3B, D3C, D3G and D3K, along with the 4K7038 track bolt for D3 series dozers. For the D3 Next Gen with SystemOne undercarriage, we offer wear plates 310-7375 and 310-7376. Fitment varies between D3 versions, so match the part number on your old part before ordering.

What undercarriage parts fit a Cat D3B?

For the Cat D3B, Broken Tractor carries single and double flange bottom rollers, the 6S7220 track adjuster idler plate, the 4K7038 track bolt, and track link pin seals 7K9203 and 8G3732. These same parts also list fitment for the D3C. Because two different pin seals fit the D3B, compare the number on your old seal or call (800) 909-7060 to confirm the right one.

What Cat D3G and D4G undercarriage parts do you offer?

The Cat D3G and D4G share several parts we carry, including the 281-8339 and 281-8338 bottom rollers, the 6S7220 track adjuster idler plate and the 4K7038 track bolt. Both models are also listed for Duo-Cone final drive seals 9G5343 and 6Y-0859. Since more than one seal fits these machines, match the part number on your existing seal to get the correct one.

What are the parts of a dozer undercarriage?

A dozer undercarriage is the track system the machine rides on, made up of track shoes, track links with pins and seals, bottom rollers, idlers and the bolts that hold the track together. For Caterpillar dozers, Broken Tractor offers track shoes, single and double flange bottom rollers, track adjuster idler plates, track link pin seals, track bolts, Duo-Cone final drive seals and SystemOne wear plates.

What track shoes fit a Cat D6 dozer?

We carry a 20 inch single grouser track shoe (CR2084/20-CAT) that fits the Cat D6C, D6D, D6E and D6G. For the Cat D5H and D5H XL, we also offer a 22 inch single grouser track pad (CR4392/22). Single grouser shoes are designed for standard ground conditions.
