Cat Backhoe Swing Cylinders

ⓘ Click headers to sort ↕
Cat Backhoe Swing Cylinders parts list
Image Fits Model Description Part # Price Product Details

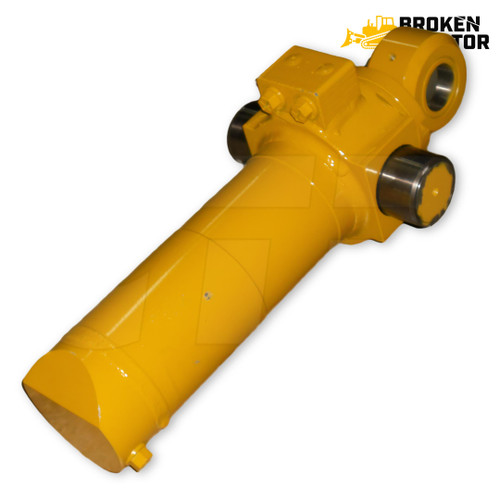

Cat Swing Cylinder for 424D, 428C, 428D, 432D & More – 1699530 See Details 424D, 428C, 428D, 432D, 438C, 438D, 442D Swing Cylinder 1699530
$1,022.00
View Info

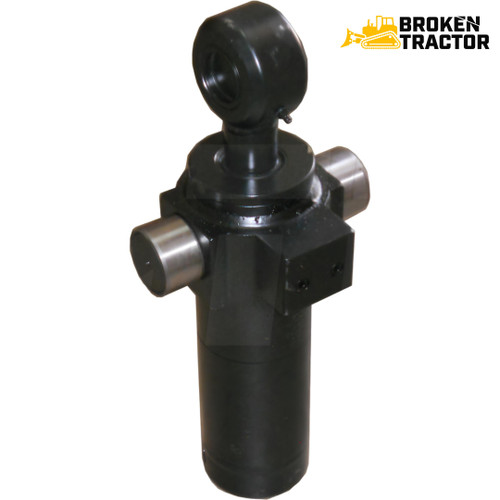

Cat Swing Cylinder / Swing Cylinder Assembly for 424D, 428D, 432D & More – 2283507 See Details 424D, 428D, 432D, 442D, 428C, 438C, 438D Swing Cylinder / Swing Cylinder Assembly 2283507
$1,022.00
View Info
Cat Hydraulic Cylinder / Swing Cylinder for 416E, 416F, 420E & More – 3818054 See Details 416E, 416F, 420E, 420F, 422E, 422F, 428E, 428F, 430E, 430F, 432E, 432F, 434E, 434F, 442E, 444E, 444F, 416, 416F2, 420F2, 422, 430, 430F2, 432, 432F2, 434, 434F2, 444, 444F2, 415F2, 422F2, 427F2, 428F2, 527 Swing Cylinder 3818054
$1,348.00
View Info
Cat Swing Cylinder for 422E, 428E, 432E, 434E & More – 2795556 See Details 422E, 428E, 432E, 434E, 434F, 442E, 444E, 517, 527 Swing Cylinder 2795556
$1,651.00
View Info

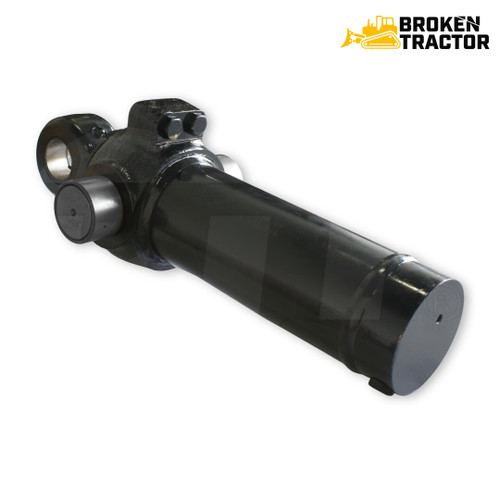

Cat Swing Cylinder for 450E, 450F – 2974896 See Details 450E, 450F Swing Cylinder 2974896
$2,009.00
View Info
Cat Steering Cylinder Seal Kit for 416C, 416D, 420D, 424D & More – 2350352 See Details 416C, 416D, 420D, 424D, 426C, 428C, 430D, 436C Steering Cylinder Seal Kit 2350352
$33.00
View Info
Cat Swing Cylinder Seal Kit for 416D, 420D, 424D, 428D & More – 2332622 See Details 416D, 420D, 424D, 428D, 430D, 432D, 442D, 420E, 428E, 430E, 434E, 442E Swing Cylinder Seal Kit 2332622
$30.00
View Info
Cat Swing Cylinder Seal Kit for 416, 416E, 416F, 416F2 & More – 3779352 See Details 416, 416E, 416F, 416F2, 420F, 420F2, 420E, 422, 422E, 422F, 428F, 430, 430F, 430E, 430F2, 432, 432F, 432F2, 434, 434E, 434F2, 444, 444E, 444F, 444F2, 428E, 432E, 434F, 442E, 424D, 428C, 428D, 432D, 438C, 438D, 527 Swing Cylinder Seal Kit 3779352
$32.00
View Info
Cat Swing Cylinder Rod Assembly for 416D, 420D, 424D, 428D & More – 2332631 See Details 416D, 420D, 424D, 428D, 430D, 432D, 442D, 420E, 428E, 430E, 434E, 442E Swing Cylinder Rod Assembly 2332631
$426.00
View Info
Cat Swing Cylinder Rod Assembly for 416, 416E, 416F, 416F2 & More – 2690386 See Details 416, 416E, 416F, 416F2, 420F, 420F2, 420E, 422, 422E, 422F, 428F, 430, 430F, 430E, 430F2, 432, 432F, 432F2, 434, 434E, 434F2, 444, 444E, 444F, 444F2, 428E, 432E, 434F, 442E, 527 Swing Cylinder Rod Assembly 2690386
$554.00
View Info
Cat Swing Cylinder Rod Assembly for 424D, 428C, 428D, 432D & More – 1257894 See Details 424D, 428C, 428D, 432D, 438C, 438D, 416B Swing Cylinder Rod Assembly 1257894
$572.00
View Info
Cat Hydraulic Swing Cylinder Assembly for 416E, 420E & More – 2781972 See Details 416E, 420E, 422E, 428E, 430E, 432E, 434E, 442E, 444E, 527 Hydraulic Cylinder Assembly / Swing Cylinder Assembly 2781972
$988.00
View Info
Cat Swing Cylinder Tube for 416, 416E, 416F, 416F2 & More – 3818085 See Details 416, 416E, 416F, 416F2, 420F, 420F2, 420E, 422, 422E, 422F, 428F, 430, 430F, 430E, 430F2, 432, 432F, 432F2, 434, 434E, 434F2, 444, 444E, 444F, 444F2, 527 Swing Cylinder Tube 3818085
$853.00
View Info

Swing cylinders, cylinder groups, tubes, rod assemblies, and seal kits for Caterpillar backhoe loaders, covering complete assemblies and rebuild components across C, D, E, and F series machines.

Fits Models At A Glance

  • C Series: 416B, 416C, 426C, 428C, 436C, 438C
  • D Series: 416D, 420D, 424D, 428D, 430D, 432D, 438D, 442D
  • E Series: 416E, 420E, 422E, 428E, 430E, 432E, 434E, 442E, 444E, 450E
  • F Series: 415F2, 416F, 416F2, 420F, 420F2, 422F, 427F2, 428F, 430F, 432F, 434F, 444F, 450F
  • Other: 416, 422, 430, 432, 434, 444, 517, 527

Key Notes

  • Application: Controls side-to-side swing of the backhoe boom and dipper
  • Assembly options: Complete swing cylinder groups plus individual tubes and rod assemblies
  • Rebuild parts: Seal kits available for common bore sizes across generations
  • Cross-fit: Some seal kits and rods span multiple series

Why Choose Broken Tractor

  • ✅ New and used cylinders for many Cat backhoes
  • ✅ Fast shipping from two US locations
  • ✅ Fitment help from real equipment specialists

Frequently Asked Questions

Which Cat backhoe swing cylinder fits my machine?

The right Cat backhoe swing cylinder depends on your model and series. Broken Tractor carries assemblies such as 1699530 and 2283507 for the 424D, 428C, 428D, 432D, 438C, 438D and 442D, 3818054 for many E and F series machines like the 416E, 420F, 430F and 444F, and 2974896 for the 450E and 450F. Because fitment can change by serial number, match the part number on your old cylinder or confirm with our parts team at (800) 909-7060.

Should I replace the whole Cat backhoe swing cylinder or just rebuild it?

You can do either, because Broken Tractor offers complete swing cylinder assemblies as well as individual tubes, rod assemblies and seal kits. If only one component is worn or damaged, replacing just that part or resealing the cylinder can be an option. If the cylinder has several problems, a complete assembly lets you swap the whole unit at once.

Does one Cat backhoe swing cylinder seal kit fit multiple models?

Yes, some seal kits cover several series. Seal kit 3779352 fits a wide range of machines, including the 416E, 420F, 428F, 432F, 444F, 424D, 428D, 432D, 428C and 438C. Seal kit 2332622 fits the 416D, 420D, 424D, 428D, 430D, 432D and 442D, plus the 420E, 428E, 430E, 434E and 442E. Check the part number or serial number before you order, because bore sizes differ between generations.

What swing cylinder rod assembly fits a Cat 416 or 420 backhoe?

It depends on the series. Rod assembly 2690386 fits E and F series machines such as the 416, 416E, 416F, 416F2, 420E, 420F and 420F2. Rod assembly 2332631 fits the 416D and 420D, along with the 424D, 428D, 430D, 432D and 442D. For older machines, rod assembly 1257894 covers the 416B, 428C, 438C and several D series models.

Does Broken Tractor sell new and used Cat backhoe swing cylinders?

Yes, Broken Tractor carries both new and used cylinders for many Cat backhoes. That includes C, D, E and F series machines, along with swing cylinder tubes such as 3818085 and 2781972 for E and F series models. Orders ship fast from two U.S. locations.
