Cat Backhoe Front Axle Parts

ⓘ Click headers to sort ↕
Cat Backhoe Front Axle Parts parts list
Image Fits Model Description Part # Price Product Details

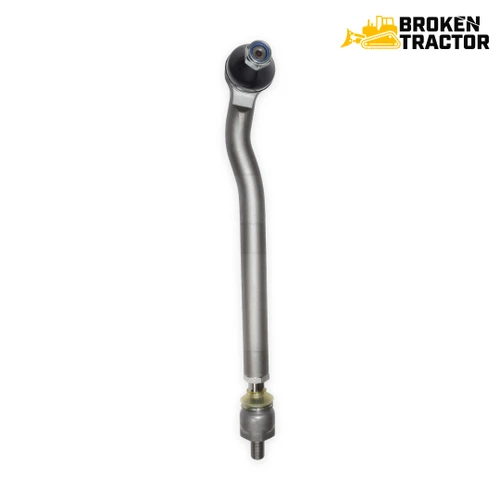

Cat 416C-442D Backhoe Loader Right Hand Steering Tie Rod Assembly 2292950 See Details 416C, 416D, 420D, 424D, 426C, 428C, 428D, 430D, 432D, 436C, 438D, 442D Right Hand Tie Rod Assembly 2292950
$88.00
View Info
Cat 416C-442D Backhoe Loader Left Hand Steering Tie Rod Assembly 2292949 See Details 416C, 416D, 420D, 424D, 426C, 428C, 428D, 430D, 432D, 436C, 438D, 442D Left Hand Tie Rod Assembly 2292949
$87.00
View Info
Rebuilt Front Axle Assembly for Caterpillar Backhoes 416D, 416E, 420E, 428E, 430E, 432E See Details 414E, 416D, 416E, 416F, 420E, 420F, 422E, 422F, 428E, 428F, 430E, 430F, 432E, 432F, 442E Front Axle Assembly (Rebuilt) 230-5743R
From $8,540.00
View Info
Front Axle Assembly for Caterpillar Backhoes 416D, 416E, 420E, 428E, 430E, 432E See Details 414E, 416D, 416E, 416F, 420E, 420F, 422E, 422F, 428E, 428F, 430E, 430F, 432E, 432F, 442E Front Axle Assembly (New) 230-5743
From $9,880.00
View Info
Front axle hub seal Cat 4WD backhoe Carraro axle 130mm ID 160mm OD 2074264 See Details 414E, 416D, 416E, 416F, 420E, 420F, 422E, 422F, 428E, 428F, 430E, 430F, 432E, 432F, 442E 4WD Front Axle Hub Seal 2074264
$65.00
View Info
Caterpillar Backhoe 4WD Front Axle Hub Seal -- 1570739 See Details Cat backhoe loaders with Carraro 4WD front steering axles Front Axle Hub Seal (4WD) 1570739
$65.00
View Info
Caterpillar Backhoe Front Axle Lower King Pin (4WD) -- 3207371 See Details Caterpillar backhoe loaders with Carraro 4WD front steering axles King Pin (Lower) 3207371
$58.00
View Info
See Details Caterpillar backhoe loaders equipped with Carraro 4WD front steering axles King Pin (Front Axle Lower) 2094216
$35.00
View Info

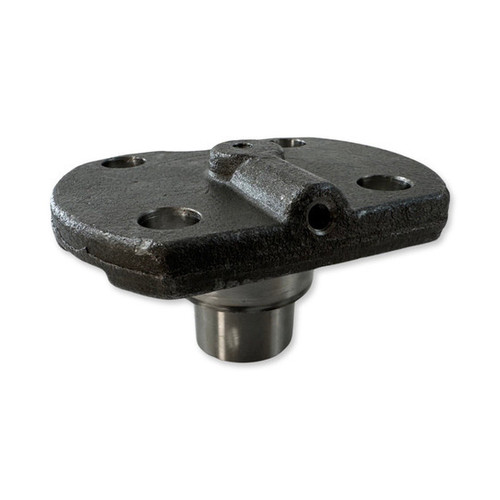

Caterpillar backhoe 4WD Carraro 2616 front axle upper king pin 2094218 209-4218 See Details 414E, 416D, 416E, 416F, 420E, 420F, 422E, 422F, 428E, 428F, 430E, 430F, 432E, 432F, 442E Front Axle Upper King Pin (Carraro 2616) 2094218
$64.00
View Info
Front Axle Hub Gear for Caterpillar Models See Details Caterpillar backhoe loaders equipped with Carraro 4WD front steering axles Front Axle Hub Gear ABP3002699
$108.00
View Info
Caterpillar Backhoe 4x4 Front Hub Snap Ring -- 508208 See Details 416B, 426B, 428B, 436B, 438B 4x4 Front Hub Snap Ring 508208
$9.00
View Info
Caterpillar 416B 426B 428B 436B 438B 4WD backhoe Carraro front hub carrier gear 508209 See Details 416B, 426B, 428B, 436B, 438B 4WD Front Hub Carrier Gear 508209
$246.00
View Info
Caterpillar Backhoe Front Axle Planetary Ring Gear -- 508207 See Details 416B, 426B, 428B, 436B, 438B Front Axle Planetary Ring Gear 508207
$205.00
View Info
Caterpillar Backhoe Front Axle Planetary Gear -- 2113414 See Details Cat backhoe loaders equipped with Carraro four-wheel-drive front steering axles Front Axle Planetary Gear 2113414
$62.00
View Info
See Details TBD Splined Ring 1990675
$27.00
View Info
See Details TBD Front Axle Bushing 3260030
$37.00
View Info

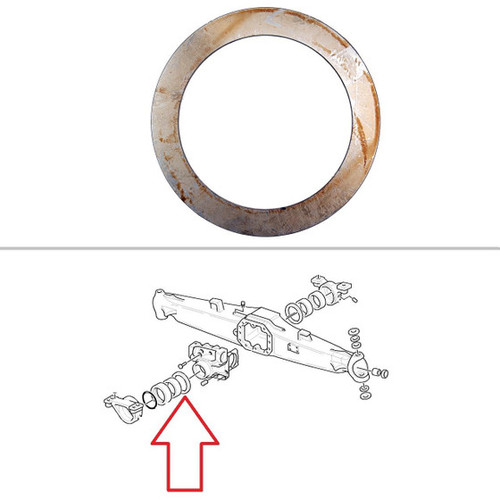

Caterpillar Backhoe Front Axle Rear Thrust Washer -- 2094322 See Details Carraro 4WD front steering axle equipped Cat backhoe loaders — confirm Carraro front axle configuration and serial number before ordering Front Axle Rear Thrust Washer 2094322
$39.00
View Info
Caterpillar Backhoe Axle Housing Lower Bushing -- 2094249 See Details TBD Axle Housing Lower Bushing 2094249
$25.00
View Info
Carraro Four-Wheel Drive Upper King Pin for Caterpillar See Details Carraro 4WD front steering axle equipped Cat backhoe loaders — confirm Carraro front axle configuration and serial number before ordering 4WD King Pin (Upper) 3225040
$108.00
View Info

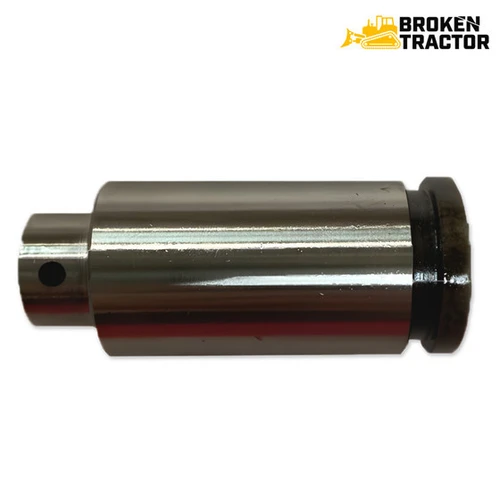

Front Axle Planetary Gear Pin for Caterpillar - 3216640 See Details Carraro 4WD front steering axle equipped Cat backhoe loaders — confirm Carraro front axle configuration and serial number before ordering Front Axle Planetary Gear Pin 3216640
$54.00
View Info
Front Axle Lower King Pin - 4WD - Three-Bolt for Caterpillar See Details Caterpillar backhoe loaders equipped with Carraro 4WD front steering axle 4WD Front Axle Lower King Pin (Three-Bolt) 3214950
$104.00
View Info

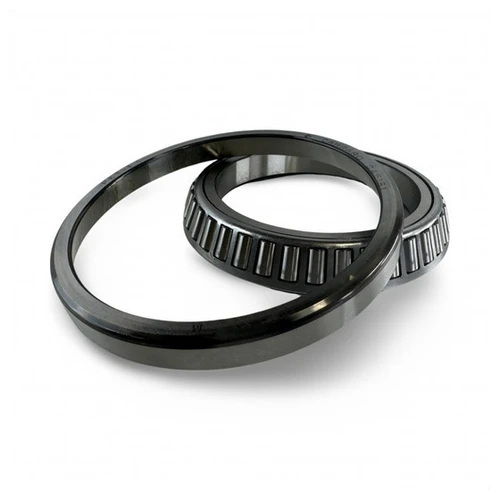

Caterpillar 4WD Front Axle Hub Bearing and Race See Details Caterpillar backhoe loaders equipped with Carraro 4WD front steering axle Front Axle Hub Bearing and Race 2074263
$74.00
View Info

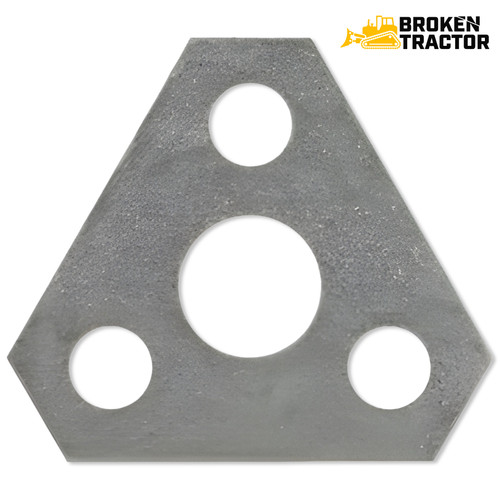

Caterpillar Backhoe Front Axle Thrust Plate -- ABP3002622 See Details Carraro 4WD front steering axle equipped Cat backhoe loaders — confirm Carraro front axle configuration and serial number before ordering Front Axle Thrust Plate ABP3002622
$16.00
View Info
Caterpillar Backhoe Front Axle Thrust Washer --3214730 See Details Carraro 4WD front steering axle equipped Cat backhoe loaders — confirm Carraro front axle configuration and serial number before ordering Front Axle Thrust Washer 3214730
$24.00
View Info

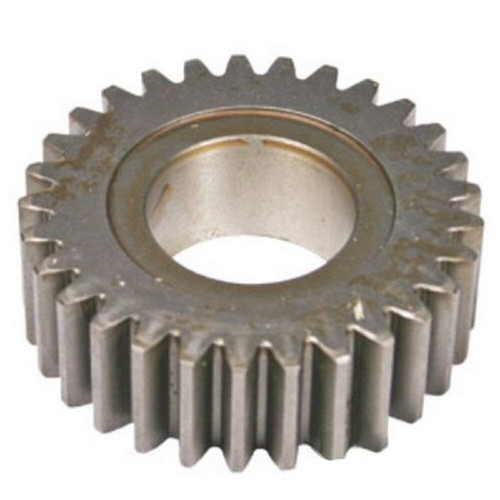

Caterpillar Backhoe 4WD Front Axle Planetary Gear -- ABP3002618 See Details Carraro 4WD front steering axle equipped Cat backhoe loaders — confirm Carraro front axle configuration and serial number before ordering Planetary Gear (29 Tooth) ABP3002618
$94.00
View Info

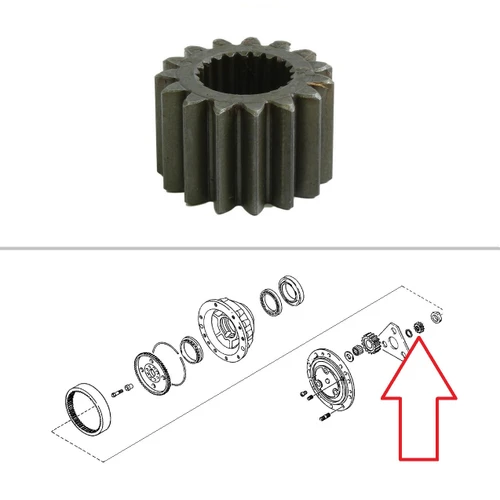

Caterpillar Backhoe 4x4 Front Drive Sun Gear -- 3215360 See Details Carraro 4WD front steering axle equipped Cat backhoe loaders — confirm Carraro front axle configuration and serial number before ordering 4x4 Front Drive Sun Gear 3215360
$125.00
View Info
Caterpillar Backhoe Front Axle Pivot Bushing -- 3214860 See Details Carraro 4WD front steering axle equipped Cat backhoe loaders — confirm Carraro front axle configuration and serial number before ordering Front Axle Pivot Bushing 3214860
$60.00
View Info
Caterpillar backhoe 4WD Carraro 2616 front axle connector body 2090375 209-0375 See Details 414E, 416D, 416E, 416F, 420E, 420F, 422E, 422F, 428E, 428F, 430E, 430F, 432E, 432F, 442E Front Axle Connector Body 2090375
$105.00
View Info

Front axle parts for Caterpillar backhoe loaders, covering new and rebuilt Carraro 4WD front steering axle components including king pins, planetary gears, hub carriers, tie rod assemblies, bushings, seals, and complete axle assemblies across B, C, D, E, and F series machines.

Fits Models At A Glance

  • B Series: 416B, 426B, 428B, 436B, 438B
  • C Series: 416C, 426C, 428C, 436C
  • D Series: 416D, 420D, 424D, 428D, 430D, 432D, 438D, 442D
  • E Series: 414E, 416E, 420E, 422E, 428E, 430E, 432E, 442E
  • F Series: 416F, 420F, 422F, 428F, 430F, 432F

Key Notes

  • Application: Carraro 4WD front steering axle assemblies and internal drive components
  • Components: Upper and lower king pins, planetary and hub carrier gears, tie rod ends, thrust washers, bushings, hub seals and bearings
  • Condition: New replacement parts plus rebuilt front axle assemblies
  • Fitment: Confirm Carraro axle configuration and serial number before ordering

Why Choose Broken Tractor

  • ✅ New and rebuilt Carraro front axle components
  • ✅ Fast shipping from two US locations
  • ✅ Parts team helps confirm correct axle fitment

Frequently Asked Questions

Which Cat backhoes use the Carraro front steering axle?

Most Caterpillar 4WD backhoe loaders across the B, C, D, E, and F series use a Carraro front steering axle. Because axle configurations changed over time, confirm your Carraro axle model and machine serial number before ordering internal parts.

Do you carry complete front axle assemblies?

Yes. We offer both new and rebuilt front axle assemblies for Cat 414E, 416D, 416E, 416F, 420E, 420F, 422E, 428E, 428F, 430E, 430F, 432E, 432F, and 442E backhoe loaders. Individual components are also available if you only need to replace a worn part.

How do I tell my left hand tie rod from the right hand tie rod?

Cat backhoe front axles use side specific tie rod assemblies, so a left hand and right hand version are offered separately for models like the 416C through 442D. Match the part number to your worn assembly or confirm the side with our parts team at (800) 909-7060.

What front axle parts wear out first on a Cat backhoe?

King pins, hub seals, planetary gears, and tie rod ends are the most common wear items on the Carraro front axle. We carry upper and lower king pins, hub seals, bearings, planetary and hub carrier gears, and thrust washers to rebuild the axle.
