Cat Backhoe Dipper Cylinders

ⓘ Click headers to sort ↕
Cat Backhoe Dipper Cylinders parts list
Image Fits Model Description Part # Price Product Details
Caterpillar Backhoe Dipper Crowd Cylinder -- 109-7020 | Broken Tractor See Details 416B, 416C, 416D, 420D Dipper Cylinder 109-7020
From $1,768.00
View Info
Cat Extendable Stick Cylinder for 416C, 416D, 420D, 424D & More – 1647174 See Details 416C, 416D, 420D, 424D, 428C, 428D, 432D, 438C, 438D, 442D Extendable Stick Cylinder 1647174
$1,788.00
View Info
Cat Extendable Stick Cylinder / Stick Cylinder for 416D, 420D & More – 1917725 See Details 416D, 420D, 424D, 428D, 432D, 438D, 442D Extendable Stick Cylinder / Stick Cylinder 1917725
$1,788.00
View Info
Cat Stick Cylinder for 424D, 428D, 432D, 442D – 2359831 See Details 424D, 428D, 432D, 442D Stick Cylinder 2359831
From $2,532.00
View Info
Cat Stick Cylinder for 416D, 420D – 2359829 See Details 416D, 420D Stick Cylinder 2359829
From $3,227.00
View Info

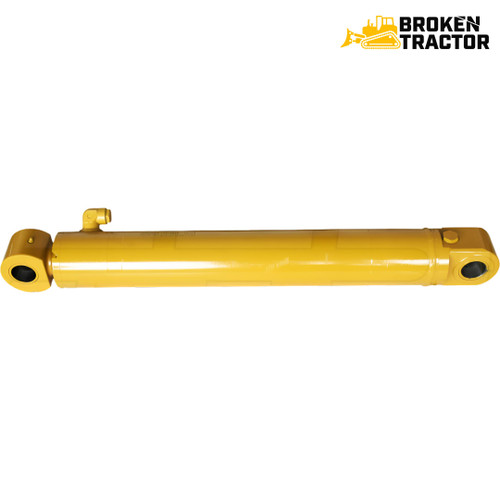

Cat Stick Cylinder for 424D, 428C, 428D, 432D & More – 1734015 See Details 424D, 428C, 428D, 432D, 438C, 438D, 442D Stick Cylinder 1734015
From $2,395.00
View Info
Cat 416E, 416F Backhoe Dipper / Crowd Cylinder -- 210-7078 | Broken Tractor See Details 416E, 416F Dipper/Crowd Cylinder 210-7078
From $2,077.00
View Info

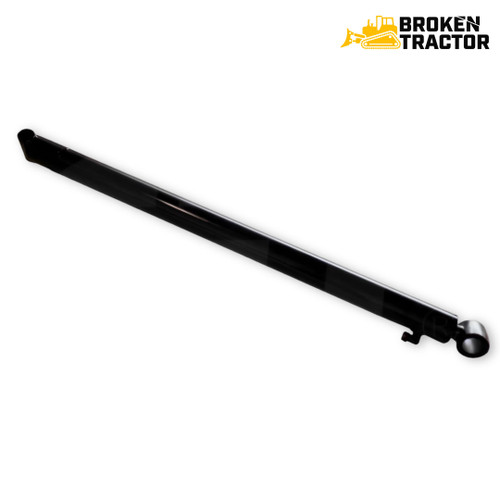

Cat Stick Cylinder for 416E, 416F, 420E, 420F & More – 2107098 See Details 416E, 416F, 420E, 420F, 422E, 428E, 430E, 430F, 432E, 434E, 442E, 444E, 415F2, 416F2, 420F2, 430F2, 444F2 Stick Cylinder 2107098
$2,397.00
View Info
Cat Stick Cylinder for 420E, 420F, 420F2, 444F2 – 2107082 See Details 420E, 420F, 420F2, 444F2 Stick Cylinder 2107082
From $3,582.00
View Info
Cat 430D Backhoe Dipper Stick Cylinder -- 205-8656 See Details 430D Dipper Cylinder 205-8656
From $3,906.00
View Info
Cat 416B, 416C, 416D, 420D Dipper Cylinder Seal Kit -- 111-3300 | Broken Tractor See Details 416B, 416C, 416D, 420D Seal Kit (Dipper Cylinder) 111-3300
$123.00
View Info
Cat Stick Cylinder Seal Kit for 416C, 824K, 825K, 826K & More – 2310898 See Details 416C, 824K, 825K, 826K, 939C Stick Cylinder Seal Kit 2310898
$26.00
View Info
Cat Stick Cylinder Seal Kit for 416D, 420D, 424D, 428D & More – 2297194 See Details 416D, 420D, 424D, 428D, 432D, 442D, 438D, 928HZ, 930G, 930H Stick Cylinder Seal Kit 2297194
$28.00
View Info
Cat Stick Cylinder Seal Kit for 420D, 428D, 442D, D3K XL & More – 3809484 See Details 420D, 428D, 442D, D3K XL, D4K XL, D5K XL Stick Cylinder Seal Kit 3809484
$19.00
View Info
Cat Stick Cylinder Seal Kit for 416F2, 416E, 416F, 415F2 & More – 3809470 See Details 416F2, 416E, 416F, 415F2, 422E, 428E Stick Cylinder Seal Kit 3809470
$28.00
View Info
Cat Stick Cylinder Seal Kit for 430D – 2456816 See Details 430D Stick Cylinder Seal Kit 2456816
$35.00
View Info
Caterpillar Backhoe Dipper Cylinder Rod -- 134-2659 | Broken Tractor See Details 416B, 416C, 416D, 420D Dipper Cylinder Rod 134-2659
$605.00
View Info
Cat Stick Cylinder Rod for 416D, 420D, 424D, 428D & More – 2359835 See Details 416D, 420D, 424D, 428D, 432D, 442D Dipper Stick Cylinder Rod 2359835
$705.00
View Info
Cat Stick Cylinder Rod Assembly for 420D, 428D, 442D, 428C – 1647176 See Details 420D, 428D, 442D, 428C Stick Cylinder Rod Assembly 1647176
$617.00
View Info
Cat Stick Cylinder Rod Assembly for 416F2, 416E, 416F, 415F2 & More – 2286061 See Details 416F2, 416E, 416F, 415F2, 422E, 428E Stick Cylinder Rod Assembly 2286061
$920.00
View Info
Cat Stick Cylinder Rod Assembly for 430D – 1837808 See Details 430D Stick Cylinder Rod Assembly 1837808
$940.00
View Info
Cat Dipper Stick Cylinder Tube for 416C – 1692968 See Details 416C Stick Cylinder Tube 1692968
$1,355.00
View Info
Cat Hydraulic Dipper Stick Cylinder Tube for 416D, 420D – 2060502 See Details 416D, 420D Dipper Stick Cylinder Tube 2060502
$3,227.00
View Info
Cat Hydraulic Cylinder Tube / Stick Cylinder for 416D, 420D & More – 1917727 See Details 416D, 420D, 424D, 428D, 432D, 438D, 442D Dipper Stick Cylinder Tube 1917727
$1,011.00
View Info
Cat Stick Cylinder Tube for 416F2, 416E, 416F, 415F2 – 2143729 See Details 416F2, 416E, 416F, 415F2 Stick Cylinder Tube 2143729
$1,490.00
View Info
Cat 420E, 420F, 432E, 434E Backhoe Stick Cylinder Seal Kit 3651270 – 65mm Rod See Details 420E, 420F, 432E, 434E Backhoe Stick Cylinder Seal Kit 3651270
$44.00
View Info
Cat 416E-444E Backhoe Extendable Stick (E-Stick) Cylinder Seal Kit 3387156 See Details 416E/F, 420E/F, 422E, 428E, 430E/F, 432E, 434E, 442E, 444E E-Stick Cylinder Seal Kit 3387156
$35.00
View Info

Dipper cylinders, cylinder rods, and seal kits for Caterpillar backhoe loaders, covering complete assemblies and rebuild components across the 416 and 430 series machines. Whether you need a full cylinder replacement or a seal kit to stop a leak on your dipper arm, these parts are sourced to match OEM specifications.

Fits Models At A Glance

  • 416 Series (B–D): 416B, 416C, 416D
  • 416 Series (E–F): 416E, 416F
  • 420 Series: 420D
  • 430 Series: 430D

Key Notes

  • Part Types Available: Complete dipper cylinder assemblies, cylinder rods, and seal kits
  • Application: Dipper arm (stick) hydraulic circuit on Cat backhoe loaders
  • Generation Coverage: Spans multiple Cat backhoe generations from B-series through F-series
  • Seal Kits: Available for 416B, 416C, 416D, and 420D dipper cylinders

Why Choose Broken Tractor

  • ✅ Cat backhoe cylinder specialists serving dealers and contractors
  • ✅ Full assemblies and rebuild kits available together
  • ✅ Fast shipping from Baton Rouge, LA and Kimbolton, OH

Frequently Asked Questions

Is a dipper cylinder the same as a stick cylinder on a Cat backhoe?

Yes, on Caterpillar backhoe loaders the dipper cylinder and the stick cylinder are the same part. It powers the dipper arm, also called the stick, in the backhoe hydraulic circuit. Broken Tractor lists parts under both names, so check the part number and fitment to find the right cylinder, rod or seal kit for your machine.

What dipper cylinder fits a Cat 416D backhoe?

We carry several dipper and stick cylinders that fit the Cat 416D, including 109-7020, 2359829, 1917725 and the extendable stick cylinder 1647174. The right one depends on your machine's serial number and whether it has a standard or extendable stick. Match the part number on your old cylinder, or call (800) 909-7060 so the parts team can confirm fitment.

What seal kit fits the dipper cylinder on a Cat 416B, 416C, 416D or 420D?

The 111-3300 dipper cylinder seal kit fits the Cat 416B, 416C, 416D and 420D. Broken Tractor also offers stick cylinder seal kit 2297194 for the 416D and 420D, plus kit 2310898 for the 416C. Because more than one cylinder was used on these models, match the kit to your cylinder's part number before ordering.

Can I rebuild the dipper cylinder on a Cat 430D instead of replacing it?

Yes, you can either rebuild or replace a Cat 430D dipper cylinder. For a rebuild, we carry the 2456816 stick cylinder seal kit and the 1837808 stick cylinder rod assembly. If you would rather swap the whole unit, we also carry the complete 205-8656 dipper cylinder for the 430D.

Do you carry extendable stick cylinder parts for Cat 416E through 444E backhoes?

Yes, Broken Tractor offers the 3387156 extendable stick (E-Stick) cylinder seal kit. It fits the Cat 416E, 416F, 420E, 420F, 422E, 428E, 430E, 430F, 432E, 434E, 442E and 444E. For D-series machines with an extendable stick, we carry cylinders 1647174 and 1917725, which cover models including the 416D, 420D, 428D and 442D.
