Cat 950 & 962 Series Wheel Loader Cylinders

Cat 950 & 962 Series Wheel Loader Cylinders parts list
Image	Fits Model	Description	Details	Part #	Price	Product Details
	See Details	950G, 950G II, 962G, 962G II, IT62G, IT62G II	Hydraulic Cylinder Tube		1250028	$2,753.00	View Info
	See Details	962H, 962K, IT62H 938G II, 938H, HA770, HA870, HA871, IT38G II, IT38H, TK371, TK381, 770, 870, 938G II	Steering Cylinder Group		3149340	$1,656.00	View Info

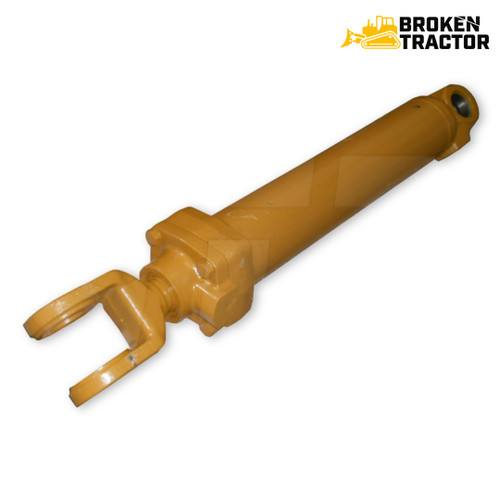

	See Details	950B, 950B/950E, 950F, 950F II, 960F, 950E	Lift-Rh Cylinder Group		1U1148	$4,690.00	View Info

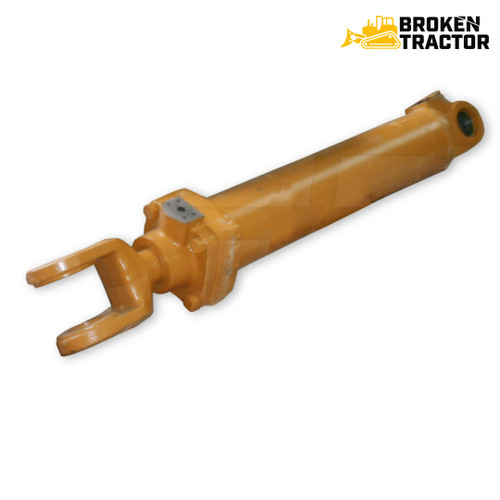

	See Details	950B, 950B/950E, 950F, 950F II, 960F, 950E	Lift-Lh Cylinder Group		1U1147	$4,276.00	View Info

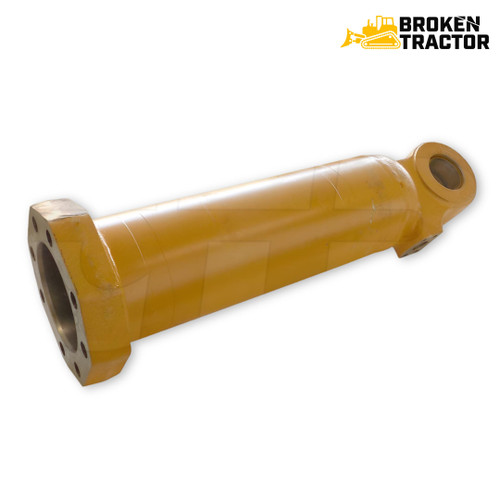

	See Details	950B, 950B/950E, 950F, 950F II, 960F	Hydraulic Cylinder Tube		3G8792	$1,329.00	View Info

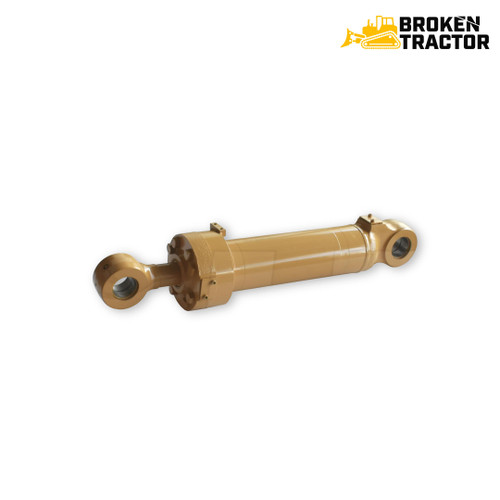

	See Details	950H, 962H	Tilt Cylinder Group		3562217	$6,692.00	View Info

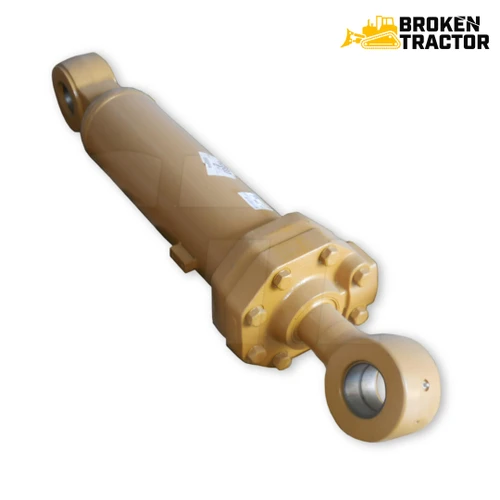

	See Details	950B, 950B/950E, 950F, 950F II, 960F, 950E	Tilt Cylinder Group		3G8786	$3,326.00	View Info

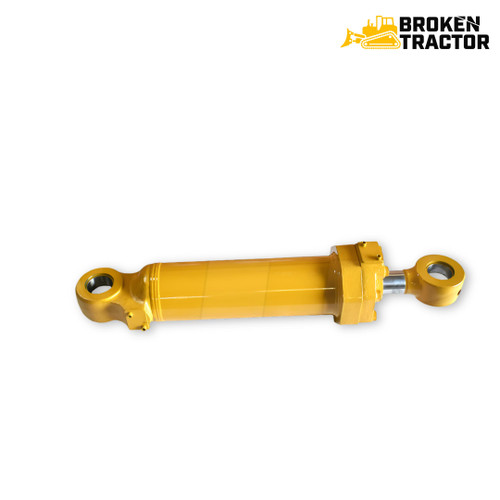

	See Details	950G, 950G II, 962G, 962G II	Seal Tilt Cylinder Group		1189001	$6,030.00	View Info
	See Details	950	Tilt Cylinder Group		7J9695	$1,565.00	View Info
	See Details	950B, 950B/950E, 950F, 950F II, 960F	Hydraulic Cylinder Tube		3G8785	$1,526.00	View Info

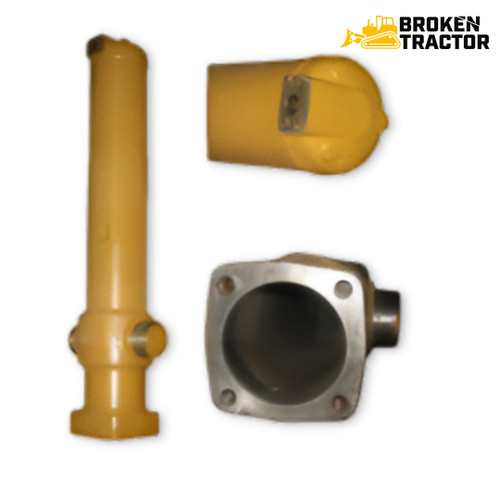

	See Details	950	Sem. Cylinder Tube		7J9691	$1,085.00	View Info
	See Details	950H, 962H, IT62H	Lift Cylinder Group		2424272	$4,704.00	View Info

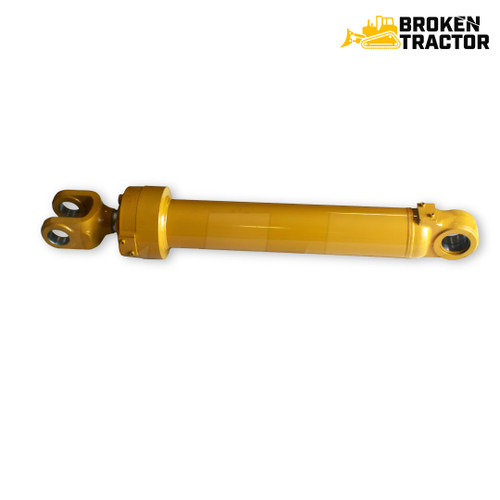

	See Details	950H, 962H, IT62H	Lift Cylinder Group		2424271	$3,791.00	View Info
	See Details	950	Rh Cylinder Assembly		7J9921	$1,035.00	View Info

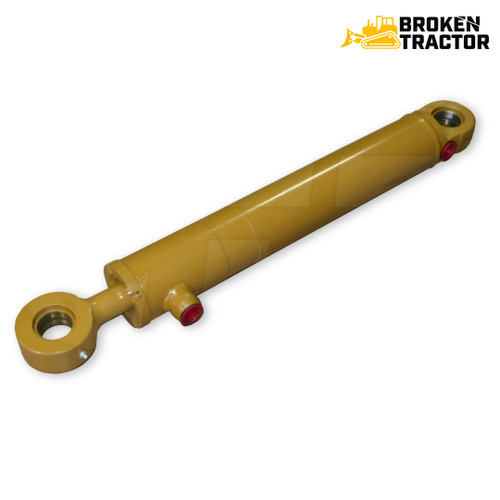

	See Details	950F, 950F II, 960F, 924K	Steering Cylinder Group		6E4892	$1,335.00	View Info
	See Details	924G, 950G, 950G II, 950H, 962G, 962G II, 962H, IT62G, IT62G II, IT62H 120K, 120K 2, 120M, 12K, 12M, 12M 3, 938H, IT62H	Cylinder Group		1630324	$1,873.00	View Info

Cat 950 & 962 Series Wheel Loader Cylinders

Lift cylinders, tilt cylinders, steering cylinders, and hydraulic cylinder tubes for Caterpillar 950 and 962 series wheel loaders and IT tool carriers. Whether you need a complete cylinder group or just the tube to rebuild a scored bore, Broken Tractor stocks the cylinders that raise the lift arms, curl the bucket, and steer your machine — all built to accept OEM-style seal kits.

Fits Models At A Glance

950, 950B, 950E, 950F, 950F II, 950G, 950G II, 950H, 960F, 962G, 962G II, 962H, IT62G, IT62G II, IT62H

What's In This Category

Lift Cylinder Groups

Lift cylinder groups for the 950B/950E/950F/960F (1U1147 LH, 1U1148 RH), the 950H/962H/IT62H (2424271, 2424272), and the right-hand cylinder assembly (7J9921) for the 950. These raise and lower the loader lift arms.

Tilt Cylinder Groups

Tilt cylinder groups for the 950 (7J9695), the 950B/950E/950F/960F (3G8786), the 950G/962G seal tilt group (1189001), and the 950H/962H (3562217). These curl the bucket for digging and dumping.

Steering Cylinder Groups

Steering cylinder groups for the 950F/960F/924K (6E4892) and the wide-fitment group (6E5024) spanning the 814-series, 815, 816, 966F, 970F, R1600 mining loaders, 950H, and 962H. Restore hydraulic steering response on the articulated frame.

Hydraulic Cylinder Tubes & Shared Cylinders

Cylinder tubes for the 950 (7J9691 semi-finished), 950B/950E/950F/960F (3G8785, 3G8792), and 950G/962G/IT62G (1250028), plus the shared cylinder group (1630324) covering the 924G, 950G/H, 962G/H, IT62 series, and M-series graders. Replace the tube when the bore is scored but the rod and gland are still good.

Fitment Tip

The 950 and 962 span multiple generations (B, E, F, G, H) and one model can use cylinders in several rod/bore sizes. The 950H, for example, runs lift cylinders with a 3-1/4" rod and 5-3/4" bore, tilt cylinders with a 3-1/4" rod and 6-1/4" bore, and a smaller 1-3/4" rod cylinder. Match the casting number stamped on your cylinder and measure the rod before ordering a seal kit. The serial number is on the left (highway) side of the machine behind the front tire. Call us with your serial and cylinder number and we'll confirm the right part.

Frequently Asked Questions

What rod and bore size is my Cat 950H cylinder?

The 950H uses cylinders in several sizes. The lift cylinders (2424271, 2424272) run a 3-1/4" rod and 5-3/4" bore. Some tilt cylinders (2424270, 2457491, 3562217, 3585187) use a 3-1/4" rod and 6-1/4" bore, while the smaller 1630324 cylinder runs a 1-3/4" rod and 3-1/2" bore. Because one model uses multiple cylinder sizes, always match the casting number and measure the rod before ordering a seal kit.

Which lift cylinder fits my Cat 950B, 950E, or 950F?

The 950B, 950B/950E, 950F, 950F II, and 960F use left-hand lift cylinder group 1U1147 and right-hand group 1U1148 — they're a matched pair, one per side. Confirm your serial number and whether you need the left or right side before ordering.

Can I replace just the cylinder tube on my Cat 950 or 962?

Yes. Broken Tractor stocks 950/962 cylinder tubes separately — 3G8785 and 3G8792 for the 950B/E/F, and 1250028 for the 950G/962G/IT62G. If the bore is scored but the rod, gland, and piston are still good, replacing just the tube saves money over a complete cylinder group. Inspect the rod and gland first to confirm they're reusable.

Does the 950H steering cylinder fit other Cat machines?

Yes. The 6E5024 steering cylinder group is a wide-fitment part that spans the 814, 815, and 816 series, the 966F and 970F loaders, the R1600 mining loaders, and the 950H and 962H. Always confirm by serial number and casting number, since visually similar steering cylinders can differ in stroke and pin size.

Where is the serial number on a Cat 950 or 962 wheel loader?

On the 950 and 962, the serial number is on the left (highway) side of the machine behind the front tire. Pre-2001 machines use an 8-digit serial like 3CL12345; 2001-and-newer machines use a 17-digit VIN like CAT0962GR4PW00533. You need this number, plus the cylinder casting number, to order the correct cylinder or tube.

Not sure which cylinder or tube fits your machine? Call or text us at (800) 909-7060 or submit a parts request and we'll match it to your serial number.
