Case Excavator Steel Track Undercarriage

ⓘ Click headers to sort ↕
Case Excavator Steel Track Undercarriage parts list
Image Fits Model Description Part # Price Product Details
Case CX20B CX22B CX30B CX39B2 Kobelco 27SR SK27SR compact excavator track idler PV52D00013F1 See Details CX20B, CX22B, CX30B, CX39B2, 27SR, 27SR-3, SK20SR-3, SK27SR-3, SK27SR-5 Track Idler Wheel PV52D00013F1
$528.00
View Info
2 Top track roller for Case dozer undercarriage See Details 450, 450B, 450C, 550, 650, 750, 850, 855, 1150, DC75, DC85, DC95, D95B, 880 Top Track Roller R33965
$175.00
View Info
18" - 24" Single Grouser Track Shoe for Case 9010–CX145 Excavators (CR2974/18) See Details 1080, 1080B, 1088CK, 1088CL, 9010, 9010B, CX130, CX130B, CX130BLC, CX130C, CX130CLC, CX130D, CX130DLC, CX135SR, CX140E, CX140ELC, CX145C-SR, CX145C-SRLC, CX145D-SR 18" Track Shoe CR2974
From $40.00
View Info

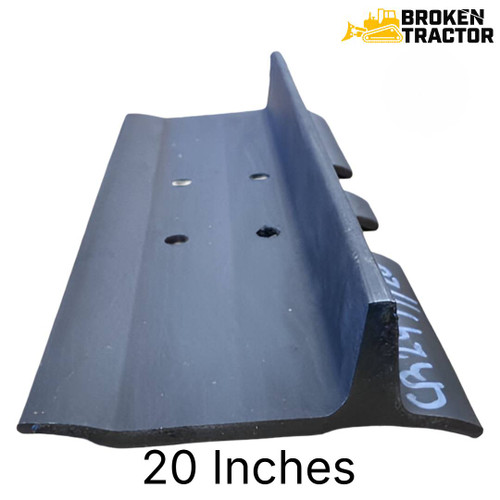

20" Single Grouser Track Shoe for Case Excavators & Dozers See Details 1080, 1080B, 1088CK, 1088CL, 9010, 9010B, CX130, CX130B, CX130C, CX130D, CX135SR, CX140E, CX145C-SR, CX145D-SR, 750M-LT, 750M-WT 20" Track Shoe CR2974/20
$46.00
View Info
Track shoe bolt kit for Case CX130 excavator See Details 1080, 1080B, 1088CK, 1088CL, 9010, 9010B, CX130, CX130B, CX130C, CX130D, CX135SR, CX140E, CX145C-SR, CX145D-SR, 750M-LT, 750M-WT Track Shoe Bolt Kit CR2974BK
$9.00
View Info
Track Chain Guide for Case CX160–CX250C Excavator See Details CX160, CX160B, CX160C, CX210, CX210B, CX210C, CX225, CX235, CX240, CX240B,CX250C Track Chain Guide KRA13360
$265.00
View Info
300 mm Bolt-On Double Grouser Rubber Pad for Case 23, 23 MAXI, CX23, CK25, CK31, CK32, CK35, CK36 See Details 23, 23 MAXI, CX23, CK25, CK31, CK32, CK35, CK36 Bolt-On Double Grouser Rubber Pad Case-DHR101X300B
$22.00
View Info
400 mm Bolt-On Rubber Pad for Case 50, 50 MAXI, 50RTB, CK50, CK52, CK62, CX55B, CX60C See Details 50, 50 MAXI, 50RTB, CK50, CK52, CK62, CX55B, CX60C Bolt-On Rubber Pad Case-DHR135X400B
$34.00
View Info

Steel track undercarriage components for Case excavators, covering track shoes, track rollers, idler wheels, chain guides, bolt kits and bolt-on rubber pads across compact and standard machines from the CX20B up through the CX250C.

Fits Models At A Glance

  • Compact Series: CX20B, CX22B, CX23, CX30B, CX39B2, CK25, CK31, CK32, CK35, CK36, CK50, CK52, CK62
  • Mini and Midi Series: 23 MAXI, 50 MAXI, 50RTB, CX55B, CX60C
  • Standard CX Series: CX130, CX130B, CX130C, CX130D, CX135SR, CX140E, CX145C-SR, CX145D-SR, CX160, CX160B, CX160C, CX210, CX210B, CX210C, CX225, CX235, CX240, CX240B, CX250C
  • Older Excavators: 1080, 1080B, 1088CK, 1088CL, 9010, 9010B

Key Notes

  • Application: Ground-contact undercarriage running gear for steel-track excavators.
  • Components: Single grouser track shoes, top track rollers, idler wheel assemblies, track chain guides, shoe bolt and nut kits.
  • Track Pads: Bolt-on double grouser and standard rubber pads in 300 mm and 400 mm widths for compact models.
  • Fitment: Confirm shoe width, roller size and model by part number before ordering.

Why Choose Broken Tractor

  • ✅ Wide undercarriage coverage across Case excavator lines
  • ✅ New and used running gear options available
  • ✅ Fast shipping from two US locations

Frequently Asked Questions

What track shoe widths fit a Case CX130?

We carry single grouser track shoes in 18 inch, 20 inch and 24 inch widths that fit the CX130 and related models. The correct width depends on your original setup, so match the part number or confirm the size you need before ordering.

Will a top track roller for a Case 850 fit other machines?

The top track roller listed here fits several Case dozers, loaders and excavators including the 450, 550, 650, 750, 850, 855, 1150 and 880. Verify the roller matches your machine by part number to be sure of a correct fit.

Do you have bolt-on rubber pads for compact Case excavators?

Yes. We offer 300 mm double grouser and 400 mm bolt-on rubber pads for compact models such as the CK25, CK31, CK35, CK50, CK62, CX55B and CX60C. These pads bolt directly to steel track shoes to protect finished surfaces.

What is included with the track shoe bolt kit?

The track shoe bolt and nut kit provides the fasteners used to mount shoes on Case 1080, 9010 and CX series excavators. Confirm your model and quantity needed, and call (800) 909-7060 if you are unsure which kit matches your machine.
