Case Backhoe 4WD Output Shaft Assembly

Case Backhoe 4WD Output Shaft Assembly parts diagram 1 - Shaft Flange 2 3 4 - O-Ring 5 - Oil Seal 60x75x8 mm 6 7 8 - Grooved Bushing 9 - Bearing 10 11 - Drive Gear 36 Teeth 12 - O-Ring 13 - Output Shaft Update 14 - O-Ring 15 - Sleeve 16 17 - Spring 18 - Flat Washer 19 - Snap Ring 20 21 22
Click on each number to jump to the product page. Each number on the image is a "Ref #" that can be matched on the table below.
ⓘ Click headers to sort ↕
Case Backhoe 4WD Output Shaft Assembly parts list
REF # Image Fits Model Description Part # Price Product Details
Case Backhoe Front Axle Drive Shaft Clamp Kit Retainer See Details 521E, 521G, 521F, 570N EP, 570MXT, 570NXT, 580K, 580L, 580SL, 580M, 580N, 580N EP, 580SN, 580SM, 580SN WT, 580SM+, 590SL, 590SM, 590SM+, 590SN, 621E, 621F, 621G, 850H, 850G, 850E, 855E, 750H, 650H, 650G, 650 Driveshaft Retainer Kit 87538515
$18.00
View Info
1 Case Backhoe Shaft Flange 580L, 580 Super L, 590 Super L, 570LXT -- 181230A1 See Details 580L, 580 Super L, 590 Super L, 570LXT Shaft Flange 0 181230A1
$432.00
View Info
4 O-ring for Case backhoe 4WD output shaft See Details 570LXT, 570MXT, 570N EP, 570NXT, 570SV, 570V, 575N EP, 575SV CP, 580L, 580 Super L, 580M, 580 Super M, 580N, 580N EP, 580SN, 580SV, 585G, 586G, 586H, 588G, 588H, 590 Super L, 590 Super M, 590SN, 851FX 4WD Output Shaft O-Ring 112517A1
$1.00
View Info
5 Case Backhoe Transmission Oil Seal 580L, 580 Super L, 590 Super L, 570LXT -- 181122A1 See Details 580L, 580 Super L, 590 Super L, 570LXT Oil Seal 60x75x8 mm 181122A1
$9.50
View Info
8 Carraro 4WD output shaft grooved bushing for Case 580L See Details 580L, 580 Super L, 590 Super L, 570LXT, 585G, 586G, 588G 4WD Output Shaft Bushing 181194A1
$198.00
View Info
9 Ball bearing for Case backhoe transmission shaft See Details 570LXT, 570MXT, 570NXT, 570V, 575SV, 580L, 580SL, 580M, 580SM, 580N, 580N EP, 580SN, 580SV, 585G, 586G, 586H, 588G, 588H, 590SL, 590SM, 590SN Transmission Shaft Bearing 181126A1
$28.00
View Info
11 4WD output shaft pinion gear for Case 580L backhoe See Details 570LXT, 580L, 580 Super L, 590 Super L 4WD Output Shaft Driven Pinion Gear 181223A1
$910.00
View Info
12 Transmission Shaft O-Ring for Case Backhoe 580L See Details 570LXT, 570MXT, 580L, 580 Super L, 590 Super L, 580M, 580 Super M, 590 Super M, 585G, 586G, 588G O-Ring, Transmission Shaft 100747A1
$2.00
View Info
13A Case Backhoe Output Shaft, Update Includes: 369470A1, 369471A1, and 369472A1 -- CS-580L-OSU See Details 580L, 580 Super L, 590 Super L, 570LXT, 585G, 586G, 588G Output Shaft Update Kit 0 181182A1
$2,150.00
View Info
14 Case Transmission Shaft O-Ring, Part # 100748A1 See Details 570LXT, 570MXT, 580L, 580 Super L, 590 Super L, 580M, 580 Super M, 590 Super M, 585G, 586G, 588G O-Ring, Transmision Shaft 100748A1
$2.00
View Info

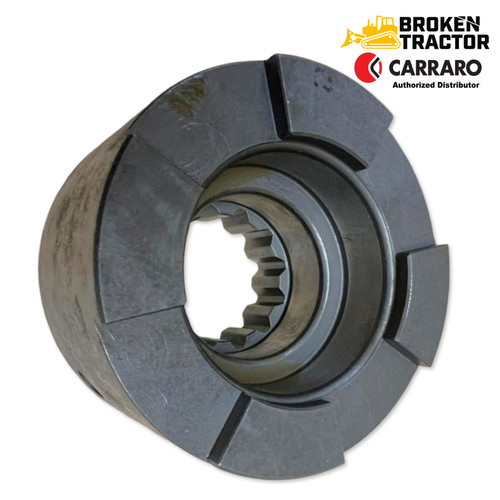

15 4WD transmission coupler sleeve for Case 580L backhoe See Details 580L, 580 Super L, 590 Super L, 570LXT, 585G, 586G, 588G 4WD Transmission Coupler Sleeve 181248A1
$275.00
View Info
17 Case Compression Spring for 580L Transmission See Details 570LXT, 570MXT, 580L, 580 Super L, 590 Super L, 580M, 580 Super M, 590 Super M, 585G, 586G, 588G Spring, Transmission 100753A1
$5.00
View Info
18 Transmission Flat Washer for Case Backhoe See Details 580L, 580 Super L, 590 Super L, 570LXT Flat Washer, Transmission 181276A1
$28.84
View Info
19 Case Backhoe Snap Ring 181120A1 | Broken Tractor See Details 580L, 580 Super L, 590 Super L, 570LXT Snap Ring, Transmission 181120A1
$5.44
View Info
Case Backhoe Transmission Shaft Yoke 233283A1 See Details 570LXT, 570MXT, 570NXT, 570N EP, 570SV, 580L, 580 Super L, 580M, 580 Super M, 580N, 580N EP, 580 Super N, 590 Super L, 590 Super M, 590 Super N, 585G, 586G, 586H, 588H Yoke, Transmission Output to Four Wheel Drive 233283A1
$218.00
View Info
358645A1 CASE Backhoe Seal Ring for 570LXT, 580L, 580M, 585G, 586G, 588G See Details 570LXT, 580L, 580SL, 580M, 580SM, 585G, 586G, 588G Seal Ring, Transmission Shaft 358645A1
$12.00
View Info

Case Backhoe 4wd Transmission Output Shaft Assembly

Case 580L,580SL, 590SL, 570LXT Carraro Transmission Four Wheel Drive Output Shaft Assembly

Case Backhoe 4WD Transmission Output Shaft Assembly

The Case Backhoe 4WD Output Shaft Assembly category encompasses essential components designed to ensure optimal performance and reliability for various Case backhoe models, including the 580L, 580SL, 590SL, and 570LXT equipped with Carraro transmission systems. This critical assembly plays a vital role in transferring power from the transmission to the drive axles, guaranteeing uninterrupted operation in demanding environments.

Within this category, customers can find a diverse selection of parts specifically tailored for the maintenance and repair of their Case backhoes. The Case Backhoe Four Wheel Drive Service Kit (278836A1) includes all the necessary components for comprehensive service to enhance the longevity of your equipment. Additionally, components like the Case Backhoe Shaft Flange (181230A1) and Case Backhoe O-Ring (112517A1) are designed to support smooth operations by providing secure seals and connections.

Other important items in this category include oil seals, bushings, and bearings, such as the Case Backhoe Oil Seal (181122A1) and the Case Backhoe Transmission Bearing (181126A1), which contribute to the overall efficiency and reliability of the transmission system. The availability of specialized components like the Case Backhoe Output Shaft Update Kit and various related accessories ensures that operators can find everything needed for repairs and upgrades in one convenient location.

Investing in high-quality parts from this category not only maximizes the operational capabilities of Case backhoes but also helps prevent downtime caused by transmission-related issues. For those seeking to maintain or enhance the performance of their machinery, this collection represents an essential resource, combining durability and precision with manufacturer-compatible specifications to support long-lasting performance in soil excavation, material handling, and construction tasks.
