King Kutter Rotary Tiller

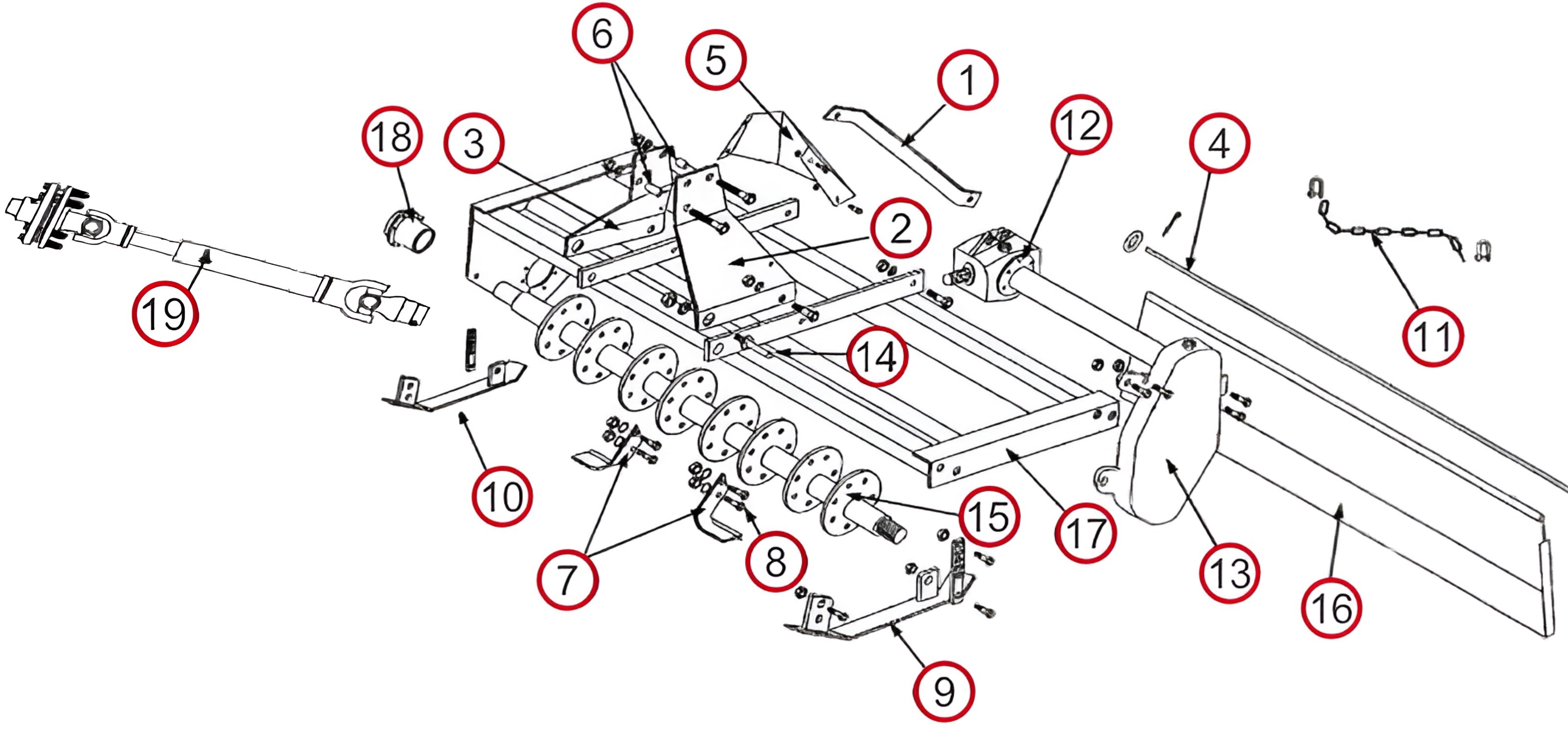

Each number on the image is a "Ref #" that can be matched on the table below.

 King Kutter Rotary Tiller Lift Arm Brace Fits All Width King Kutter Tiller Models 3/8" X 2" X 31 1/2"  Fits King Kutter brand implements only

King Kutter Rotary Tiller Left Hand Lift Arm Fits 4', 5', 6', 7' Wide Tiller 0.25" X 11" X 23.75" Supersedes Part Number 310085 Fits King Kutter brand implements only

King Kutter Rotary Tiller Right Hand Lift Arm Fits 4', 5', 6', 7' Wide Tillers 0.25" X 11" X 23.75" Supersedes Part Number 310086 Fits King Kutter brand implements only

King Kutter Rotary Tiller Tailgate Rod  Fits 4' Wide Tiller Fits King Kutter brand implements only

King Kutter 5' Rotary Tiller Tailgate Rod Fits 5' Wide Tiller Fits King Kutter brand implements only

King Kutter Rotary Tiller Tailgate Rod Fits 6' Rotary Tiller Fits King Kutter brand implements only

King Kutter Rotary Tiller Center Lift Arm  Fits 4', 5', 6', 7' Wide Cutters Fits King Kutter brand implements only

King Kutter Rotary Tiller Lift Arm Spacer Kit Fits 4', 5', 6', 7' Wide Tillers Fits King Kutter brand implements only

King Kutter Rotary Tiller Tine Set  Fits 4', 5', 6', 7' Wide Tillers 2pcs w/ hardware Fits King Kutter brand implements only

King Kutter Rotary Tiller Tine Set Fits 4', 5', 6', 7' Wide Tiller 6pcs w/ hardware 9/16" Mounting holes that are 1-9/16" apart on center 7mm Thick and 2-1/2" Wide Fits King Kutter brand implements only

King Kutter Rotary Tiller Tine Set Fits 4' Wide Tiller 18 Right Hand Tines / 18 Left Hand Tines 9/16" Mounting holes that are 1-9/16" apart on center 7 mm Thick and 2-1/2" Wide Fits King Kutter brand implements only

King Kutter Rotary Tiller 42 Tine Set Fits 5' Wide Tiller 21 Right Hand Tines / 21 Left Hand Tines 9/16" Mounting holes that are 1-9/16" apart on center 7mm Thick and 2-1/2" Wide Fits King Kutter brand implements only

King Kutter Rotary Tiller Tine Set 27 Right Hand Tines / 27 Left Hand Tines 9/16" Mounting holes that are 1-9/16" apart on center 7mm Thick and 2-1/2" Wide Fits King Kutter brand implements only

King Kutter Rotary Tiller 12 Piece Tine Bolt Set Fits 4', 5', 6', 7' Wide Tiller Fits King Kutter brand implements only

King Kutter Rotary Tiller Tine Bolt Set Fits 4' Wide Tillers 72pcs Fits King Kutter brand implements only

King Kutter Rotary Tiller Tine Bolt Set Fits 5' Wide Tiller 84 Pieces  Fits King Kutter brand implements only

King Kutter Rotary Tiller Tine Bolt Set Fits 6' Wide Tillers 108 Pieces   Fits King Kutter brand implements only

King Kutter Rotary Tiller Left Hand Skid Shoe Kit Fits 4', 5', 6', 7' Wide Tillers Fits King Kutter brand implements only

King Kutter Rotary Tiller Right Hand Skid Shoe Kit  Fits 4', 5', 6', 7' Wide Tiller Fits King Kutter brand implements only

King Kutter Rotary Tiller Chain Kit  Fits 4', 5', 6', 7' Wide Tillers  Fits King Kutter brand implements only

King Kutter Rotary Tiller Gearbox Assembly Fits RTD-30-500 Does Not Fit XB Model Tillers Fits King Kutter brand implements only

King Kutter Rotary Tiller Gearbox Assembly Fits 5' Wide Tillers Fits RTA-50 700 Fits King Kutter brand implements only

King Kutter Rotary Tiller Gearbox Assembly Fits RTA-50-900 Fits 6' Wide Tiller Fits King Kutter brand implements only

King Kutter Rotary Tiller Gearbox Assembly Fits RTS-30  Fits 7' Wide Tilller Fits King Kutter brand implements only

King Kutter Rotary Tiller Gearbox Fits All Tillers Fits RTS-50 Fits King Kutter brand implements only

King Kutter Rotary Tiller Rotor Assembly  Fits 4' Tillers Fits King Kutter brand implements only

King Kutter Rotary Tiller Rotor Assembly Fits 5' Wide Tiller Fits King Kutter brand implements only

King Kutter Rotary Tiller Back Plate Assembly Fits 4' Wide Tiller

King Kutter Rotary Tiller Back Plate Assembly Fits 5' Tillers

King Kutter Rotary Tiller Back Plate Assembly Fits 6' Wide Tiller

King Kutter 5' Rotary Tiller Frame Assembly Fits 5' Wide Tillers Fits King Kutter Tillers only Does not fit "XB" Models

King Kutter Rotary Tiller Outboard Hub Fits All Models Fits Both Sides of the Rotor Assembly Comes with the Bearing and Seal

King Kutter Rotary Tiller 22" PTO Drive Shaft Assembly with Slip Clutch  Fits All Models

King Kutter Drive Shaft Grease Fitting Set  Fits 4', 5', 6', 7' 5 per pack Fits King Kutter brand implements only

REF # Image Fits Model Description Part # Price Product Details Add to Cart
1 King Kutter Rotary Tiller Lift Arm Brace -- 380108 See Details 4', 5', 6', 7' Lift Arm Brace (3/8" X 2" X 31.5") 380108
$55.00
View Info Add To Cart
2 King Kutter Rotary Tiller Left Hand Lift Arm -- 403068 | Broken Tractor See Details 4', 5', 6', 7' Left Lift Arm (0.25" X 11" X 23.75") 403068
$170.00
View Info Add To Cart
3 King Kutter Rotary Tiller Right Hand Lift Arm -- 403069 See Details 4', 5', 6', 7' Right Lift Arm (0.25" X 11" X 23.75") 403069
$170.00
View Info Add To Cart

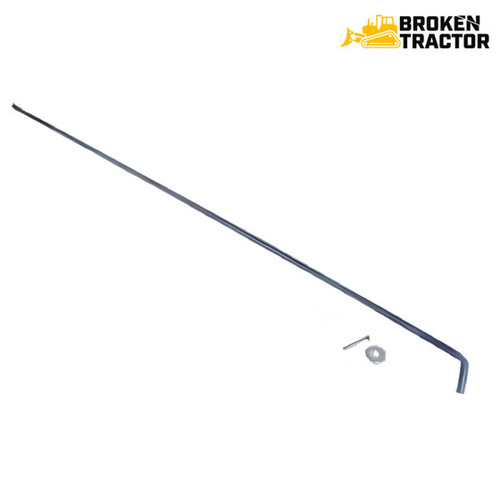

4 King Kutter Rotary Tiller Tailgate Rod -- 505116 See Details 4' Tiller Tailgate Rod 505116
$35.00
View Info Add To Cart
4 King Kutter 5' Rotary Tiller Tailgate Rod -- 505016 See Details 5' Tiller Tailgate Rod 505016
$40.00
View Info Add To Cart
4 King Kutter Rotary Tiller Tailgate Rod -- 505014 See Details 6' Tiller Tailgate Rod 505014
$55.00
View Info Add To Cart
5 King Kutter Rotary Tiller Center Lift Arm -- 505025 See Details 4', 5', 6', 7' Tiller Lift Arm, Center 505025
$50.00
View Info Add To Cart
6 King Kutter Rotary Tiller Lift Arm Spacer Kit -- 505030 See Details 4', 5', 6', 7' Tiller Lift Arm Spacer Kit 505030
$20.00
View Info Add To Cart

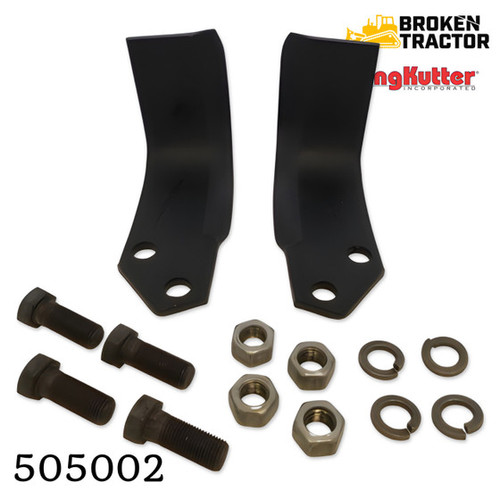

7 King Kutter Rotary Tiller Tine Set -- 505002 See Details 4', 5', 6', 7' Tiller Tine Set (2pcs w/ hardware) 505002
$35.00
View Info Add To Cart
7 King Kutter Rotary Tiller 6 Piece Tine Set -- 505006 See Details 4', 5', 6', 7' Tiller Tine Set (6pcs w/ hardware) 505006
$60.00
View Info Add To Cart
7 King Kutter Rotary Tiller 36 Tine Set -- 505036 See Details 4' Tiller Tine Set 18 RH Tines / 18 LH Tines 505036
$260.00
View Info Add To Cart
7 King Kutter Rotary Tiller 42 Tine Set -- 505042 See Details 5' Tiller Tine Set 21 RH Tines / 21 LH Tines 505042
$325.00
View Info Add To Cart
7 King Kutter Rotary Tiller 54 Tine Set -- 505054 See Details 6' Tiller Tine Set 27 RH Tines / 27 LH Tines 505054
$420.00
View Info Add To Cart
8 King Kutter Rotary Tiller 12 Piece Tine Bolt Set -- 505012 See Details 4', 5', 6', 7' Tiller Tine Bolt Set (12pcs) 505012
$45.00
View Info Add To Cart
8 King Kutter 4' Rotary Tiller 72 Piece Tine Bolt Set -- 505072 See Details 4' Tiller Tine Bolt Set (72pcs) 505072
$205.00
View Info Add To Cart
8 King Kutter 5' Rotary Tiller 84 Piece Tine Bolt Set -- 505084 See Details 5' Tiller Tine Bolt Set (84pcs) 505084
$235.00
View Info Add To Cart
8 King Kutter 6' Rotary Tiller 108 Piece Tine Bolt Set -- 505108 See Details 6' Tiller Tine Bolt Set (108pcs) 505108
$305.00
View Info Add To Cart
9 King Kutter Rotary Tiller Left Hand Skid Shoe Kit -- 505050 See Details 4', 5', 6', 7' Tiller Skid Shoe Kit (LH) 505050
$65.00
View Info Add To Cart
10 King Kutter Rotary Tiller Right Hand Skid Shoe Kit -- 505057 See Details 4', 5', 6', 7' Tiller Skid Shoe Kit (RH) 0 505057
$65.00
View Info Add To Cart
11 King Kutter Rotary Tiller Chain Kit -- 505143 See Details 4', 5', 6', 7' Tiller Chain Kit 0 505143
$33.00
View Info Add To Cart
12 King Kutter RTD-30-500 Rotary Tiller Gearbox Assembly -- 184064 See Details 4' (XB Model) Gearbox Tiller Assembly (RTD-30-500) 0 184064
$630.00
View Info Add To Cart
12 King Kutter RTA-50 700 Rotary Tiller Gearbox Assembly -- 184066 See Details 5' Gearbox Tiller Assembly RTA-50 700 0 184066
$630.00
View Info Add To Cart
12 King Kutter RTA-50-900 Rotary Tiller Gearbox Assembly -- 184067 See Details 6' Gearbox Tiller Assembly RTA-50-900 184067
$630.00
View Info Add To Cart
12 King Kutter 7' RTS-30 Rotary Tiller Gearbox Assembly -- 184068 See Details 7' Tiller Gearbox Assembly 184068
$630.00
View Info Add To Cart
13 King Kutter RTS-50 Rotary Tiller Gearbox -- 184069 See Details All Gearbox (RTS-50) 0 184069
$630.00
View Info Add To Cart
15 King Kutter 4' Rotary Tiller Rotor Assembly -- 402038 See Details 4' Rotor Assembly Tiller (48") 0 402038
$545.00
View Info Add To Cart
15 King Kutter 5' Rotary Tiller Rotor Assembly -- 402042 See Details 5' Rotor Assembly Tiller (60") 402042
$465.00
View Info Add To Cart
16 King Kutter 4' Rotary Tiller Back Plate Assembly -- 402041 See Details 4' Back Plate Assembly (48") 402041
$225.00
View Info Add To Cart
16 King Kutter Rotary Tiller 5' Back Plate Assembly -- 402046 See Details 5' Back Plate Assembly (60" Tiller) 402046
$230.00
View Info Add To Cart
16 King Kutter 6' Rotary Tiller Back Plate Assembly -- 402052 See Details 6' Back Plate Assembly (72") 402052
$245.00
View Info Add To Cart
17 King Kutter 5' Rotary Tiller Frame Assembly -- 402043 See Details 5' Frame Assembly (60") 402043
$695.00
View Info Add To Cart
18 King Kutter Rotary Tiller Outboard Hub -- 184070 See Details All Outboard Hub 0 184070
$140.00
View Info Add To Cart
19 King Kutter Rotary Tiller 22" PTO Drive Shaft Assembly with Slip Clutch -- 147122 See Details All 22 PTO w/ Slip Clutch 0 147122
$325.00
View Info Add To Cart
N/A King Kutter Drive Shaft Grease Fitting Set -- 132017 | Broken Tractor See Details 4', 5', 6', 7' Drive Shaft Grease Fitting (5 per pack) 132017
$20.00
View Info Add To Cart

King Kutter Rotary Tiller Parts


King Kutter Rotary Tillers

Don’t churn over the hassle of repairs for your King Kutter Rotary Tillers. We have you taken care of at Broken Tractor when you are in need of ordering parts such as the Tiller Tailgate Rod, Tiller Tine Set, Rotor Assembly Tiller, or more. Broken Tractor provides a variety of parts for all King Kutter Rotary Tillers like the 4ft, 5 ft, 6ft, 7ft, and other new and used models. For a fraction of the cost, we will ship any King Kutter part right to your door at wholesale price.

Broken Tractor provides new, rebuilt, and used machinery for customers all across North America. We are a family owned and operated business specializing in shipping top of the line brands like King Kutter, John Deere, Case, Ford, New Holland, Caterpillar, and more. With over 50 years of experience as a machinery broker, we can ensure you quick access to the best part for your tractor, backhoe, dozer, or engine. Give us a call at (800) 909-7060 and we will be happy to help you find the perfect fit today.
