Case Backhoe Shuttle Reverse Clutch Parts

Reverse clutch components for Case backhoe power shuttle transmissions, including friction discs, steel plates, pistons, seals, pressure plates, and complete rebuild kits for 480 and 580 series machines.

Fits Models At A Glance

• 480 Series: 480C, 480D, 480E, 480F
• 580 Series: 580C, 580D, 580 Super D, 580E, 580 Super E, 580K (Before Serial # JJG0020000)

Key Notes

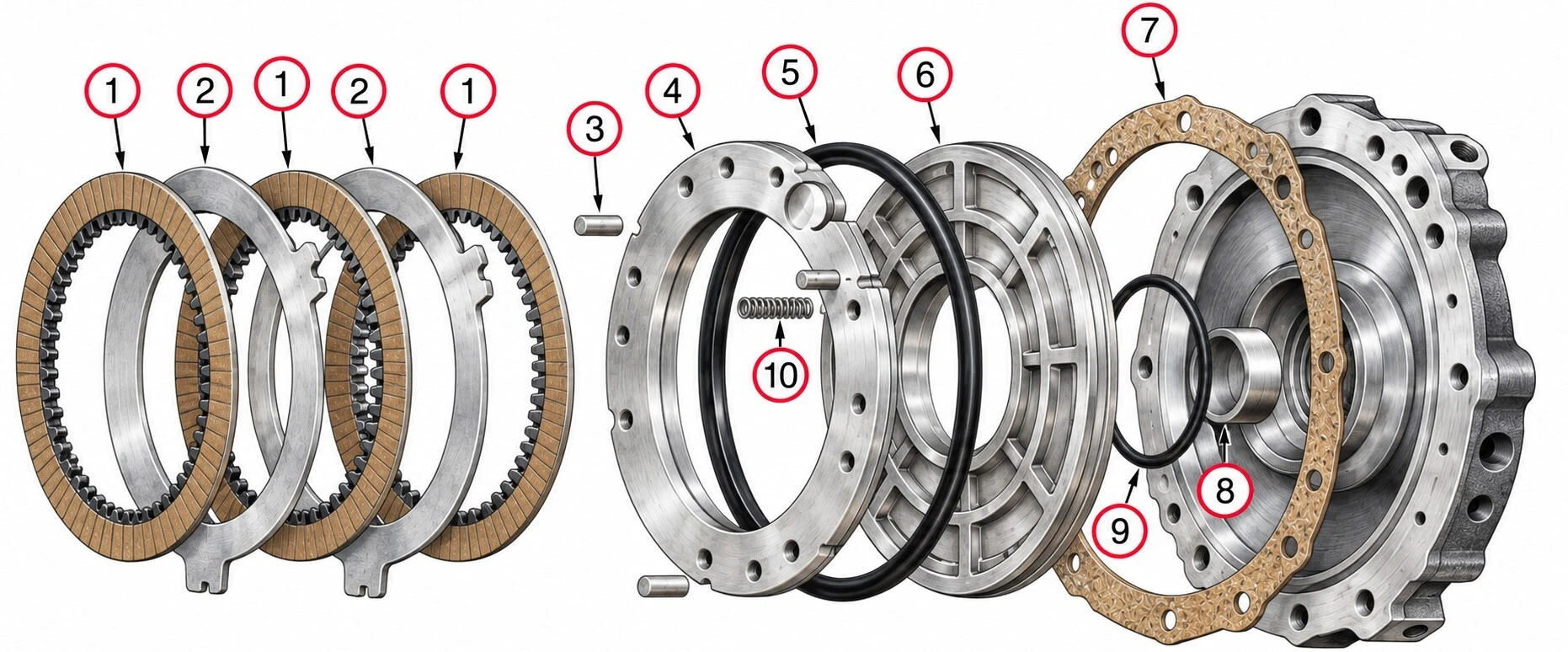

• Application: Reverse clutch pack and piston assembly inside the Case power shuttle transmission
• Components: Bronze friction discs, steel discs, pistons, sealing rings, pressure plates, and rebuild kits
• Serial Break: 580K coverage applies before Serial # JJG0020000
• Condition: New replacement parts and inspected used pistons available

Why Choose Broken Tractor

• ✅ Complete reverse clutch rebuild kits and loose parts
• ✅ Fast shipping from two US locations
• ✅ Verified Case backhoe shuttle fitment

Frequently Asked Questions

Will these reverse clutch parts fit a Case 580K backhoe?

Yes, coverage for the 580K applies to machines before Serial # JJG0020000. Because the 580K has a serial break, match your part number or confirm your serial number before ordering. Our parts team can verify fitment at (800) 909-7060.

What is included in the Case power shuttle reverse clutch rebuild kit?

Our rebuild kits cover the reverse clutch pack components used inside the Case backhoe power shuttle transmission. Depending on the kit, this includes bronze friction discs, steel discs, pistons, sealing rings, pressure plates, and seals. We also offer a Master Rebuild Kit (SKU A574015) and a kit with pump and torque converter (SKU CS-CPSK) for a more complete overhaul.

What is the difference between the bronze friction disc and the steel disc in a Case shuttle transmission?

The bronze reverse friction disc (SKU D50040) and the reverse steel disc (SKU D50041) alternate inside the reverse clutch pack. The bronze discs provide the friction surface while the steel discs sit between them to transfer torque. Both wear over time and are typically replaced together during a shuttle rebuild.

Can I buy just the reverse clutch piston for a Case 580C shuttle?

Yes, Broken Tractor carries the reverse clutch piston as a loose part, including an inspected used piston (SKU D50035) for the 480C-480F and 580C, 580D and more. You can also buy the outer piston sealing ring (SKU D50036) and inner seal (SKU D50034) separately if you only need the seals. Match the part number to your machine to confirm fitment.

Do these Case reverse clutch parts fit 480 series backhoes?

Yes, we carry reverse clutch components that fit 480C, 480D, 480E, and 480F backhoes along with the 580 series. Fitment is listed per part, so check the model coverage for the specific SKU you need. If you are unsure, our parts team can confirm the right part for your machine.
