Case Loader Bucket Tilt Cylinder

ⓘ Click headers to sort ↕
Case Loader Bucket Tilt Cylinder parts list
Image Fits Model Description Part # Price Product Details
4 Bucket Tilt Cylinder G101209 for Case 480E See Details 480C, 480D, 480E Loader Bucket Tilt Cylinder (Rebuilt) G101209
$1,494.00
View Info
4 Right-hand bucket tilt cylinder for Case 580B See Details 480F, 480FLL, 580CK, 580B, 580C, 580D, 580 Super D, 580E, 580 Super E Loader Bucket Cylinder (Right-Hand, Rebuilt) G101186R
$984.00
View Info
Case Loader Bucket Tilt Cylinder for 580L, 580SL, 580M See Details 580K*, 580 Super K*, 580L, 580 Super L, 580M, 580 Super M, 580 Super M+, 570MXT, 570NXT Loader Bucket Tilt Cylinder 87609669
$1,588.00
View Info
4 Case Backhoe Rebuilt Loader Bucket Tilt Cylinder 580L -- 175238A1 See Details 580L Loader Bucket Tilt Cylinder (Rebuilt) 175238A1
$1,190.00
View Info

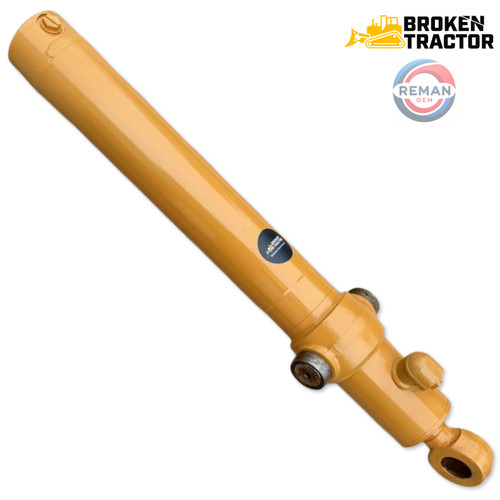

4 Rebuilt loader bucket tilt cylinder for Case 580M See Details 570MXT*, 580 Super L, 580M*, 590 Super L Loader Bucket Tilt Cylinder (Rebuilt) 113133A2-R
$1,260.00
View Info
Case 590 Super L bucket tilt cylinder 255756A1 See Details 590 Super L, 590 Super M Loader Tilt Cylinder (Rebuilt) 255756A1
$1,125.00
View Info
Case 580N Loader Bucket Tilt Cylinder (Rebuilt) -- 84421600 | Broken Tractor See Details 580N Loader Bucket Tilt Cylinder (Rebuilt) 84421600
$1,050.00
View Info
Loader Bucket Tilt Cylinder for Case 580 Super N See Details 580 Super N Loader Bucket Tilt Cylinder (Reman) 91708357
$1,048.00
View Info
Right-Hand Clamshell Loader Bucket Cylinder for Case Backhoe See Details 570LXT, 570MXT, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Super L, 590 Super M, 590 Super N Clamshell Bucket Cylinder, Right Hand 87454017
$1,120.00
View Info
Left-Hand Clamshell Loader Bucket Cylinder for Case Backhoes See Details 570LXT, 570MXT, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Super L, 590 Super M, 590 Super N Clamshell Bucket Cylinder, Left Hand 87454016
$1,120.00
View Info
Rubber Hydraulic Line Support for Case Equipment See Details 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Super L, 590 Super M, 590 Super N, 780B, 780C, 780D, 845B, 865, 865B, 885, 885B, 1150M, W14, W14B, W14C, W14FL, W14H, W18, W18B, W20, W20B, W20C, W36 Hydraulic Line Support, 3.5" L79937
$12.00
View Info
Hydraulic Line Support Block for Case Backhoes See Details 570LXT, 570MXT, 570NXT, 570N EP, 580L, 580 Super L, 580M, 580 Super M, 580N, 580N EP, 580 Super N, 590 Super L, 590 Super M, 590 Super N, 780B, 780C, 780D, W20B, W14, W14B, W14H, W18, W14C, W18B, W20, W36 Hydraulic Line Support, 2.25" D38648
$9.00
View Info
Made in USA Bucket Tilt Cylinder Rod for Case Backhoes See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L Rod, Loader Tilt Cylinder (PVE Brand) 110307A1
$566.00
View Info
OEM Case Loader Bucket Tilt Cylinder Rod for 580 & 590 Series See Details 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L Rod, Loader Tilt Cylinder (OEM Old Stock) 110307A1-OE
$455.00
View Info
5 & 6 Case Loader Lift Cylinder Seal Kit -- 1543260C1 | Broken Tractor See Details 580K, 580SK, 580SL, 580M, 580SM, 590SL, 590SM, 570NXT, 570MXT III / NH U80B, U80C Loader Lift , Bucket Tilt, (580K Swing Cylinder) Seal Kit* 1543260C1
$37.00
View Info
7 Bulldog or Hercules Hydraulic Seal Kit for Case Loader - Fits 480D to 580 Super E See Details 380CK, 480C, 480D, 480E, 480F, 580C, 580D, 580 Super D, 580 Super E, W4, W11, 350B Seal Kit (Loader Bucket Tilt or Lift Cylinder) 1543253C1
$46.00
View Info
1543256C1 Bulldog or Hercules Cylinder Seal Kit for Case See Details 550E, 550G, 570LXT, 570MXT, 570NXT, 570N EP, 580K, 580SK, 580SL, 580M, 580SM, 590 Turbo, 590SL-I, 585G, 586G, 586H, 588H, Cylinder Seal Kit (Multiple) 1543256C1
$48.00
View Info
Case Gland Seal Installation Tool Kit Part # CAS-1457 See Details Hydraulic Cylinders Gland Seal Installation Tool Kit CAS-1457
$34.00
View Info
Hydraulic Spanner Wrench for Case Backhoes and Loaders. See Details Case - Backhoes, Dozers, Loaders Hydraulic Cylinder Spanner Wrench CAS-1456A
$73.00
View Info
Case Hydraulic Cylinder Tool Pin See Details Case Backhoes, Dozers, Excavators, and Skid-Steers Replacement Pin, Spanner Wrench CAS-1456-PIN
$4.00
View Info
Case Backhoe Used LH Loader Bucket Tilt Cylinder 580C See Details 480F, 480FLL, 580CK, 580B, 580C, 580D, 580 Super D, 580E, 580 Super E, 580F LH Loader Bucket Cylinder (Used) G101187U
$450.00
View Info
Case Backhoe Used Right Hand Loader Bucket Tilt Cylinder 580C See Details 480F, 480FLL, 580CK, 580B, 580C, 580D, 580 Super D, 580E, 580 Super E, 580F Loader Bucket Tilt Cylinder, RH (Used) G101186U
$450.00
View Info
- Case Hydraulic Seal Kit for Cylinders on Backhoes, Loaders, and Dozers See Details 480F, 570LXT, 580K, 580SK, 580L, 580SL, 580M, 580SM, 580N, 580SN, 590T, 590SL, 590SM, 590SN, 621B, 621C, 721B, 721C, 550H Extendahoe, Loader Lift, Clamshell Loader Bucket Cylinders | Loader: Steering Cylinder | Dozer: Blade Lift Cylinder 1543267C1
$38.00
View Info
Case 580N EP 590SL 590SM loader backhoe hydraulic bucket hose See Details 570LXT, 570MXT, 570N EP, 570NXT, 580L, 580M, 580N EP, 580SL, 580SM, 590L, 590SL, 590SM, LV80, U80, U80B, U80C Loader Bucket Cylinder Hose 371031A1
$64.00
View Info

Loader bucket tilt cylinders, clamshell bucket cylinders, loader lift cylinders, cylinder rods, seal kits, and hydraulic line supports for Case backhoe loaders, covering new, rebuilt, and OEM replacement options across multiple generations.

Fits Models At A Glance

  • 480 Series: 480C, 480D, 480E, 480F, 480FLL
  • 580B / 580C / 580D / 580E Series: 580B, 580C, 580CK, 580D, 580E, 580F, 580 Super D, 580 Super E, 580SD, 580SE
  • 580K Series: 580K, 580 Super K, 580SK
  • 580L / 580M Series: 580L, 580M, 580SL, 580SM, 580 Super L, 580 Super M, 580 Super M+
  • 580N Series: 580N, 580N EP, 580SN, 580 Super N
  • 590 Series: 590L, 590SL, 590SM, 590SN, 590 Turbo, 590 Super L, 590 Super M, 590 Super N
  • 570 Series: 570LXT, 570MXT, 570NXT, 570N EP

Key Notes

  • Application: Loader bucket tilt cylinders, clamshell cylinders, and loader lift cylinders for Case backhoe front loader circuits
  • Coverage: Includes loader bucket tilt cylinders, clamshell bucket cylinders in left and right hand configurations, loader lift cylinders, cylinder rods, cylinder seal kits, and hydraulic line supports
  • Function: Controls loader bucket tilt, clamshell operation, and loader lift on Case backhoe loader platforms
  • Brands: New, rebuilt, remanufactured, OEM, and USA-made cylinder options available

Why Choose Broken Tractor

  • ✅ Tilt cylinders, clamshell cylinders, and lift cylinders all stocked
  • ✅ Covers 480 through 590 Super N series Case backhoes
  • ✅ New, rebuilt, and OEM options available

Frequently Asked Questions

What loader bucket tilt cylinder fits a Case 580L or 580M backhoe?

Broken Tractor carries several tilt cylinders for the 580L and 580M generation. The 87609669 cylinder fits the 580L, 580 Super L, 580M, 580 Super M, 580 Super M+, 570MXT and 570NXT, and the rebuilt 175238A1 fits the 580L. The rebuilt 113133A2-R covers the 580 Super L and 590 Super L, plus the 580M and 570MXT. Fitment on some of these models depends on serial number, so match your old part number or call (800) 909-7060 to confirm before ordering.

Do Case 580B through 580 Super E backhoes use left and right hand bucket tilt cylinders?

Yes, these older Case backhoes use separate left hand and right hand loader bucket tilt cylinders. We offer a rebuilt right hand cylinder (G101186R) for the 480F, 480FLL, 580CK, 580B, 580C, 580D, 580 Super D, 580E and 580 Super E. We also carry used right hand (G101186U) and left hand (G101187U) cylinders that cover those same models plus the 580F. Check which side you are replacing before you order.

Which bucket tilt cylinder fits a Case 580N, 580 Super N or 590 Super L?

The fit depends on the exact model. For the 580N, Broken Tractor offers a rebuilt tilt cylinder (84421600), and for the 580 Super N, including the Super N Wide Track, we carry the 91708357 cylinder. The rebuilt 255756A1 front loader tilt cylinder fits the 590 Super L and 590 Super M. For the older 480C, 480D and 480E, look at the G101209 bucket tilt cylinder.

What clamshell bucket cylinders fit Case backhoes?

We carry left hand (87454016) and right hand (87454017) clamshell loader bucket cylinders for Case backhoes. Both fit a wide range of models, including the 570LXT, 570MXT, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Super L, 590 Super M and 590 Super N. Order the side that matches the cylinder you are replacing, or order both if you are replacing the pair.

Can I reseal a Case backhoe bucket tilt cylinder instead of replacing it?

Yes, Broken Tractor offers cylinder seal kits so you can reseal a leaking tilt cylinder instead of buying a complete one. Kits include 1543253C1 for the 480C through 480F and the 580C, 580D, 580 Super D and 580 Super E, plus 1543260C1 and 1543267C1 for the 580K through 580 Super N and 590 Super L through 590 Super N. For the job itself we carry a hydraulic spanner wrench (CAS-1456A) and a gland seal installation tool kit (CAS-1457). If the rod is damaged, we offer the 110307A1 tilt cylinder rod in aftermarket and OEM versions for the 580K through 580 Super M, 590 Turbo and 590 Super L.
