Case 680E, 680G, 680H, 680K, 680L Seal Kits

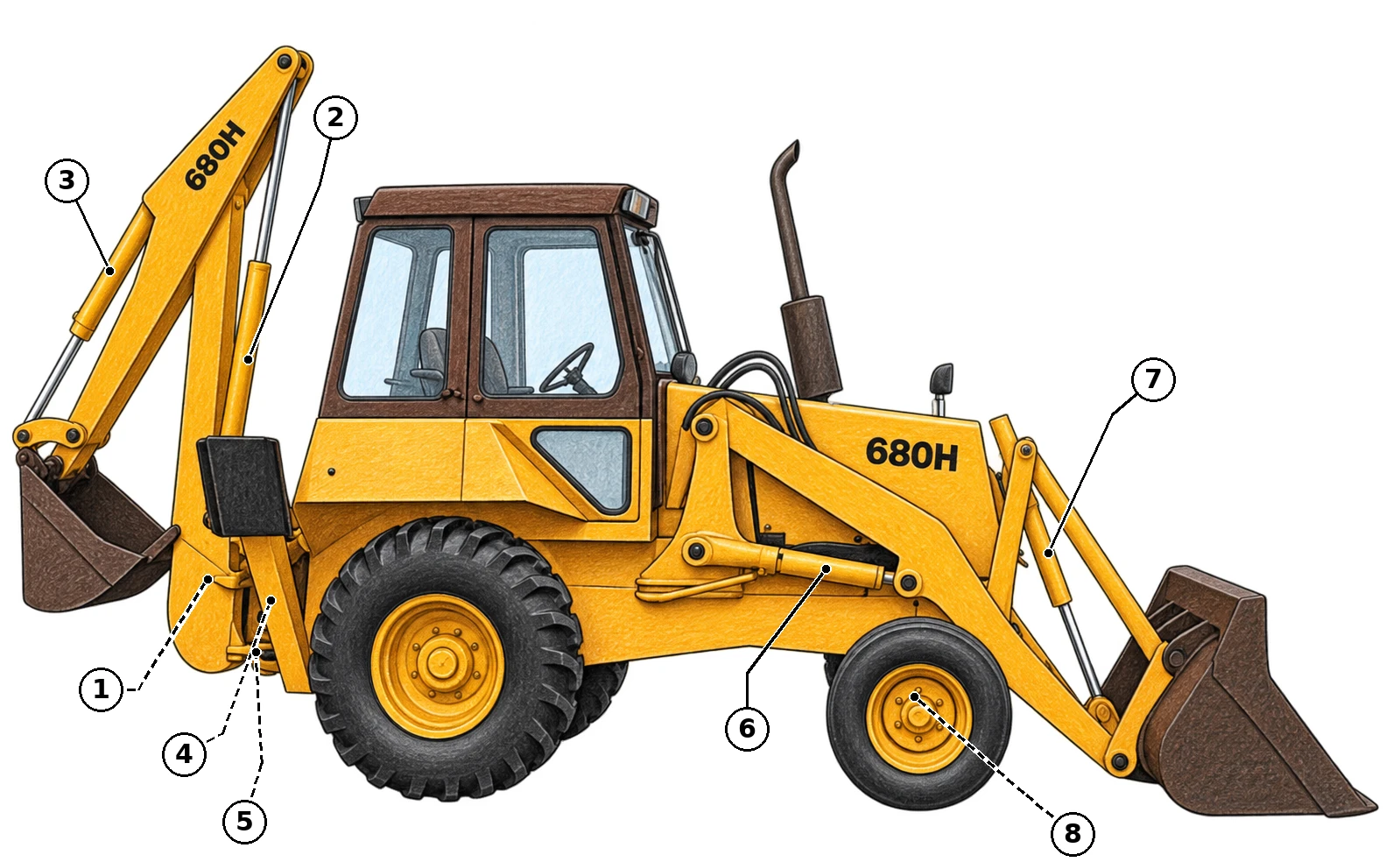

Each number on the image is a "Ref #" that can be matched on the table below.

Case 680E, 680G, 680H, 680K, 680L Seal Kits parts list
REF #	Image	Fits Model	Description	Price	Product Details
2, 4, 5	See Details	580B, 580C	Dipper, Swing, Stabilizer Cylinder (4" Bore)	1543271C1	$65.00	View Info
2, 3, 6	See Details	480C, 480D, 480E, 480F, 580C, 580D, 680E, 680G, 680H, 680K, 680L (Before Serial Number JJG0070547), 450, 450B, 450C, 550	Seal Kit (Dipper, Bucket, Loader Lift, or Blade Tilt Cylinder)	1543274C1	$49.00	View Info
1, 3, 6	See Details	480C, 680E, 680G, 680H, 680K, 680L	Cylinder Seal Kit (Boom, Bucket, or Loader Lift)	1543277C1	$48.00	View Info
2, 4, 5	See Details	580C (1-Piece Piston), 580D, 580 Super E, 680E, 680G, 680H, 680K, 680L, 450 (Tube Stamped G101232), 450B, 450C, 550, 550E, 550G, 850B, 850C, 850D, 850E, W18B, W20C, W36, 921	Cylinder Seal Kit (Swing, Stabilizer, Dipper, Blade Angle, Blade Tilt, Bucket, Steering)	1543273C1	$46.00	View Info
6, 7, 10	See Details	580C, 580D, 580 Super D, 580E, 580 Super E, 580K, 480F, W11, W11B	Cylinder Seal Kit (Lift or Clamshell)	1543262C1	$45.00	View Info
	See Details	Hydraulic Cylinders	Gland Seal Installation Tool Kit	CAS-1457	$34.00	View Info
2	See Details	680E, 680G, 680H, 680K, 680L	Dipper Cylinder Seal Kit	1543291C1	$59.00	View Info
9	See Details	450B, 450C, 455C, 480C, 480D, 480E, 480F, 580D, 580 Super D, 580E, 580 Super E, 680K, 780C, 780D - See Details	Hydraulic Cylinder Seal Kit	1543252C1	$34.00	View Info
	See Details	Case - Backhoes, Dozers, Loaders	Hydraulic Cylinder Spanner Wrench	CAS-1456A	$73.00	View Info
	See Details	580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Super L, 590 Super M, 590 Super N, 780B, 780C, 780D, 845B, 865, 865B, 885, 885B, 1150M, W14, W14B, W14C, W14FL, W14H, W18, W18B, W20, W20B, W20C, W36	Hydraulic Line Support, 3.5"	L79937	$12.00	View Info
