Case 650M Dozer Hydraulic Cylinders & Seal Kits parts list
|
|
See Details
|
Case backhoe and loader models with hydraulic cylinders, All John Deere backhoe and loader models with hydraulic cylinders |
Case Hydraulic Cylinder Rebuild Tool Kit |
|
BT-CASE-CYL-TOOL-KIT |
$96.00
|
View Info |
|
|
|
See Details
|
650M LT, 650M WT, 750M LT, 750M WT, 750M WT/LGP, 850M LT, 850M WT, 850M WT/LGP, 850K |

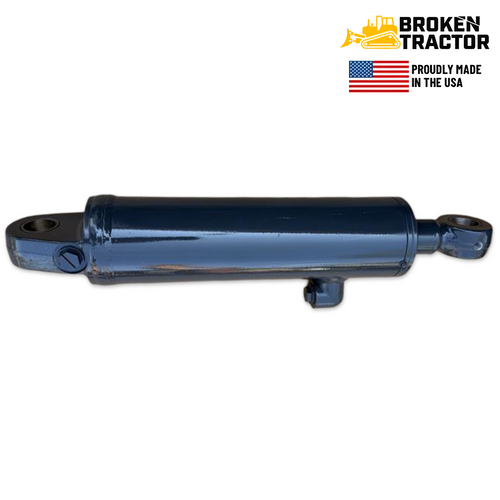

Ripper Hydraulic Cylinder (Left-Hand) |
|
84567543 |
$2,098.00
|
View Info |
|
|
|
See Details
|
650M LT, 650M WT, 750M LT, 750M WT, 750M WT/LGP, 850M LT, 850M WT, 850M WT/LGP, 850K |
Ripper Hydraulic Cylinder (Right-Hand) |
|
84567541 |
$2,098.00
|
View Info |
|
Your model does not appear on this page. You can search the entire site by using the search at the top of the window.
Shop hydraulic cylinders and seal kits for Case 650M crawler dozers. Broken Tractor stocks blade lift cylinders, blade angle cylinders, blade tilt cylinders, and ripper cylinders along with complete seal kits and bushings to restore full hydraulic function to your 650M dozer.
Fits Models At A Glance:
- Case Dozers: 650M; select parts also fit 650L, 750L, 750M, 850L
Key Notes:
- Cylinder Types: Blade lift cylinders, blade angle cylinders, blade tilt cylinders, and ripper cylinders
- Seal Kits: Complete rebuild kits for cylinders 87750252, 87750254, 84136288, 87436767, 87436768 — Made in USA from Hercules/Bulldog Hydraulics
- Bushings: Self-aligning spherical bearing bushings (407538A1, 407539A1) for angle and tilt cylinder rod and tube ends
- Application: Controls blade lift, angle, and tilt functions plus rear ripper operation for grading, pushing, and ripping tasks
Why Choose Broken Tractor:
✅ Made in USA Seal Kits from Hercules/Bulldog Hydraulics
✅ Complete Cylinders and Rebuild Components In Stock
✅ Fast Shipping from U.S. Warehouses
Frequently Asked Questions
What hydraulic cylinders does Broken Tractor carry for the Case 650M dozer?
We carry blade lift cylinders, blade angle cylinders, blade tilt cylinders, and ripper cylinders for the Case 650M crawler dozer. Together these control blade lift, angle, and tilt plus rear ripper operation for grading, pushing, and ripping. We also offer complete seal kits and bushings for these cylinders.
Are the left and right ripper cylinders on a Case 650M the same part?
No, the left and right ripper cylinders are separate parts. The right hand ripper cylinder is SKU 84567541 and the left hand ripper cylinder is SKU 84567543, and both are OEM. Each fits the Case 650M LT and 650M WT, along with 750M and 850M models.
Which seal kit fits my Case 650M hydraulic cylinder?
Our complete rebuild seal kits are matched to cylinder numbers 87750252, 87750254, 84136288, 87436767, and 87436768. They are made in the USA by Hercules/Bulldog Hydraulics. Match the part number of the cylinder on your 650M to the kit before ordering, or call (800) 909-7060 to confirm with the parts team.
What bushings fit the blade angle and tilt cylinders on a Case 650M?
Broken Tractor offers self-aligning spherical bearing bushings, part numbers 407538A1 and 407539A1, for the rod and tube ends of the angle and tilt cylinders. Replacing these bushings along with the seals is a common part of a full cylinder rebuild.
Do Case 650M dozer cylinder parts also fit the 650L, 750M, or 850M?
Select parts also fit the Case 650L, 750L, 750M, and 850L dozers. For example, the OEM ripper cylinders fit the 650M LT and WT as well as the 750M LT, WT, and WT/LGP and the 850M LT, WT, and WT/LGP. Because fitment varies by part, always match the part number listed for your exact model before ordering.
