Case 650, 850 Series Dozer Final Drive Parts
Each number on the image is a "Ref #" that can be matched on the table below.
| REF # | Image | Fits Model | Description | Part # | Price | Product Details | |
See Details
|
650, 650G, 850B, 850C, 850D, 850E, 850G, 855D, 855E | Final Drive, Rebuilt Standard Gauge | 500 | G101600 |
From
$6,000.00
|
View Info | |
See Details
|
Case (650K, 750K, 850K Series 1, 2, 3), (650L, 750L Tier 3), NH D75, DC75, D85, DC85, D85B, D95, DC95, D95B | Hydrostatic Drive Motor | 401629A2 |
From
$4,550.00
|
View Info | ||
See Details
|
650K, 650L, 650M, 750K, 750L, 750M, 850K, 850L, 850M, D75, D75B, DC75, D85, D85B, DC85, D95, D95B, DC95 | Final Drive (Standard Gauge) | 2500 | 385250A4 |
From
$14,450.00
|
View Info | |
See Details
|
650K, 650L, 750K, 750L, 750M, 850K, 850L, 850M | Final Drive (Wide Track) | 84490715 |
Call for Pricing
|
View Info | ||
See Details
|
650K, 650L, 650M, 750K, 750L, 750M, 850K, 850L, 850M, D75, D75B, DC75, D85, D85B, DC85, D95, D95B, DC95 | Final Drive Housing | 47968691 |
From
$3,494.00
|
View Info | ||
See Details
|
850 | Final Drive Rebuild Kit | CS-850-FD-KIT |
$464.00
|
View Info | ||
See Details
|

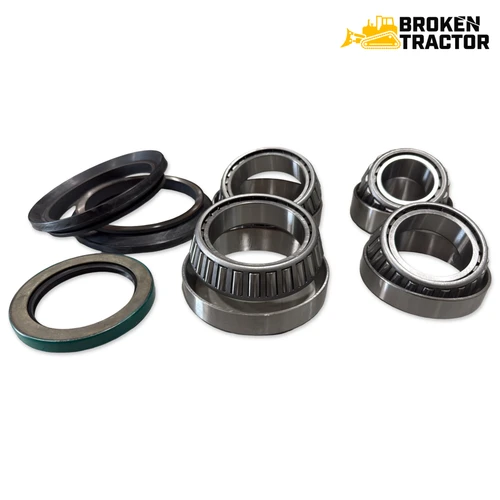

650, 650G, 850B, 850C, 855C, 850D, 855D, 850E, 855E, 850G | Final Drive Rebuild Kit | G107164-KIT |
$475.00
|
View Info | ||
See Details
|
850C-LGP, 850D-LGP, 850E-LGP, 850G-LGP | Final Drive Rebuild Kit (LGP Machines) | G107165-KIT |
$625.00
|
View Info | ||
| 1 |
See Details
|
450, 450B, 455B, 850 | Top Pinion Shaft, Final Drive | A50143 |
$138.00
|
View Info | |
| 2 |
See Details
|
650, 650G, 850, 850B, 850C, 850D, 850E, 855D, 855E, 850G (Non-LGP) | Bull Gear | A50134 |
$1,190.00
|
View Info | |
| 2 |
See Details
|
850C, 850D, 855D, 850E, 855E, 850G (LGP Machines) | Final Drive Bull Gear | G103588 |
$1,840.00
|
View Info | |
| 3 |
See Details
|
650, 650G, 850B, 850C, 850D, 850E, 855D, 855E, 850G (Non-LGP Machines) | Sprocket Shaft, Final Drive | G106477 |
$1,984.00
|
View Info | |
| 4 |
See Details
|
450C, 450C LGP, 550, 650, 650G, 850B, 850C, 850D | Bevel Gear & Pinion, Final Drive | 1997071C1 |
$984.00
|
View Info | |
| 4 |
See Details
|
550E, 550G, 550H, 650G, 850E, 850G LGP | Bevel Gear and Pinion | 1348973C1 |
$1,788.00
|
View Info | |
| 4A |
See Details
|
450C, 455C, 550E, 550G, 550H, 650G, 850B, 850C, 850D, 855C, 855D, 850E, 855E, 850G | Bevel Gear | G107897 |
$685.00
|
View Info | |
| 5 |
See Details
|
650, 650G, 850B, 850C, 850D, 850E, 855D, 855E, 850G | Bearing Cone | 0 | 86509782 |
$85.00
|
View Info |
| 6 |
See Details
|
650, 650G, 850B, 850C, 850D, 850E, 855D, 855E, 850G | Bearing Cup | 0 | 86509783 |
$50.00
|
View Info |
| 7, 10 |
See Details
|
650, 650G, 850B, 850C, 850D, 850E, 855D, 855E, 850G **Non-LGP Machines** | Bearing Cone | 0 | 9823420 |
$50.00
|
View Info |
| 8, 11 |
See Details
|
650, 650G, 850B, 850C, 850D, 850E, 855D, 855E, 850G**Non-LGP Machines** | Bearing Cup | 0 | 9823418 |
$35.00
|
View Info |
| 9 |
See Details
|
650, 650G, 850, 850B, 850C850D, 850E, 855D, 855E, 850G | Seal | 0 | A32015 |
$25.00
|
View Info |
| 10 |
See Details
|
850C, 850D, 855D850E, 855E, 850G**LGP Machines** | Bearing Cone | 0 | 83911221 |
$125.00
|
View Info |
| 11 |
See Details
|
850C, 850D, 850E, 850G LGP Only, 1150B, 1150C, 1150D, 1150E, 1150G, 1150H, 1450, 1155D, 1155E | Bearing Cup | 0 | L33736 |
$75.00
|
View Info |
| 12 |
See Details
|
850C, 850D, 855D, 850E, 855E, 850G **LGP Machines** | Bearing Cone | 0 | 1997115C1 |
$135.00
|
View Info |
| 12 |
See Details
|
650, 650G, 850B, 850C, 850D, 850E, 855D, 855E, 850G **Non-LGP Machines** | Bearing Cone | 0 | 9670004 |
$50.00
|
View Info |
| 13 |
See Details
|
650, 650G, 850B, 850C, 850D, 850E, 855D, 855E, 850G **Non-LGP Machines** | Bearing Cup | 0 | 9671391 |
$35.00
|
View Info |
| 13 |
See Details
|
850C, 850D, 850E, 850G LGP Only, 1150B, 1150C, 1150D, 1150E, 1150G, 1150H, 1450, 1155D, 1155E | Bearing Cup | 160301R1 |
$45.00
|
View Info | |
| 14 |
See Details
|
(450 Before Serial # 2382386), (850 Before Serial # 7074053) | Seal, Final Drive Sprocket Shaft | A50552 |
$100.00
|
View Info | |
| 14 |
See Details
|
650, 650G, 850B, 850C, 850D, 850E, 855D, 855E, 850G **Non-LGP Machines** | Seal, Final Drive Sprocket Shaft | 1981095C1 |
$100.00
|
View Info | |
| 14 |
See Details
|
850C, 850D, 850E, 850G **LGP Machines** | Seal | 0 | G109655 |
$120.00
|
View Info |
See Details
|
1150B, 1150C, 1150D, 1150E, 1150G, 1155E, 1450, 1450B | Seal Spacer | 0 | PV412 |
$75.00
|
View Info | |
See Details
|
450, 750, 850, 1150 (Check Serial # Breaks) | Seal Retainer, Final Drive Axle | A50553 |
$294.00
|
View Info | ||
See Details
|
450, 750, 850, 1150 (Check Serial # Breaks) | Race, Final Drive Seal | A50554 |
$195.00
|
View Info | ||
See Details
|
750H, 850C, 850D, 850E, 850G, 850H, 1150B, 1150C, 1150D, 1150E, 1150G, 1450, 1450B, 855C, 855D, 855E, 1155D, 1155E, 1455B | Spacer, Axle Shaft | A50721 |
$144.00
|
View Info | ||
See Details
|
650, 650G, 850B, 850C, 850D, 850E, 850G, 855D, 855E | Final Drive, Rebuilt Standard Gauge | G107164U |
From
$3,750.00
|
View Info |
Final drive assemblies, rebuild kits, bull gears, sprocket shafts, bevel gear sets, bearings, seals, and hydrostatic drive motors for Case 650, 850, and related series crawler dozers, covering standard gauge and LGP configurations.
Fits Models At A Glance
- 450 / 550 Series: 450, 450B, 450C, 455B, 455C, 550, 550E, 550G, 550H
- 650 Series: 650, 650G, 650K, 650L, 650M
- 750 Series: 750, 750H, 750K, 750L, 750M
- 850 Series: 850, 850B, 850C, 850C LGP, 850D, 850D LGP, 850E, 850E LGP, 850G, 850G LGP, 850H, 850K, 850L, 850M
- 1150 / 1450 Series: 1150B, 1150C, 1150D, 1150E, 1150G, 1150H, 1450, 1450B
Key Notes
- Application: Final drive components for Case 650 and 850 series crawler dozer final drive systems
- Coverage: Includes rebuilt standard gauge and wide track final drives, hydrostatic drive motors, final drive gearboxes, final drive housings, final drive rebuild kits for standard and LGP machines, top pinion shafts, bull gears for standard and LGP machines, sprocket shafts, bevel gears, bevel gear and pinion sets, bearing cones, bearing cups, final drive sprocket shaft seals, bevel gear seals, seal retainers, seal races, seal spacers, and axle shaft spacers
- Function: Maintains final drive pinion, bull gear, bevel gear, sprocket shaft, and hydrostatic motor function on Case 650 and 850 series crawler dozer platforms
- Fitment Note: Standard gauge and LGP configurations require different bull gears, bearing cones, and seals — verify gauge configuration when ordering
