Case 590 Super L, 590 Super M Bucket Parts
Each number on the image is a "Ref #" that can be matched on the table below.
| REF # | Image | Fits Model | Description | Part # | Price | Product Details |
See Details
|
580L, 580 Super L, 590 Super L, 580M, 580 Super M, 590 Super M | Pin and Bushing Kit, Bucket | CS-580-D-B-Kit |
$874.00
|
View Info | |
| 2, 3, 4 |
See Details
|
480, 480B, 480C, 480D, 480E, 480F, 580, 580B, 580C, 580D, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 680, 680B, 680C, 680E, 680G, 680K, 680L | Bucket Tooth, Pin, and Shank Kit | 230KIT |
$38.00
|
View Info |
| 2 |
See Details
|
480, 480B, 480C, 480D, 480E, 480F, 580, 580B, 580C, 580D, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 680, 680B, 680C, 680E, 680G, 680K, 680L | Bucket Tooth Shank (Weld On) | 230010 |
$24.00
|
View Info |
| 3 |
See Details
|
480B, 480C, 480D, 480E, 580, 580B, 580C, 580D, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 680, 680B, 680C, 680E, etc. | Bucket Tooth Retainer Pin | 23P |
$5.00
|
View Info |
| 4 |
See Details
|
480B, 480C, 480D, 480E, 580, 580B, 580C, 580D, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 680, 680B, 680C, 680E, etc. | Bucket Tooth (General Purpose) | D51750 |
$14.00
|
View Info |
| 4 |
See Details
|
480, 480B, 480C, 480D, 480E, 480F, 580, 580B, 580C, 580D, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 680, 680B, 680C, 680E, 680G, 680K, 680L | Bucket Tooth (Fang-Style) | TF23D |
$14.00
|
View Info |
| 4 |
See Details
|
480B, 480C, 480D, 480E, 580, 580B, 580C, 580D, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, 680, 680B, 680C, 680E, 680K, 680L | Bucket Tiger Tooth | 23TL |
$14.00
|
View Info |
| 8 |
See Details
|
480, 480B, 480C, 480D, 480E, 480F, 580, 580B, 580C, 580D, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 680, 680B, 680C, 680E, 680G, 680K, 680L | Pin, Bucket to Dipper (Fits 12" Bucket) | D55584 |
$84.00
|
View Info |
See Details
|
580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590, 590 Super L | Pin, Bucket to Dipper (Fits Buckets Wider than 12") | D150619 |
$96.00
|
View Info | |
| (8-Bucket), (10-Dipper) |
See Details
|
580K, 580 Super K, 590 Turbo | Pin, Bucket to Dipper (13"+) | D140655 |
$58.00
|
View Info |
| 9 |
See Details
|
580K, 580 Super K, 590 Turbo | Y-Link (New) | D150080 |
$624.00
|
View Info |
| (10 & 17-Bucket), (6-Front Axle) |
See Details
|
580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N, 585G, 586G, 588G, 586H, 588H, 570LXT, 570MXT, 570NXT | Bushing (60mm OD) | D138047 |
$24.00
|
View Info |
| (11 & 21 Bucket Links), (Frame at Stabilizer) |
See Details
|
580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M | Bushing (Quick Coupler, Y-Link, Frame) | 107124A1 |
$24.00
|
View Info |
| 14 |
See Details
|
590 Turbo, 590 Super L, 590 Super M | Bushing, Bucket Link | D150122 |
$39.00
|
View Info |
| 15 |
See Details
|
580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M | Pin, Bucket Link | D141142 |
$115.00
|
View Info |
| 16 |
See Details
|
580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M | Bucket Dump Link | 244790A1 |
$144.00
|
View Info |
| 16 |
See Details
|
580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M | Link (Used) | 244790A1-U |
$150.00
|
View Info |
| 18 / 37 |
See Details
|
1150, 1150B, 1150C, 1150D, 1150E, 1150H, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M | Bushing, (Bucket Link / Blade Lift) | D31140 |
$50.00
|
View Info |
| 19 |
See Details
|
580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M | Bushing, Dipper to Quick Coupler | 307186A1 |
$34.00
|
View Info |

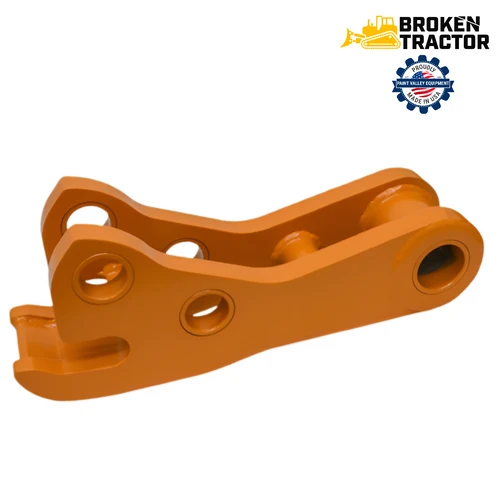

| 20 |
See Details
|
580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590 Super L | Quick Coupler, Bucket (New) | 134437A1 |
$420.00
|
View Info |
| 20 |
See Details
|
580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M | Bucket Quick Coupler | 294195A1 |
$690.00
|
View Info |
| 20 |
See Details
|
580 Super M, 590 Super M (Both Series II & III) | Quick Coupler, Hydraulic Style (Used) | 417681A1-U |
$564.00
|
View Info |
| 20 |
See Details
|
590 Super N, 695SV | Quick Coupler, Mechanical Style | 47959116 |
$558.00
|
View Info |
| 22 |
See Details
|
580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M | Bushing, Quick Coupler Closed End | D127167 |
$28.00
|
View Info |
| 23 |
See Details
|
580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Super L, 590 Super M | Pin, Y-Link to Quick Coupler | D146288 |
$74.00
|
View Info |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Snap Ring (1.5" Pins) | D25279 |
$4.50
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Snap Ring (1.75" Pin) | 103-16175 |
$3.75
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Snap Ring (2" Pins) | 84158898 |
$6.00
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Washer (1.5" Pins) (14-Gauge / 0.078" Thick) | 495-81292 |
$3.25
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Washer (1.5" Pins) (10-Gauge / 0.140" Thick) | U11649 |
$4.00
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Washer (1.75" Pins) | 30575 |
$3.25
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N | Washer, 1.75" Pin Diameter | 495-81226 |
$4.00
|
View Info | |
See Details
|
580N, 580 Super N, 590 Super N | Bushing, Bucket Link | 84231081 |
$48.00
|
View Info | |
| 5 |
See Details
|
580N, 580 Super N, 590 Super N | Bucket Link Bushing | 84170654 |
$42.00
|
View Info |
See Details
|
Universal – Fits dozers, excavators, loaders, and backhoes | Bushing Driver Removal Tool | BushingDriver |
From
$44.00
|
View Info |
Bucket pins, bushings, links, quick couplers, bucket teeth, and rebuild kits for Case 590 Turbo, 590 Super L, and 590 Super M backhoe loaders, covering all major bucket and dipper connection points.
Fits Models At A Glance
- 480 Series: 480, 480B, 480C, 480D, 480E, 480F
- 580 / 580B / 580C / 580D / 580 Super E Series: 580, 580B, 580C, 580D, 580E, 580 Super E
- 580K / 580 Super K Series: 580K, 580SK, 580 Super K
- 580L / 580 Super L Series: 580L, 580 Super L
- 580M / 580 Super M Series: 580M, 580 Super M
- 580N / 580 Super N Series: 580N, 580 Super N
- 590 Series: 590, 590 Turbo, 590 Super L, 590 Super L Series I, 590 Super L Series II, 590 Super M, 590 Super M Series II, 590 Super M Series III, 590 Super N
Key Notes
- Application: Bucket pins, bushings, links, quick couplers, and bucket teeth for Case backhoe loader bucket and dipper circuits
- Coverage: Includes bucket and dipper rebuild kits, bucket to dipper pins in multiple sizes, bucket link pins, Y-link to quick coupler pins, bucket link bushings, quick coupler bushings, dipper to quick coupler bushings, bucket dump links, Y-links, mechanical and hydraulic style quick couplers, bucket tooth shanks, general purpose and fang-style and tiger bucket teeth, bucket tooth retainer pins, snap rings, pin washers, and bushing tools
- Function: Maintains bucket connection, bucket link, quick coupler, and dipper pivot integrity on Case 590 Turbo, 590 Super L, and 590 Super M backhoe loader platforms
