Case 580 Super L Pin Kits

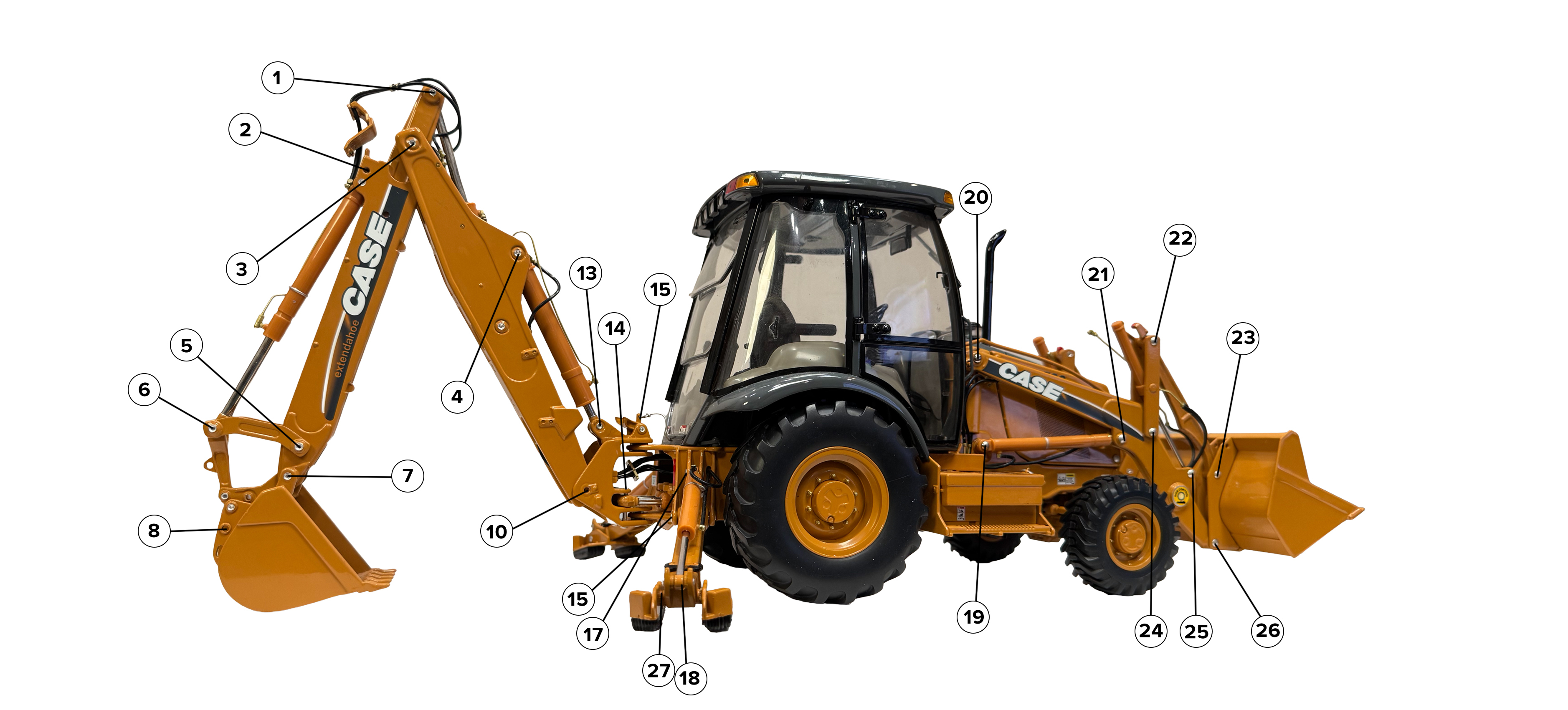

Each number on the image is a "Ref #" that can be matched on the table below.

Case 580 Super L Pin Kits parts list
REF #	Image	Fits Model	Description	Price	Product Details
	See Details	580 Super L Series II	Pin Kit (Swing Tower and Boom)	D137218K-2	$354.00	View Info
xx	See Details	580K, 580L, Super K, Super L, 590 Turbo, 590L, 590SL, 590SM	Pin Kit, Coupler to Y Link	D146288K-2	$168.00	View Info
xx	See Details	580L, 580 Super L	Bushing Kit, Swing Cylinder to Chassis	124568A2K-1	$148.00	View Info
xx	See Details	580 Super L	Pin Kit, Dipper Cylinder to Boom	123167A1K	$98.00	View Info
xx	See Details	580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Series	Bushing Kit, Bucket Cylinder to Bucket Cylinder Link	D151034K	$94.00	View Info
1	See Details	580 Super L	Pin Kit, Dipper Cylinder to Dipper	D138022K-2	$125.00	View Info
3	See Details	580 Super K, 580L, 580 Super L	Pin Kit, Boom to Dipper	D132494K-1	$234.00	View Info
4	See Details	580 Super L	Pin Kit, Boom Cylinder to Boom	123168A1K-2	$145.00	View Info
5	See Details	580SK, 580L, 580SL, 580M, 580SM, 580SM+, 590SL, 590SM	Pin Kit, Dipper Link to Dipper (Extend a Hoe)	D141142K-3	$190.00	View Info
5	See Details	580L, 580SL, 580M, 580SM, 580SM+	Pin Kit, Bucket Link to Dipper Stick (Standard)	D141142K-2	$210.00	View Info
6	See Details	580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580 Super M+, 590 Turbo, 590 Super L, 590 Super M	Pin Kit, Y-Link to Dipper Link & Cylinder	D141142K-1	$270.00	View Info
7	See Details	580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM	Pin Kit, Bucket to Standard Dipper Stick	D37614K-1	$95.00	View Info
7	See Details	580K, 580 Super K, 580L, 580 Super L, 590 Turbo, 590L, 590SL, 590SM	Pin Kit, 12" Bucket to Standard Dipper Stick	D150619K-1	$174.00	View Info
10	See Details	580L, 580 Super L	Pin Kit, Boom to Swing Tower	121779A1K	$305.00	View Info
10	See Details	580 Super K, 580L, 580 Super L- I, 590 Turbo	Pin Kit, Backhoe Swing Tower and Boom	D137218K	$238.00	View Info
10	See Details	580L, 580 Super L (Series I)	Pin Kit, Backhoe Swing Tower to Boom	D137218K-3	$164.00	View Info
13	See Details	580 Super L	Pin Kit, Boom Cylinder to Swing Tower	190313A1K-1	$185.00	View Info
14	See Details	Case 580L, Super L, 590L, 590SL, 590SM	Pin Kit, Swing Cylinder Rod to Swing Tower	135247A1K	$220.00	View Info
14	See Details	580L, 580 Super L	Swing Tower to Main Frame (Top Pin)	132890A1K	$190.00	View Info
15	See Details	580L, 580 Super L, 580M, 580 Super M	Pin Kit, Stabilizer Leg to Chassis	D38907K	$66.00	View Info
16	See Details	580 Super K, 580L, 580 Super L	Pin Kit, Swing Tower to Chassis Bottom	D151065K-1	$184.00	View Info
17	See Details	580L, 580 Super L, 580M, 580 Super M	Pin Kit, Stabilizer Leg to Chassis	121665A1K	$154.00	View Info
18	See Details	580L, 580 Super L, 580M, 580 Super M	Pin Kit, Stabilizer Cylinder to Leg	D26002K	$50.00	View Info
19	See Details	580L, 580 Super L, 590L, 590SL, 590SM	Pin Kit, Loader Lift Cylinder to Chassis	119129A1K	$144.00	View Info
20	See Details	580L, 580 Super L, 590 Turbo, 590 Super L, 590 Super M	Pin Kit, Loader Frame to Chassis	111522A1K	$288.00	View Info
21	See Details	580L, 580 Super L, 590 Super L, 590 Super M	Pin Kit, Loader Lift Cylinder to Loader Frame	113629A1K	$66.00	View Info
22	See Details	580K, 580 Super K, 580L, 580 Super L, 590 Series	Kit, Bucket Cylinder Link to Drag Link	D132076K-2	$36.00	View Info
23	See Details	580L, 580 Super L, 580M, 580 Super M	Pin Kit, Loader Bucket Drag Link to Bucket	118901A1K	$94.00	View Info
24	See Details	580 Super L, 590 Turbo, 590 Super L, 590 Super M	Pin Kit, Bucket Cylinder Link to Loader Frame	D132076K-1	$80.00	View Info
25	See Details	580 Super L, 580M, 580 Super M	Pin Kit, Bucket Cylinder to Loader Frame	87724438K	$54.00	View Info
26	See Details	580L, 580 Super L, 590 Super L, 590 Super M	Pin Kit, Loader Frame Bucket Tilt Cylinder	116339A1K	$42.00	View Info
27	See Details	580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M	Pin Kit, Stabilizer Leg to Foot (Dirt Pad)	D28648K	$30.00	View Info
27	See Details	580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M	Pin Kit, Stabilizer Leg to Foot (Flip Over Pad)	D149033K	$78.00	View Info
27	See Details	580K, 580 Super K, 580L, 580 Super L, 590 Series	Pin Kit, Foot to Leg Street Pad	D39256K	$60.00	View Info
	See Details	Universal – Fits dozers, excavators, loaders, and backhoes	Bushing Driver Removal Tool	BushingDriver	From $44.00	View Info

Backhoe and loader pin kits for the Case 580 Super L backhoe loader, covering swing tower, boom, dipper, stabilizer, coupler, and loader frame connection points with matched pins, bushings, seals, and hardware.

Fits Models At A Glance

580 Super L Series: 580 Super L, 580 Super L Series I, 580 Super L Series II
Shared Fitment: Many kits also fit 580L, 580M, and 580 Super M backhoes

Key Notes

Application: Rebuild worn backhoe and loader pivot joints on 580 Super L machines
Coverage: Swing tower, boom, dipper, coupler, stabilizer, and loader frame pin points
Contents: Kits include pins with matching bushings, seals, and hardware where applicable
Service Tool: A universal bushing driver install and removal tool is offered

Why Choose Broken Tractor

✅ Full pin and bushing coverage for 580 Super L
✅ Kits matched to each pivot joint location
✅ Fast shipping from two US locations

Frequently Asked Questions

Which pin kit do I need for the swing tower to boom on a 580 Super L?

It depends on your machine series. We carry separate swing tower to boom kits for 580 Super L Series I and Series II, since the pin dimensions differ. Match the part number to your machine or confirm the series with our parts team.

Do these pin kits include bushings?

Many of our 580 Super L kits include pins along with matching bushings, seals, and hardware for the joint. Some listings are bushing kits only, so check the individual product title and description to see what is included.

Will a 580 Super L pin kit also fit a 580L or 580M backhoe?

Several kits do fit multiple models such as 580L, 580M, and 580 Super M, as noted in each product's fitment. Others are specific to the 580 Super L. Always confirm the part number against your machine before ordering.

What tool do I need to replace worn bushings?

We offer a universal steel bushing driver removal and installation tool that works on backhoes, loaders, dozers, and excavators. It helps press old bushings out and new ones in cleanly during service.
