Case 480D, 480E Backhoe Bucket Parts

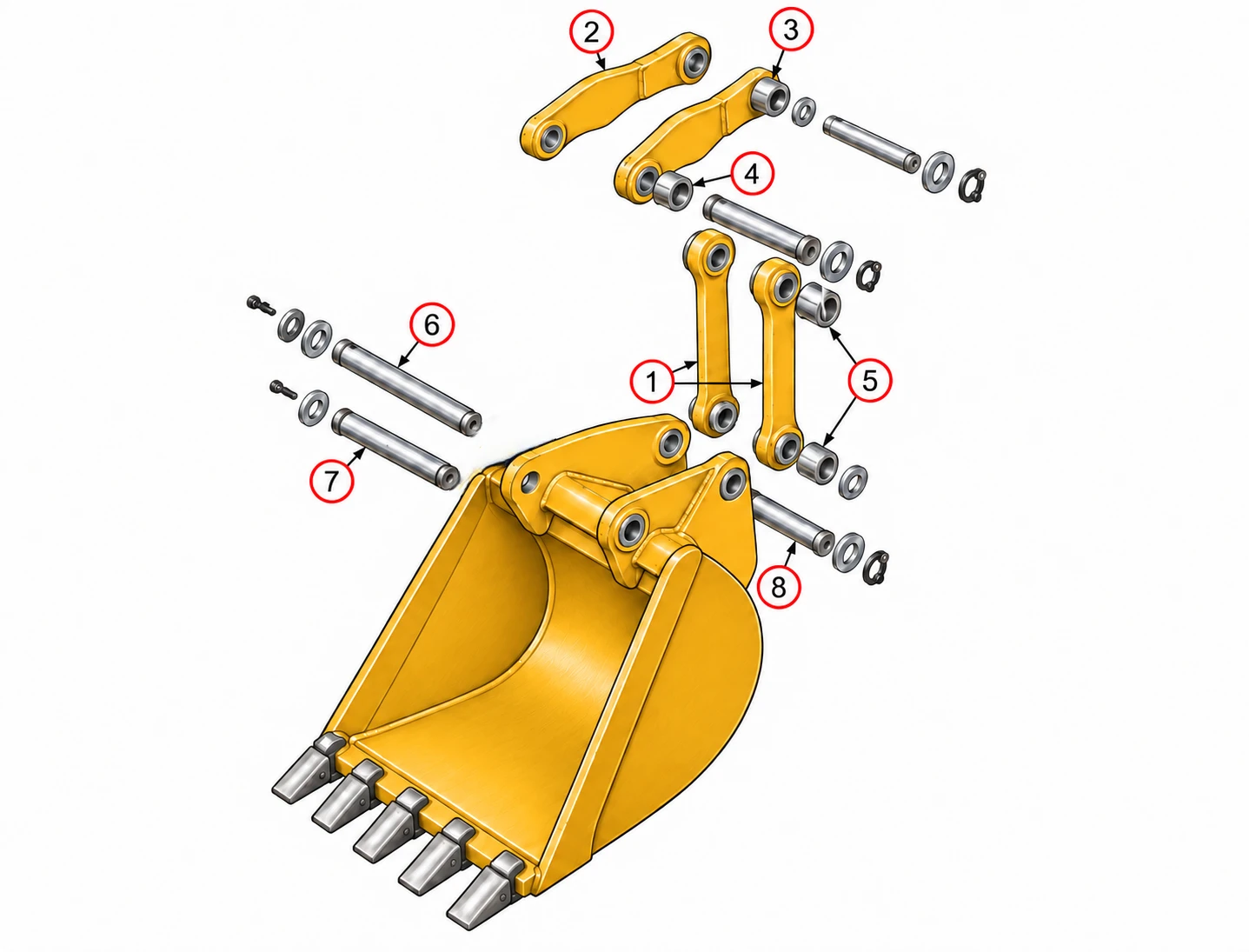

Click on each number to jump to the product page. Each number on the image is a "Ref #" that can be matched on the table below.
| REF # | Image | Fits Model | Description | Part # | Price | Product Details |
| 1 |
See Details
|
480D, 480E, 480F | Link, Backhoe Bucket | D99731 |
$292.00
|
View Info |
| 1, 33 |
See Details
|
480C, 480D, 480E, 480F, 580B, 580C, 580D, 580 Super E | Pin, Cylinder to Dipper (8" Long, 1.5" Dia) | D44882 |
$47.00
|
View Info |
| 2 |
See Details
|
480D, 480E | Link, Left Hand | D84167 |
$292.00
|
View Info |
| 3 |
See Details
|
480D, 480E | Link, Right Hand | D84166 |
$292.00
|
View Info |
| 3, 13, 23 |
See Details
|
480D, 480E, 480F, 580B, 580C, 580D, 580E, 580 Super E, 1150D, 1150E, W11, W11B | Bushing | D46405 |
$25.00
|
View Info |
| 4 |
See Details
|
480D, 480E | Bushing, Backhoe Link | D32789 |
$43.00
|
View Info |
| 6, 18 |
See Details
|
480B, 480C, 480D, 480E, 580, 580B, 580C, 580D, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, 680, 680B, 680C, 680E, 680K, 680L | Bushing, (Backhoe Bucket, Bucket Link, Loader Link) | D30933 |
$18.00
|
View Info |
| 7 |
See Details
|
480B, 480C, 480D, 480E, 480F, 580CK, 580B, 580C, 580D, 580 Super D, 580E, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 680, 680B, 680C, 680E, 680G, 680H, 680K | Pin, Bucket to Link | D37614 |
$49.00
|
View Info |
See Details
|
480D, 480E, 580B, 580C, 580D, 580 Super D, 580E, 580 Super E | Pin, Bucket to Dipper | D64799 |
$108.00
|
View Info | |
See Details
|
480E, 480F, 26D, 33, 33A, 34 | Pin, Boom at Boom Cylinder Rod | D43959 |
$84.00
|
View Info | |
See Details
|
480C, 480D, 480E, 580C, 580D, 580 Super E, 850, 850B, 850C, 850D, 850E, 1150B, 1150C, 1150D, W11, W11B | Bushing (1.75" x 2.13" x 1") | D34340 |
$29.00
|
View Info | |
See Details
|
480E, 480F | Bushing , (Boom at Boom Cylinder) | D52289 |
$28.00
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Snap Ring (1.5" Pins) | D25279 |
$4.50
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Snap Ring (1.75" Pin) | 103-16175 |
$3.75
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Washer (1.5" Pins) (14-Gauge / 0.078" Thick) | 495-81292 |
$3.25
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Washer (1.5" Pins) (10-Gauge / 0.140" Thick) | U11649 |
$4.00
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 590 Turbo, 590 Super L, 590 Super M, etc | Washer (1.75" Pins) | 30575 |
$3.25
|
View Info | |
See Details
|
580B, 580C, 580D, 580 Super E, 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M, 580N, 580 Super N, 590 Turbo, 590 Super L, 590 Super M, 590 Super N | Washer, 1.75" Pin Diameter | 495-81226 |
$4.00
|
View Info | |
| 8 |
See Details
|
480C, 480D, 480E, 480F, 580C | Pin Kit, Coupler to Bucket | D37614K-2 |
$150.00
|
View Info |
See Details
|
480D, 480E, 480F | Flip Over Pad Set | D143474 |
$450.00
|
View Info | |
See Details
|
480C, 480D, 480E, 480F | Pin, Dipper Cylinder to Ext. Dipper | D53812 |
$61.00
|
View Info | |
See Details
|
Universal – Fits dozers, excavators, loaders, and backhoes | Bushing Driver Removal Tool | BushingDriver |
From
$44.00
|
View Info |
Bucket links, pins, bushings, snap rings, washers, and flip-over pads for Case 480D and 480E backhoe loaders, covering all major bucket and linkage connection points.
Fits Models At A Glance
- 480 Series: 480C, 480D, 480E, 480F
- 580B / 580C / 580D / 580E Series: 580B, 580C, 580CK, 580D, 580 Super D, 580E, 580 Super E
- 580K / 580L / 580M Series: 580K, 580 Super K, 580L, 580 Super L, 580M, 580 Super M
- 590 Series: 590 Turbo, 590 Super L, 590 Super M
Key Notes
- Application: Bucket links, pins, bushings, and hardware for Case backhoe loader bucket and linkage circuits
- Coverage: Includes bucket links, left and right hand links, bucket-to-link pins, bucket-to-dipper pins, cylinder-to-dipper pins, dipper cylinder-to-extendible dipper pins, boom cylinder pins, pin kits, bushings, snap rings, pin washers, flip-over pad sets, and boom bushings
- Function: Maintains bucket link, bucket pin, and linkage connection integrity on Case 480D, 480E, and related backhoe loader platforms
