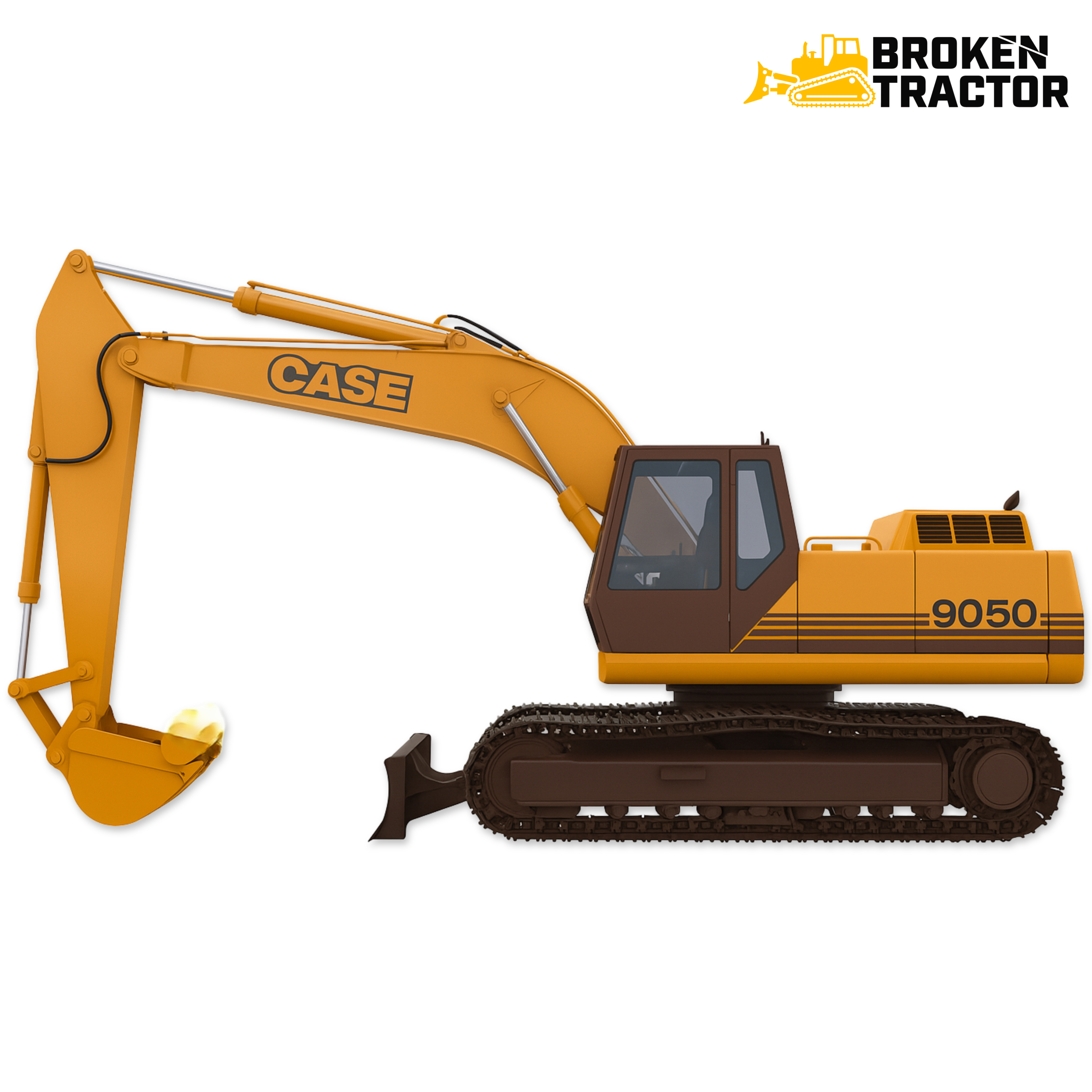

Case 9050 Hydraulic Excavator: Legacy Heavy 9000-Series
The Case 9050 is a heavy-class legacy hydraulic excavator from the 9000-series era that preceded the modern CX line. Cummins-powered with a hydrostatic dual-path drive, it was built for demolition, mass excavation, and heavy construction long before Tier 4 emissions architecture entered the picture.
Where the 9050 fits in the Case excavator line
The 9050 is part of Case’s legacy 9000-series excavator lineage - the heavy-class predecessor to today’s CX-series. In the legacy sequence it sits between the smaller 9040B and the heavier 880D, and it carried the Cummins-powered, hydrostatic-driven architecture that defined Case’s pre-Tier-4 excavator platform.
Mechanically the 9050 uses a Cummins diesel feeding a main hydraulic pump that drives boom, dipper, bucket, swing, and propel circuits. Steel-track undercarriage, swing bearing and swing motor reduction gear, and a control valve bank that ranges from mechanical pilot on early production to electrohydraulic on later builds. The platform rewards a wrench-and-manual maintenance approach.
Case 9050 Excavator - Quick Specs
- Class
- Heavy Legacy Excavator
- Era
- Pre-Tier 4 Vintage
- Engine
- Case / Cummins Diesel
- Drivetrain
- Hydrostatic Dual-Path
- Undercarriage
- Steel Track
- Smaller Sibling
- Case 9040B
- Larger Sibling
- Case 880D
- Modern Equivalent
- Case CX-Series
Engine, hydraulics, and drivetrain
The 9050 runs a Case/Cummins diesel through a hydrostatic dual-path drivetrain. Pre-Tier 4 emissions throughout - mechanical injection on the earliest builds, electronic engine control on later production. The main hydraulic pump drives boom, dipper, bucket, swing, and propel circuits through mechanical or electrohydraulic control valves, depending on production window.
The swing system uses a hydraulic swing motor through a planetary reduction gear riding on a slewing bearing. The steel-track undercarriage carries Case-pattern rollers, idlers, sprockets, and recoil springs. Pin-and-bushing service is the recurring wear story at every boom, dipper, and bucket joint.
Common service items on the 9050
- Engine internals: Pistons, rings, sleeves, bearings, head gaskets. Mechanical-injection or early-electronic depending on production year.
- Fuel system: Injection pump, injectors, lift pump, primary and secondary fuel filters.
- Cooling system: Radiator, water pump, thermostat, fan, hoses, belts.
- Hydraulic system: Boom, dipper, bucket, and swing cylinder seal kits, main pump rebuild, control valves, hoses.
- Boom and dipper: Pin and bushing service at every joint, bucket pins, thumb attachment hardware, quick-coupler service.
- Undercarriage: Steel-track inspection and replacement, rollers, idlers, drive sprockets, recoil springs.
- Swing system: Swing motor and reduction gear service, swing bearing inspection, swing brake.
- Cab glass and wiper: KHN16820 24-inch wiper blade, KHN3046 front lower glass, and KHN2632 front upper glass cross-fit across Case and Link-Belt excavators.
- Electrical: Starter, alternator, wiring harness, gauges, switches.
- Operator station: Seat, joystick controls, pedal linkage, instrument panel, cab HVAC.
Parts and cross-fit components for the Case 9050
| Category | Common Parts | Browse |
|---|---|---|
| Engine | Pistons, rings, sleeves, bearings, gaskets | Browse Engine |
| Fuel System | Injection pump, injectors, lift pump, filters | Browse Fuel System |
| Cooling | Radiator, water pump, hoses, belts | Browse Cooling |
| Hydraulics | Main pump, swing motor, cylinders, seal kits, valves | Browse Hydraulics |
| Boom / Dipper | Pins, bushings, bucket and quick-coupler hardware | Browse Boom / Dipper |
| Undercarriage | Steel tracks, rollers, idlers, sprockets, recoil springs | Browse Undercarriage |
| Swing | Swing motor, reduction gear, swing bearing | Browse Swing |
| Cab Glass / Wiper | KHN16820 wiper, KHN3046 lower glass, KHN2632 upper glass (Case/Link-Belt cross-fit) | KHN16820 Wiper Blade |
| Electrical | Starter, alternator, harness, gauges | Browse Electrical |
| Operator Station | Seat, joysticks, pedal linkage, gauges | Browse Operator Station |
Need a part for your Case 9050 Excavator?
Hydraulic components, Cummins engine parts, and undercarriage wear items are the highest-value categories on the 9050. Call our parts team with your serial number.
Request a PartWhat to verify before ordering
- Machine serial number. Confirm the serial on the 9050 before ordering year-specific parts - 9000-series production saw multiple revisions.
- Engine serial. Cummins internal parts must match the engine serial number, not just the machine serial.
- Hydraulic cylinder bore. Cylinder seal-kit fit depends on bore dimension - measure before ordering.
- Control valve generation. Mechanical pilot vs. electrohydraulic control affects valve and harness part numbers.
- Bucket and quick coupler. Quick-coupler interface varies - confirm before ordering attachment-side hardware.
- Undercarriage configuration. Track-shoe width and chain pitch should be measured before ordering wear parts.
Why the 9050 still earns a paycheck
The Case 9050 is a legacy excavator from the era before the modern CX-series - pre-Tier 4 emissions, mechanical or early-electronic injection, and service architecture that rewards a wrench, a manual, and a parts catalog. For owners and operators running these machines in demolition, mass excavation, or heavy construction, parts availability through the legacy Case service network and aftermarket remains broad.
Maintenance priorities on a 9050: clean fuel and quality filtration, hydraulic oil at temperature with clean filters, swing-bearing lubrication, steel-track tension and undercarriage wear monitoring, and pin/bushing service at every working joint. Broken Tractor maintains parts coverage across the Case legacy excavator family alongside current CX production.
