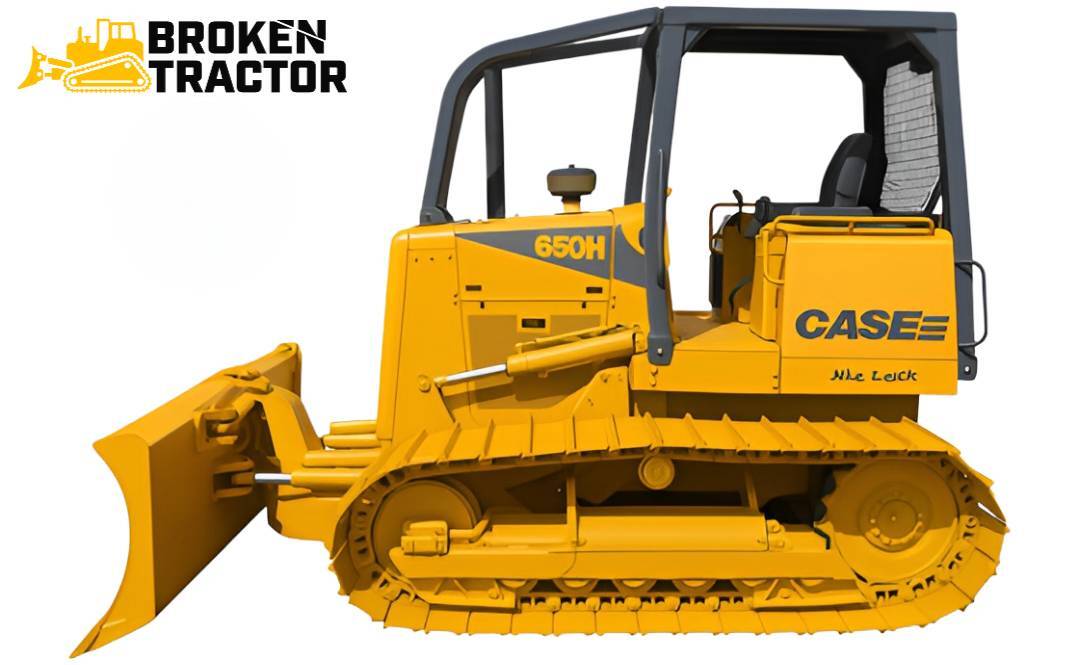

Case 650H Crawler Dozer: Specs, Parts & Common Issues

Produced 2001 - 2010, the Case 650H is the H-generation mid-frame Case crawler dozer - Cummins 4TA-3.9 turbocharged four-cylinder diesel and hydrostatic dual-path transmission. The H-generation introduced hydrostatic drivetrain across Case's mid-class dozer line, replacing the power shift architecture used on the 650G predecessor. Three primary variants: Standard, LT (Long-Track), and LGP (Low Ground Pressure).

BT

Broken Tractor Editorial Team• Updated May 2026• 11 min read

The Case 650H Crawler Dozer is the H-generation mid-frame Case crawler dozer, produced from 2001 through 2010. The H generation marked the most significant drivetrain change in the modern Case dozer line: hydrostatic dual-path transmission replaced the power shift used on the 650G. Each track is now driven by its own variable-displacement hydraulic pump and motor - direction and speed are controlled by joystick rather than gear shifting. The same hydrostatic shift happened simultaneously on the 550H and 850H, defining the H-generation across all mid-class Case dozers.

The 650H retains the Cummins B-series engine lineage from the 650G but moves to the 4TA-3.9 - the turbocharged-and-aftercooled four-cylinder. The combination of the 4TA-3.9 with hydrostatic drivetrain gives the 650H smooth, infinitely-variable speed control and crisp direction changes, well suited to finish grading and detail dozing work.

At-a-glance specifications

How the 650H differs from the 650G predecessor

The 650H is a substantial platform refresh over the 650G:

• Hydrostatic dual-path transmission replaces power shift - the most significant drivetrain change in the H-generation. Each track has its own hydraulic motor driven by a variable-displacement pump. Operator controls direction and speed via joystick rather than gear shifting. Smoother control, faster and more responsive direction changes, but new service items (hydrostatic motors, pumps, charge pumps, control valves).
• Cummins 4TA-3.9 (turbo + aftercooled) - the 650H steps up from the 650G's 4BTA-3.9 to the more refined 4TA-3.9, with revised emissions and accessory layout for the early-2000s production era.
• Refined cab and electronics - H-generation cab is more refined with improved HVAC, electronic gauge cluster, updated controls, and improved sightlines to the blade corners.
• Updated undercarriage - several track and roller components updated, though several blade-carrier wear items cross-fit with the 650G via the 117835A1 slider block and 117836A1 wear plate.
• Three variant offering: Standard, LT, LGP - the H generation formalized the Long-Track variant as a distinct production option.

Variants: Standard, LT, LGP

The 650H shipped in three primary configurations:

• Standard - standard-width track, balanced general-purpose dozer. Most common configuration.
• LT (Long Track) - extended track frame for additional ground contact area. Improves flotation on soft ground and stability during dozing operations. Wider grouser pads available as option.
• LGP (Low Ground Pressure) - wider grouser pads and extended track frame, the lowest ground pressure configuration. Designed for soft-ground work (wetlands, agricultural soil, fine-soil grading) where flotation is the priority.

Track configuration affects undercarriage and frame parts - confirm Standard vs. LT vs. LGP by serial before ordering track pads, idlers, and frame components.

Cummins 4TA-3.9 turbocharged-and-aftercooled engine

The 4TA-3.9 is the turbocharged-and-aftercooled four-cylinder Cummins B-series industrial engine - a refinement of the 4BTA-3.9 used on the 650G. Same 3.9-liter displacement and basic bore-stroke geometry, with revised emissions calibration, updated turbocharger sizing, and aftercooling for early-2000s production. The Cummins B-series industrial engine ecosystem is one of the deepest in the world - filters, injectors, water pumps, turbochargers, and complete rebuild components source readily from both Case dealer and aftermarket Cummins channels.

Engine fan belt, alternator drive, and water pump are routine service items. Browse the Case Dozer Parts hub for current 650H engine service kits and filter sets.

Hydrostatic dual-path transmission

The hydrostatic dual-path transmission is the defining technical change on the 650H. Each track has its own dedicated hydraulic drive motor. Flow to each motor is controlled by a variable-displacement hydraulic pump. The operator controls direction, speed, and turning radius through joystick inputs that proportionally adjust pump displacement.

Hydrostatic drivetrain advantages: infinitely-variable speed (no discrete gears), instantaneous direction changes without clutch operation, fine-control responsiveness for grading and detail work, and dynamic braking from the hydraulic system itself.

Hydrostatic service items: charge pumps, charge filters, hydraulic motor seals, drive pump bearings, control valve degradation, and contamination from internal wear. Hydraulic oil quality is critical - hydrostatic systems are intolerant of contamination, and the filter change interval matters. Hydrostatic diagnosis typically requires dealer service tools for pressure testing.

Blade system

The 650H standard blade is approximately 104 inches wide (varies by configuration). Cutting edge replacement and blade cylinder seal service are the most routine blade-related service items. End bits wear faster than the center cutting edge due to load concentration at the corners during dozing.

Blade hydraulic cylinders (lift, angle, tilt) are routine seal-replacement candidates at production-run age. Cylinder rod chrome corrosion is also typical. Rod replacement is required when corrosion is severe enough to damage seal surfaces.

Undercarriage

The 650H undercarriage shares several wear-item components with the 650G and the 550H below. Track recoil hardware, certain idler bushings, and master pin geometry cross-fit across the mid-class H-generation family on several components. Variant (Standard, LT, LGP) affects track pad width, frame length, and roller spacing - confirm variant before ordering.

Track chain elongation, sprocket tooth wear, and idler bearing service are all routine on field-service-age 650Hs. The H generation's undercarriage is generally regarded as more durable than the 650G's, though both share design lineage.

Operator station and seat

The 359121A1 Case / New Holland dozer suspension seat with headrest is the verified seat replacement for the 650H. The 359121A1 has extremely broad cross-fit - it fits 550H, 650H, 650K, 650L, 750K, 750L, 850H, 850K, and 850L (and several additional H/K/L-generation Case dozers). When the original seat cushion wears or the suspension fails, this single SKU is the replacement.

Blade-carrier hardware cross-fit

The 117835A1 slider block and 117836A1 wear plate are documented cross-fit for the 550H, 650G, 650H, 750H, 850G, and 850H - that's an unusually broad mid-class Case dozer parts cross-fit. Blade-carrier wear is a routine 650H service item (the slider block and wear plate are sacrificial wear components designed to wear before the underlying blade-carrier frame), and the broad cross-fit makes sourcing straightforward.

Common 650H service issues

Hydrostatic transmission service

The hydrostatic dual-path drivetrain introduces service items not present on earlier 650-series dozers. Charge pump wear, control valve degradation, hydraulic motor seal failure, and contamination of the hydraulic oil from internal wear are routine. Hydrostatic systems require clean oil - filter change intervals matter. Hydrostatic diagnosis usually requires dealer service tools for pressure testing.

Cummins 4TA-3.9 turbocharger wear

The 4TA-3.9 turbocharger is a routine wear item on 15-plus-year-old engines. Symptoms: blue smoke at startup or under load, oil consumption climbing, audible whine outside the normal range, or visible shaft play. Replace at the first sign of bearing wear - running a degraded turbo compounds engine wear.

Blade carrier wear plate replacement

The 117835A1 slider block and 117836A1 wear plate are routine blade-carrier service items. Replace when the blade carrier shows play or visible wear.

Blade cylinder seal failure

Blade cylinder seal weep is normal at production-run age. Seal kit rebuilds address most weep issues. Severe rod corrosion requires rod replacement.

Cutting edge wear

Cutting edge replacement is the most frequent blade-related service item on a 650H in active service. End bits wear faster than the center section due to corner load concentration during dozing. Both are replaceable as part of routine blade service.

Filter service interval

The hydrostatic drivetrain is intolerant of contamination. Stick to the manufacturer-recommended hydraulic filter and oil change intervals - many high-hour 650Hs run shorter intervals than the original Case service manual specified, particularly on machines in dusty or abrasive conditions.

Seat replacement

The 359121A1 suspension seat is the verified replacement when the original cushion or suspension fails - broad H/K/L cross-fit makes sourcing straightforward.

Parts we carry

For the complete 650H parts inventory, browse the Case Dozer Parts hub or contact the parts desk for serial-specific fitment confirmation.

Where the 650H sits in the Case dozer family

The 650H is the H-generation mid-frame Case crawler dozer, sitting between the Case 550H / 550H LT (mid-small, hydrostatic) and the Case 850H (mid-large, hydrostatic). Its predecessor was the Case 650G (power shift), and its successor is the Case 650K - the K-generation continued the hydrostatic drivetrain and brought Tier 3 / Tier 4 Interim emissions compliance and additional operator-station refinements.
