Model Spotlight

Case 1850K Crawler Dozer: Specs, Parts & Common Issues

Produced 2002 - 2011, the Case 1850K is the largest crawler dozer in the modern Case Construction line - Cummins QSC 8.3L inline six-cylinder turbocharged diesel, hydrostatic dual-path transmission, and a heavy-class chassis built for the most demanding commercial and mining dozer work. The 1850K sits above the entire 1150 / 1650 family and is the K-generation flagship of the Case crawler dozer line.

BT

Broken Tractor Editorial Team• Updated May 2026• 11 min read

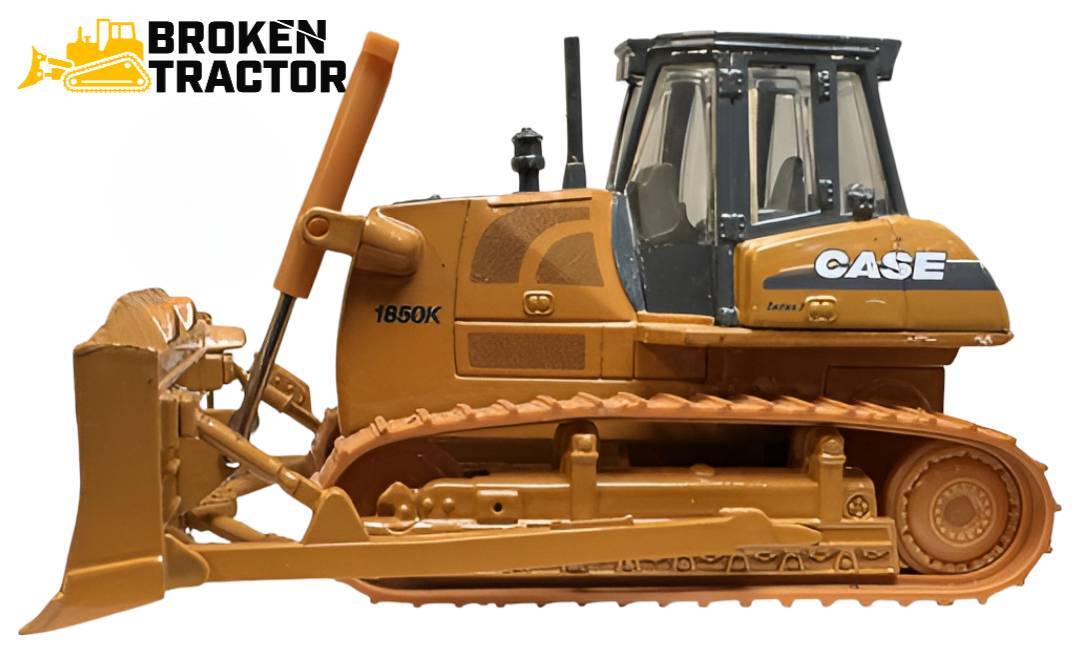

The Case 1850K Crawler Dozer is the largest crawler dozer in the modern Case Construction line, produced from 2002 through 2011. The 1850K sits above the 1150K and 1650K and is the flagship of the K-generation Case crawler dozer line - the heaviest chassis, largest blade, highest engine displacement, and most pushing power in the line. The 1850K uses the Cummins QSC inline six-cylinder turbocharged diesel - 8.3 liters of displacement, electronic engine controls, and hydrostatic dual-path transmission scaled up to handle the heavy-class output.

For owners and operators, the 1850K targets the heaviest commercial dozer applications: mining and quarry work, major road construction, large-acreage land-clearing, landfill operations, and any application where the smaller 1650K runs out of pushing power. The Cummins QSC 8.3L engine has a broad parts ecosystem from the larger Cummins industrial line, making engine service economical despite the heavy-class size.

At-a-glance specifications

How the 1850K differs from the 1650K below

• Larger Cummins QSC 8.3L engine - vs. the Cummins QSB 6.7L on the 1650K. Approximately 40+ HP more in the 1850K.
• Substantially heavier chassis - 10,000+ lb heavier operating weight than a comparable 1650K.
• Larger blade - wider and taller 6-way bulldozer blade for greater material capacity per pass.
• Heavier-duty undercarriage - larger sprockets, larger idlers, heavier track frame, heavy-class track pad options.
• Same hydrostatic dual-path architecture - drivetrain architecture scaled up from the 1650K family, with larger drive motors and pumps to handle the additional torque.
• Heavier-duty cab mounts - larger ROPS structure for the heavier chassis.

Variants: Standard, LT, LGP

The 1850K shipped in three primary track configurations:

• Standard - standard-width track, balanced general heavy-class dozing.
• LT (Long Track) - extended-length track frame for additional flotation and stability.
• LGP (Low Ground Pressure) - wider grouser pads with extended track frame for soft-ground / wetlands / agricultural-soil work where flotation is the priority.

Variant affects undercarriage parts. Confirm Standard vs. LT vs. LGP by serial before ordering.

Cummins QSC 8.3L engine

The Cummins QSC 8.3L is the next size up in the Cummins industrial inline six-cylinder family - larger displacement and higher output than the 6.7L QSB used on the 1650K. The QSC is widely deployed across heavy-class construction equipment, marine applications, agricultural machinery, and other heavy industrial uses. Parts ecosystem is broad: filters, injectors, water pumps, turbochargers, and complete rebuild components are available through both Case dealer and aftermarket Cummins channels.

Production span (2002-2011) covers Tier 2 emissions calibration in early production and Tier 3 calibration in late production. Tier 2 vs. Tier 3 affects injection calibration and engine electronics. Browse the Case Dozer Parts hub for current 1850K engine service kits.

Hydrostatic dual-path transmission

The 1850K uses the hydrostatic dual-path architecture scaled up from the 1650K family - each track has its own variable-displacement pump and hydraulic motor, controlled by joystick. The heavy-class output requires larger drive motors and pumps than the smaller-class machines. The same fundamental architecture applies: infinitely-variable speed, instantaneous direction changes, joystick proportional control.

Hydrostatic service items at heavy-class scale: charge pump, charge filter, hydraulic motor seals, drive pump bearings, control valve degradation. Hydraulic oil cleanliness is critical - heavy-class hydrostatic systems push significant power through the hydraulic loops, and contamination causes accelerated wear.

Heavy-class undercarriage

The 1850K undercarriage is the heaviest in the Case crawler dozer line. Larger sprockets, larger idlers, heavy-class track frame, and wider track pad options than the 1650K. Sprocket bolt patterns, idler geometries, and master pin dimensions are 1850K-class specific - confirm by part number against your serial.

Track chain elongation, sprocket tooth wear, idler bushing wear, and roller seal failure are routine on heavy-class undercarriage. Operating in abrasive conditions (mining, quarry, gravel) accelerates wear; periodic measurement of pitch and pin/bushing wear is essential for predicting service intervals.

Blade system and hydraulics

The 1850K ships with a heavy-class 6-way bulldozer blade - substantially wider and taller than the 1650K’s blade. Angle, tilt, and lift are hydraulically actuated. Blade cylinders, blade-carrier slider blocks, and cutting edges are routine service items. Cutting edge replacement frequency depends heavily on material - in abrasive mining or quarry work, cutting edges wear quickly.

Implement hydraulic pressure is load-sensing for efficient hydraulic delivery. Seal kit availability for the blade cylinders is generally good through both Case dealer and aftermarket cylinder rebuild specialists.

Common 1850K service issues

Hydrostatic transmission service

Heavy-class hydrostatic systems push significant power through the hydraulic loops. Charge pump wear, control valve degradation, hydraulic motor seal failure, and contamination of hydraulic oil from internal wear are routine. Hydrostatic diagnosis usually requires dealer service tools for pressure testing.

Cummins QSC turbocharger wear

The turbocharger is a routine wear item on 10-plus-year-old engines. Symptoms: blue smoke at startup or under load, oil consumption climbing, audible whine outside the normal range, or visible shaft play.

Undercarriage wear rates

Heavy-class undercarriage in abrasive conditions wears quickly. Routine periodic measurement of track pitch, pin/bushing wear, and sprocket tooth condition is essential to predict service intervals before failures occur in the field.

Blade cylinder seal failure

Heavy-class blade cylinders see significant cycle loads. Seal failures and rod chrome corrosion are routine at production-run age. Seal kit rebuilds address most weep issues; severe rod corrosion requires rod replacement.

Cutting edge wear in abrasive applications

Cutting edge replacement is the most frequent blade-related service item, particularly in mining, quarry, and gravel-pit applications. Severe-duty cutting edges and end bits extend service intervals in abrasive conditions.

Cab electronics

The K-generation electronic instrumentation and joystick electronics can develop intermittent fault codes from connector corrosion at production-run age.

Cooling system at heavy load

Heavy-class dozers under sustained load generate substantial cooling demand. Radiator core fouling, fan clutch wear, and hose degradation are routine. Cooling system service should be on a preventive schedule, not condemned only after a high-temperature event.

Parts and cross-fit components for the Case 1850K

For the complete 1850K parts inventory, browse the Case Dozer Parts hub.

Where the 1850K sits in the Case dozer family

The 1850K is the largest and heaviest crawler dozer Case produced in the K-generation modern Case Construction line. It sits above the Case 1650K and the Case 1150K in the line. For commercial mining, heavy industrial dozer work, and the largest land-clearing applications, the 1850K delivers what no smaller Case crawler dozer can match.
