Case Backhoe Shuttle Forward Clutch

 Forward clutch parts for Case power shuttle transmissions, including friction discs, steel plates, pistons, clutch hubs, sealing rings, pressure plates, and complete clutch pack kits for 480, 580, and Super series backhoe loaders.

Fits Models At A Glance

• 480 Series: 480C, 480D, 480E, 480F
• 580 Series: 580C, 580D, 580 Super D, 580E, 580 Super E, 580G, 580K (Before Serial # JJG0020000)

Key Notes

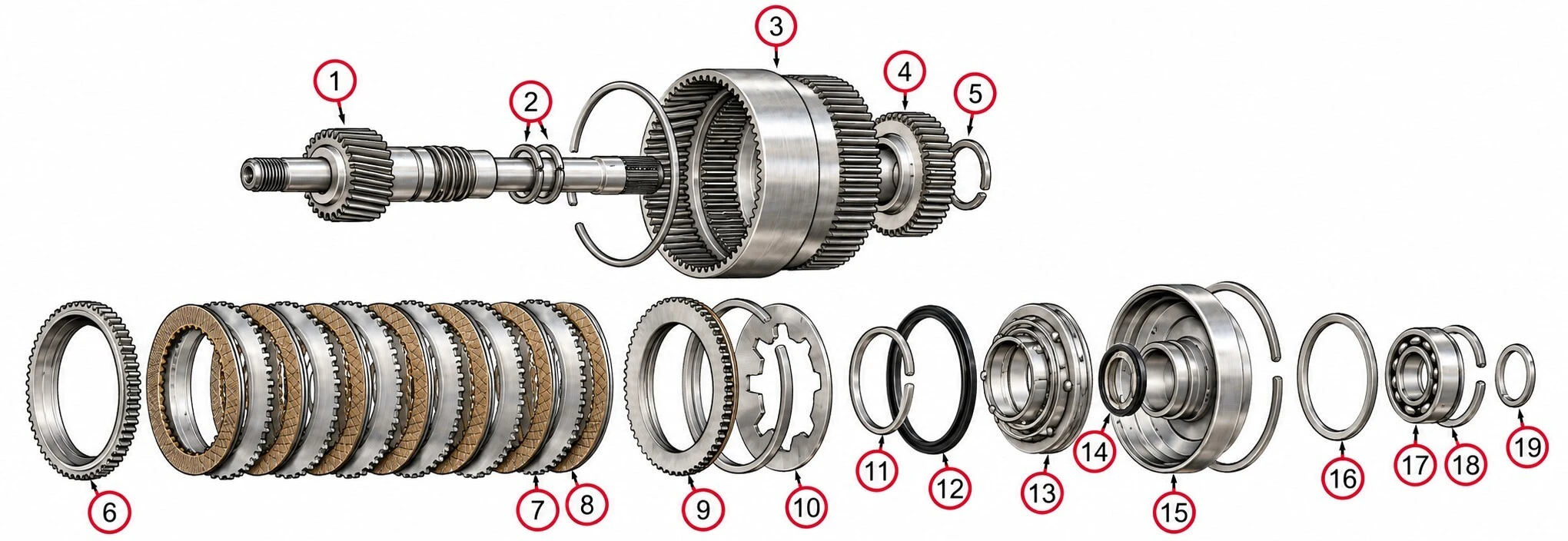

• Application: Forward clutch pack components inside the power shuttle transmission
• Coverage: Friction and steel discs, pistons, hubs, retaining and sealing rings, springs
• Kits Available: Complete clutch and plate kits plus full shuttle rebuild kits
• Serial Note: 580K applications limited to units before serial # JJG0020000

Why Choose Broken Tractor

• ✅ Deep inventory of shuttle clutch components
• ✅ Fast shipping from two US locations
• ✅ Knowledgeable support for correct fitment

Frequently Asked Questions

What are the symptoms of a worn forward clutch on a Case 580C power shuttle?

A worn forward clutch often shows up as slipping when moving forward, delayed or no forward engagement, and reduced pulling power while reverse may still work normally. These symptoms usually point to worn friction and steel discs or failed piston seals inside the forward clutch pack. Broken Tractor carries friction discs, steel plates, pistons, and sealing rings to rebuild the forward clutch.

Do these forward clutch parts fit a Case 580K backhoe?

Most of our forward clutch and power shuttle parts fit the 580K only before serial number JJG0020000. Because fitment on the 580K depends on serial number, match your machine's serial and the part number before ordering. If you are unsure, confirm with the parts team at (800) 909-7060.

What is included in the Case power shuttle rebuild kit?

Our power shuttle rebuild kits cover the wear components inside the shuttle transmission, and coverage varies by kit. The Power Shuttle Rebuild Kit (SKU A574002) and Master Rebuild Kit (SKU A574015) bundle clutch and sealing components, while the kit with pump and torque converter (SKU CS-CPSK) adds those major parts. Check the individual kit listing to see exactly which components are included.

Should I replace the whole clutch pack or just the friction discs on a Case 580D shuttle?

If only the friction discs are worn you can replace them individually, but if the steel plates, pressure plate, or piston seals are also damaged a complete Clutch and Plate Kit (SKU D103219) is often the better choice. We stock individual pieces like the steel clutch disc (SKU D50083), forward friction drive disc (SKU D70672), and forward clutch piston (SKU D70670) so you can rebuild only what you need.

What forward clutch seals do I need for a Case 480C power shuttle?

The forward clutch on the 480C uses several sealing rings, including the outer piston sealing ring (SKU D50077), inner piston sealing ring (SKU D50079), and the forward clutch shaft sealing ring (SKU D50080). Broken Tractor also offers a complete Seal, Gasket, and O-Ring Kit (SKU D103220) that covers the power shuttle sealing components in one package.
