Case 580C Backhoe Pin Kits

Pin kits and bushing kits for Case 580C and related backhoe loaders, covering all major backhoe and loader connection points including dipper, bucket, boom, swing tower, stabilizer, and loader frame circuits.

Fits Models At A Glance

• 480 Series: 480C, 480D, 480E, 480F
• 580B / 580C Series: 580B, 580C
• 580D / 580 Super D / 580 Super E Series: 580D, 580SD, 580SE, 580E, 580 Super D, 580 Super E

Key Notes

• Application: Pin kits and bushing kits for Case backhoe loader and loader frame pivot connection circuits

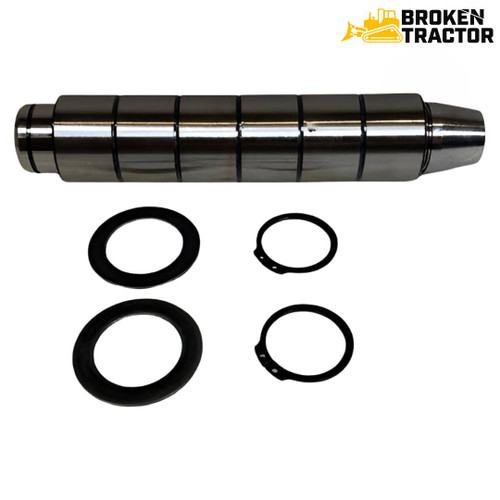

• Coverage: Includes coupler to bucket pin kits, dipper cylinder rod to standard and extendable dipper stick pin kits, bucket cylinder tube to dipper stick pin kits, dipper stick to boom pin kits, boom cylinder to boom pin kits, bucket link to dipper stick pin kits, bucket link to extendable dipper pin kits, bucket links to bucket cylinder rod pin kits, bucket to dipper pin kits in 12-inch and 13-inch configurations, bucket link to bucket pin kits, boom to swing tower pin kits, top and bottom swing tower to frame pin kits, boom cylinder to swing tower pin kits, swing cylinder to swing tower pin kits, swing cylinder tube to frame bushing kits, stabilizer cylinder to frame pin kits, stabilizer cylinder rod end to leg pin kits, stabilizer pad to leg pin kits, extension cylinder tube to extendable dipper stick pin kits, loader frame to chassis pin kits, loader frame to bucket pin kits, lift cylinder rod to loader frame pin kits, drag link to loader bucket pin kits, bucket cylinder link to loader frame bushing kits, loader bucket tilt cylinder tube bushing kits, and bushing tools
• Function: Maintains all major pin and bushing connection integrity across backhoe and loader circuits on Case 580C backhoe loader platforms

Why Choose Broken Tractor

• ✅ Pin kits available for every major connection point on the 580C
• ✅ Covers standard and extendable dipper stick configurations
• ✅ Loader frame, stabilizer, swing tower, and boom pin kits all available

Frequently Asked Questions

What pin kits are available for a Case 580C backhoe?

Broken Tractor carries pin kits for every major connection point on the Case 580C, on both the backhoe and the loader. Backhoe kits include top and bottom swing tower to frame, boom to swing tower, boom cylinder to boom, dipper stick to boom, bucket to dipper stick, bucket link to bucket, and stabilizer kits for the cylinder, rod end and pad. Loader kits include loader frame to chassis (D62192K), lift cylinder rod to loader frame (D67357K), loader frame to bucket (D126717K) and drag link to loader bucket (D37287K).

Do Case 580C backhoe pin kits fit a 580D or 580 Super E?

Many of them do, but not all. For example, the Dipper Stick to Boom kit (D45523-Kit-1) and the Boom Cylinder to Boom kit (D49865-Kit-1) fit the 580C, 580D and 580 Super E. The Top and Bottom Swing Tower to Frame kits (D74004-Kit-1 and D74004-Kit-2) and the Lift Cylinder Rod to Loader Frame kit (D67357K) are listed for the 580C only. Check the fitment on each kit and match the part number, or call (800) 909-7060 to confirm with the parts team.

Which bucket to dipper stick pin kit fits a Case 580C?

Broken Tractor offers two bucket to dipper stick pin kits for the 580C, 580D and 580 Super E. The D55584-Kit-1 is made for 12 inch wide buckets, and the D64799-Kit-1 is the other bucket to dipper stick option. Check your bucket width and match the part number before ordering so you get the correct kit.

Are there pin kits for a Case 580C with an extendable dipper stick?

Yes, extendable dipper stick machines use their own kits. We carry the Dipper Cylinder to Extendable Dipper Stick kit (D37611-Kit-1), the Extension Cylinder Tube to Extendable Dipper Stick kit (D44882-Kit-1) and the Bucket Link to Extendable Dipper Stick kit (D53818-Kit-3). Standard dipper stick machines use kits like the Dipper Cylinder to Dipper Stick kit (D52522-Kit-1) instead, so confirm which dipper style your backhoe has before ordering.

What bushing kits and tools are available for a Case 580C backhoe?

Broken Tractor carries the Swing Cylinder to Frame bushing kit (D60159-Kit-1), the Bucket Cylinder Link to Loader Frame bushing kit (13-16104K) and the Tilt Cylinder Tube at Bucket Link bushing kit (D31511K). For the install, we also offer a steel Bushing Driver Removal and Installation Tool (SKU BushingDriver), a universal tool used for backhoe pin and bushing service.
